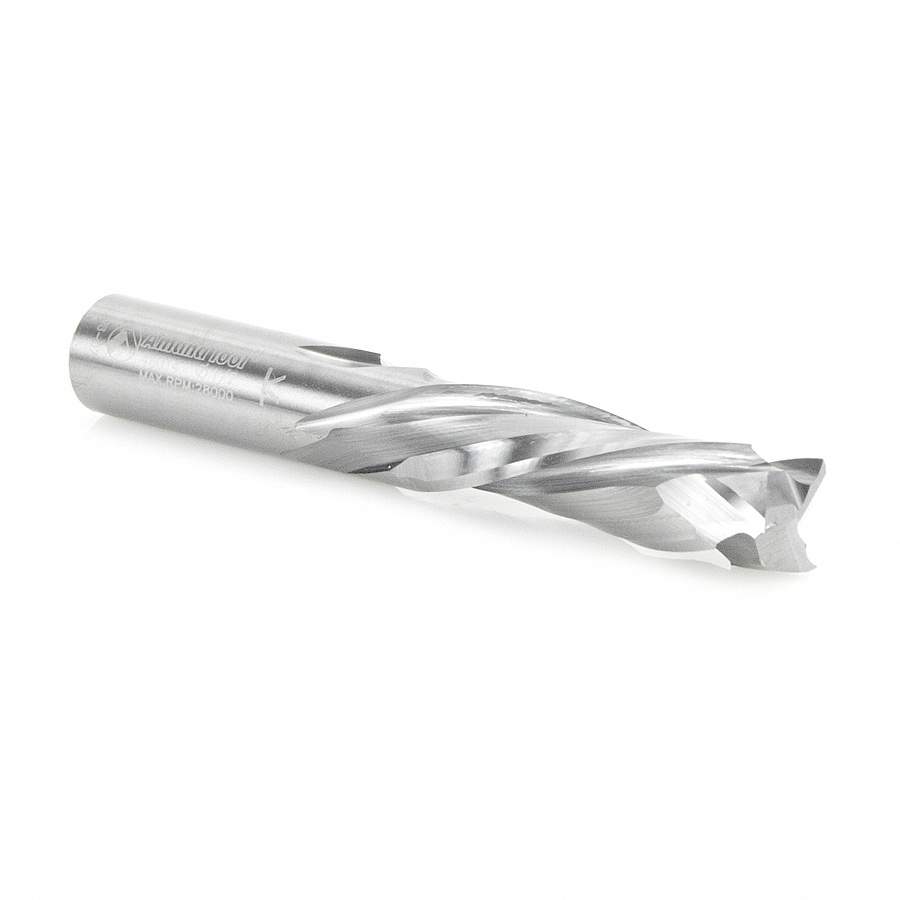

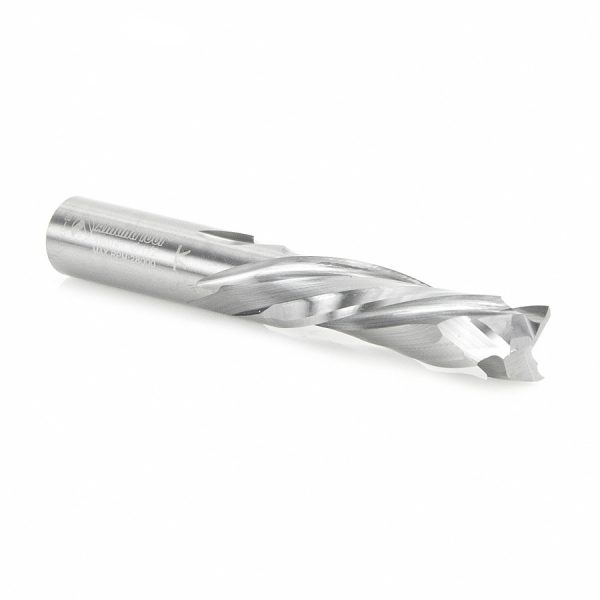

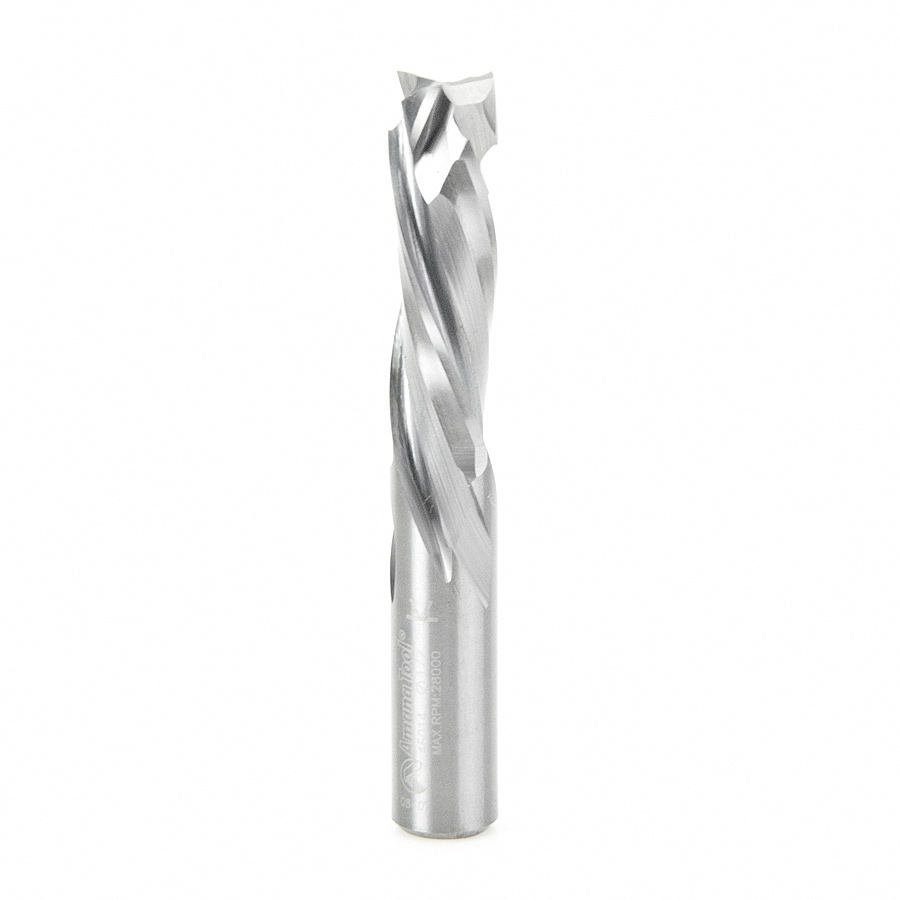

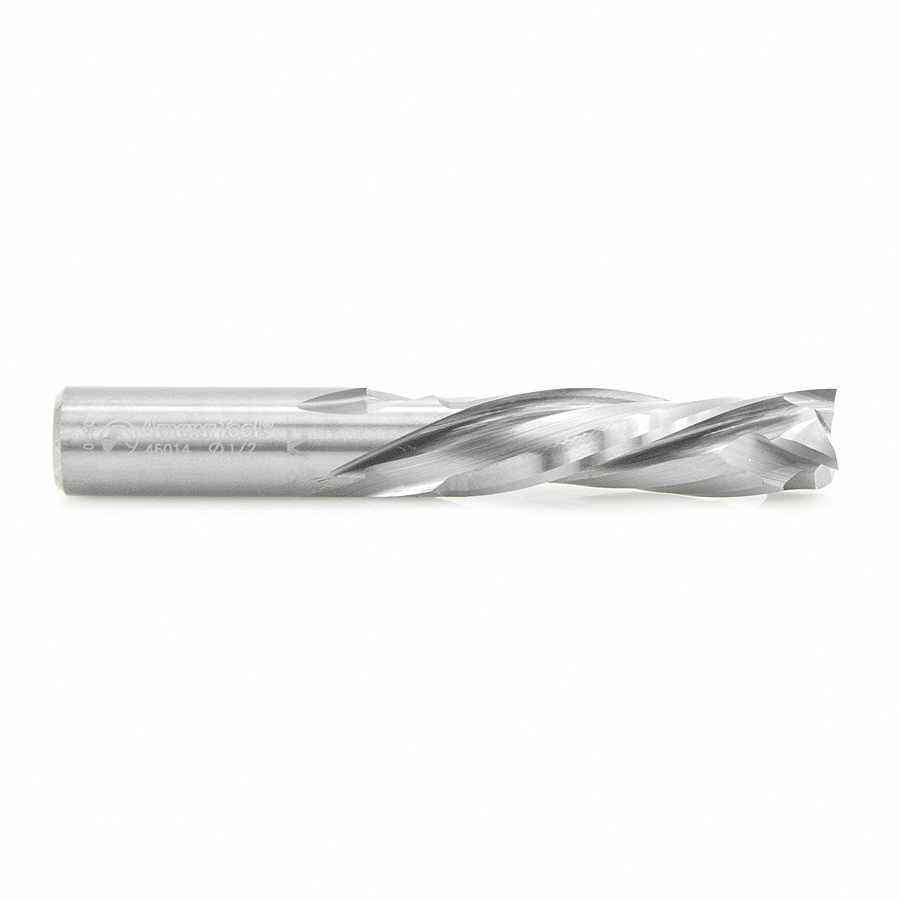

46014 CNC Solid Carbide Compression Spiral 3 Flute x 1/2 Dia x 1-5/8 x 1/2 Inch Shank

Amana 46014 CNC Solid Carbide Compression Spiral 3 Flute x 1/2 Dia x 1-5/8 x 1/2 Inch Shank

Name: Amana 46014 CNC Solid Carbide Compression Spiral 3 Flute x 1/2 Dia x 1-5/8 x 1/2 Inch Shank
SKU: Amana 46014
Availability: InStock

Original price was: $191.30.Current price is: $143.48.

3FL S.CAR.COMPRESSION 1/2″ DIA

UPC: 738685046142 SKU: Amana 46014 Categories: Amana Tool, CNC Router Bits, Solid Carbide Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. 3 flute design provides an extra-smooth finish.

Excellent for cutting:

Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)*
Particle Board

Softwood/Hardwood
Veneered Plywood

Oriented Strand Board is an engineered wood particle board.

Maximum RPM**: 28,000

Vectric compatible tool file for 46014 available for download, click here.

Specifications

(D) Diameter	1/2
(B) Cutting Height	1-5/8
B1	9mm
(d) Shank	1/2
Overall Length (L)	3-1/2
Type	Solid Carbide
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Type	Description	Tool No.
1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/8 (3.18mm)	2-1/2	1	Solid Carbide	–	46137
1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46139
1/8 (3.18mm)	13/16 (20.64mm)	7/32 (5.56mm)	1/8 (3.18mm)	2-1/2	2	Solid Carbide	–	46180
1/8 (3.18mm)	13/16 (20.64mm)	7/32 (5.56mm)	1/8 (3.18mm)	2-1/2	2	Solid Carbide	5	46180-5
5/32 (3.97mm)	7/8 (22.23mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46183
3/16 (4.76mm)	1 (25.40mm)	7/32 (5.56mm)	3/16 (4.76mm)	2-1/2	2	Solid Carbide	–	46181
1/4 (6.35mm)	1 (25.40mm)	.560"0.56	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46036
1/4 (6.35mm)	7/8 (22.23mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46140
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46170
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	5	46170-5
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46170-LH
3/8 (9.53mm)	1-1/8	9mm	3/8 (9.53mm)	3 (76.20mm)	3	Solid Carbide	–	46010
3/8 (9.53mm)	1-1/8	.200"0.20	3/8 (9.53mm)	3 (76.20mm)	1	Solid Carbide	–	46038
3/8 (9.53mm)	7/8 (22.23mm)	.188"0.19	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	–	46171
3/8 (9.53mm)	1-1/4	9mm	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	–	46172
3/8 (9.53mm)	1-1/4	9mm	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	5	46172-5
3/8 (9.53mm)	1-1/8	9mm	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	–	46173
3/8 (9.53mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46174
3/8 (9.53mm)	1-1/8	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46178
1/2 (12.70mm)	1-1/4	9mm	1/2 (12.70mm)	3 (76.20mm)	3	Solid Carbide	–	46012
1/2 (12.70mm)	2-1/8	.511"0.51	1/2 (12.70mm)	5 (127.00mm)	2	Solid Carbide	–	46035
1/2 (12.70mm)	1-1/8	7/16 (11.11mm)	1/2 (12.70mm)	3 (76.20mm)	1	Solid Carbide	–	46158
1/2 (12.70mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46182
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46188
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	5	46188-5
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46188-LH
1/2 (12.70mm)	1-1/2	12mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46189
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46190
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46190-LH
1/2 (12.70mm)	1-1/2	7/16 (11.11mm)	1/2 (12.70mm)	4-1/16	2	Solid Carbide	–	46191

Weight	0.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
