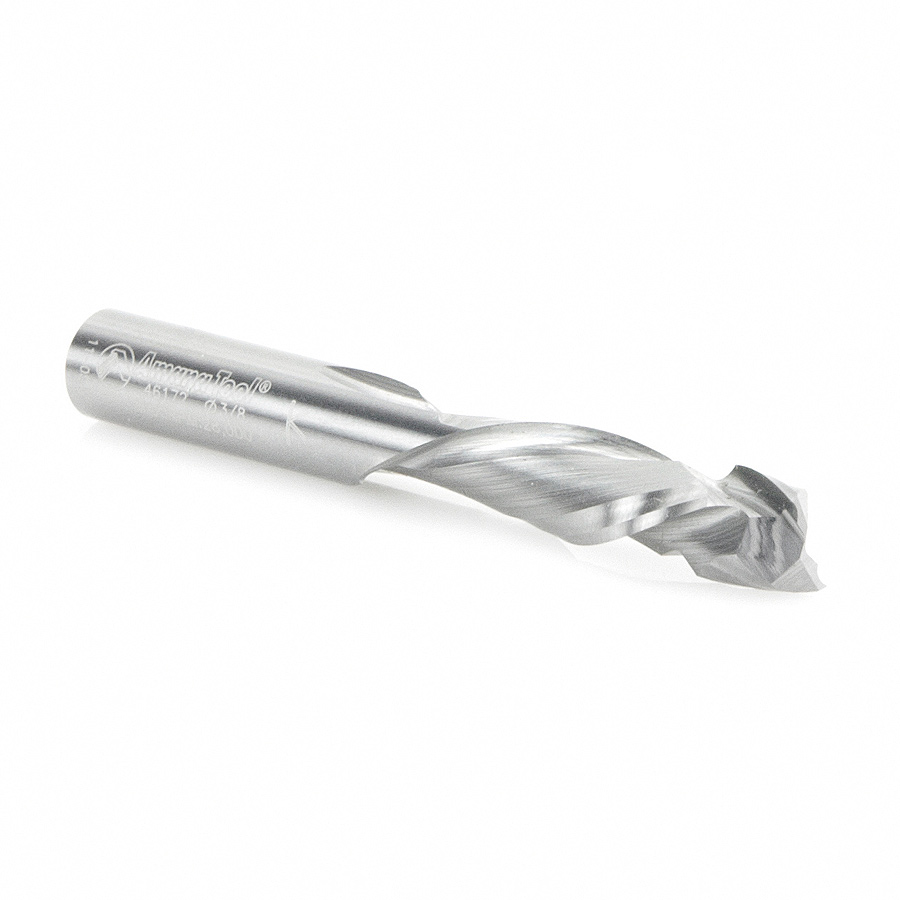

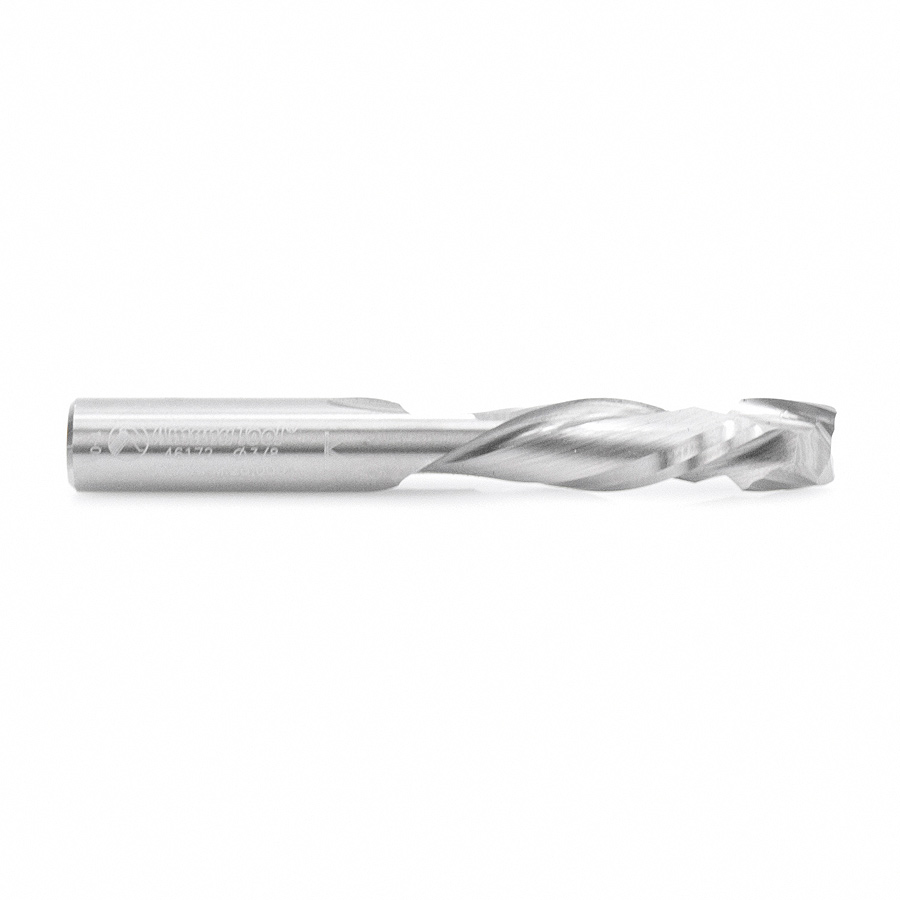

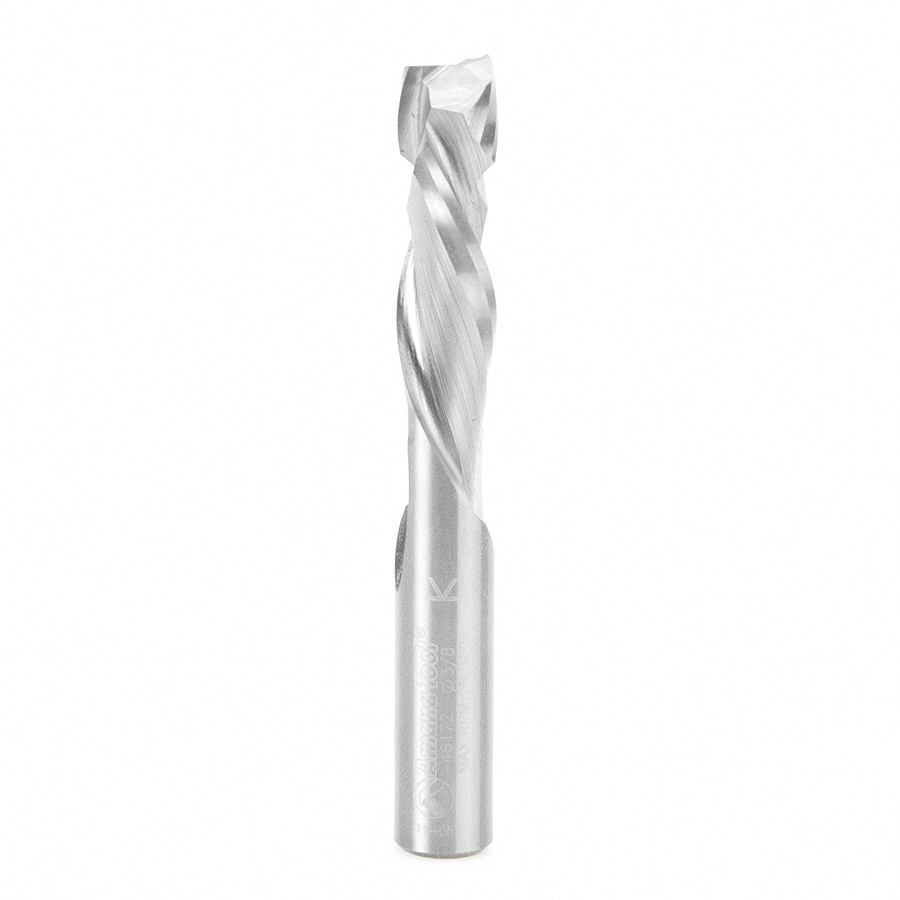

46172 CNC Solid Carbide Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank

Amana 46172 CNC Solid Carbide Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank

Name: Amana 46172 CNC Solid Carbide Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank
SKU: Amana 46172
Availability: InStock

Original price was: $127.60.Current price is: $95.70.

SOLID CAR.COMPRESSION 3/8″ DIA

UPC: 738685946176 SKU: Amana 46172 Categories: Amana Tool, CNC Router Bits, Solid Carbide Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.

Excellent for cutting:

Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)*
Particle Board

Softwood/Hardwood
Veneered Plywood

Oriented Strand Board is an engineered wood particle board.

Vectric and Fusion 360 compatible tool files for 46172 available for download,click here.

Specifications

(D) Diameter	3/8
(B) Cutting Height	1-1/4
B1	9mm
(d) Shank	3/8
Overall Length (L)	3
Type	Solid Carbide
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Type	Description	Tool No.
1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/8 (3.18mm)	2-1/2	1	Solid Carbide	–	46137
1/8 (3.18mm)	3/8 (9.53mm)	5/32 (3.97mm)	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46139
1/8 (3.18mm)	13/16 (20.64mm)	7/32 (5.56mm)	1/8 (3.18mm)	2-1/2	2	Solid Carbide	–	46180
1/8 (3.18mm)	13/16 (20.64mm)	7/32 (5.56mm)	1/8 (3.18mm)	2-1/2	2	Solid Carbide	5	46180-5
5/32 (3.97mm)	7/8 (22.23mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46183
3/16 (4.76mm)	1 (25.40mm)	7/32 (5.56mm)	3/16 (4.76mm)	2-1/2	2	Solid Carbide	–	46181
1/4 (6.35mm)	1 (25.40mm)	.560"0.56	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46036
1/4 (6.35mm)	7/8 (22.23mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	1	Solid Carbide	–	46140
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46170
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	5	46170-5
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	–	46170-LH
3/8 (9.53mm)	1-1/8	9mm	3/8 (9.53mm)	3 (76.20mm)	3	Solid Carbide	–	46010
3/8 (9.53mm)	1-1/8	.200"0.20	3/8 (9.53mm)	3 (76.20mm)	1	Solid Carbide	–	46038
3/8 (9.53mm)	7/8 (22.23mm)	.188"0.19	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	–	46171
3/8 (9.53mm)	1-1/4	9mm	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	5	46172-5
3/8 (9.53mm)	1-1/8	9mm	3/8 (9.53mm)	3 (76.20mm)	2	Solid Carbide	–	46173
3/8 (9.53mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46174
3/8 (9.53mm)	1-1/8	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46178
1/2 (12.70mm)	1-1/4	9mm	1/2 (12.70mm)	3 (76.20mm)	3	Solid Carbide	–	46012
1/2 (12.70mm)	1-5/8	9mm	1/2 (12.70mm)	3-1/2	3	Solid Carbide	–	46014
1/2 (12.70mm)	2-1/8	.511"0.51	1/2 (12.70mm)	5 (127.00mm)	2	Solid Carbide	–	46035
1/2 (12.70mm)	1-1/8	7/16 (11.11mm)	1/2 (12.70mm)	3 (76.20mm)	1	Solid Carbide	–	46158
1/2 (12.70mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46182
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46188
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	5	46188-5
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	–	46188-LH
1/2 (12.70mm)	1-1/2	12mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46189
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46190
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	–	46190-LH
1/2 (12.70mm)	1-1/2	7/16 (11.11mm)	1/2 (12.70mm)	4-1/16	2	Solid Carbide	–	46191

Weight	0.16 lbs
