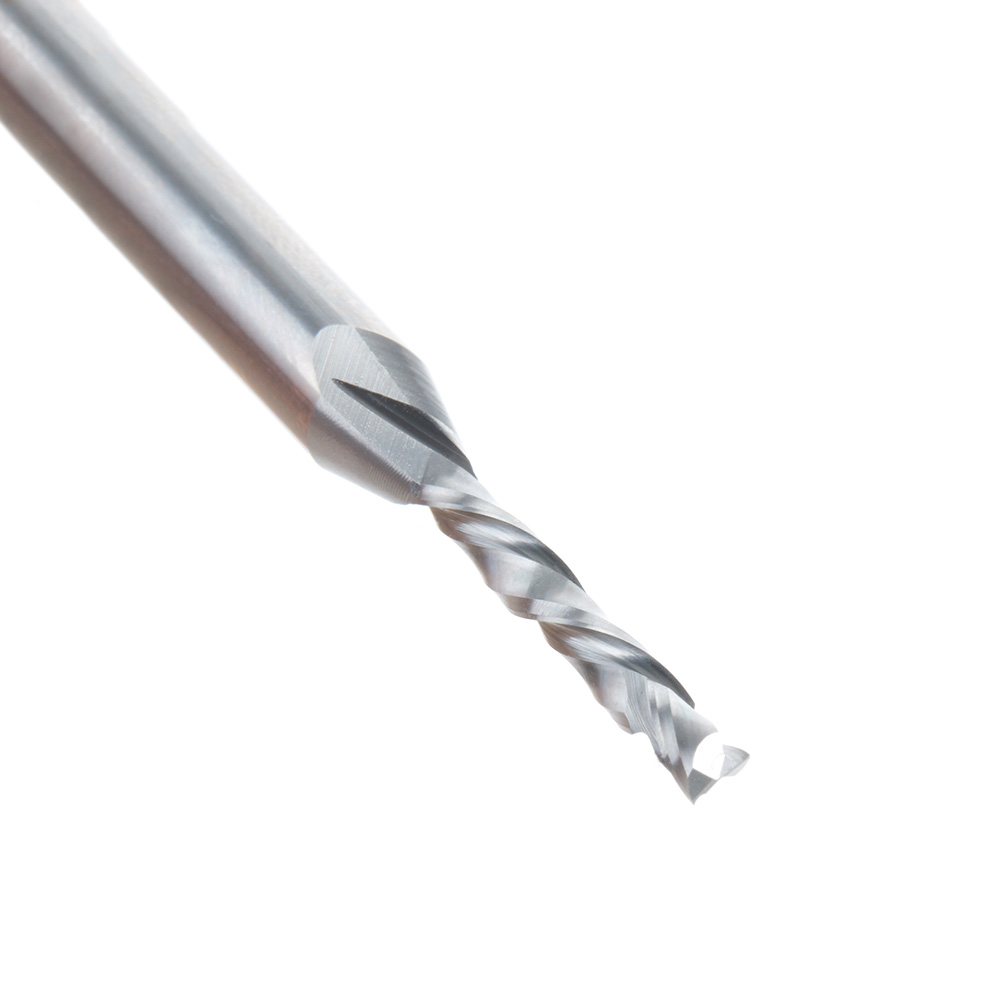

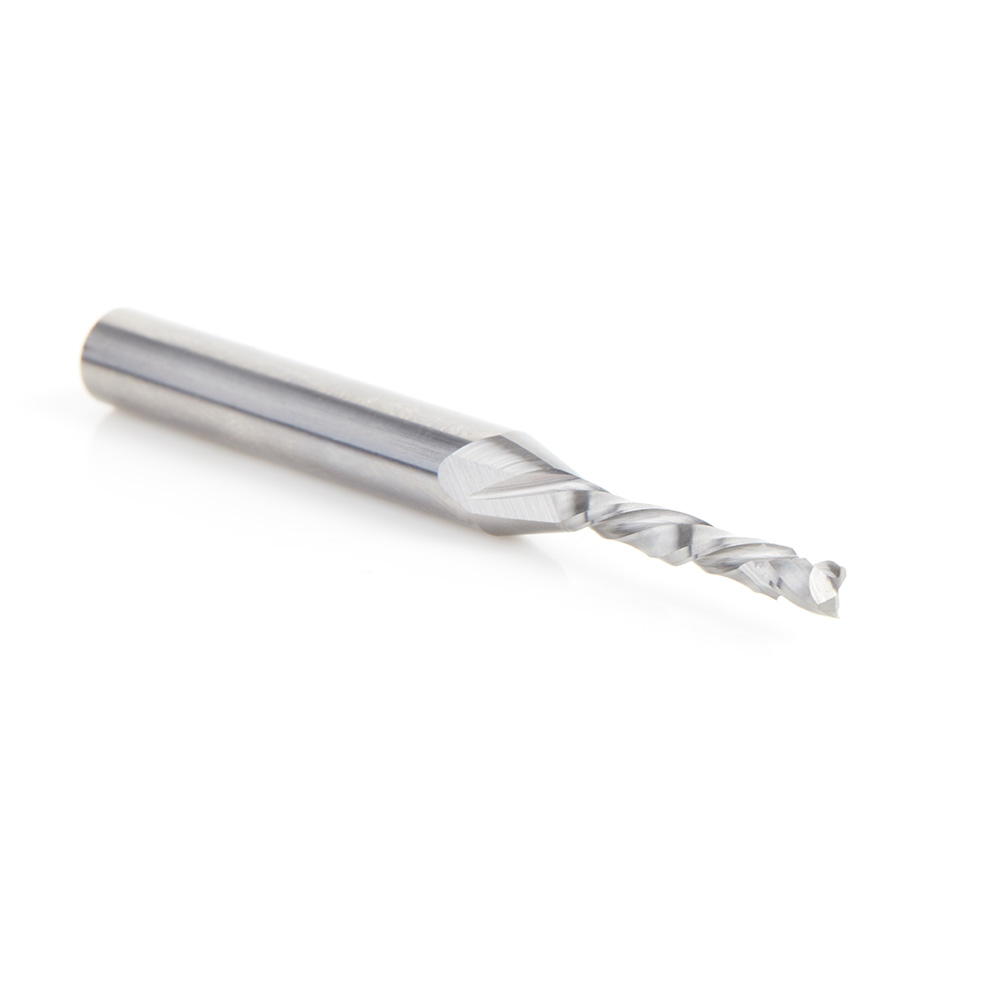

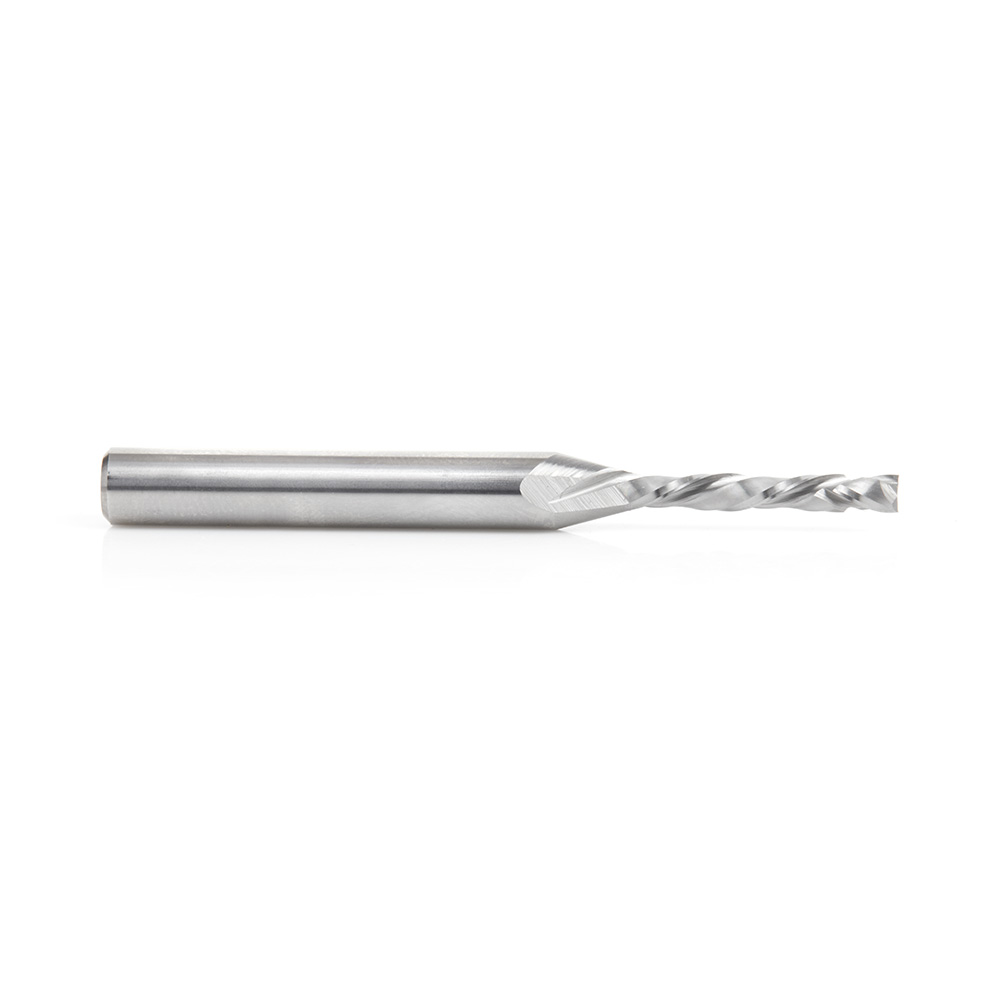

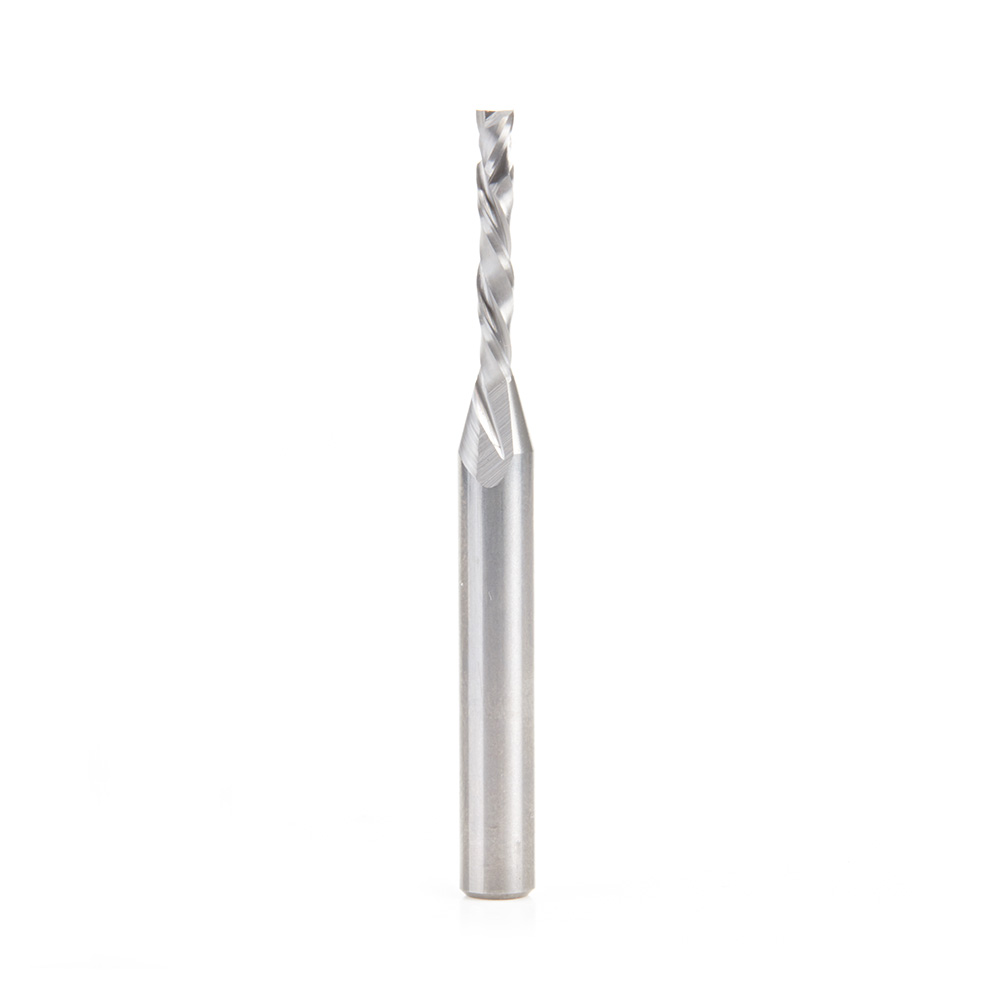

46176 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/4 Inch Shank

Amana 46176 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/4 Inch Shank

Name: Amana 46176 CNC Solid Carbide Compression Spiral 1/8 Dia x 13/16 x 1/4 Inch Shank
SKU: Amana 46176
Availability: InStock

Original price was: $101.20.Current price is: $75.90.

S.C.COMPRESSION 1/8″Dx1/4″SHK

UPC: 738685461761 SKU: Amana 46176 Categories: Amana Tool, CNC Router Bits, Solid Carbide Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.

Excellent for cutting:

Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)*
Particle Board

Softwood/Hardwood
Veneered Plywood

Oriented Strand Board is an engineered wood particle board.

Vectric and Fusion 360 compatible tool files for 46176 available for download, click here.

Specifications

(D) Diameter	1/8
(B) Cutting Height	13/16
B1	7/32
(d) Shank	1/4
Overall Length (L)	2-1/2
Type	Solid Carbide
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Type	Tool No.
1/8 (3.18mm)	13/16 (20.64mm)	7/32 (5.56mm)	1/8 (3.18mm)	2-1/2	2	Solid Carbide	46180
5/32 (3.97mm)	7/8 (22.23mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	Solid Carbide	46183
1/4 (6.35mm)	7/8 (22.23mm)	7mm	1/4 (6.35mm)	2-1/2	2	Solid Carbide	46170-LH
3/8 (9.53mm)	1-1/8	9mm	3/8 (9.53mm)	3 (76.20mm)	3	Solid Carbide	46010
3/8 (9.53mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	46174
3/8 (9.53mm)	1-1/8	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	46178
1/2 (12.70mm)	1-1/4	9mm	1/2 (12.70mm)	3 (76.20mm)	3	Solid Carbide	46012
1/2 (12.70mm)	1-5/8	9mm	1/2 (12.70mm)	3-1/2	3	Solid Carbide	46014
1/2 (12.70mm)	1 (25.40mm)	9mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	46182
1/2 (12.70mm)	1-1/4	11mm	1/2 (12.70mm)	3 (76.20mm)	2	Solid Carbide	46188-LH
1/2 (12.70mm)	1-1/2	12mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	46189
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	46190
1/2 (12.70mm)	1-5/8	13mm	1/2 (12.70mm)	3-1/2	2	Solid Carbide	46190-LH
1/2 (12.70mm)	1-1/2	7/16 (11.11mm)	1/2 (12.70mm)	4-1/16	2	Solid Carbide	46191

Weight	0.06 lbs
