46226 CNC Solid Carbide Roughing Spiral 3 Flute Chipbreaker 1/2 Dia x 2 Inch x 1/2 Shank Down-Cut Router Bit

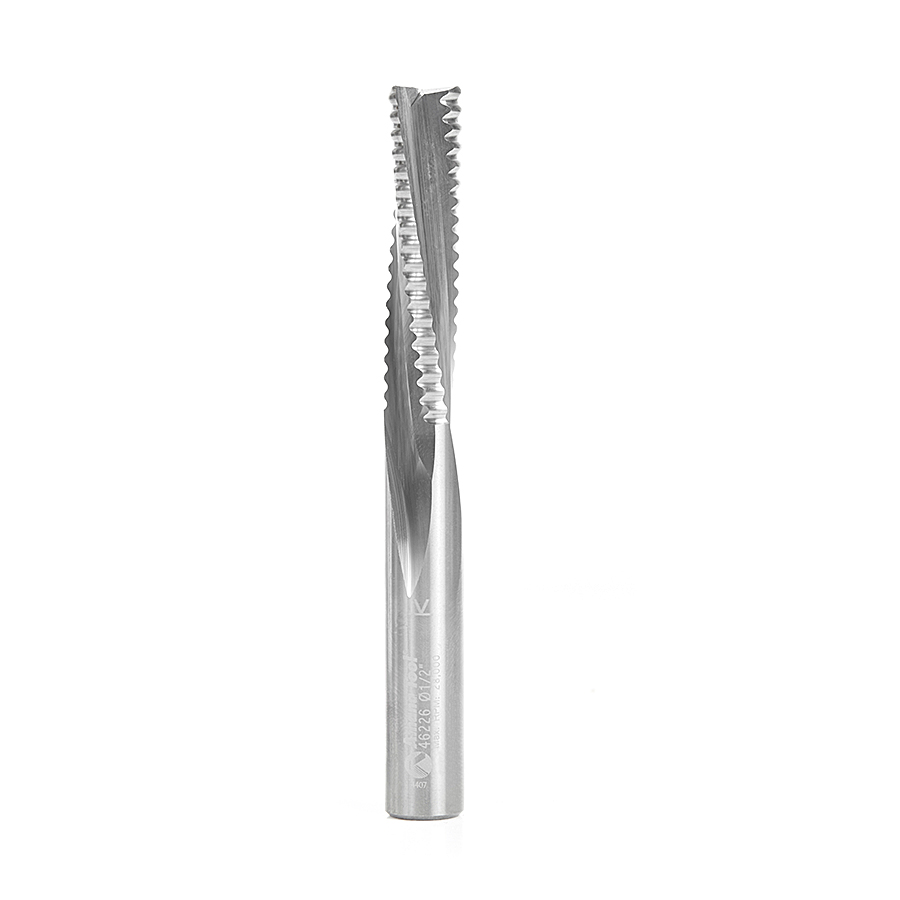

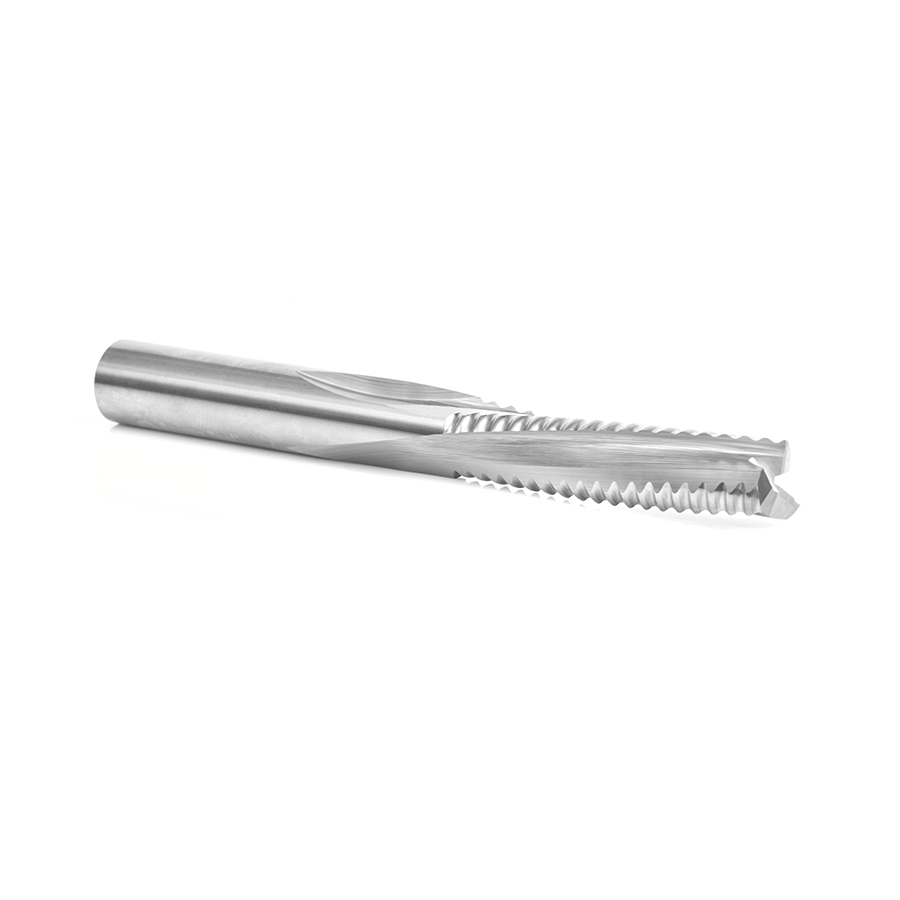

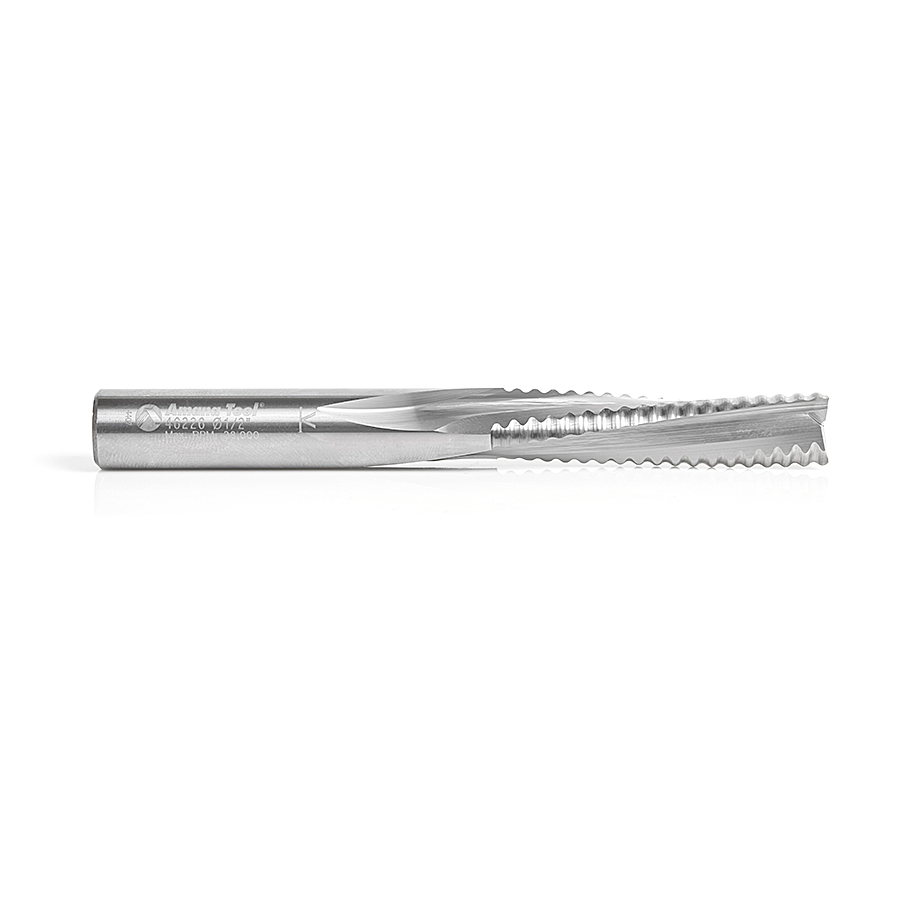

Amana 46226 CNC Solid Carbide Roughing Spiral 3 Flute Chipbreaker 1/2 Dia x 2 Inch x 1/2 Shank Down-Cut Router Bit

Name: Amana 46226 CNC Solid Carbide Roughing Spiral 3 Flute Chipbreaker 1/2 Dia x 2 Inch x 1/2 Shank Down-Cut Router Bit
SKU: Amana 46226
Availability: InStock

Original price was: $338.25.Current price is: $253.69.

SC SPIRAL 1/2″ DIA. ROUGHING

UPC: 738685462263 SKU: Amana 46226 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral 3 Flute Roughing CNC Router Bits with Chipbreaker, Spiral & Compression CNC Router Bits

Item Description

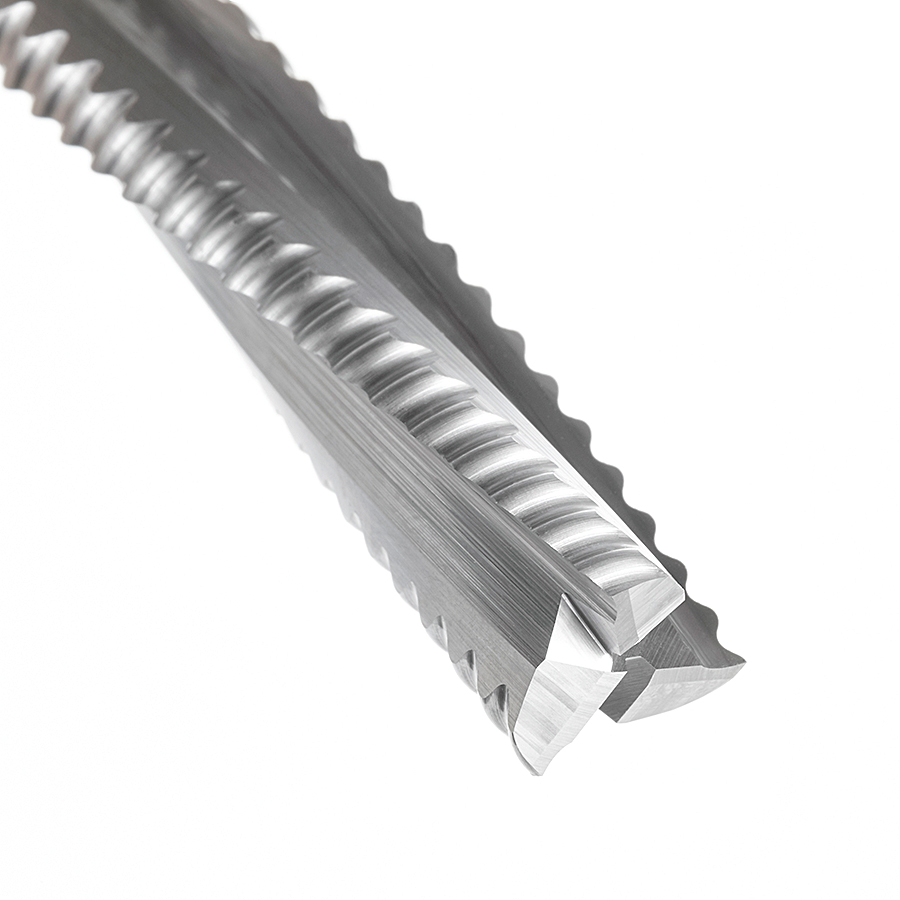

Specially designed for high RPM/feed rate CNC routers. Unique chipbreaker design is available with ‘Up-Cut’ or ‘Down-Cut’. Will leave a wavy striated finish.

Excellent for cutting:

Wood
Veneered Plywood
Laminate

Recommended RPM 20,000 to 21,000.

Vectric compatible tool file for 46226 available for download,click here.

Specifications

Direction	Down-Cut
(D) Diameter	1/2
(B) Cutting Height	2
(d) Shank	1/2
Overall Length (L)	4-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	3	Up-Cut	46141
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Up-Cut	46129
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Down-Cut	46223
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	3	Up-Cut	59420
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	4 (101.60mm)	3	Up-Cut	46124
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	3	Up-Cut	46126
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	4 (101.60mm)	3	Down-Cut	46224

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
