Sale!

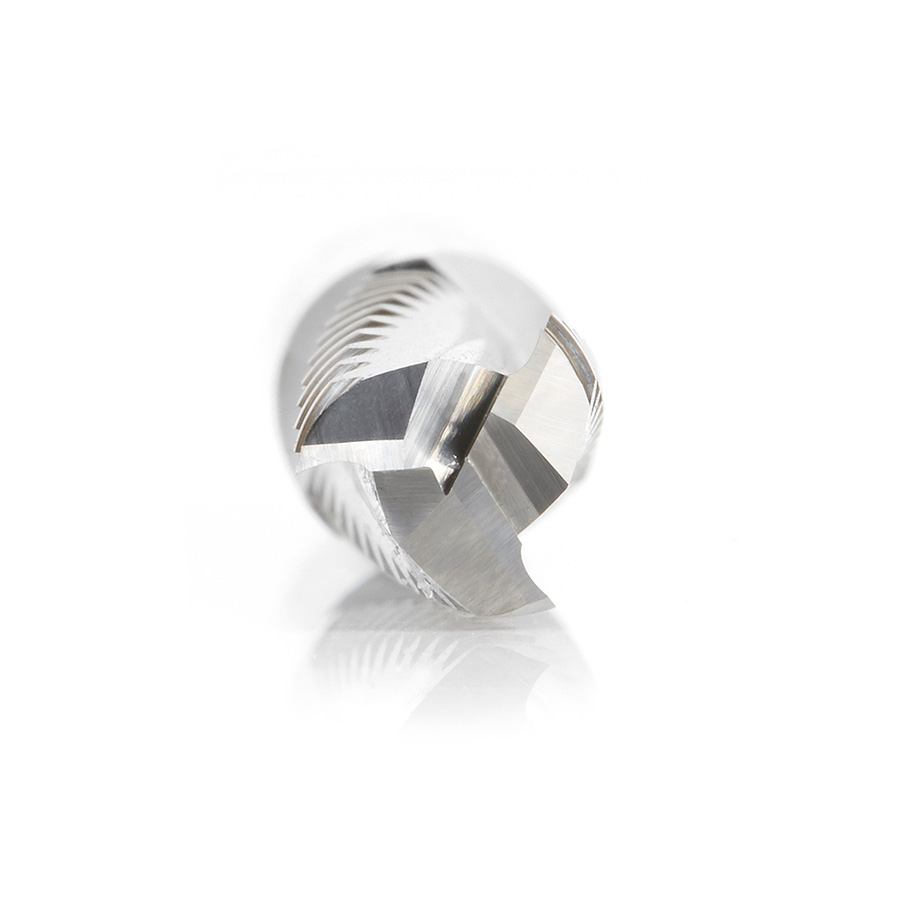

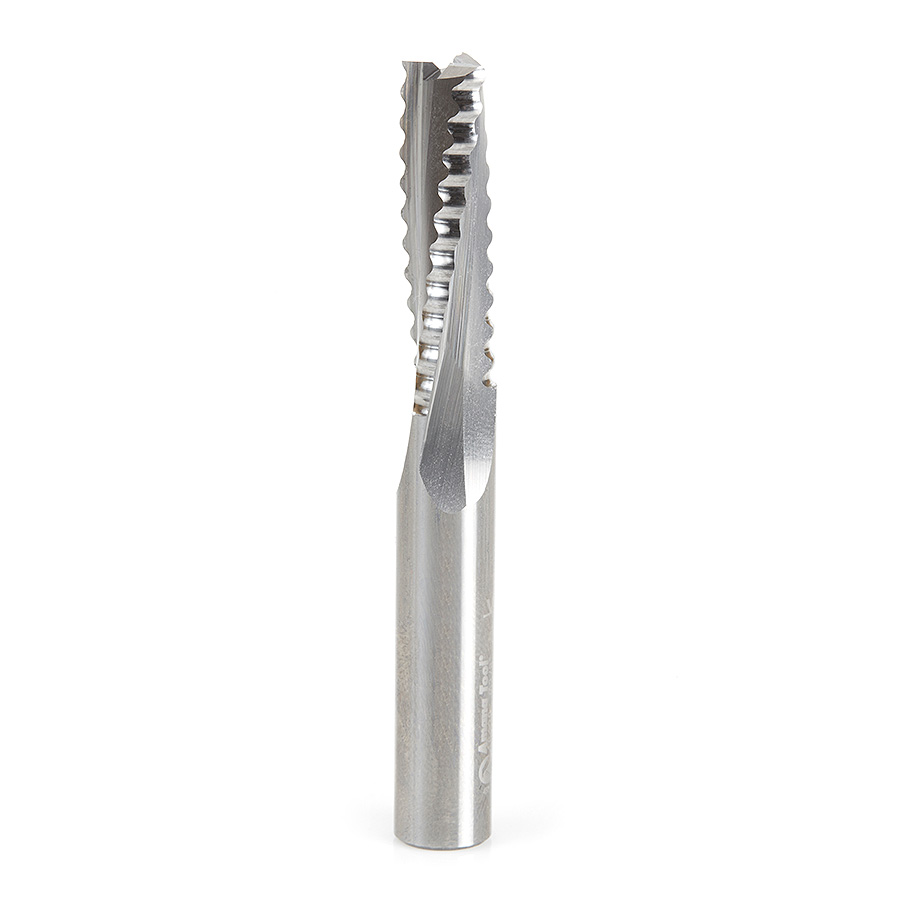

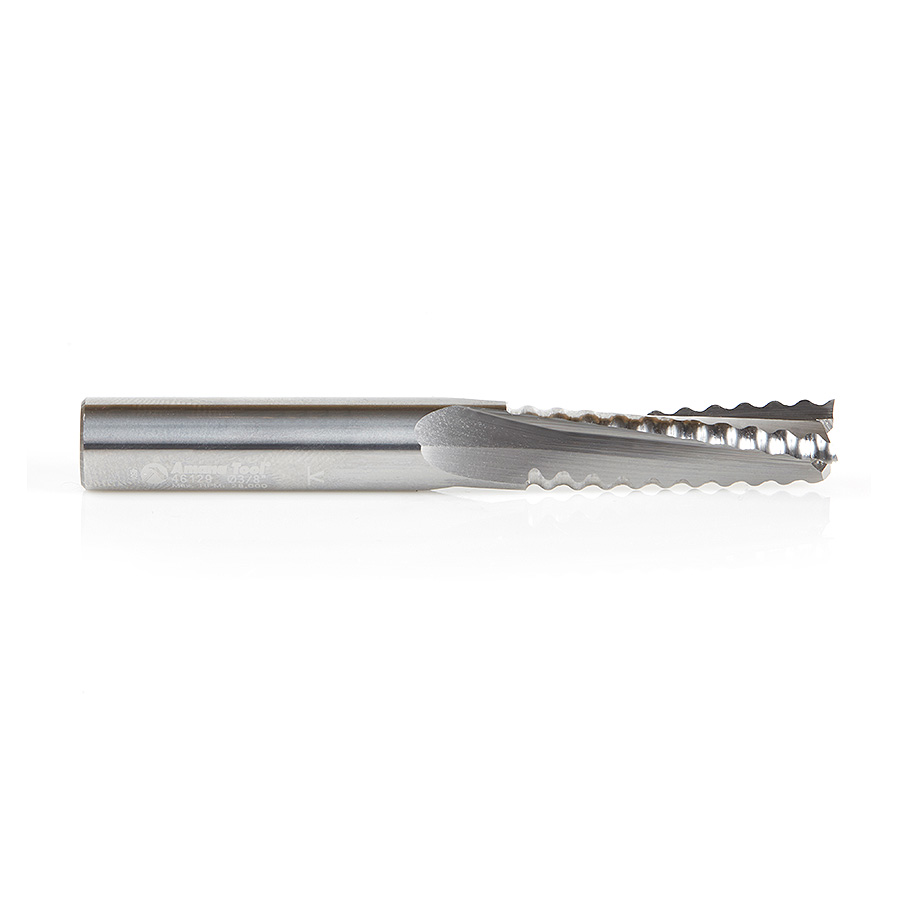

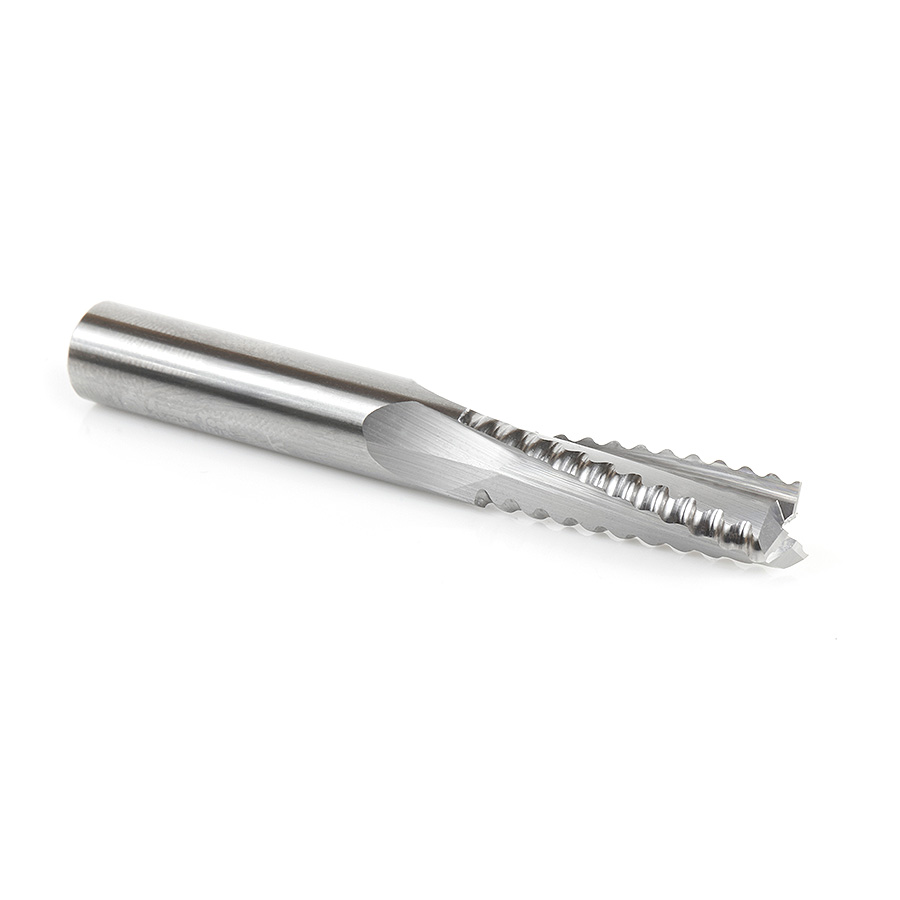

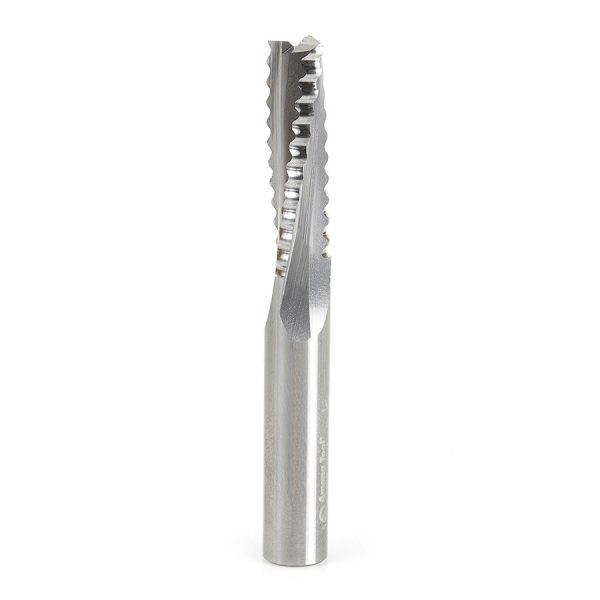

46129 CNC Solid Carbide Roughing Spiral 3 Flute Chipbreaker 3/8 Dia x 1-1/4 x 3/8 Inch Shank Up-Cut Router Bit

Amana 46129 CNC Solid Carbide Roughing Spiral 3 Flute Chipbreaker 3/8 Dia x 1-1/4 x 3/8 Inch Shank Up-Cut Router Bit

Original price was: $175.45.Current price is: $131.59.

SC SPIRAL 3/8″DIA ROUGHING U.C

Item Description

Specially designed for high RPM/feed rate CNC routers. Unique chipbreaker design is available with ‘Up-Cut’ or ‘Down-Cut’. Will leave a wavy striated finish.

Excellent for cutting:

Wood
Veneered Plywood
Laminate

Recommended RPM 20,000 to 21,000.

Vectric compatible tool file for 46129 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	3/8
(B) Cutting Height	1-1/4
(d) Shank	3/8
Overall Length (L)	3
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	3	Up-Cut	46141
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Down-Cut	46223
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	3	Up-Cut	59420
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	4 (101.60mm)	3	Up-Cut	46124
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	3	Up-Cut	46126
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	4 (101.60mm)	3	Down-Cut	46224
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	3	Down-Cut	46226

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
