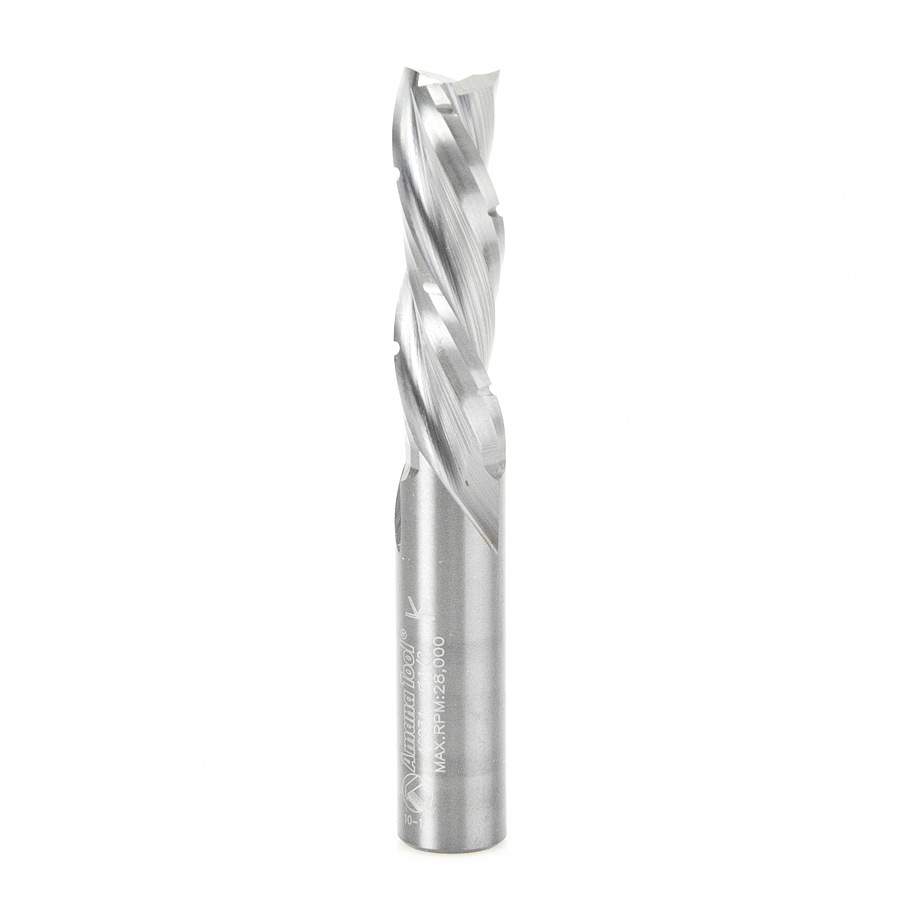

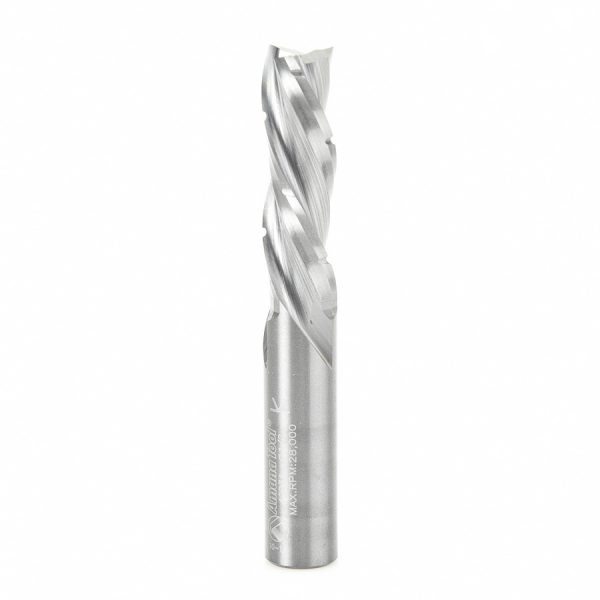

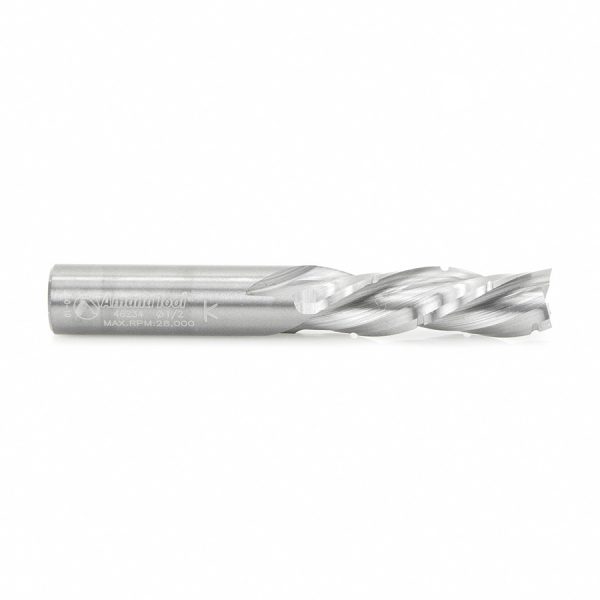

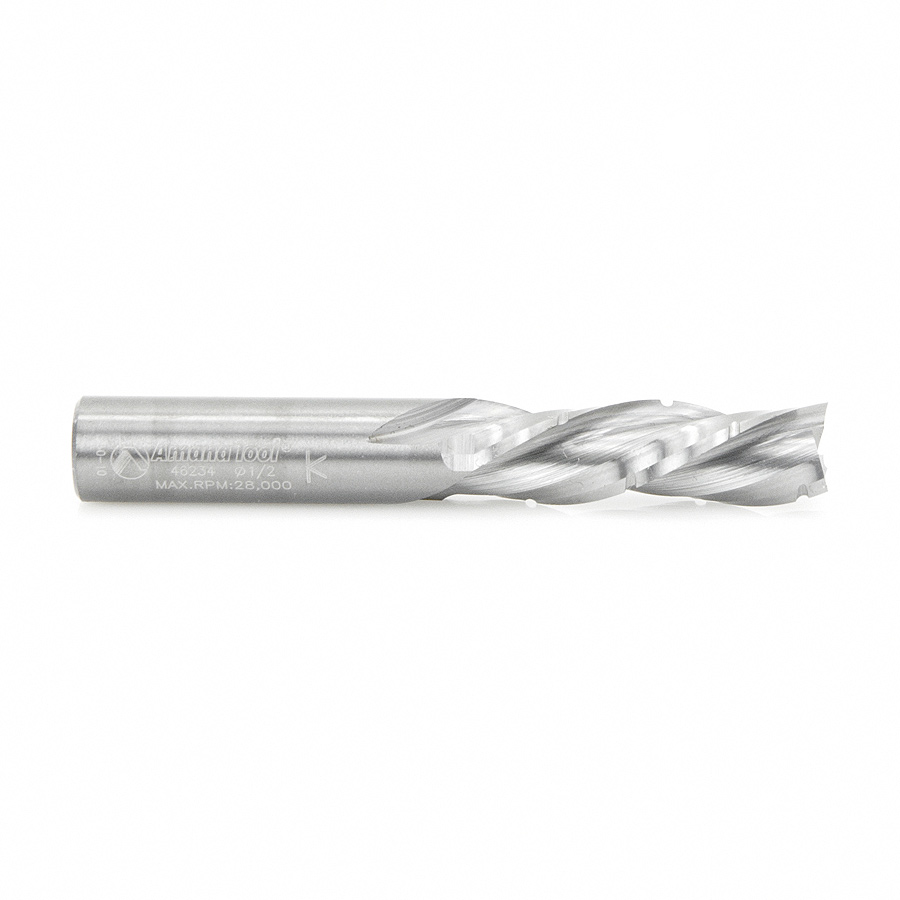

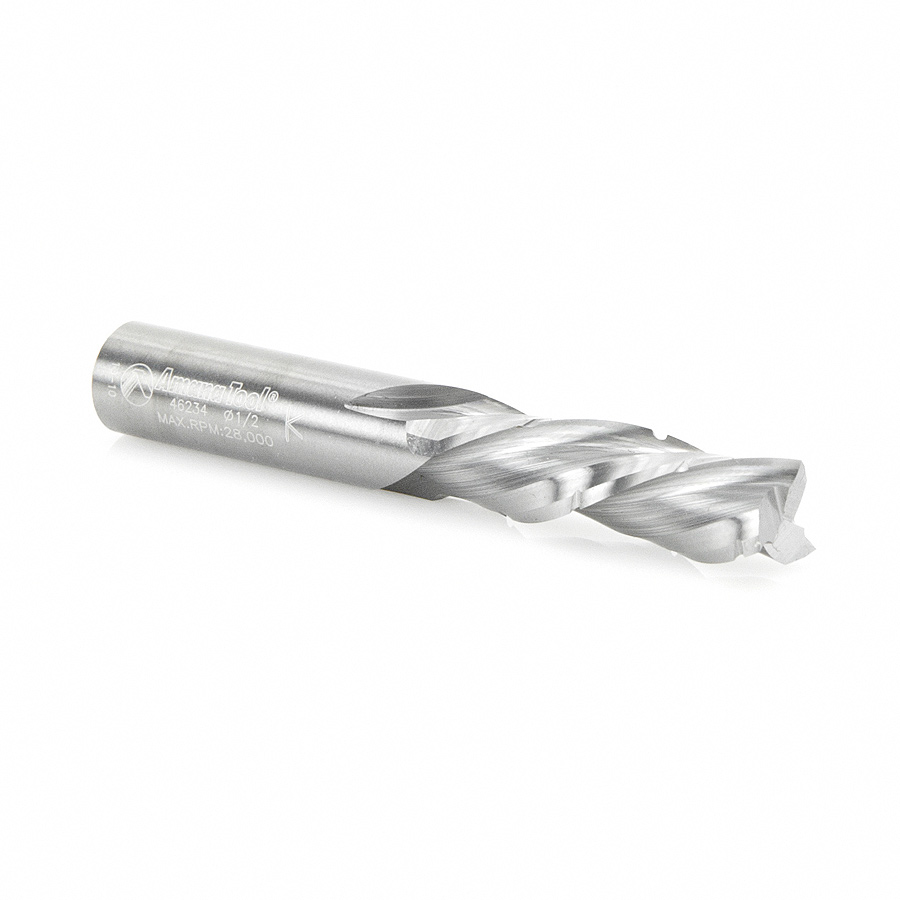

46234 CNC Solid Carbide Spiral Flute Roughing/Finishing with Chipbreaker 1/2 Dia x 1-5/8 x 1/2 Inch Shank Down-Cut Router Bit

Amana 46234 CNC Solid Carbide Spiral Flute Roughing/Finishing with Chipbreaker 1/2 Dia x 1-5/8 x 1/2 Inch Shank Down-Cut Router Bit

Name: Amana 46234 CNC Solid Carbide Spiral Flute Roughing/Finishing with Chipbreaker 1/2 Dia x 1-5/8 x 1/2 Inch Shank Down-Cut Router Bit
SKU: Amana 46234
Availability: InStock

Original price was: $255.10.Current price is: $191.33.

SC SPIRAL 1/2″ DIA. ROUGHING

UPC: 738685462348 SKU: Amana 46234 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral 3 Flute CNC Router Bits with Chipbreaker, Spiral & Compression CNC Router Bits

Item Description

This series has a small chipbreaker therefore the quality of cut will improve. It will leave a smaller striated finish. For massive wood only.

Vectric compatible tool file for 46234 available for download, click here.

Specifications

Direction	Down-Cut
(D) Diameter	1/2
(B) Cutting Height	1-5/8
(d) Shank	1/2
Overall Length (L)	3-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	3	Up-Cut	46134
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	3	Down-Cut	46232
3/4 (19.05mm)	2-1/4	3/4 (19.05mm)	4 (101.60mm)	3	Up-Cut	46138
3/4 (19.05mm)	2-1/4	3/4 (19.05mm)	4 (101.60mm)	3	Down-Cut	46238

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
