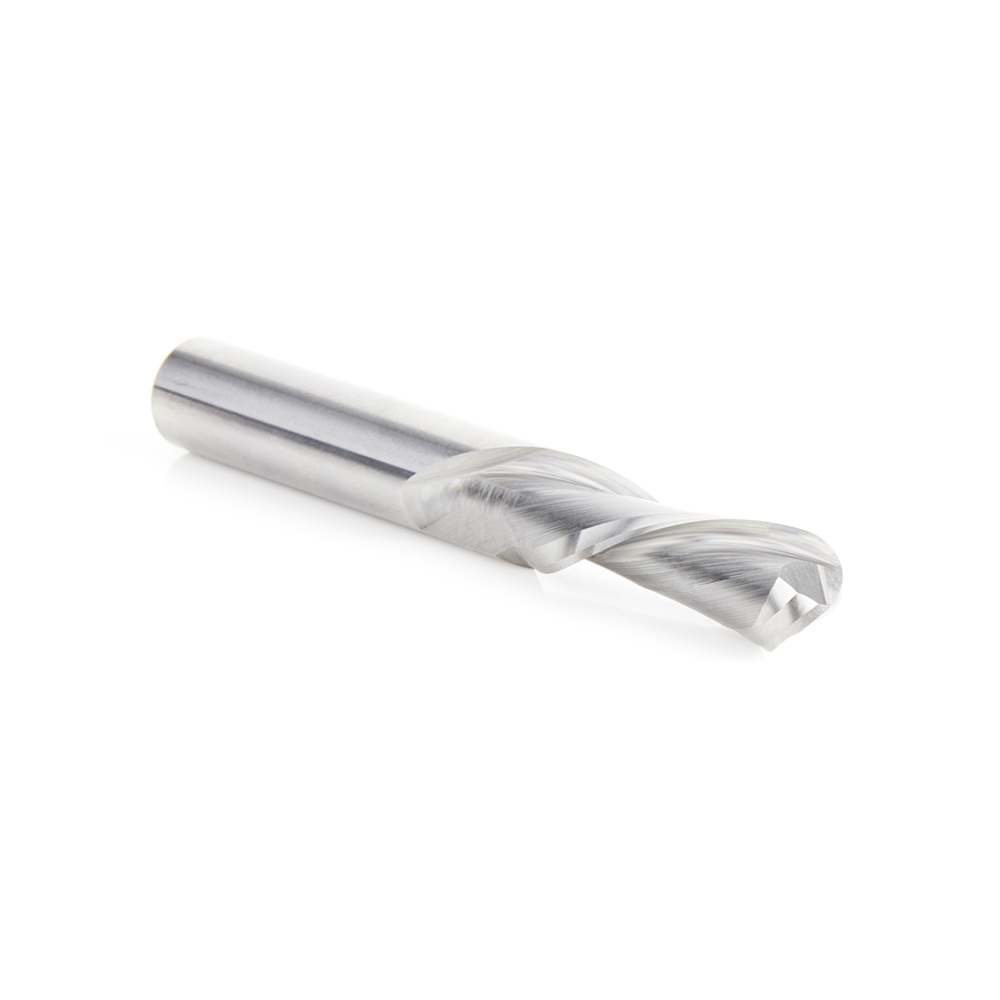

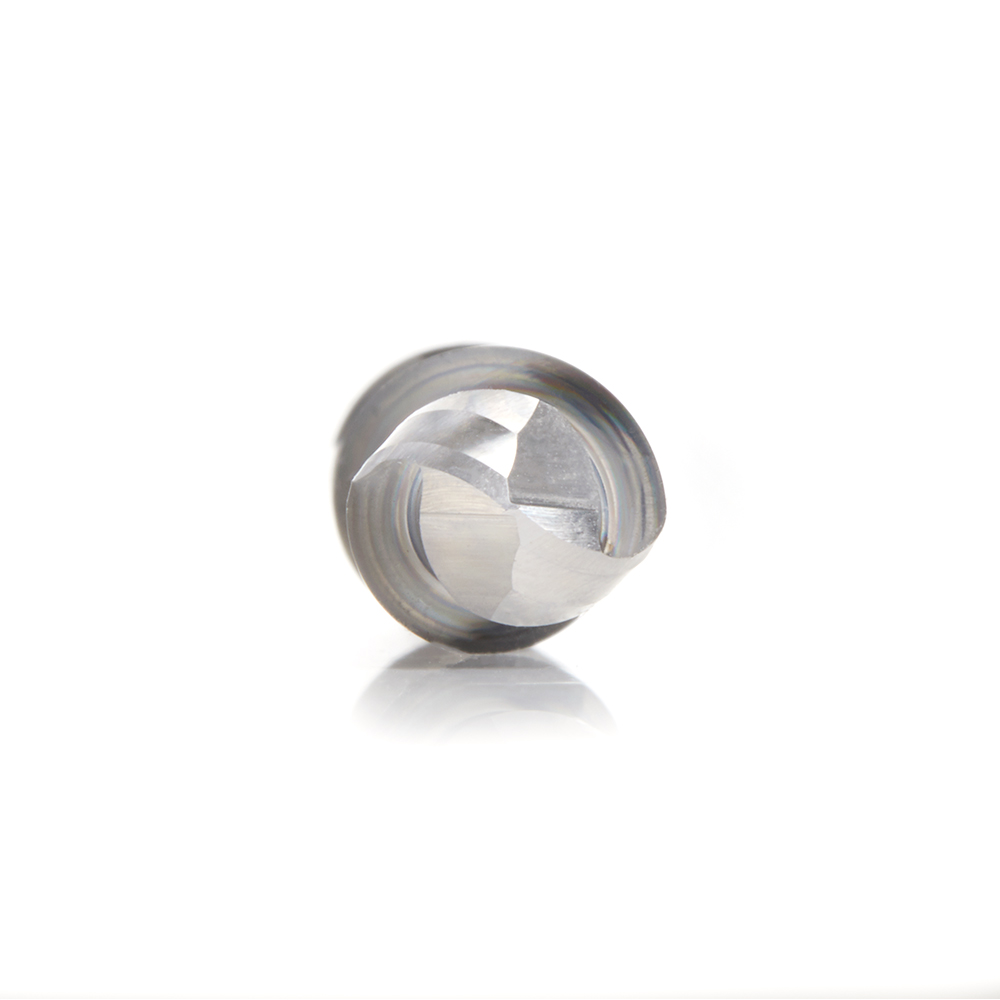

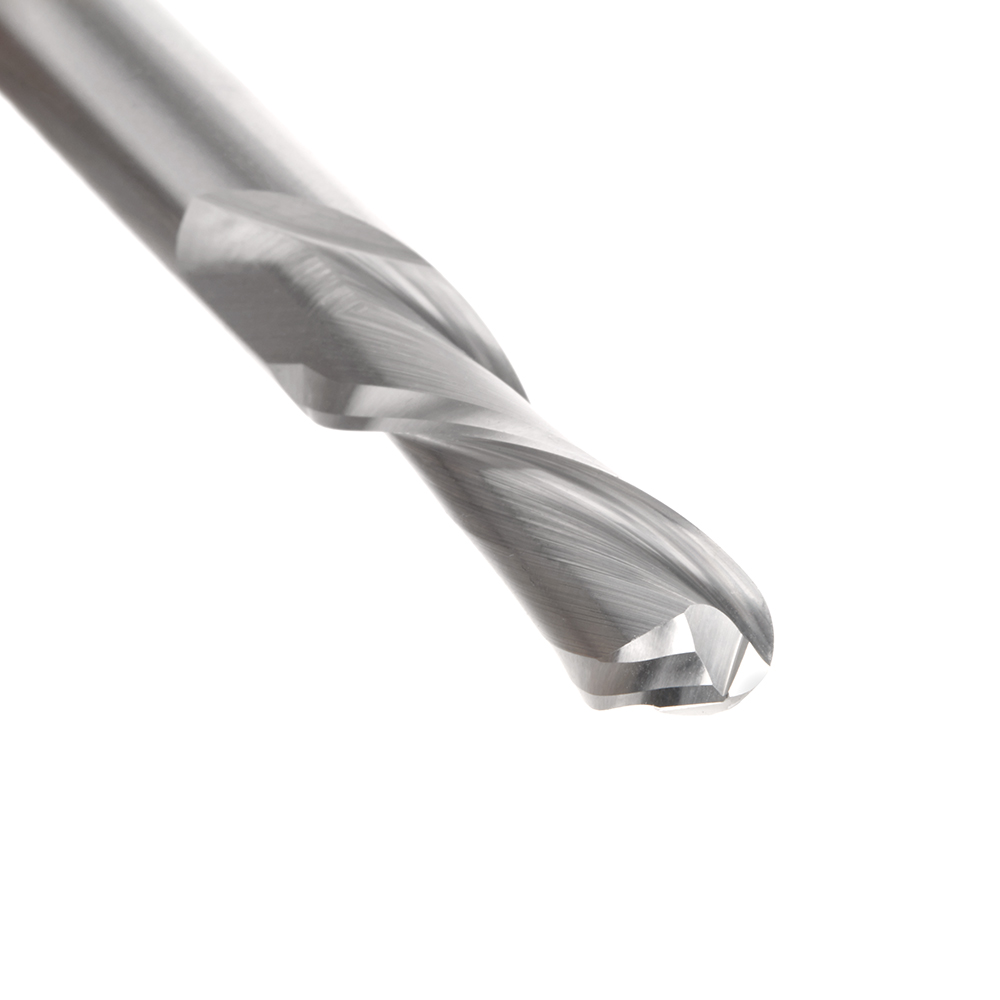

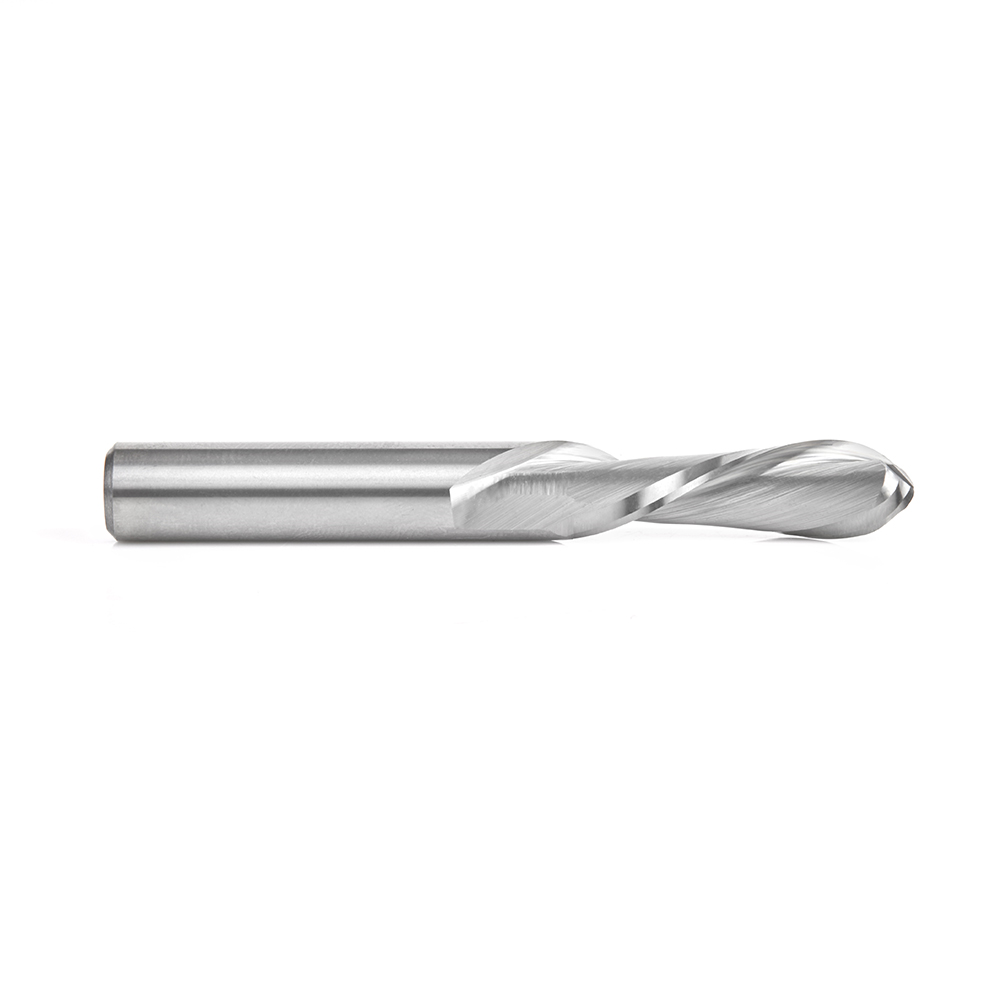

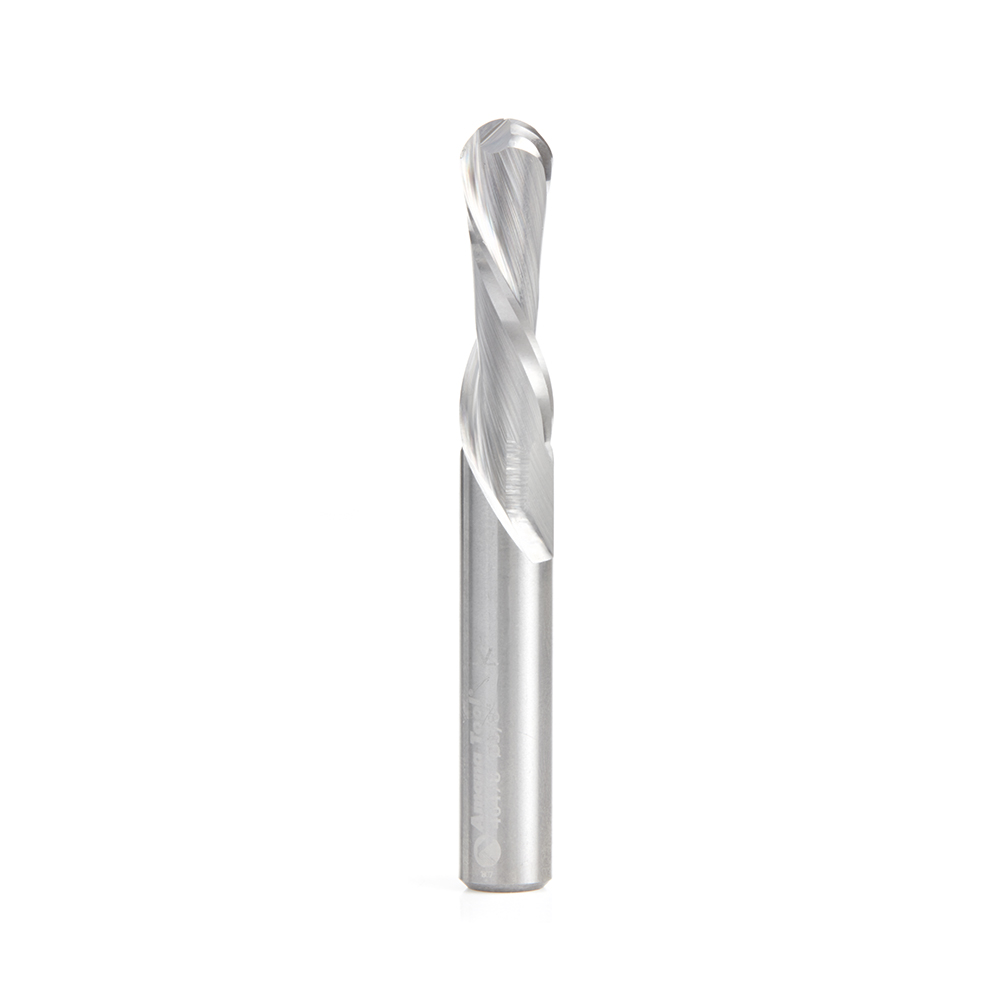

46478 Solid Carbide Down-Cut Ball Nose Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank Router Bit

Amana 46478 Solid Carbide Down-Cut Ball Nose Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank Router Bit

Name: Amana 46478 Solid Carbide Down-Cut Ball Nose Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank Router Bit
SKU: Amana 46478
Availability: InStock

Original price was: $95.70.Current price is: $71.78.

SC SPIRAL BALLNOSE DOWNCUT3/8″

UPC: 738685464786 SKU: Amana 46478 Categories: Amana Tool, CNC Router Bits, Solid Carbide Ball Nose Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Used for carving decorative doors and sign manufacturing. Down-Cut design leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

Soft/Hard Wood
Aluminum
MDF
Soft/Hard Plastic
Sign Foam

Specifications

Direction	Down-Cut
(D) Diameter	3/8
(R) Radius	3/16
(B) Cutting Height	1-1/4
(d) Shank	3/8
Overall Length (L)	3
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46373
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	Up-Cut	46369
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46375
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46374
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46376
3/8 (9.53mm)	3/16 (4.76mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	2	Up-Cut	46378
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Up-Cut	46380
1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	2	Up-Cut	46384
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Down-Cut	46477
5/8 (15.88mm)	5/16 (7.94mm)	2-1/8	5/8 (15.88mm)	4 (101.60mm)	2	Up-Cut	46386
3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	3/4 (19.05mm)	5 (127.00mm)	2	Up-Cut	46387
–	–	–	–	–	—-	–	AMS-180

Weight	0.14 lbs
