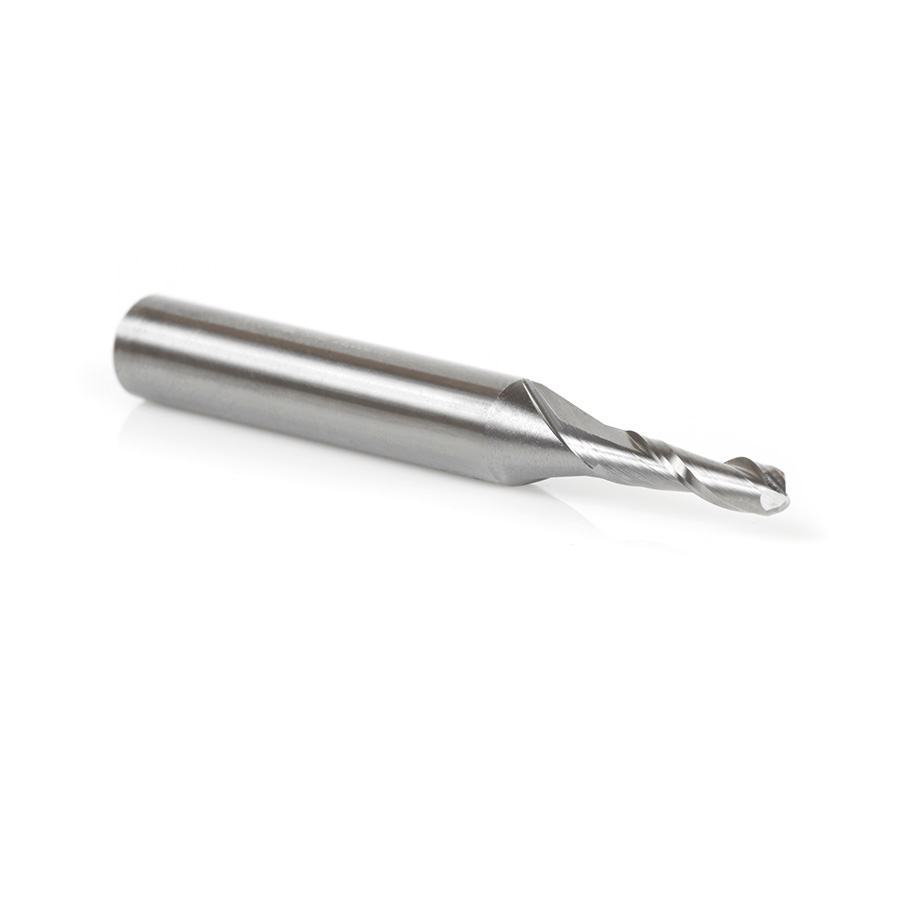

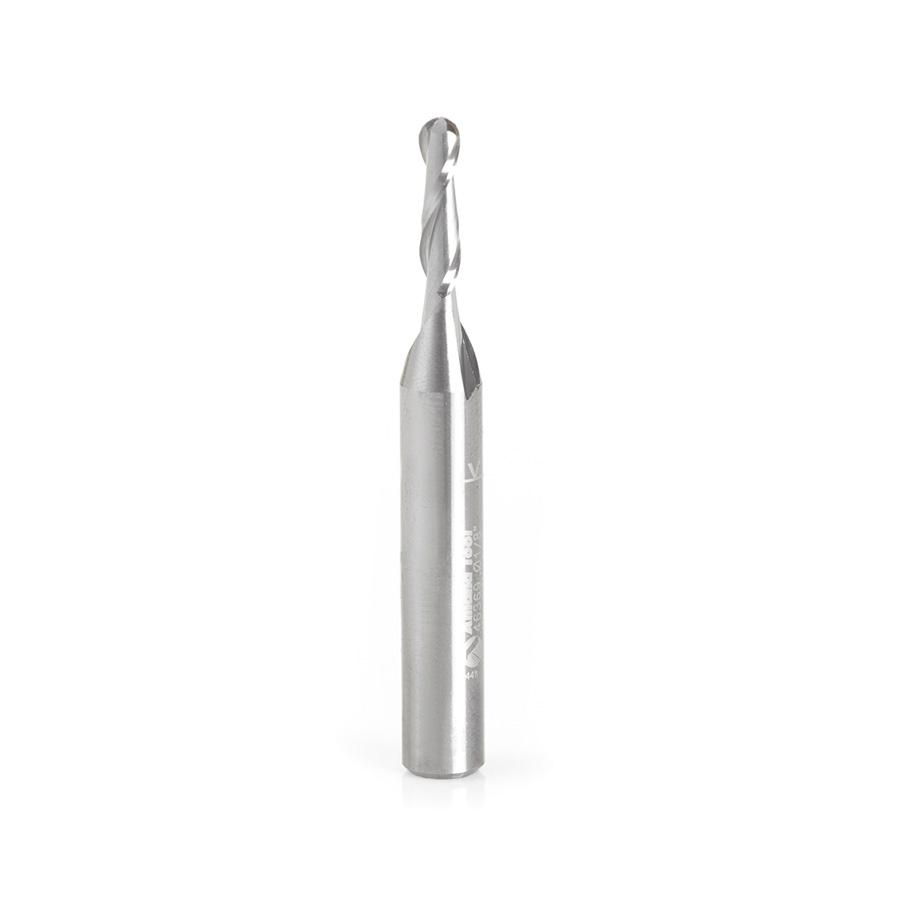

46369 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1/2 Inch x 1/4 Shank Router Bit

Amana 46369 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1/2 Inch x 1/4 Shank Router Bit

Name: Amana 46369 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1/2 Inch x 1/4 Shank Router Bit
SKU: Amana 46369
Availability: InStock

Original price was: $68.60.Current price is: $51.45.

S.C SPIRAL BALLNOSE UPCUT 1/8″

UPC: 738685463697 SKU: Amana 46369 Categories: Amana Tool, CNC Router Bits, Solid Carbide Ball Nose Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

Soft/Hard Wood
Aluminum
MDF
Soft/Hard Plastic
Sign Foam

Vectric and Fusion 360 compatible tool files for 46369 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	1/8
(R) Radius	1/16
(B) Cutting Height	1/2
(d) Shank	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46373
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46510
3mm	1.5mm	12mm	6mm	50mm	2	–	46453
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46375
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	46385
1/8 (3.18mm)	1/16 (1.59mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46512
4mm	2mm	12mm	4mm	50mm	2	–	46454
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	46389
3/16 (4.76mm)	3/32 (2.38mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	–	46424
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	46425
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	–	46450
6mm	3mm	22mm	6mm	63mm	2	–	46456
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46374
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46376
1/4 (6.35mm)	1/8 (3.18mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	2	–	46379
1/4 (6.35mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	–	46426
1/4 (6.35mm)	1/8 (3.18mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	2	–	46428
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	4 (101.60mm)	2	–	46451
1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	–	46463
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	Down-Cut	46475
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Down-Cut	46476
3/8 (9.53mm)	3/16 (4.76mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	2	Up-Cut	46378
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Up-Cut	46380
1/2 (12.70mm)	1/4 (6.35mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	2	–	46383
1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	2	Up-Cut	46384
1/2 (12.70mm)	1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	4	–	46446
1/2 (12.70mm)	1/4 (6.35mm)	1-1/2	1/2 (12.70mm)	5 (127.00mm)	2	–	46459
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Down-Cut	46477
5/8 (15.88mm)	5/16 (7.94mm)	2-1/8	5/8 (15.88mm)	4 (101.60mm)	2	Up-Cut	46386
3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	3/4 (19.05mm)	5 (127.00mm)	2	Up-Cut	46387
–	–	–	–	–	—-	–	AMS-180

Weight	0.06 lbs
