Sale!

46512 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1 Inch x 1/4 Shank Router Bit

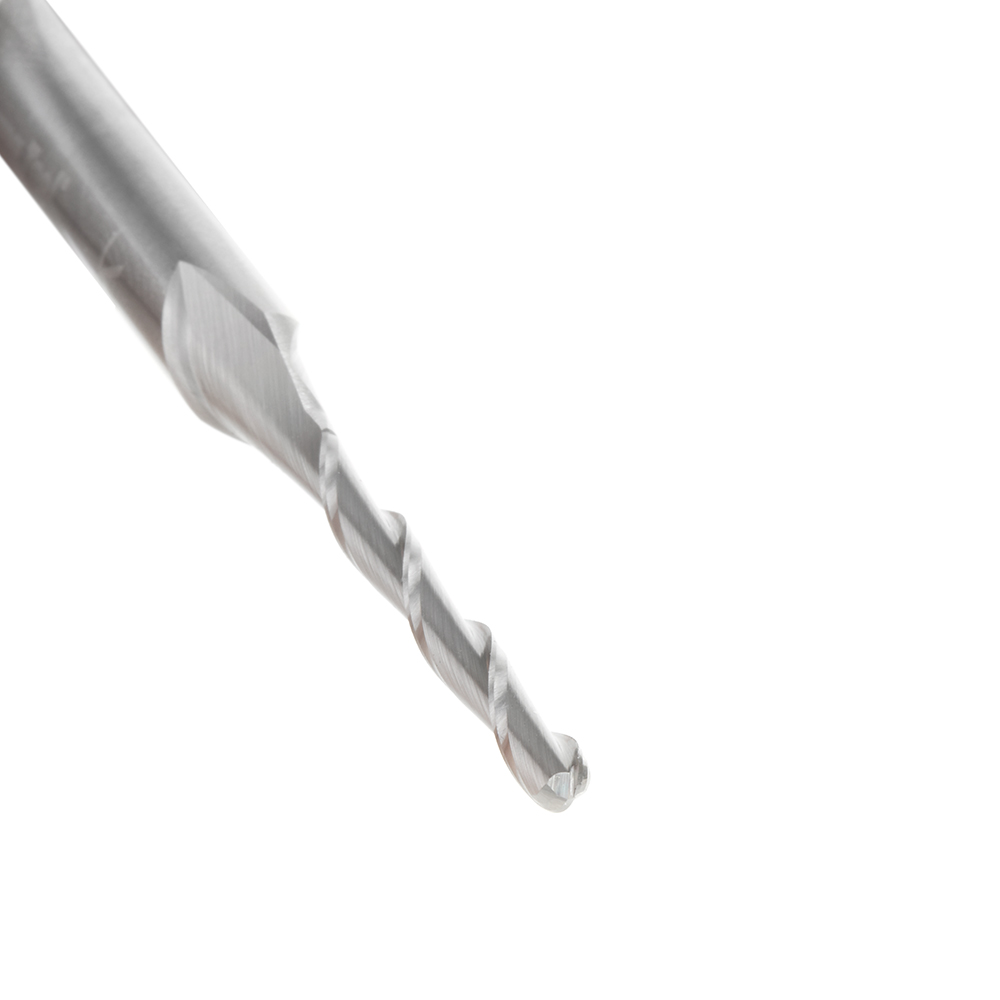

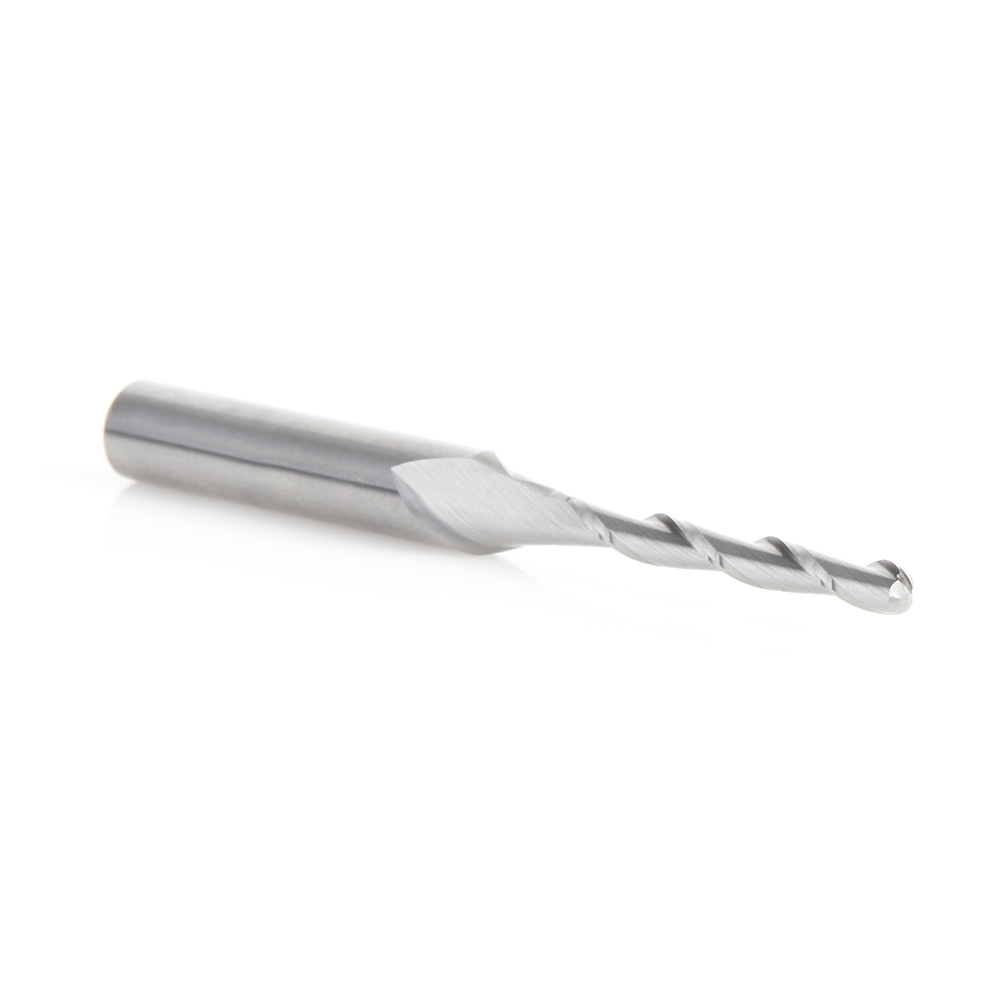

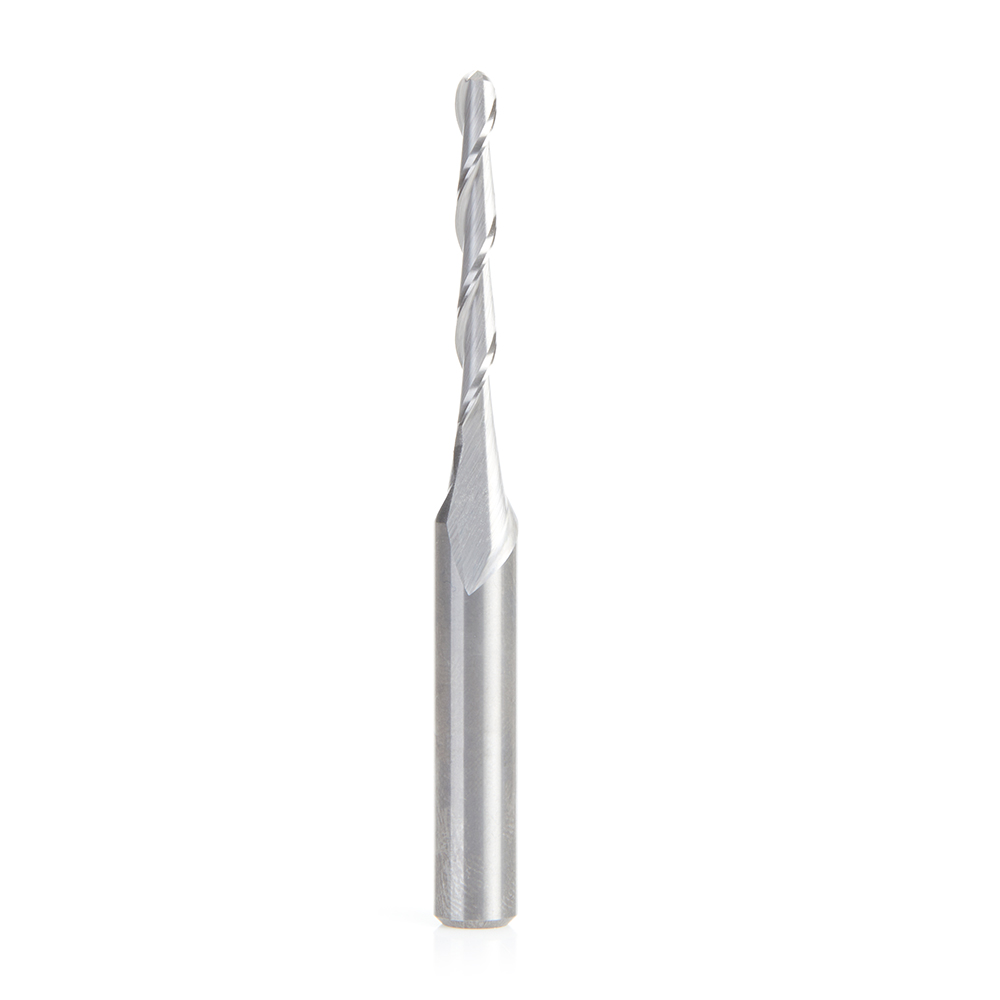

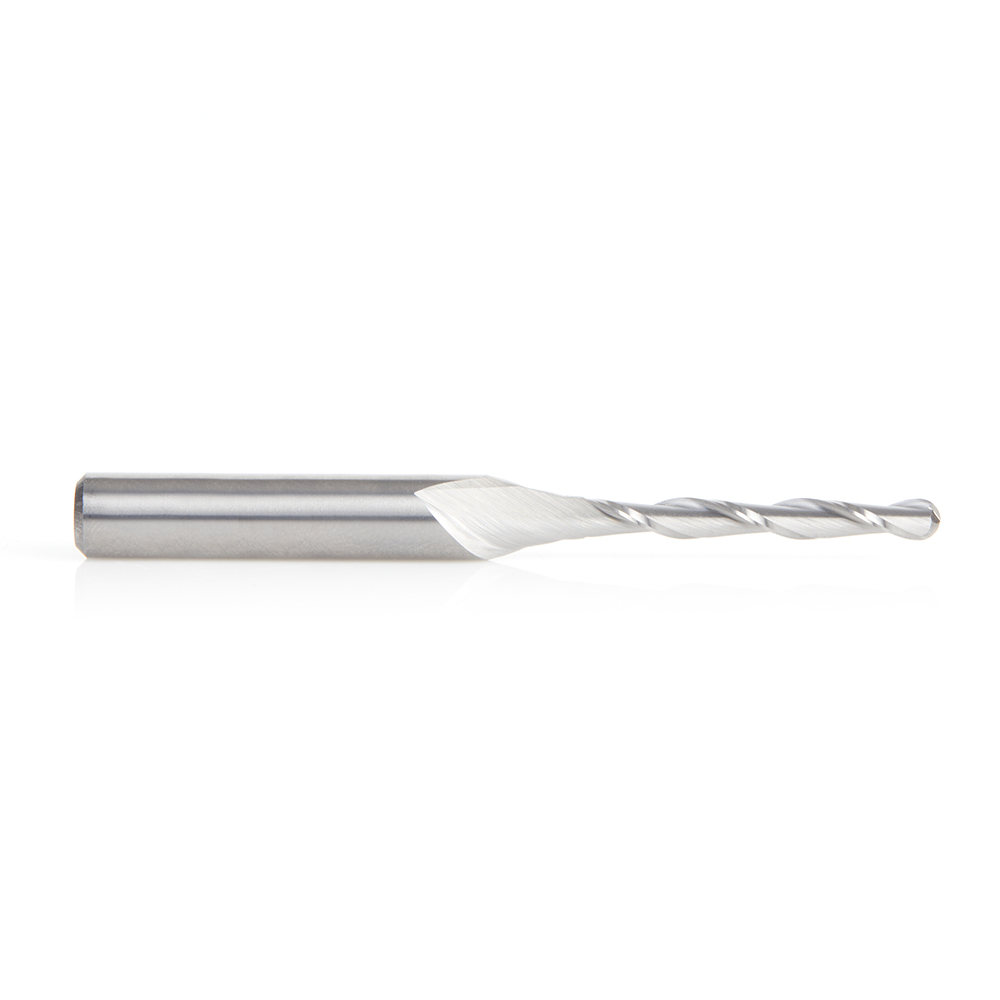

Amana 46512 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1 Inch x 1/4 Shank Router Bit

Name: Amana 46512 Solid Carbide Up-Cut Ball Nose Spiral 1/8 Dia x 1 Inch x 1/4 Shank Router Bit
SKU: Amana 46512
Availability: InStock

Original price was: $87.60.Current price is: $65.70.

S.C SPIRAL BALLNOSE UPCUT 1/8″

UPC: 738685465127 SKU: Amana 46512 Categories: Amana Tool, CNC Router Bits, Solid Carbide Ball Nose Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

Soft/Hard Wood
Aluminum
MDF
Soft/Hard Plastic
Sign Foam

Vectric compatible tool file for 46512 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	1/8
(R) Radius	1/16
(B) Cutting Height	1
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46373
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46510
3mm	1.5mm	12mm	6mm	50mm	2	–	46453
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	Up-Cut	46369
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	2	Up-Cut	46375
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	46385
4mm	2mm	12mm	4mm	50mm	2	–	46454
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	46389
3/16 (4.76mm)	3/32 (2.38mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	–	46424
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	46425
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	–	46450
6mm	3mm	22mm	6mm	63mm	2	–	46456
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46374
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46376
1/4 (6.35mm)	1/8 (3.18mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	2	–	46379
1/4 (6.35mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	–	46426
1/4 (6.35mm)	1/8 (3.18mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	2	–	46428
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	4 (101.60mm)	2	–	46451
1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	–	46463
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	Down-Cut	46475
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Down-Cut	46476
3/8 (9.53mm)	3/16 (4.76mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	2	Up-Cut	46378
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Up-Cut	46380
1/2 (12.70mm)	1/4 (6.35mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	2	–	46383
1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	2	Up-Cut	46384
1/2 (12.70mm)	1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	4	–	46446
1/2 (12.70mm)	1/4 (6.35mm)	1-1/2	1/2 (12.70mm)	5 (127.00mm)	2	–	46459
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Down-Cut	46477
5/8 (15.88mm)	5/16 (7.94mm)	2-1/8	5/8 (15.88mm)	4 (101.60mm)	2	Up-Cut	46386
3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	3/4 (19.05mm)	5 (127.00mm)	2	Up-Cut	46387
–	–	–	–	–	—-	–	AMS-180

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
