Sale!

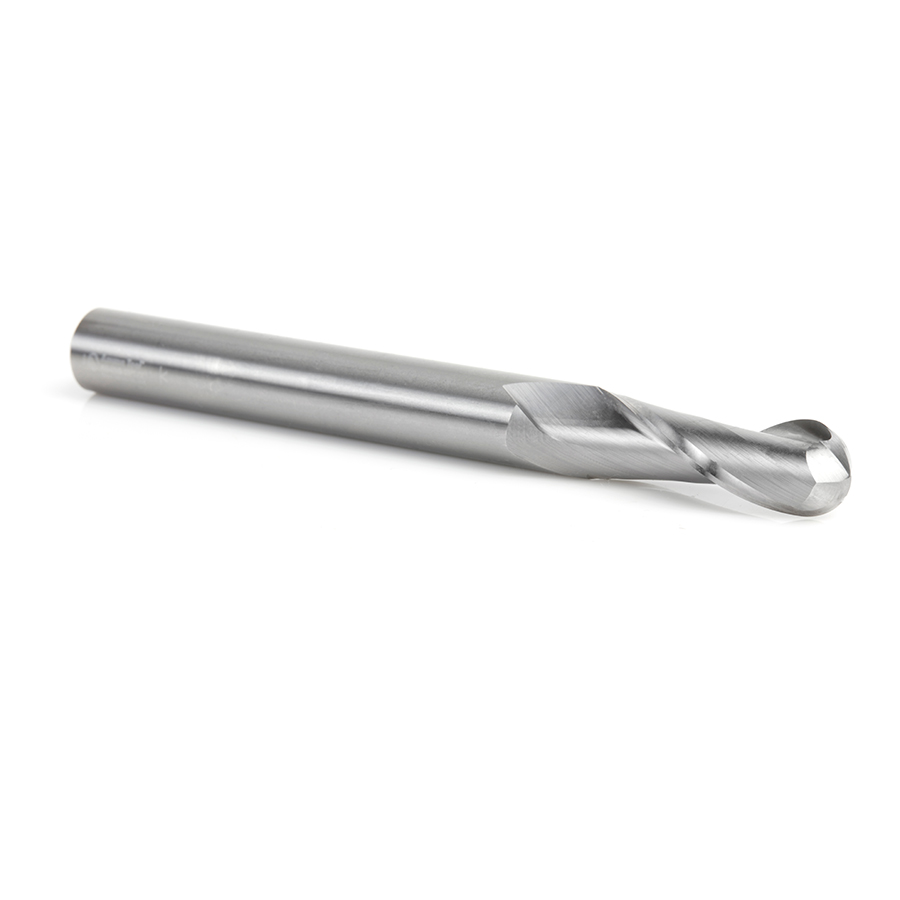

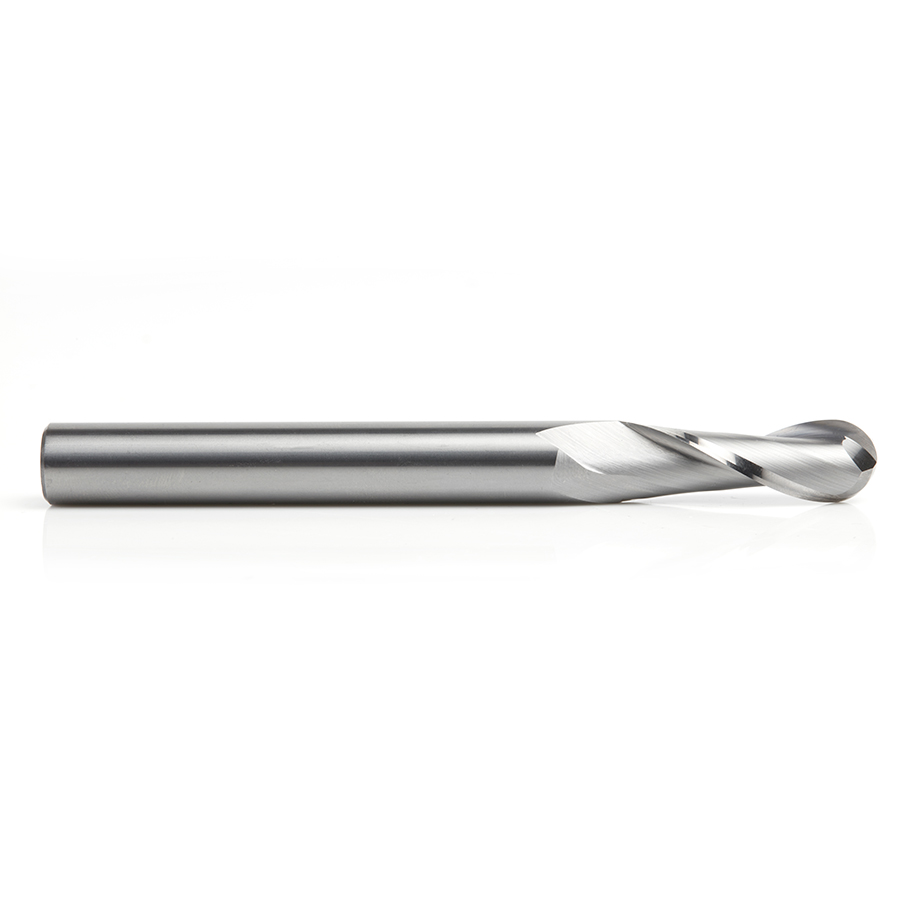

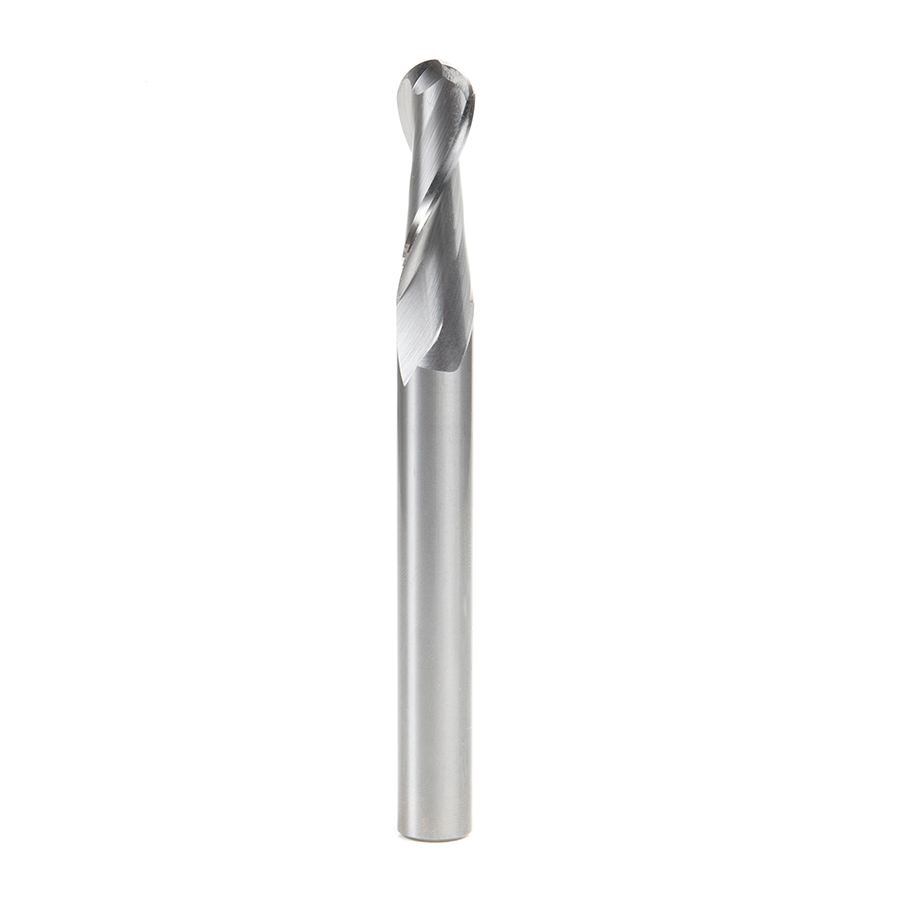

46459 Solid Carbide Up-Cut Spiral Ball Nose 1/4 Radius x 1/2 Dia x 1-1/2 x 1/2 Shank x 5 Inch Long x 2 Flute CNC Router Bit

Amana 46459 Solid Carbide Up-Cut Spiral Ball Nose 1/4 Radius x 1/2 Dia x 1-1/2 x 1/2 Shank x 5 Inch Long x 2 Flute CNC Router Bit

Name: Amana 46459 Solid Carbide Up-Cut Spiral Ball Nose 1/4 Radius x 1/2 Dia x 1-1/2 x 1/2 Shank x 5 Inch Long x 2 Flute CNC Router Bit
SKU: Amana 46459
Availability: InStock

Original price was: $189.75.Current price is: $142.32.

S.C SPIRAL BALLNOSE UPCUT 1/2″

UPC: 738685464595 SKU: Amana 46459 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Solid Carbide Ballnose Spiral CNC Router Bit for Plastics, Acrylic, Solid Surface and Plexiglas®

Item Description

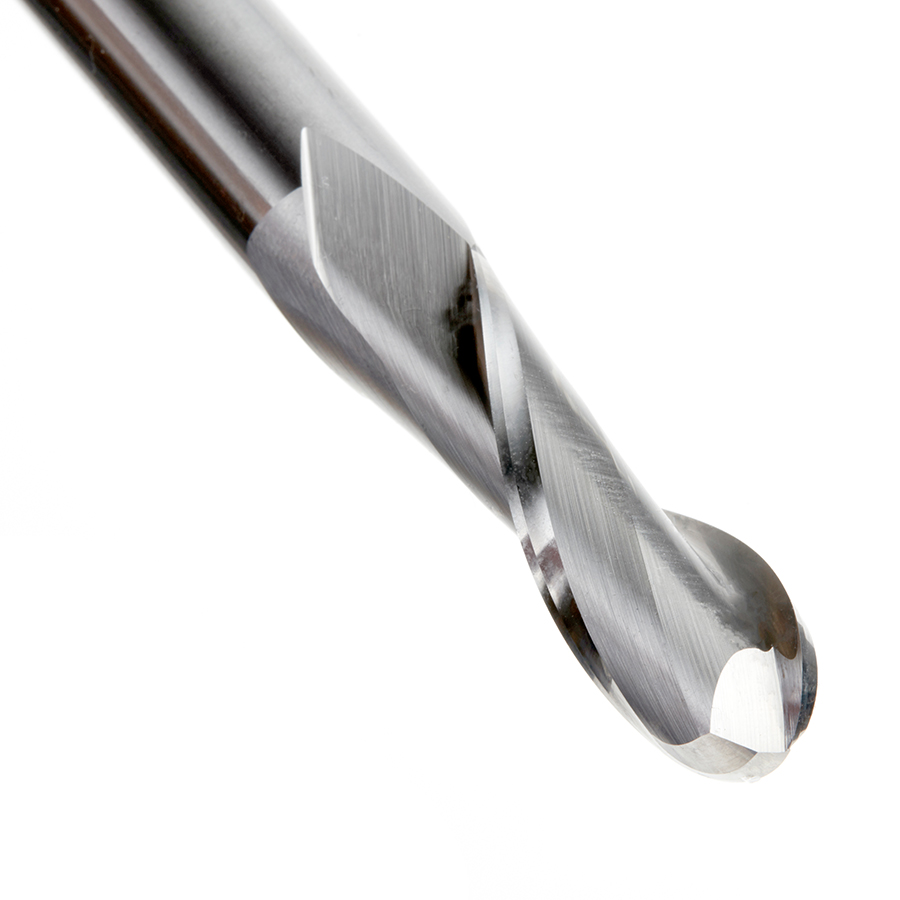

Amana Tool’s high mirror-finish solid carbide up-cut spiral ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. Due to the highly polished finish and unique tool geometry, the spiral ball nose router bit delivers superior surface finish of at least 28 Ra (roughness average) in various materials. The up-cut router bits also eject chips up, to help prevent chip out on the bottom of the material.

Constructed of special grade solid carbide, the Amana Tool spiral ball nose router bits last longer than traditional router bits and deliver superior cutting performance with plastics. The bits are ideal for use in a variety of applications spanning the mechanical, medical and woodworking industries.

Excellent for Cutting:

Plastic
Acrylic
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Aluminum
Corian
Coroplast®*
Epoxy
Expanded PVC
Fomex®
High Impact Polystyrene (HIPS)
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)
LubX®

Non-Ferrous Materials
Perspex® Cast Acrylic Sheet
Plexiglas®
Poly (methyl methacrylate) (PMMA)
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Sign Foam
Solid Surface
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Thermoplastic Polyolefin (TPO)
Urethane
Wood

A soft plastic cardboard made with super soft super flexible PVC.

Warning:** CNC use only.

Specifications

(D) Diameter	1/2
(R) Radius	1/4
(B) Cutting Height	1-1/2
(d) Shank	1/2
Overall Length (L)	5
Flutes	2

Other Sizes Available

(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	2	46373
1/16 (1.59mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	2	46510
3mm	1.5mm	12mm	6mm	50mm	2	46453
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	46369
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	2	46375
1/8 (3.18mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	2	46385
1/8 (3.18mm)	1/16 (1.59mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	46512
4mm	2mm	12mm	4mm	50mm	2	46454
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	3 (76.20mm)	2	46389
3/16 (4.76mm)	3/32 (2.38mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	46424
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	46425
3/16 (4.76mm)	3/32 (2.38mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	46450
6mm	3mm	22mm	6mm	63mm	2	46456
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	46374
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	46376
1/4 (6.35mm)	1/8 (3.18mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	2	46379
1/4 (6.35mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	2	46426
1/4 (6.35mm)	1/8 (3.18mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	2	46428
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	4 (101.60mm)	2	46451
1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2"10.50	2	46463
1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	2	46475
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	46476
3/8 (9.53mm)	3/16 (4.76mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	2	46378
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	46380
1/2 (12.70mm)	1/4 (6.35mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	2	46383
1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	2	46384
1/2 (12.70mm)	1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	4	46446
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	46477
5/8 (15.88mm)	5/16 (7.94mm)	2-1/8	5/8 (15.88mm)	4 (101.60mm)	2	46386
3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	3/4 (19.05mm)	5 (127.00mm)	2	46387
–	–	–	–	–	—-	AMS-180

Weight	0.46 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
