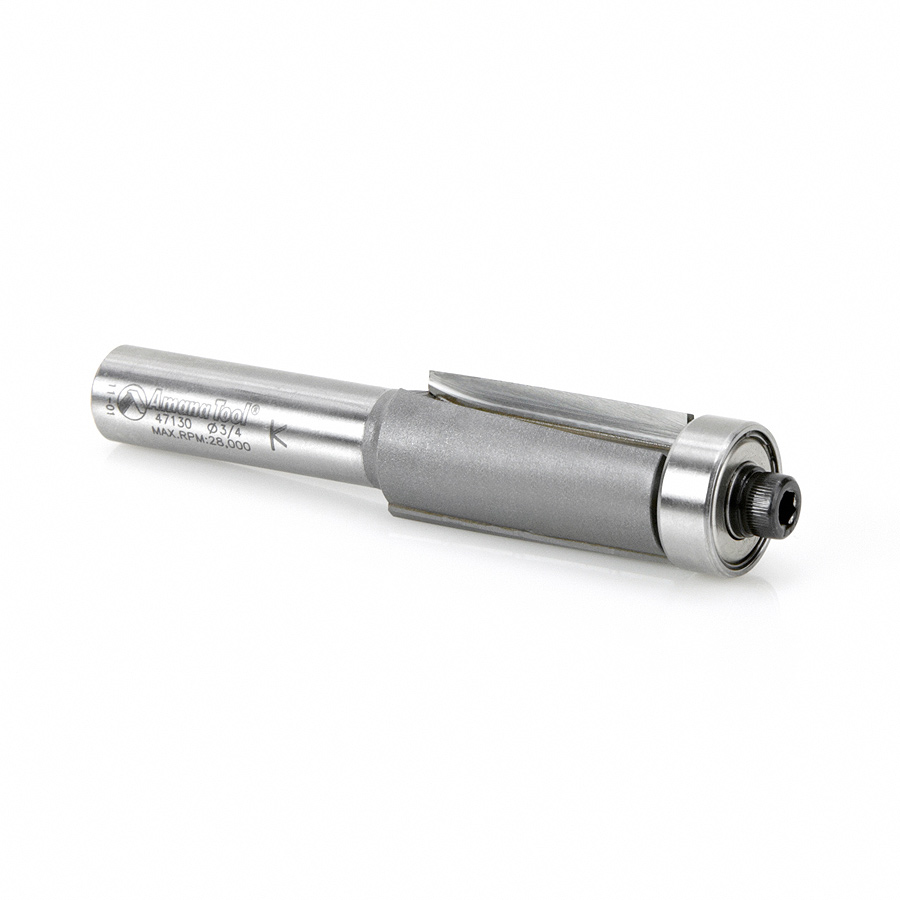

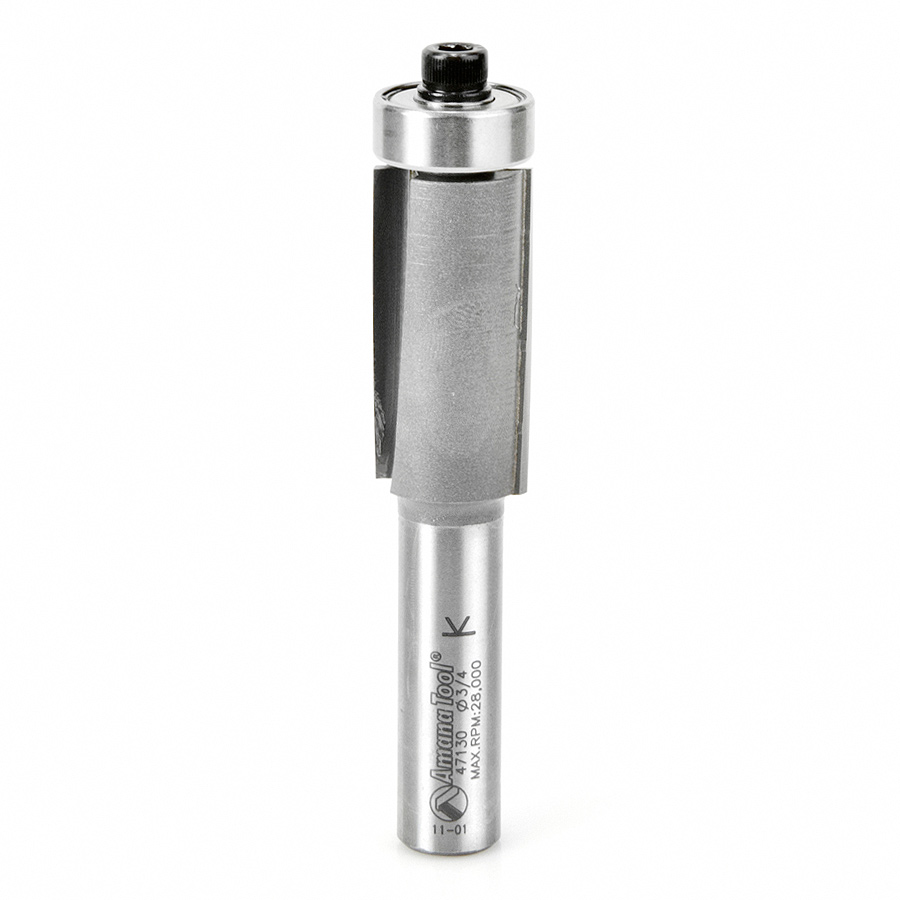

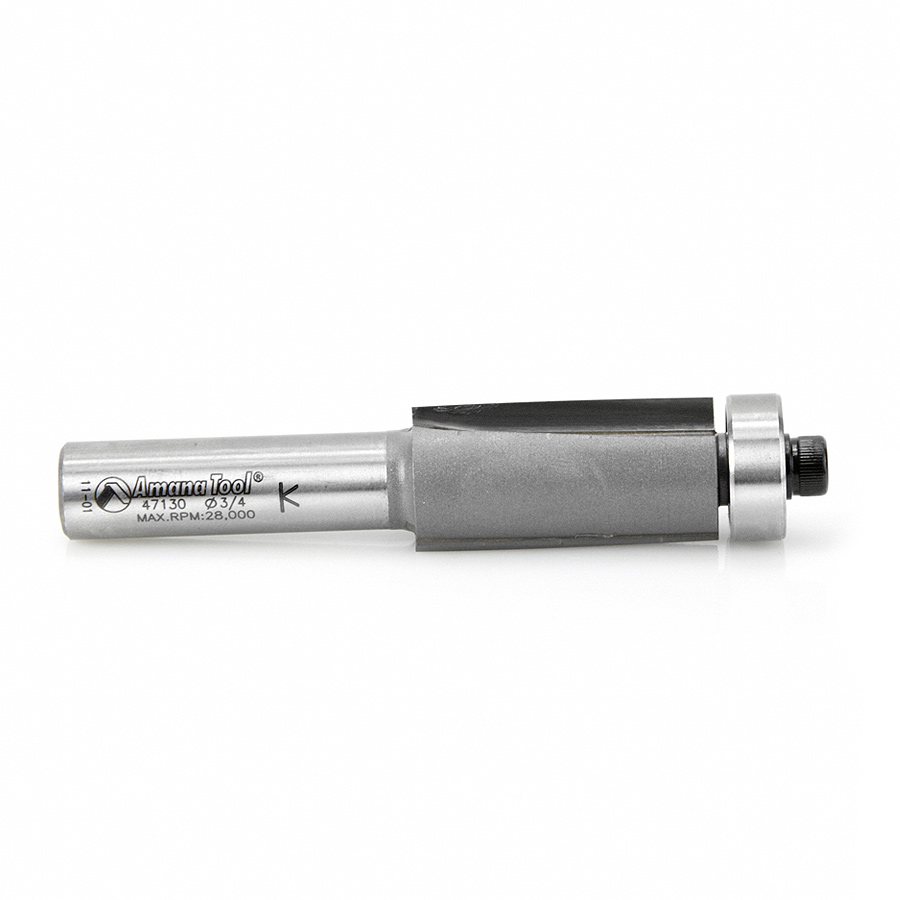

47130 Carbide Tipped Up-Shear SuperTrim™ Flush 3/4 Dia x 1-1/2 x 1/2 Inch Shank

Amana 47130 Carbide Tipped Up-Shear SuperTrim™ Flush 3/4 Dia x 1-1/2 x 1/2 Inch Shank

Name: Amana 47130 Carbide Tipped Up-Shear SuperTrim™ Flush 3/4 Dia x 1-1/2 x 1/2 Inch Shank
SKU: Amana 47130
Availability: InStock

Original price was: $72.15.Current price is: $54.12.

SUPER TRIM 3/4 DIA. UP SHEAR

UPC: 738685865804 SKU: Amana 47130 Categories: Amana Tool, Router Bits, Supertrim 3 Degree Up-Shear Router Bits, Trimming Router Bits

Item Description

For exceptional cutting speed, coupled with a super-fine finish, use these large-diameter flush trim bits on a standard router. Available in either up-shear or down-shear. Especially suitable for solid surface material when used with optional #47709 Delrin® bearing. Furnished with steel bearing #47714.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

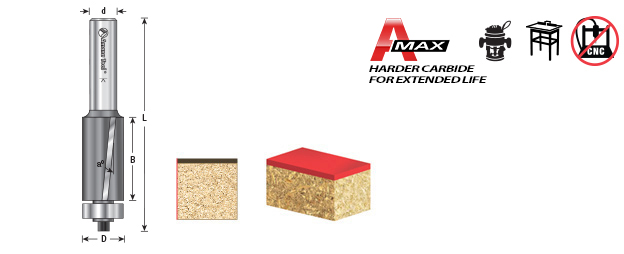

Specifications

Angle (a°)	5°
Diameter (D)	3/4
Cutting Height (B)	1-1/2
Shank (d)	1/2
Overall Length (L)	3-7/8
Type	Up-Shear
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
3°	3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	Up-Shear	47134
5°	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-Shear	47135
5°	3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-7/8	Down-Shear	47136
5°	3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	Down-Shear	47138

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
