Sale!

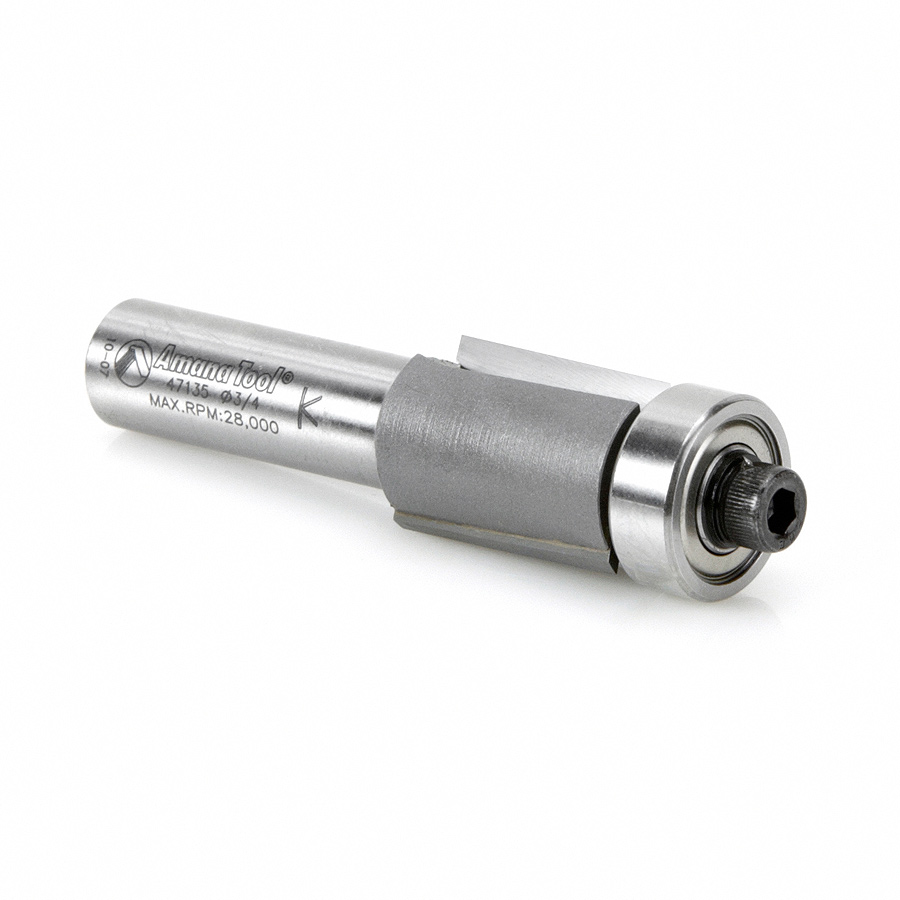

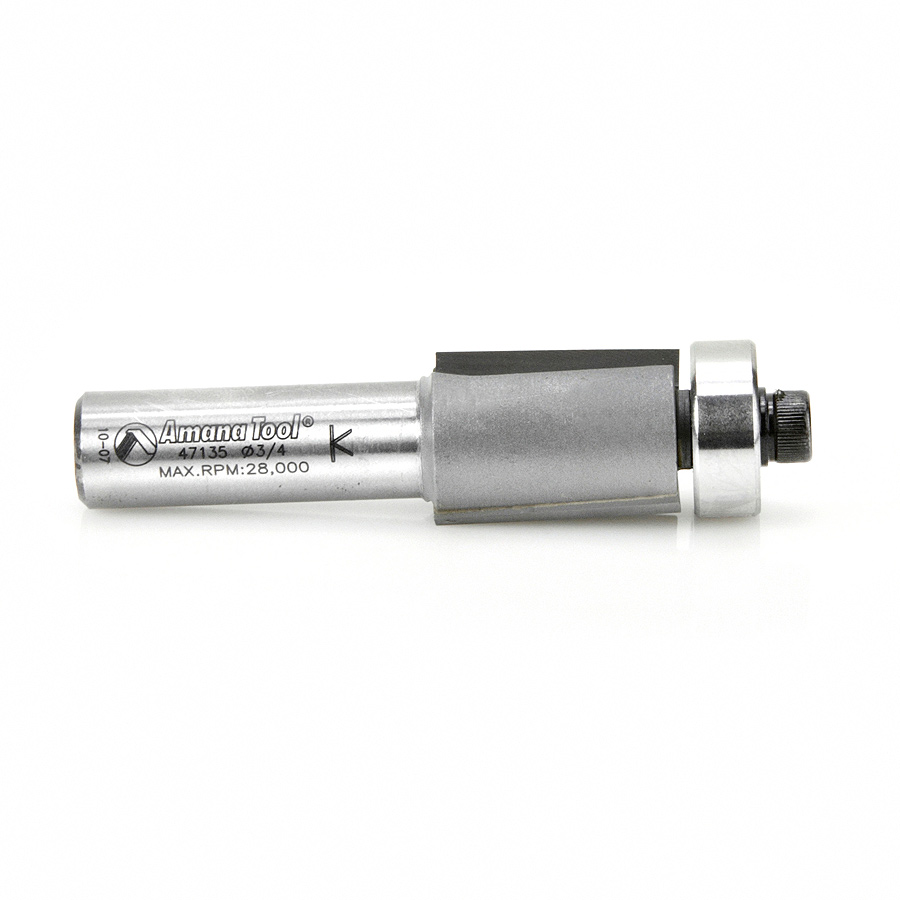

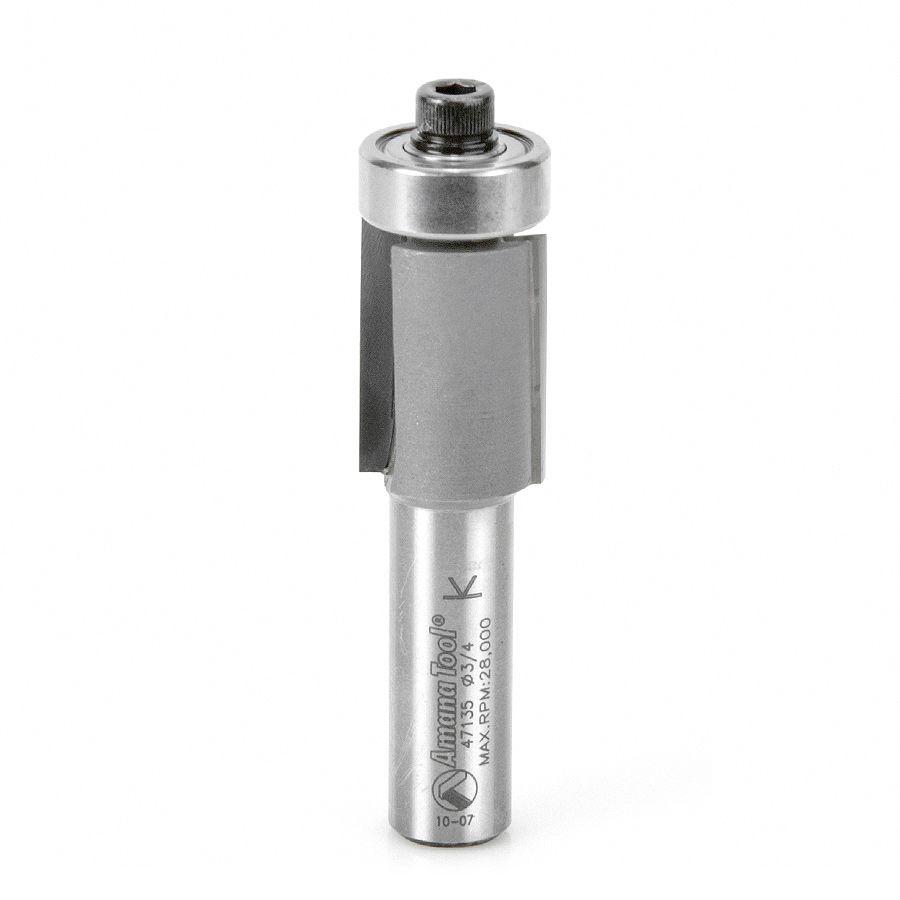

47135 Carbide Tipped Down-Shear SuperTrim™ Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank

Amana 47135 Carbide Tipped Down-Shear SuperTrim™ Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank

Name: Amana 47135 Carbide Tipped Down-Shear SuperTrim™ Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank
SKU: Amana 47135
Availability: InStock

Original price was: $64.00.Current price is: $48.00.

SUPER TRIM 3/4 DIA. DOWN SHEAR

UPC: 738685471357 SKU: Amana 47135 Categories: Amana Tool, Router Bits, Supertrim 3 Degree Up-Shear Router Bits, Trimming Router Bits

Item Description

For exceptional cutting speed, coupled with a super-fine finish, use these large-diameter flush trim bits on a standard router. Available in either up-shear or down-shear. Especially suitable for solid surface material when used with optional #47709 Delrin® bearing. Furnished with steel bearing #47714.

Note:** Down-shear bits are not intended for router table use.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

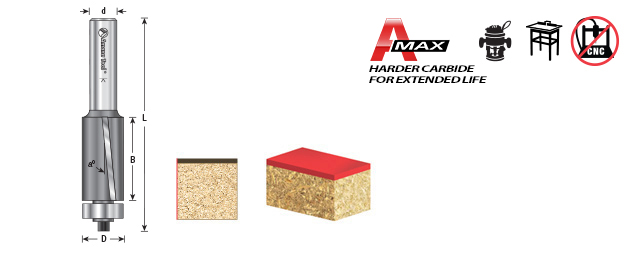

Specifications

Angle (a°)	5°
Diameter (D)	3/4
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3
Type	Down-Shear
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
3°	3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	Up-Shear	47134
5°	3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-7/8	Up-Shear	47130
5°	3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-7/8	Down-Shear	47136
5°	3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	Down-Shear	47138

Weight	0.22 lbs
