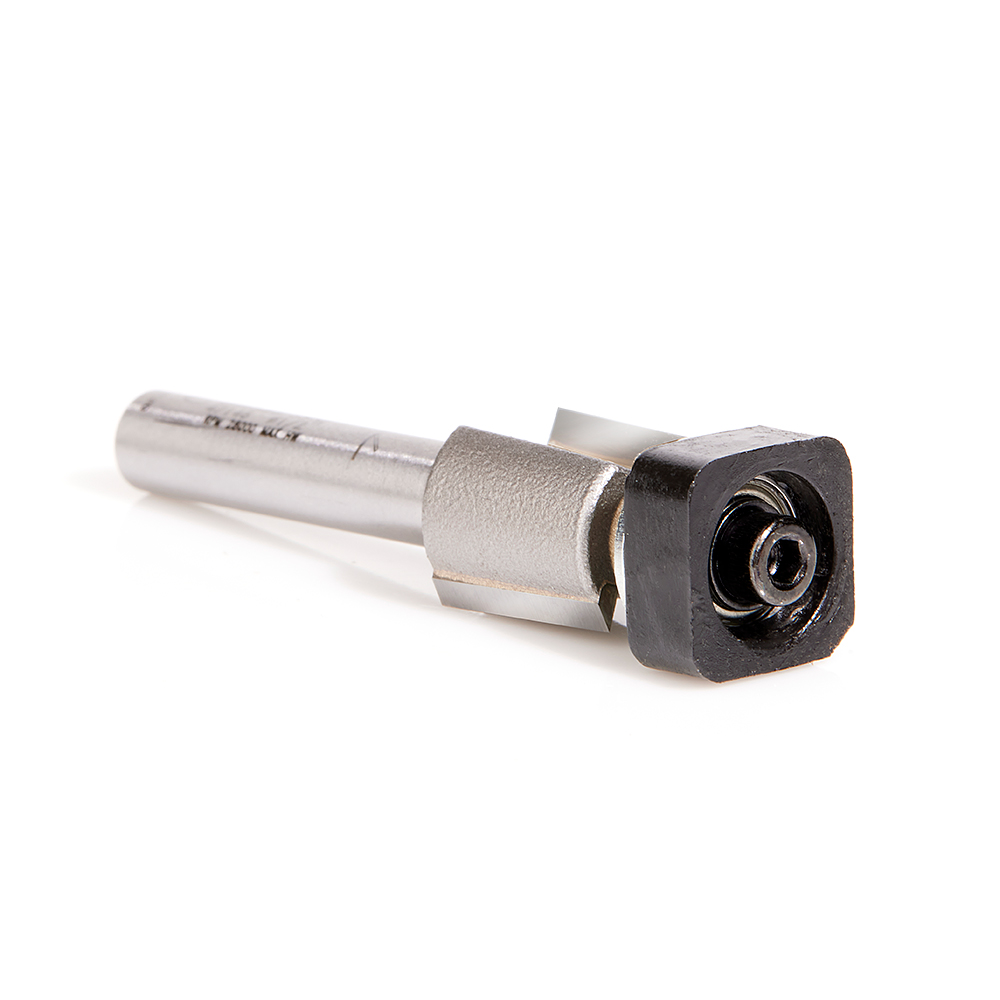

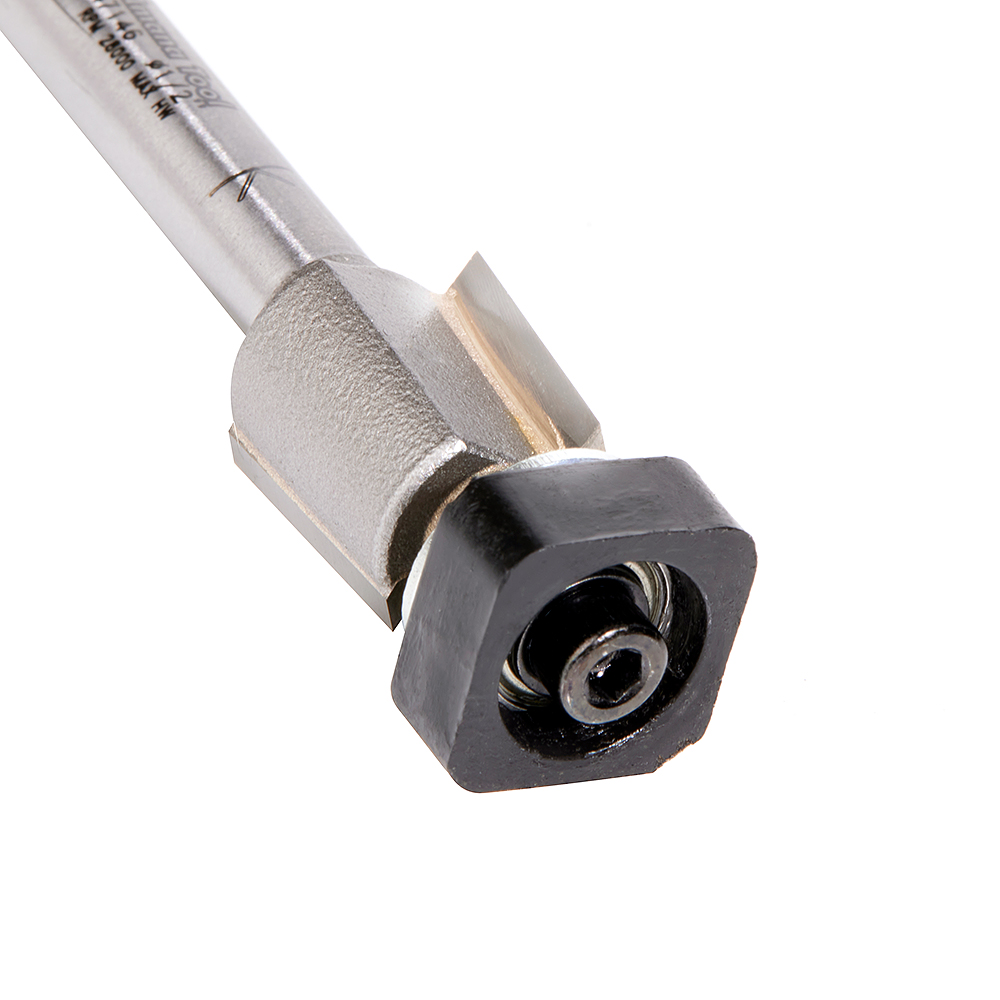

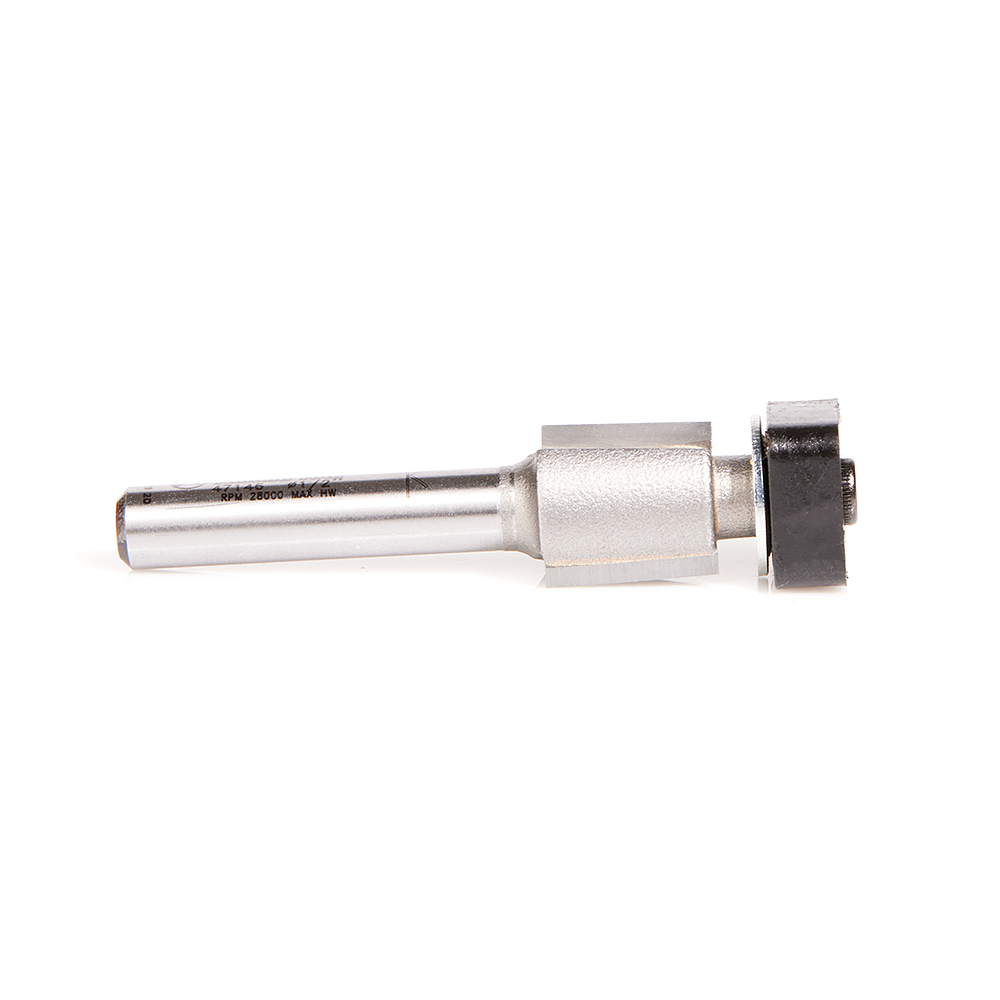

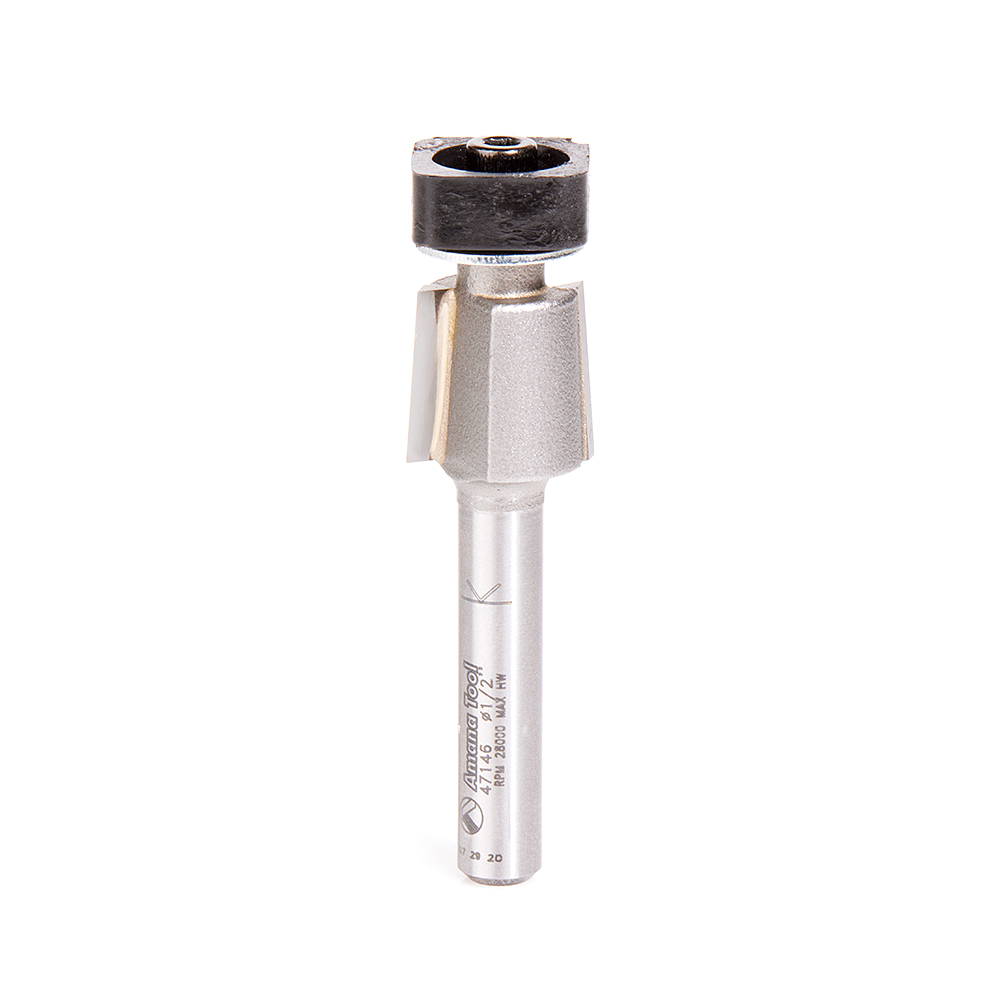

47146 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1/2 x 1/4 Inch Shank Router Bit

Amana 47146 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1/2 x 1/4 Inch Shank Router Bit

Name: Amana 47146 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1/2 x 1/4 Inch Shank Router Bit
SKU: Amana 47146
Availability: InStock

Original price was: $52.60.Current price is: $39.45.

1/2 TRIMMER EURO TM SQUARE BB

UPC: 738685471463 SKU: Amana 47146 Categories: Amana Tool, Carbide Tipped Laminate Trimmer with Euro™ Square Bearing Router Bits, Router Bits, Trimming Router Bits

Item Description

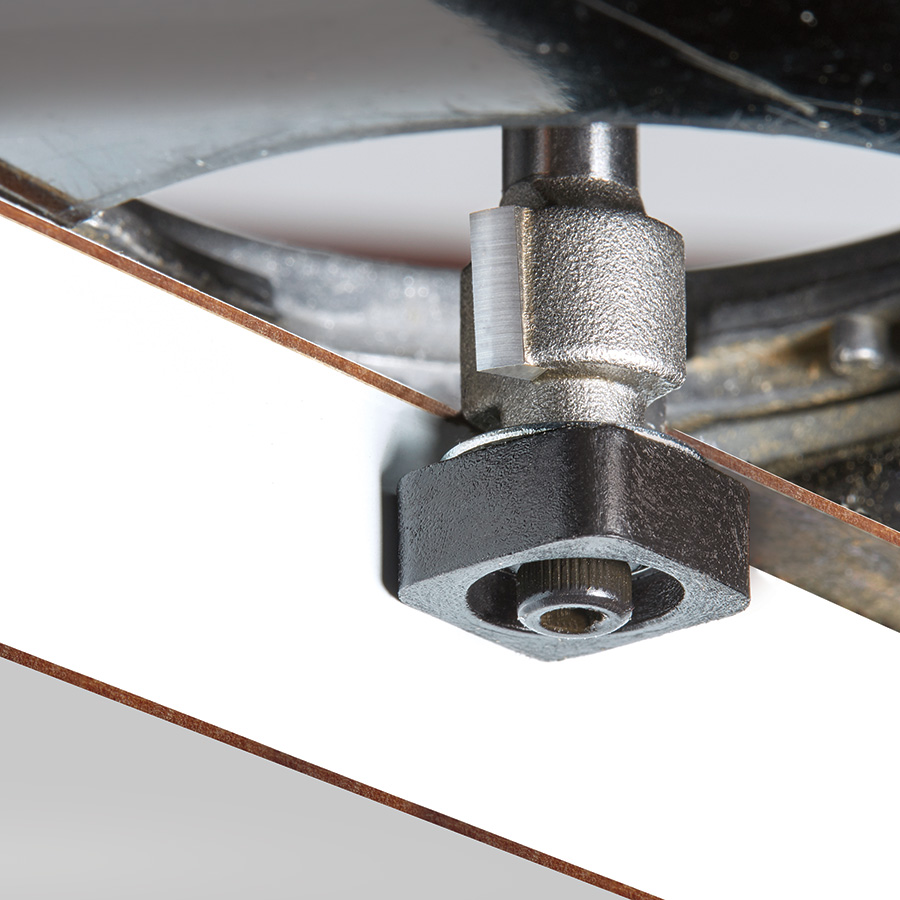

Amana Tool® industrial quality carbide tipped laminate trim bits with the Euro™ Square Bearings. The bits are designed according to specifications with a slight taper allowing for adjustment up or down on the work edge to finish off the edge with a smooth and burr free cut.

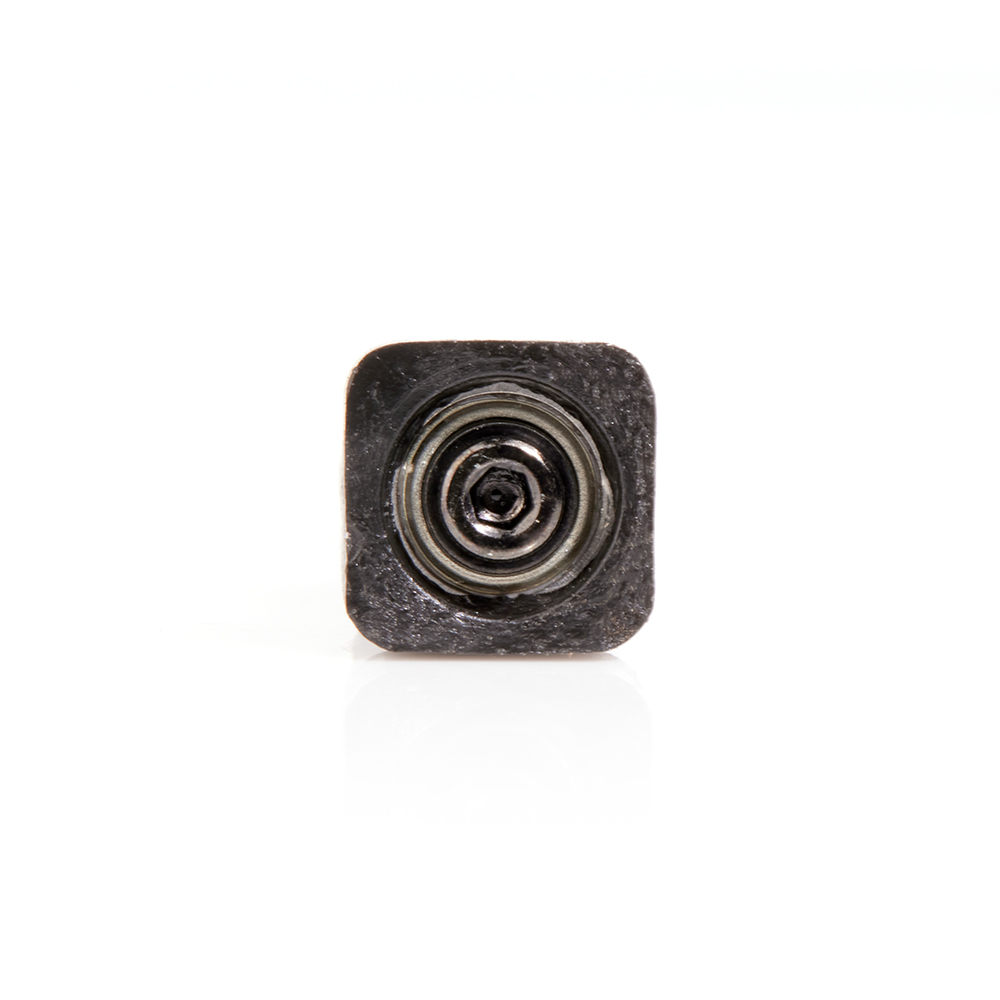

The square bearing is manufactured with a strong non-stick Teflon® which won’t mark your edge so it can be wiped clean easily.

Leaves no marks on high-gloss, finished edges
Use 1/2″ diameter bit with laminate trimmers
Glue won’t stick to bearing
Beveled cutter means little or no hand filing
Will not scratch high gloss laminates
Beveled cutter can be resharpened

Replacement Parts

Bearing
SQB100

Specifications

Diameter (D)	1/2
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/8
Replacement Bearing	SQB100
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	SQB100	—-	47145
1/2 (12.70mm)	19/64 (7.54mm)	1/4 (6.35mm)	1-3/4	SQB100	2	47147
1/2 (12.70mm)	–	–	–	–	—-	SQB100
3/4 (19.05mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	SQB102	2	47148
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	SQB102	2	47149
3/4 (19.05mm)	–	–	–	–	—-	SQB102

Weight	0.06 lbs
