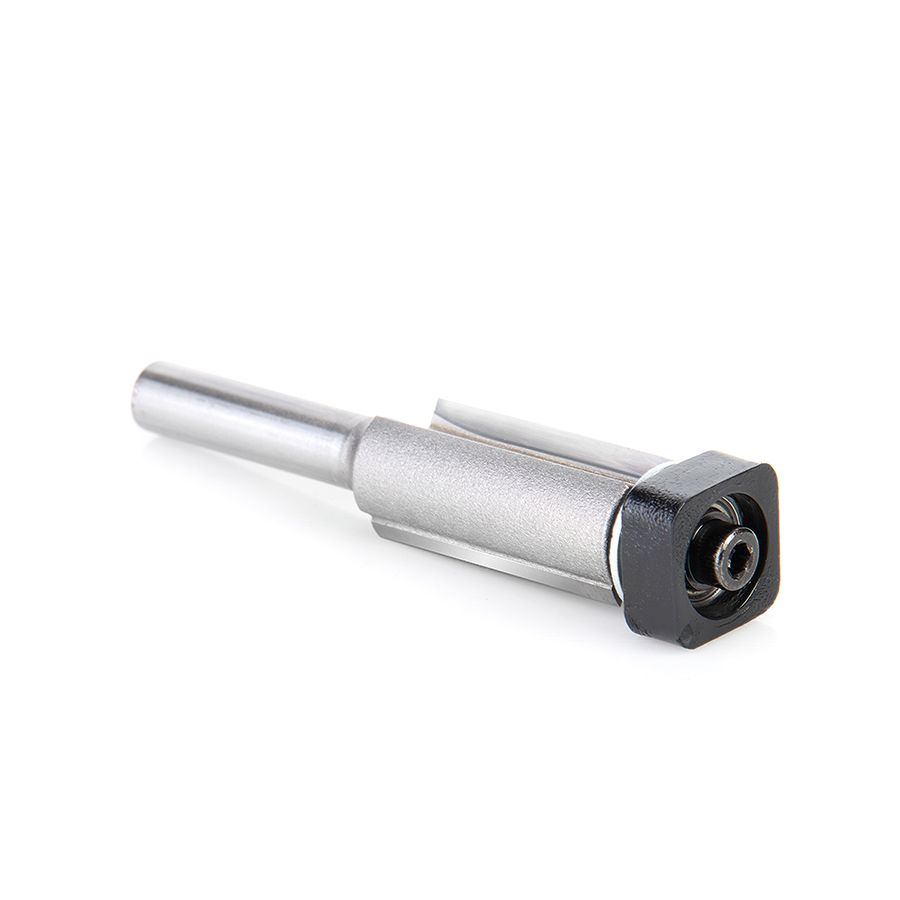

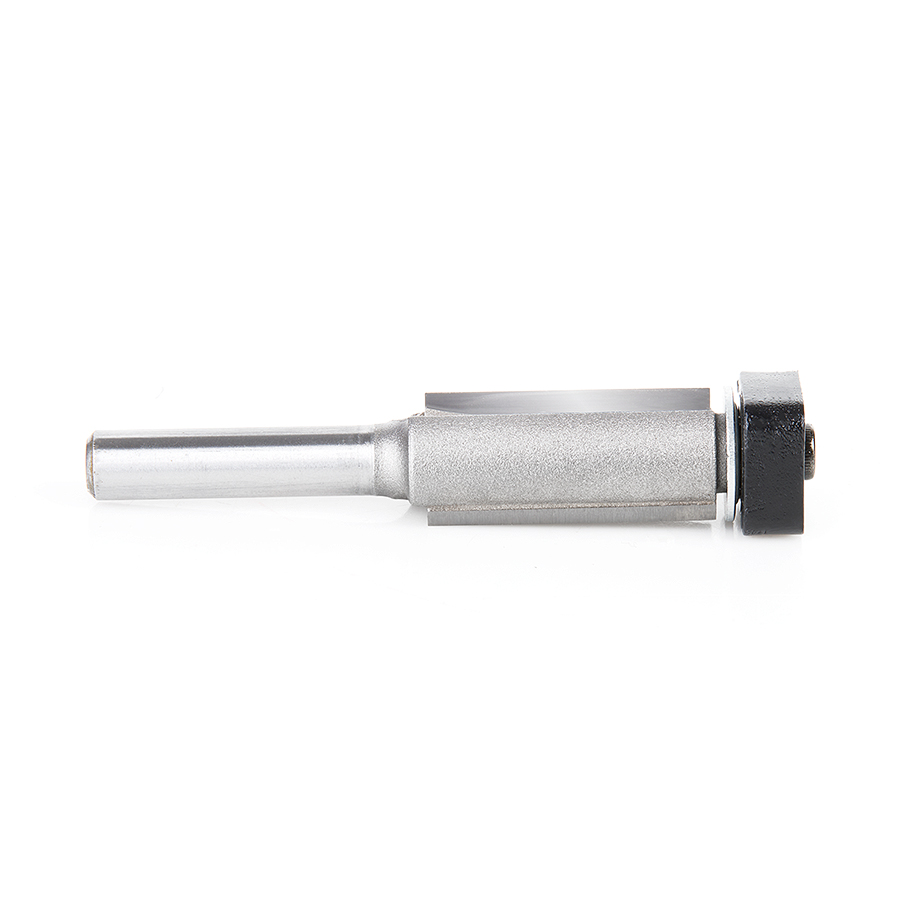

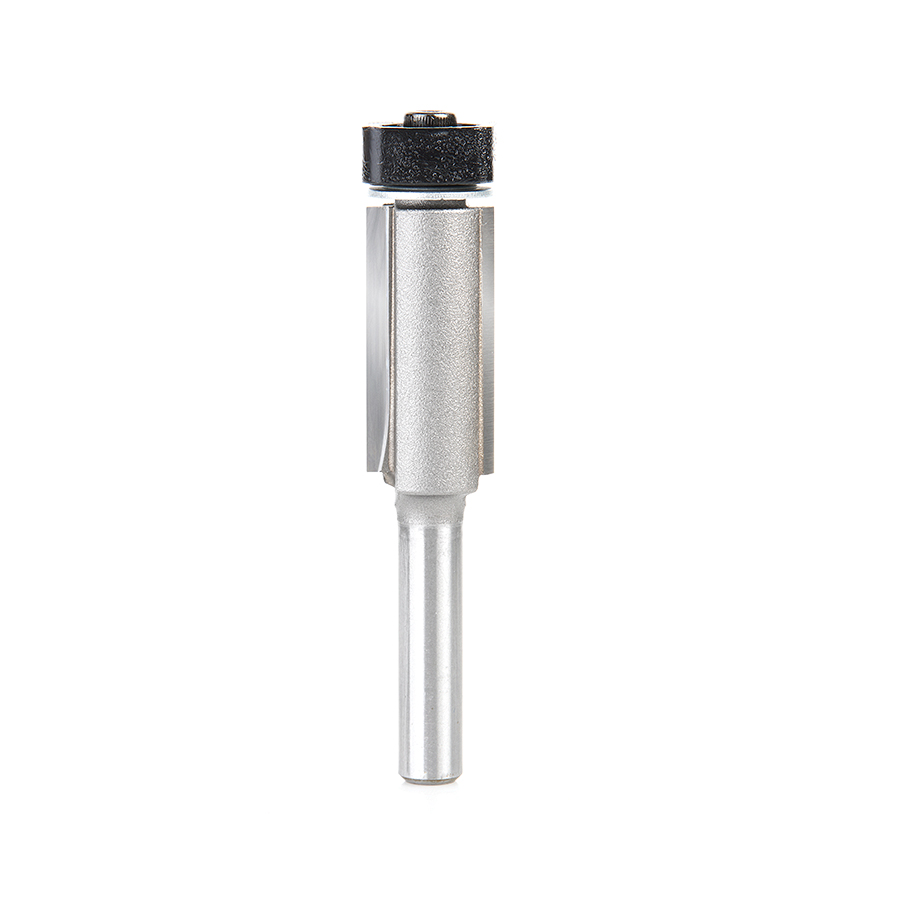

47145 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1 x 1/4 Inch Shank Router Bit

Amana 47145 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1 x 1/4 Inch Shank Router Bit

Name: Amana 47145 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 1 x 1/4 Inch Shank Router Bit
SKU: Amana 47145
Availability: InStock

Original price was: $51.25.Current price is: $38.44.

1/2″ TRIMER 2FL EURO TM SQUARE

UPC: N/A SKU: Amana 47145 Categories: Amana Tool, Carbide Tipped Laminate Trimmer with Euro™ Square Bearing Router Bits, Router Bits, Trimming Router Bits

Item Description

Amana Tool® industrial quality carbide tipped laminate trim bits with the Euro™ Square Bearings. The bits are designed according to specifications.

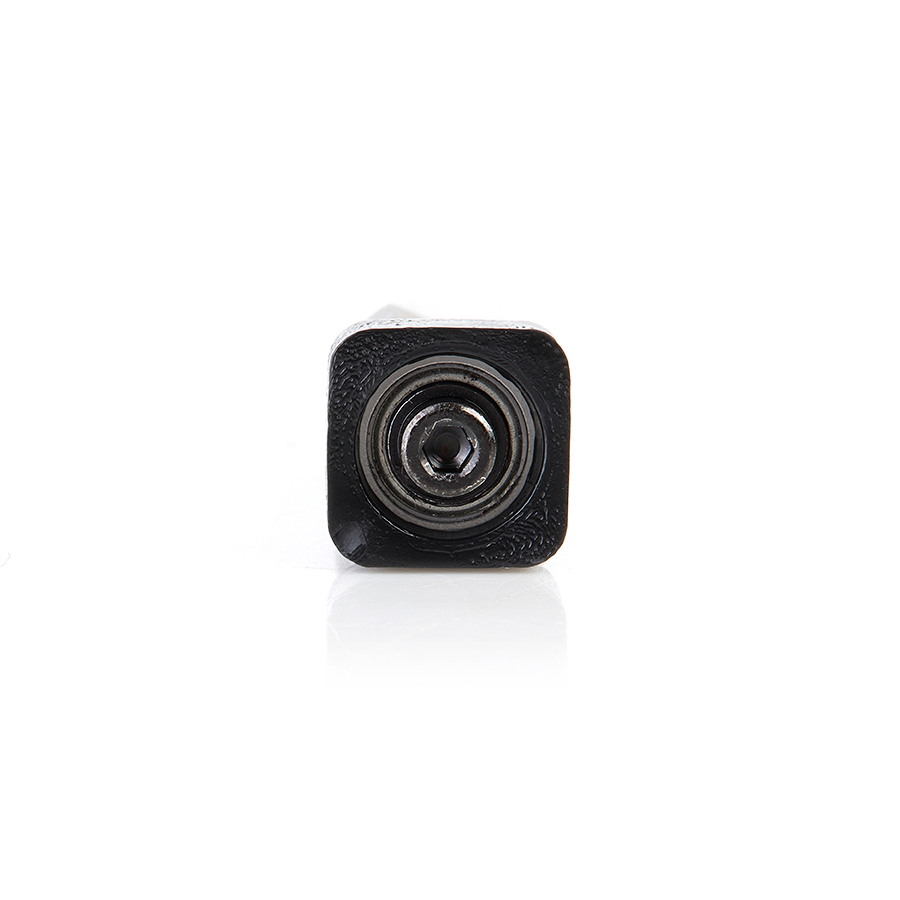

The square bearing is manufactured with a strong non-stick Teflon® which won’t mark your edge so it can be wiped clean easily.

Leaves no marks on high-gloss, finished edges
Use 1/2″ diameter bit with laminate trimmers
Glue won’t stick to bearing
Will not scratch high gloss laminates

Replacement Parts

Bearing
SQB100

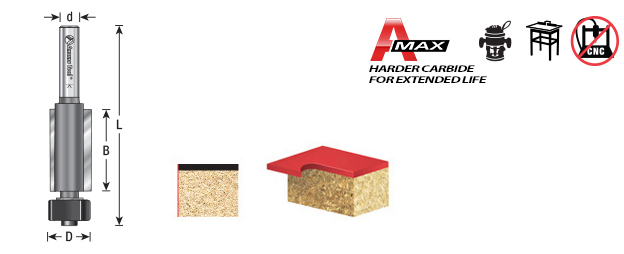

Specifications

Diameter (D)	1/2
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	2-5/8
Replacement Bearing	SQB100

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	SQB100	47146
1/2 (12.70mm)	19/64 (7.54mm)	1/4 (6.35mm)	1-3/4	SQB100	47147
1/2 (12.70mm)	–	–	–	–	SQB100
3/4 (19.05mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	SQB102	47148
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	SQB102	47149
3/4 (19.05mm)	–	–	–	–	SQB102

Weight	0.08 lbs
