Sale!

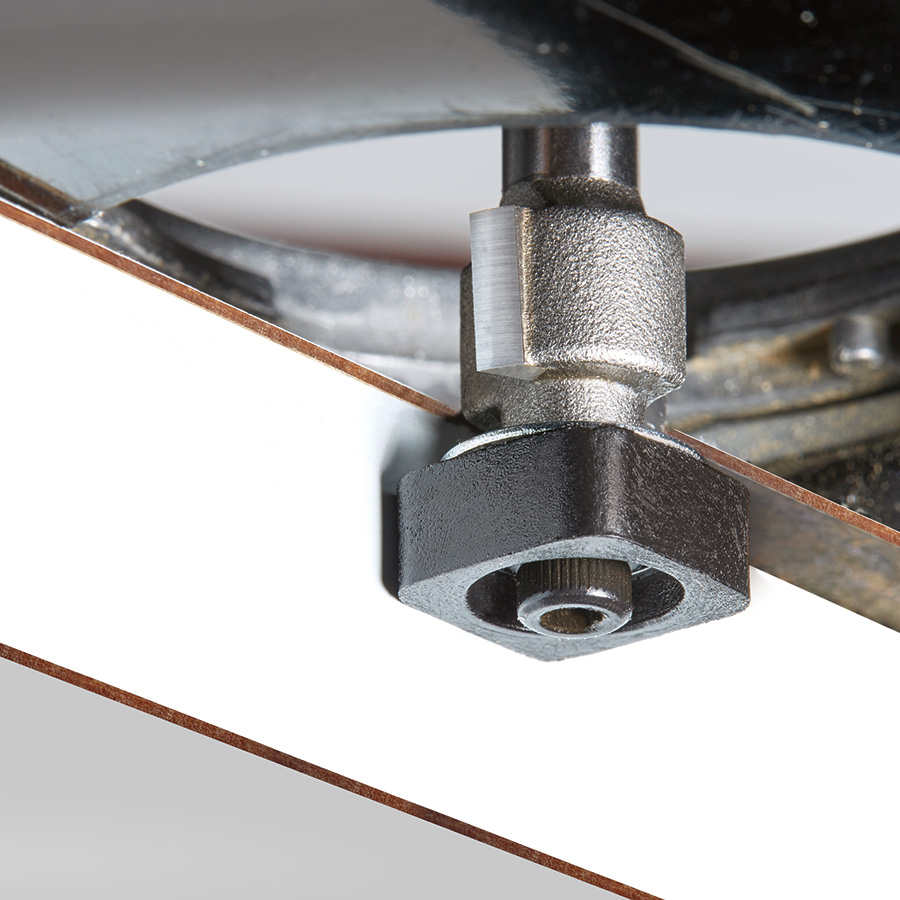

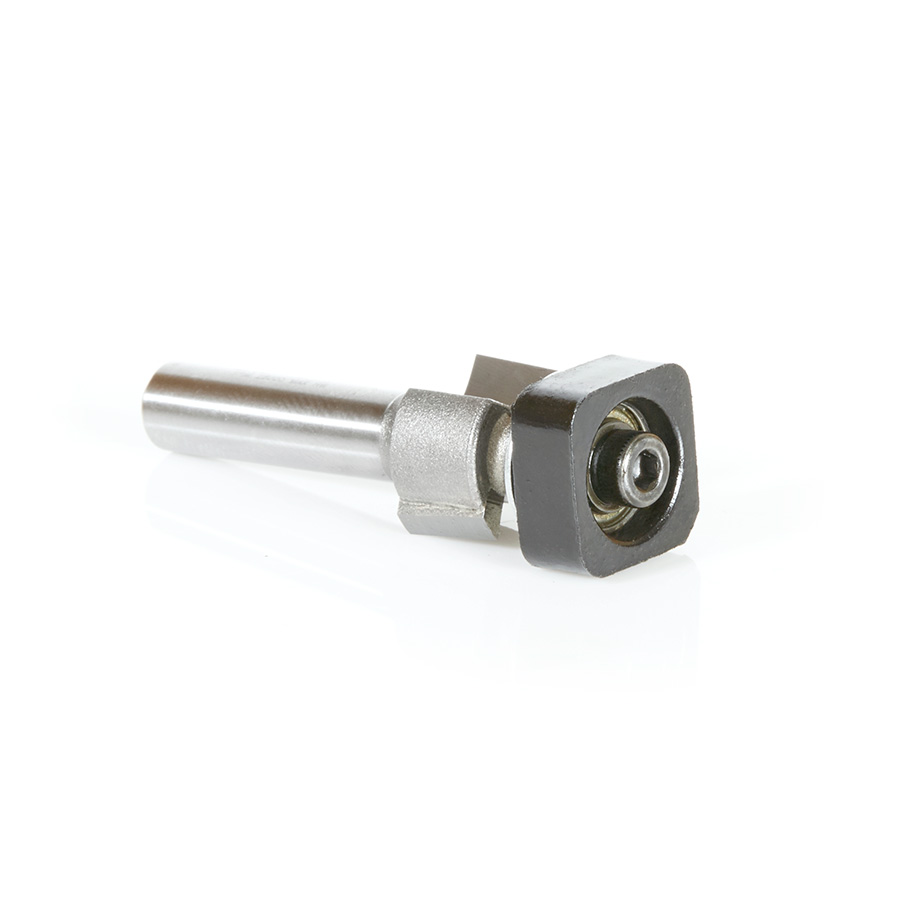

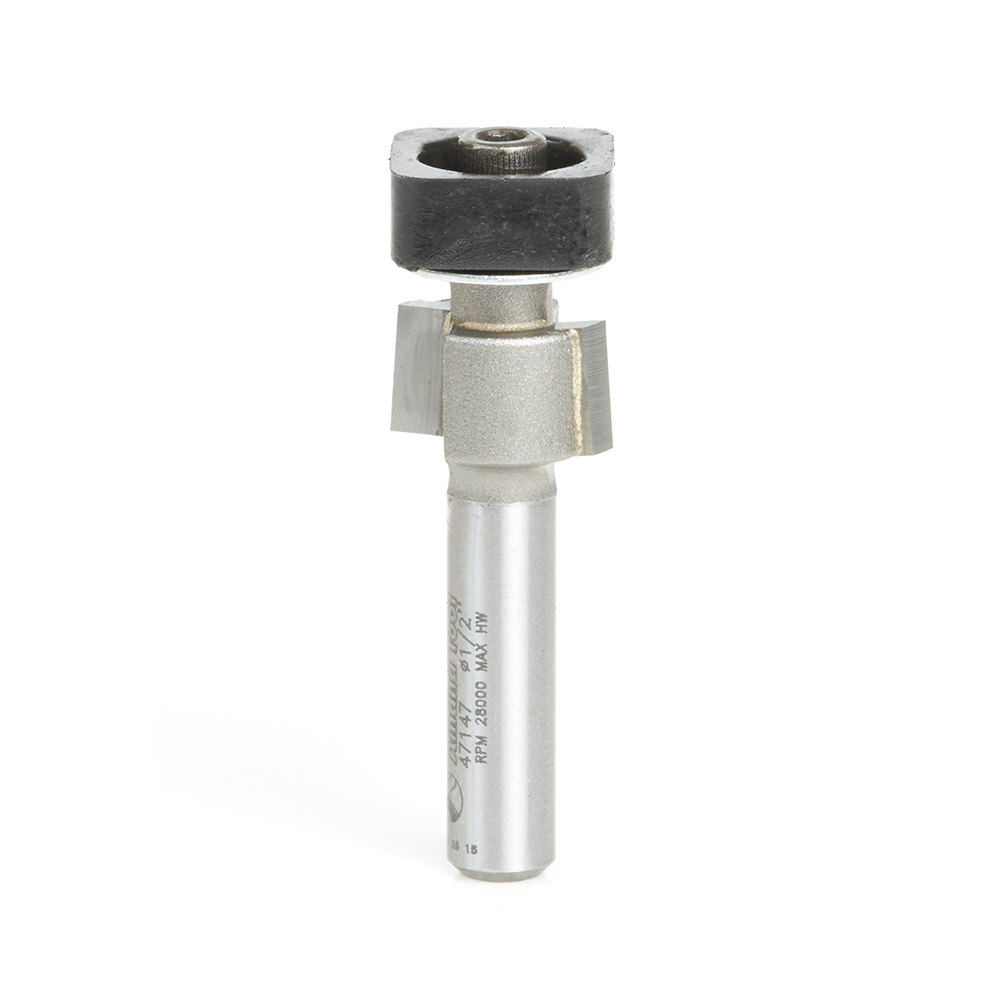

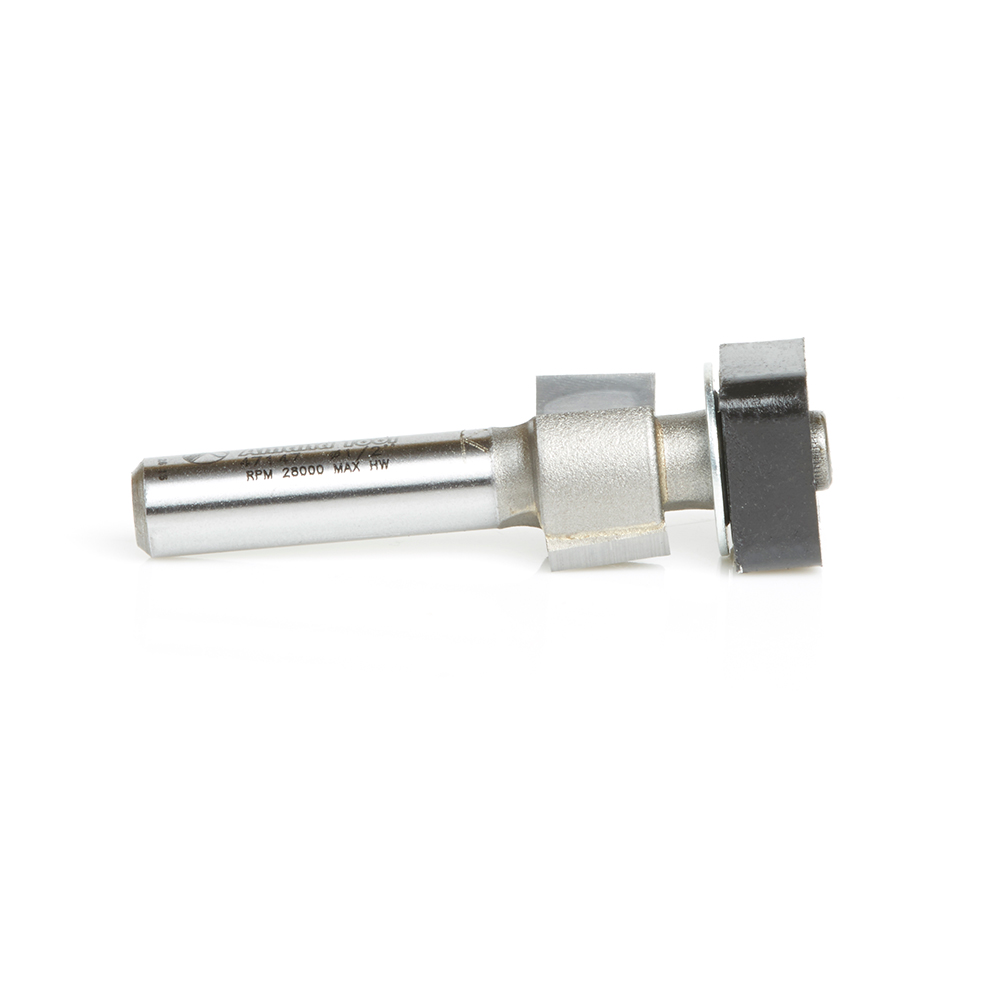

47147 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 19/64 x 1/4 Inch Shank Router Bit

Amana 47147 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 19/64 x 1/4 Inch Shank Router Bit

Name: Amana 47147 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 19/64 x 1/4 Inch Shank Router Bit
SKU: Amana 47147
Availability: InStock

Original price was: $42.85.Current price is: $32.14.

1/2 TRIMMER EURO TM SQUARE BB

UPC: 738685471470 SKU: Amana 47147 Categories: Amana Tool, Carbide Tipped Laminate Trimmer with Euro™ Square Bearing Router Bits, Router Bits, Trimming Router Bits Tags: 1/4" shank, 47147, amana tool, bearing, carbide tipped, Euro Bearing, Flush Trim, Laminate, Laminate flush trim, router bit

Item Description

Amana Tool® industrial quality carbide tipped laminate trim bits with the Euro™ Square Bearings. The bits are designed according to specifications with a slight taper allowing for adjustment up or down on the work edge to finish off the edge with a smooth and burr free cut.

The square bearing is manufactured with a strong non-stick Teflon® which won’t mark your edge so it can be wiped clean easily.

Leaves no marks on high-gloss, finished edges
Use 1/2″ diameter bit with laminate trimmers
Glue won’t stick to bearing
Beveled cutter means little or no hand filing
Will not scratch high gloss laminates
Beveled cutter can be resharpened

Replacement Parts

Bearing
SQB100

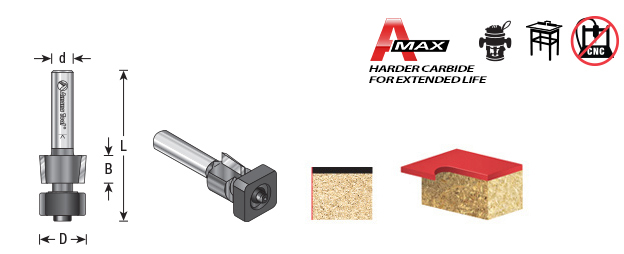

Specifications

Diameter (D)	1/2
Cutting Height (B)	19/64
Shank (d)	1/4
Overall Length (L)	1-3/4
Replacement Bearing	SQB100
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	SQB100	—-	47145
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	SQB100	2	47146
1/2 (12.70mm)	19/64 (7.54mm)	1/4 (6.35mm)	1-3/4	SQB100	2	47147-5
1/2 (12.70mm)	–	–	–	–	—-	SQB100
3/4 (19.05mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	SQB102	2	47148
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	SQB102	2	47149
3/4 (19.05mm)	–	–	–	–	—-	SQB102

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
