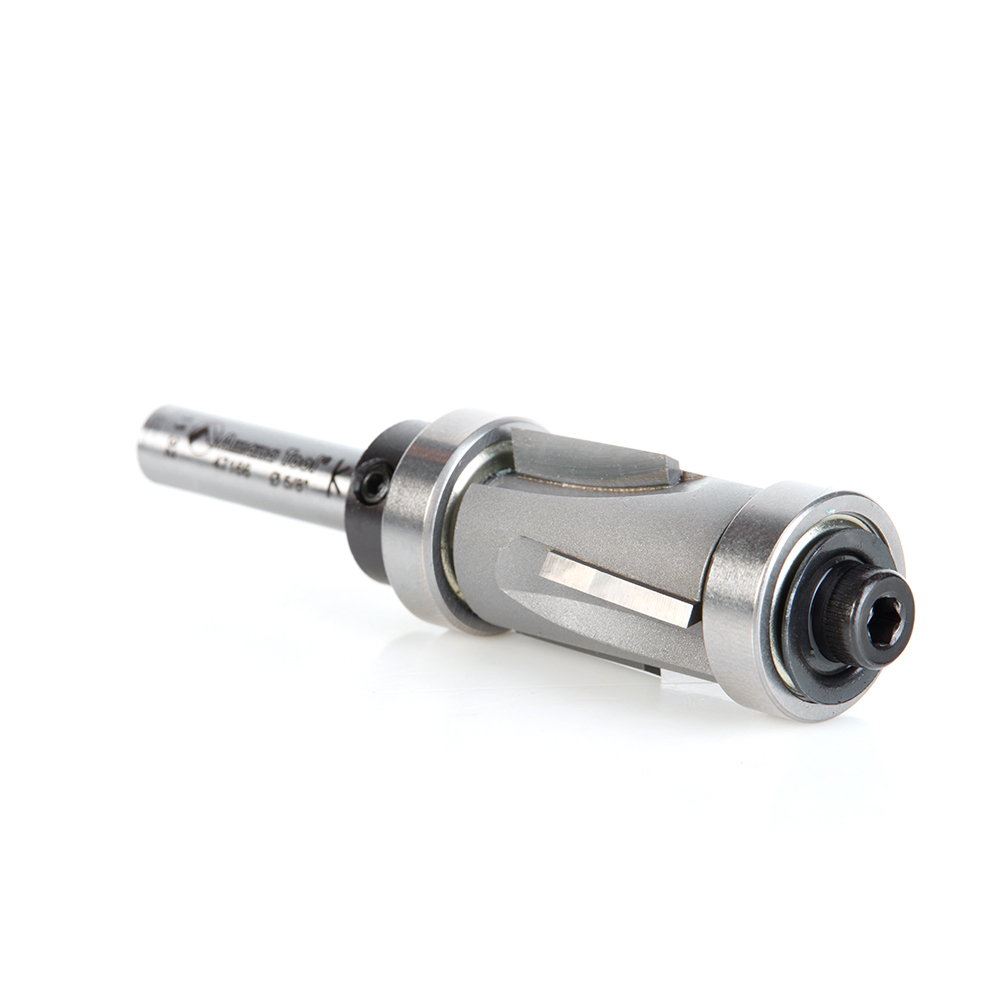

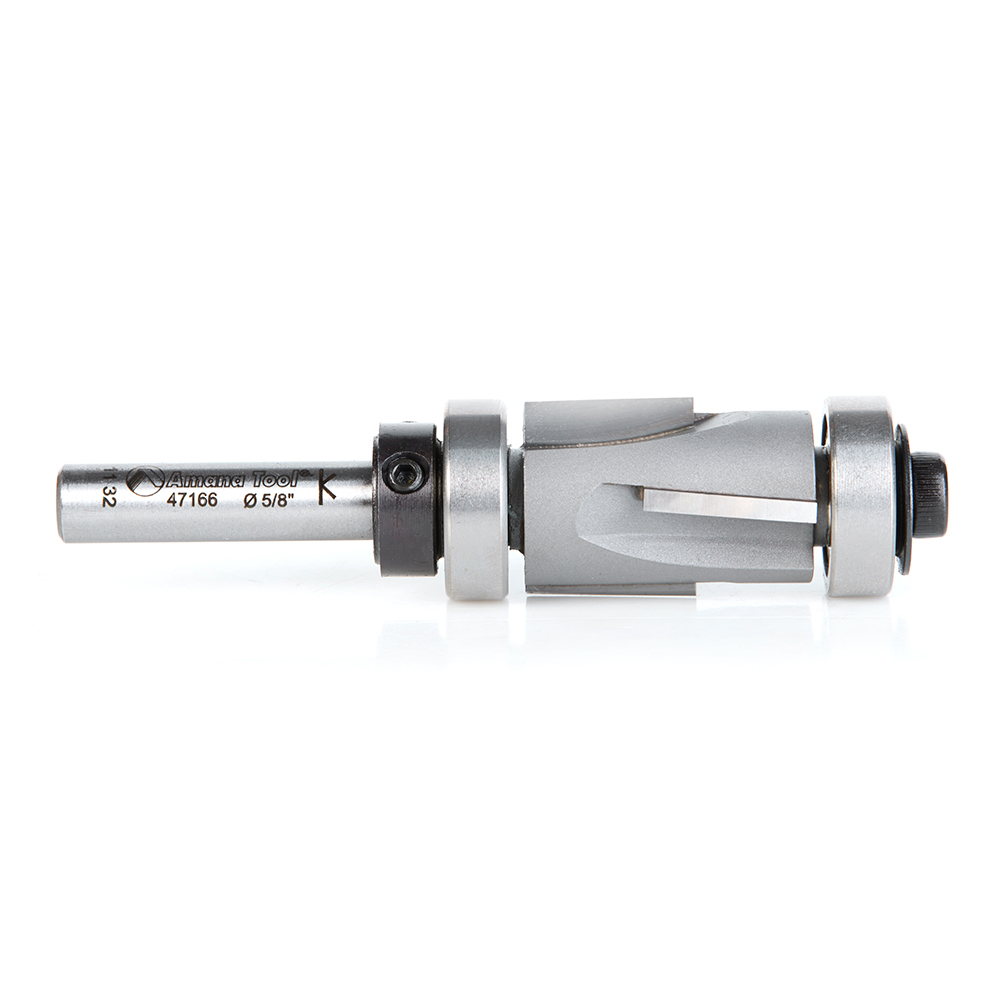

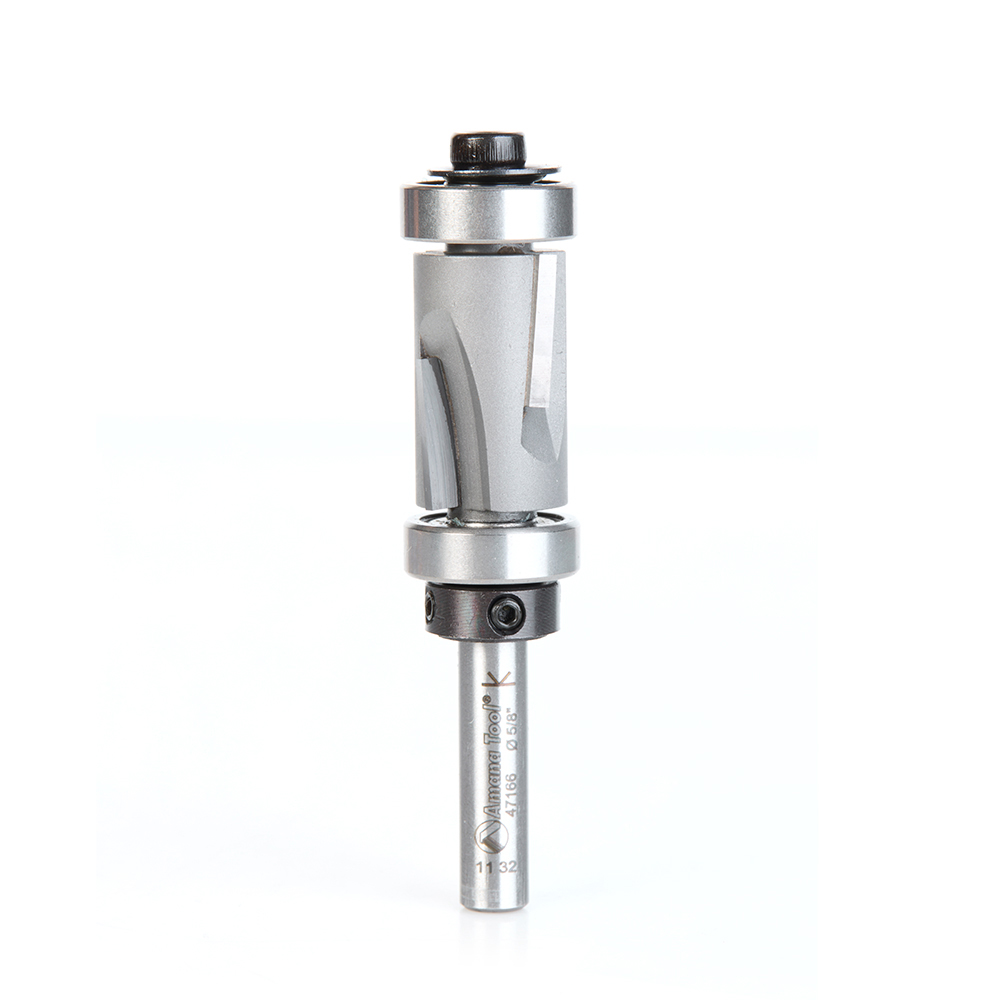

47166 Carbide Tipped Flush Trim Compression 5/8 Dia x 7/8 Inch x 1/4 Shank With Upper And Lower Ball Bearings

Amana 47166 Carbide Tipped Flush Trim Compression 5/8 Dia x 7/8 Inch x 1/4 Shank With Upper And Lower Ball Bearings

Name: Amana 47166 Carbide Tipped Flush Trim Compression 5/8 Dia x 7/8 Inch x 1/4 Shank With Upper And Lower Ball Bearings
SKU: Amana 47166
Availability: InStock

Original price was: $65.35.Current price is: $49.02.

CT FLUSH TRIM COMPRESION 5/8″D

UPC: N/A SKU: Amana 47166 Categories: Amana Tool, Flush Trim 'V' Groove Router Bits, Router Bits, Trimming Router Bits

Item Description

Use this flush trimming bit for laminate work or for template and pattern work. The two-bearing design allows the cutter to be used with the template mounted on either side of the work and, consequently, it is possible to cut from either direction using only one template and without moving the template to the other side of the work piece. Excellent for template work.

This is especially useful when cutting curves which run both with and against the grain

Excellent For:

Melamine
Laminate
MDF
Wood
Plywood

Replacement Parts

Replacement Bearing
47712 (2)

Specifications

Diameter (D)	5/8
Cutting Height (B)	7/8
B1	33/64
Shank (d)	1/4
Overall Length (L)	2-3/4
Replacement Bearing	47712 (2)
Flutes	2

Other Sizes Available

Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1/2 (12.70mm)	–	1 (25.40mm)	1/4 (6.35mm)	2-7/8	47164
5/8 (15.88mm)	–	1-3/8	1/4 (6.35mm)	3-1/4	47168

Weight	0.14 lbs
