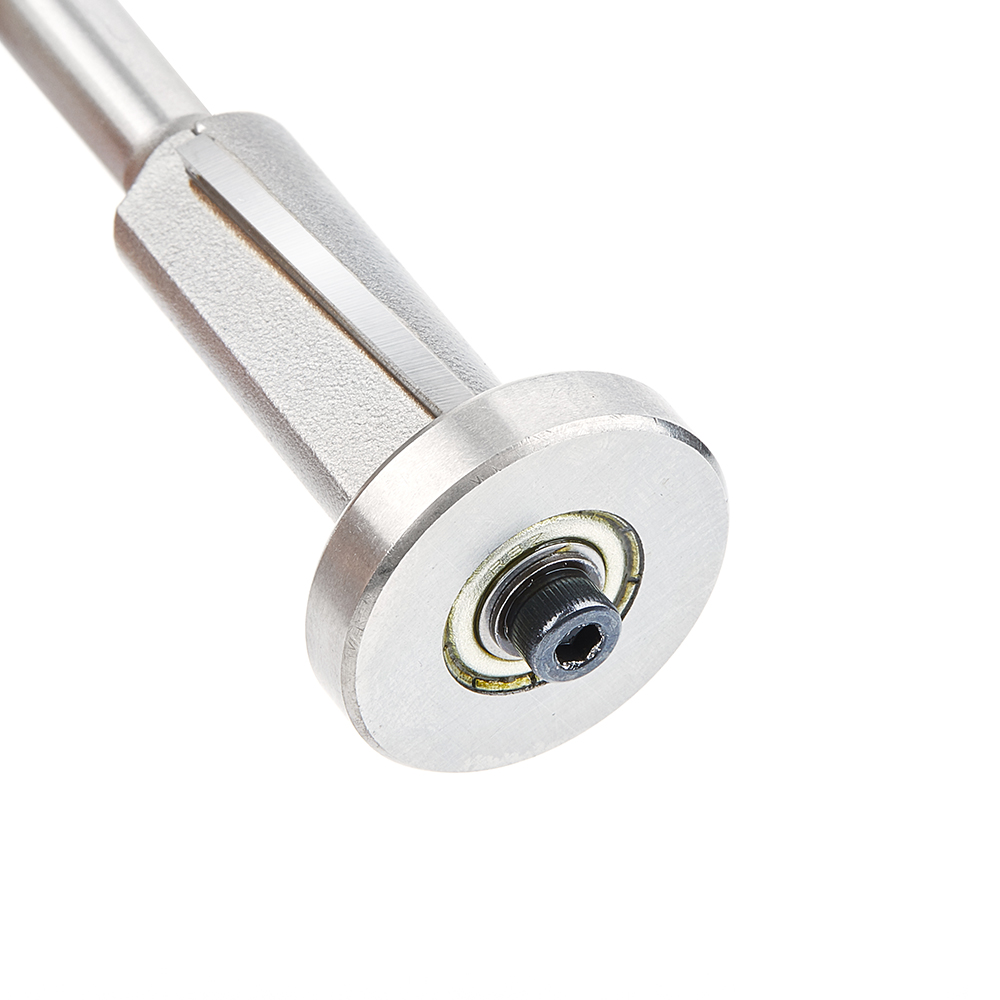

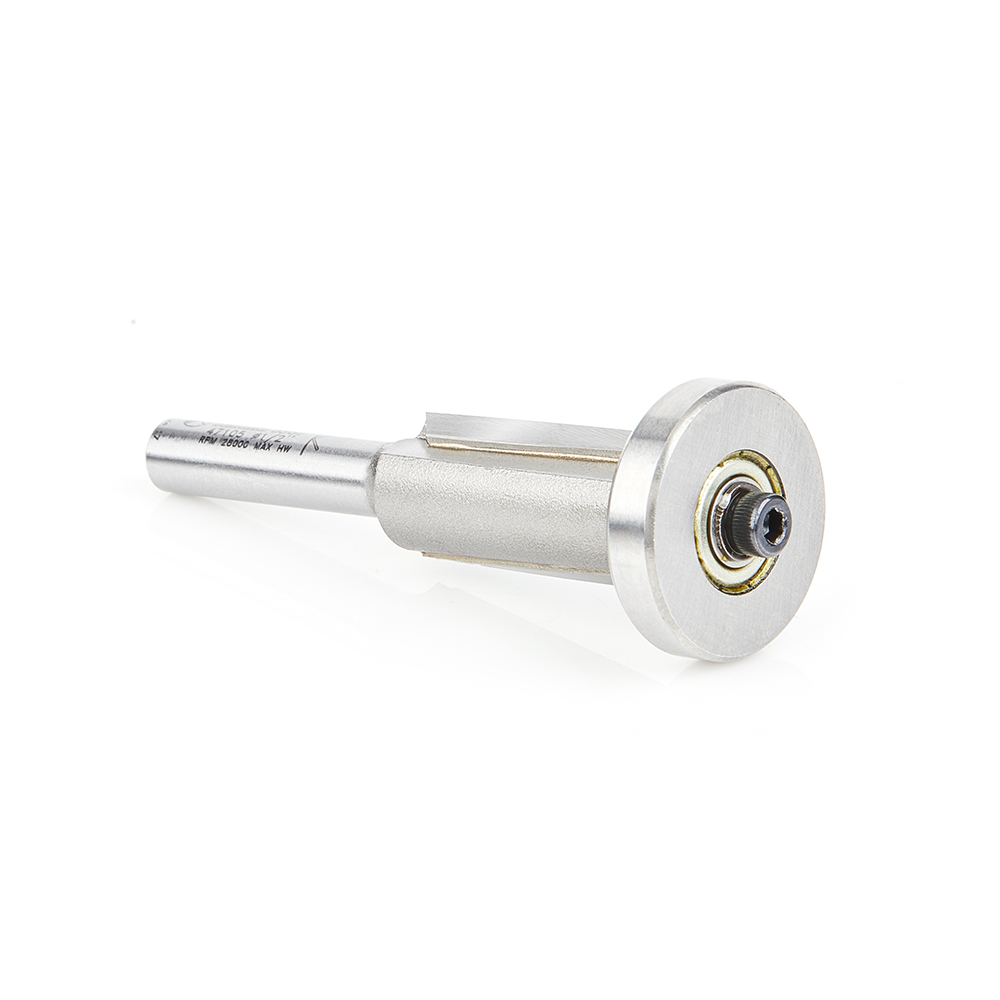

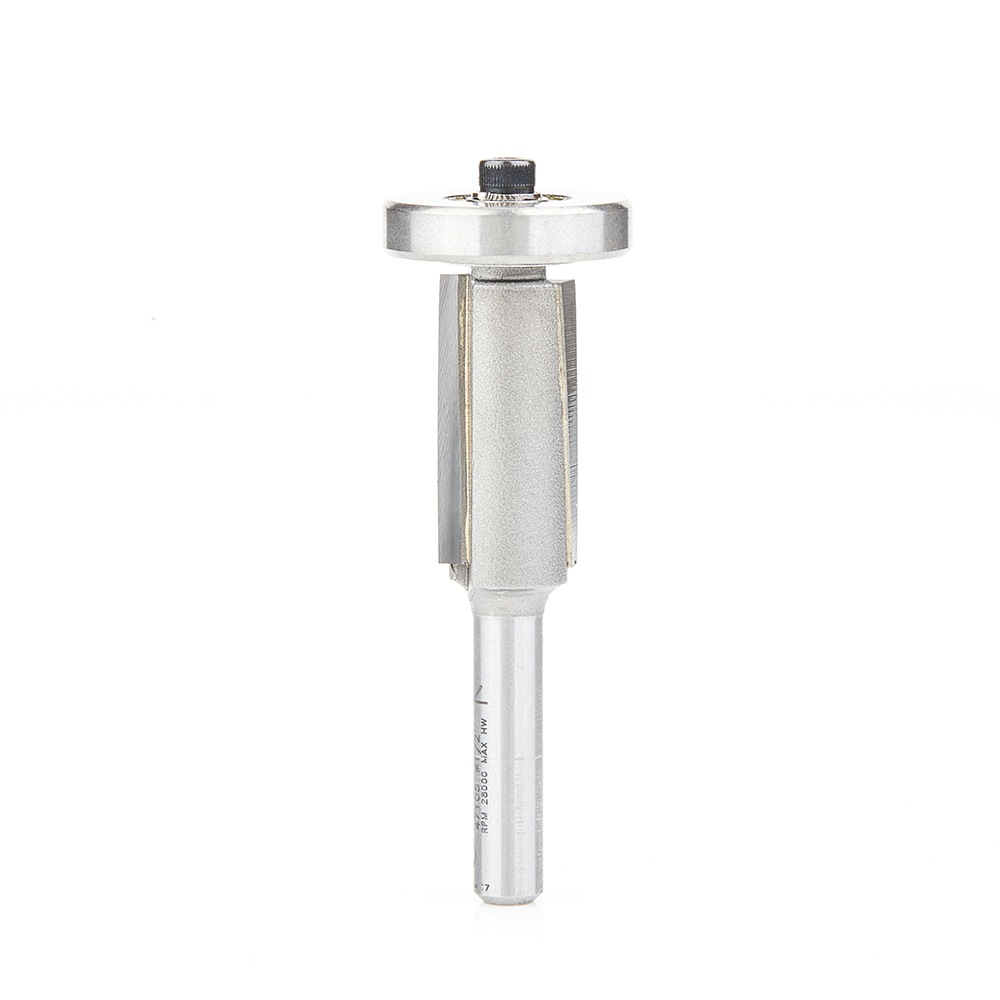

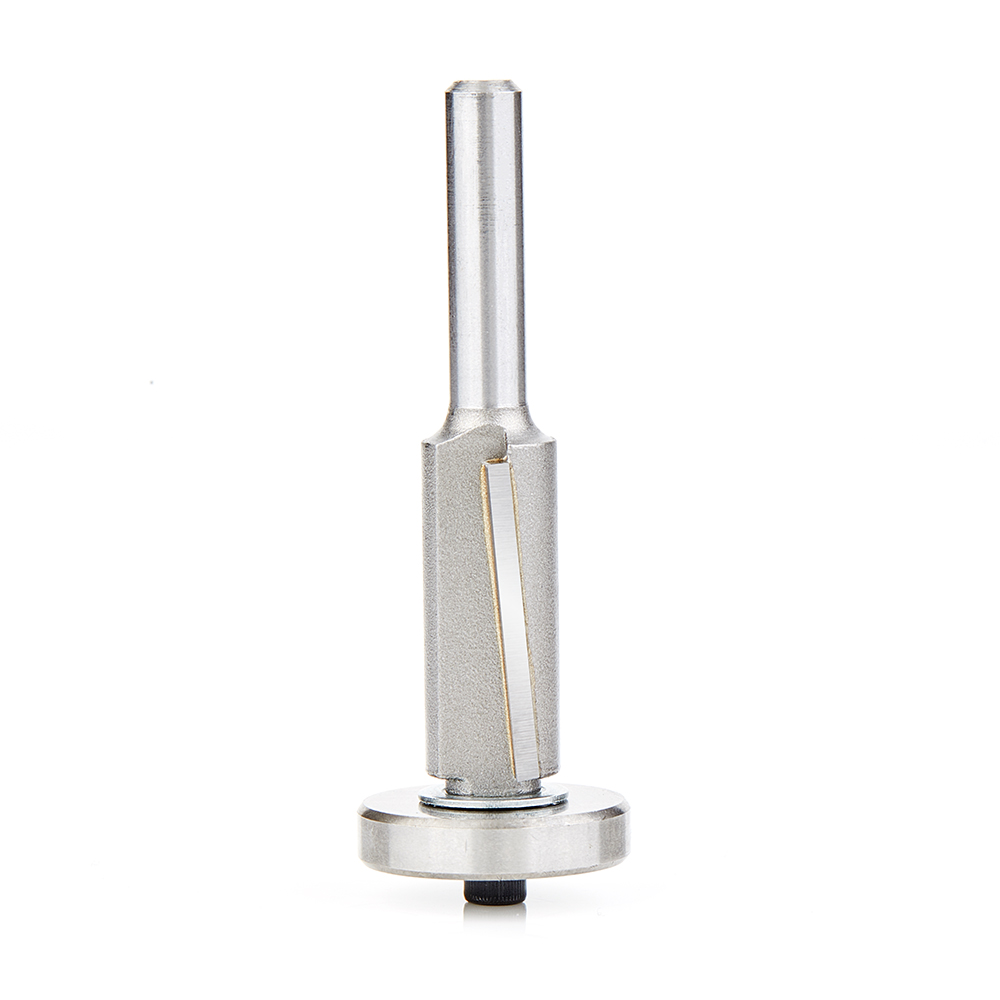

Amana 47198 Carbide Tipped Down Shear Overhang Trim 3/16 Overhang x 1/2 Dia x 1 x 1/4 Inch Shank

Amana 47198 1/2 x 1″ 2FL 3/16″ Overhang Trim Router Bit w/Bearing 1/4 Shank

Name: Amana 47198 1/2 x 1" 2FL 3/16" Overhang Trim Router Bit w/Bearing 1/4 Shank
SKU: Amana 47198
Availability: InStock

Original price was: $33.30.Current price is: $24.98.

3/16 OVERHANG 1/2DIA x 1/4 SHK

UPC: 738685471982 SKU: Amana 47198 Categories: Carbide Tipped, Overhang Trim, Router Bits, Trimming

3/16 OVERHANG 1/2DIA x 1/4 SHK

47198 Carbide Tipped Down Shear Overhang Trim 3/16 Overhang x 1/2 Dia x 1 x 1/4 Inch Shank

#47198

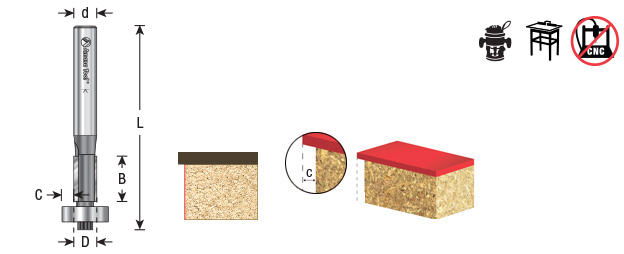

Specification
Diameter (D)	1/2
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	2-5/8
Replacement Bearing	47719
Flutes	2
C	3/16

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
