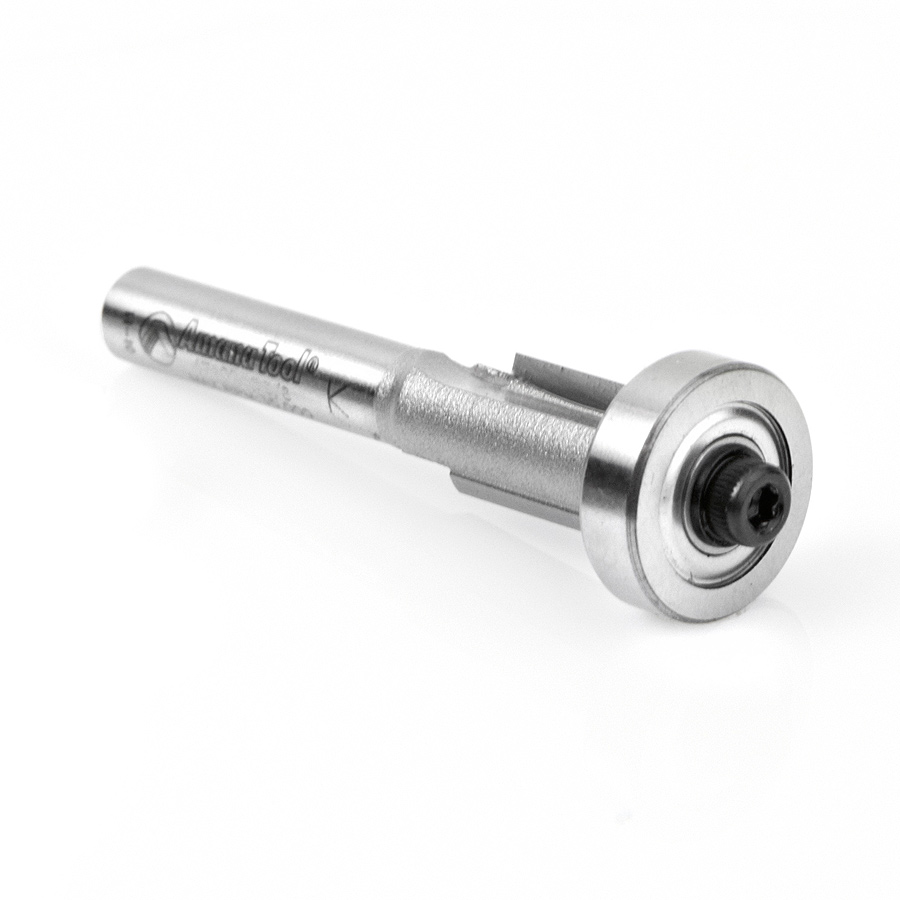

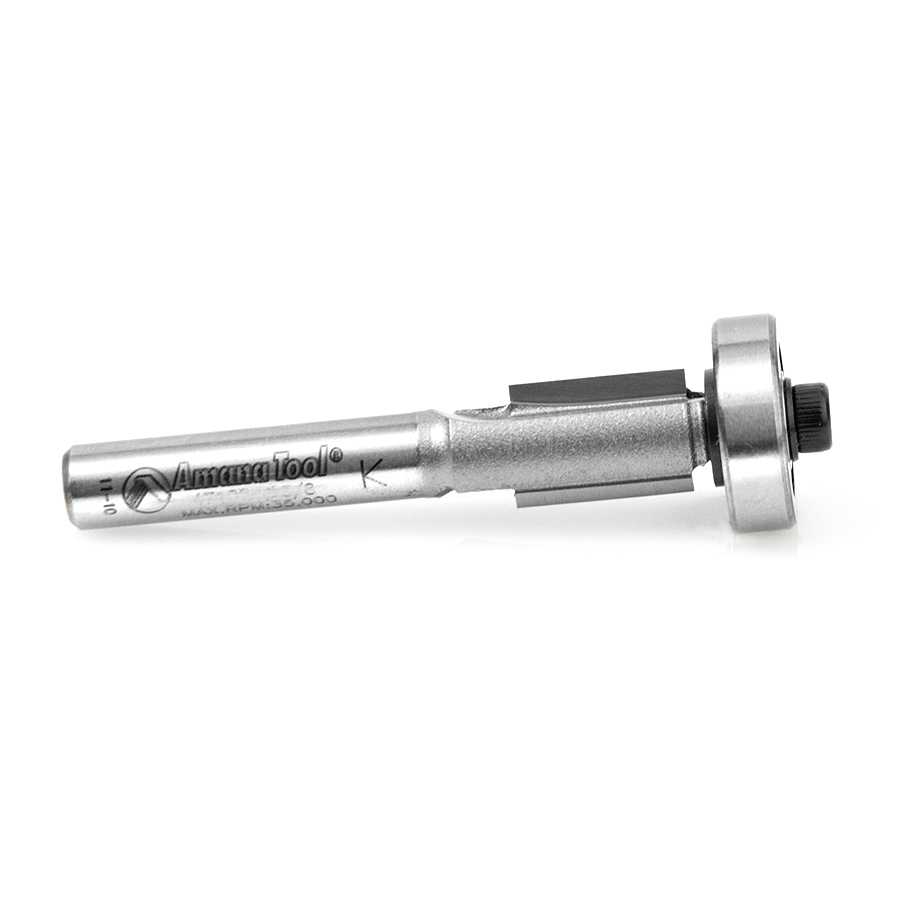

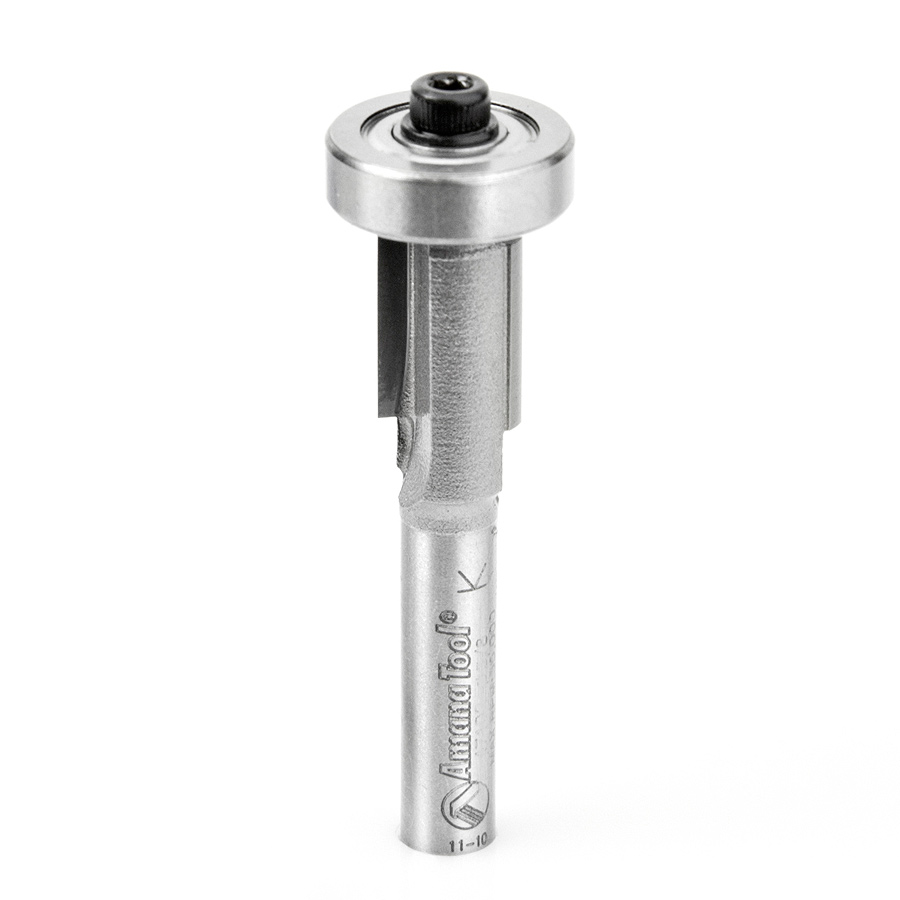

47190 Carbide Tipped Overhang Trim 1/8 Overhang x 3/8 Dia x 1/2 x 1/4 Inch Shank

Amana 47190 Carbide Tipped Overhang Trim 1/8 Overhang x 3/8 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 47190 Carbide Tipped Overhang Trim 1/8 Overhang x 3/8 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 47190
Availability: InStock

Original price was: $33.30.Current price is: $24.98.

1/8 OVERHANG 3/8 DIA x 1/4 SHK

UPC: 738685871904 SKU: Amana 47190 Categories: Amana Tool, Overhang Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.

Specifications

Diameter (D)	3/8
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/8
Replacement Bearing	47718
Flutes	2
C	1/8

Other Sizes Available

Diameter (D)	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/4 (6.35mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47704	2	47185
1/4 (6.35mm)	1/16 (1.59mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47704	2	47188
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47700	2	47189
3/8 (9.53mm)	1/64 (0.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-5/32	47794	2	47193
3/8 (9.53mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47718	2	47195
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47718	2	47192
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47718	2	47194
1/2 (12.70mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47720	2	47197
1/2 (12.70mm)	3/16 (4.76mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47719	2	47198
