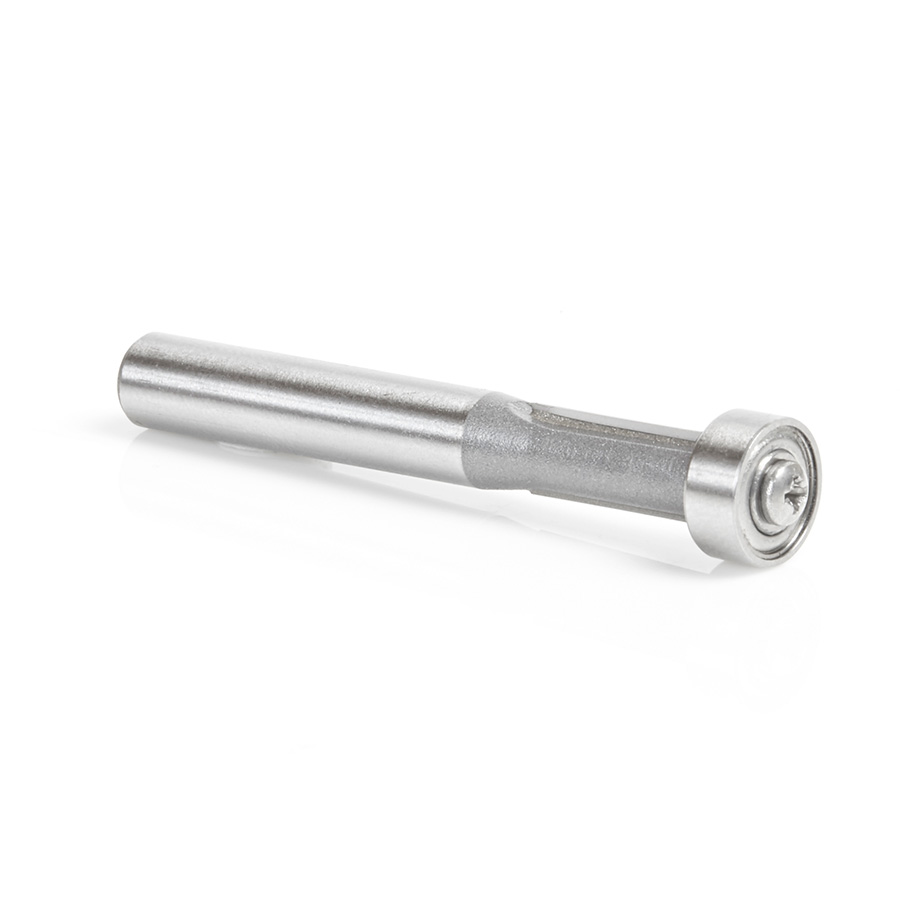

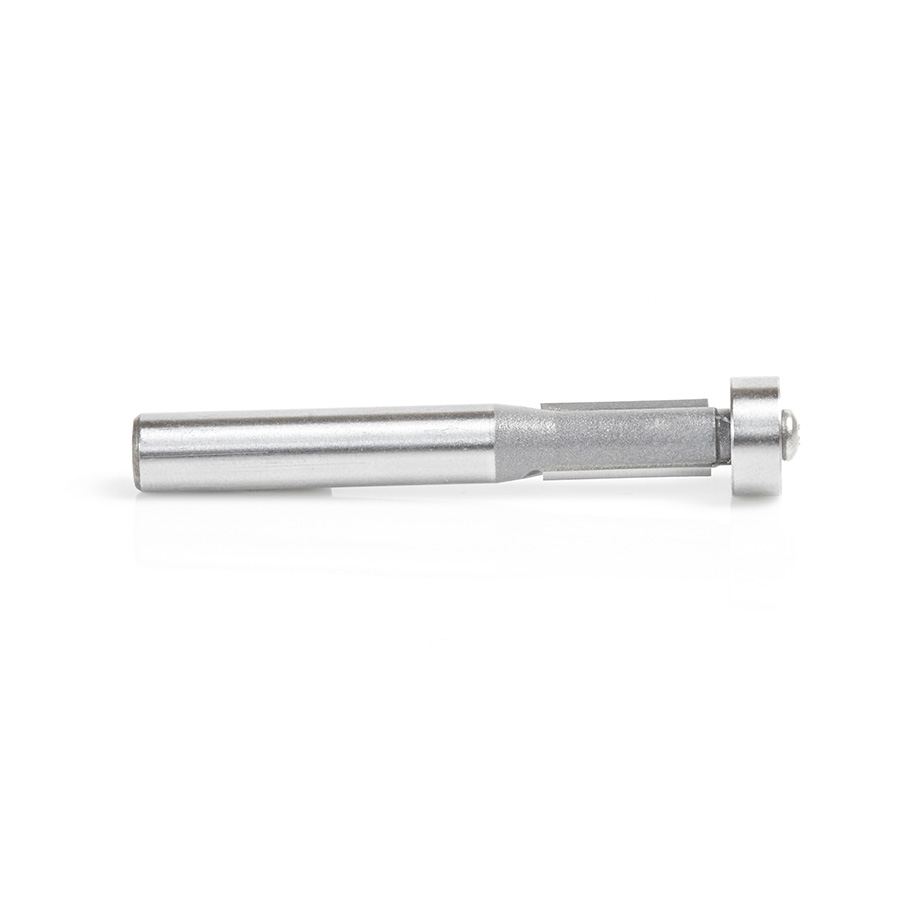

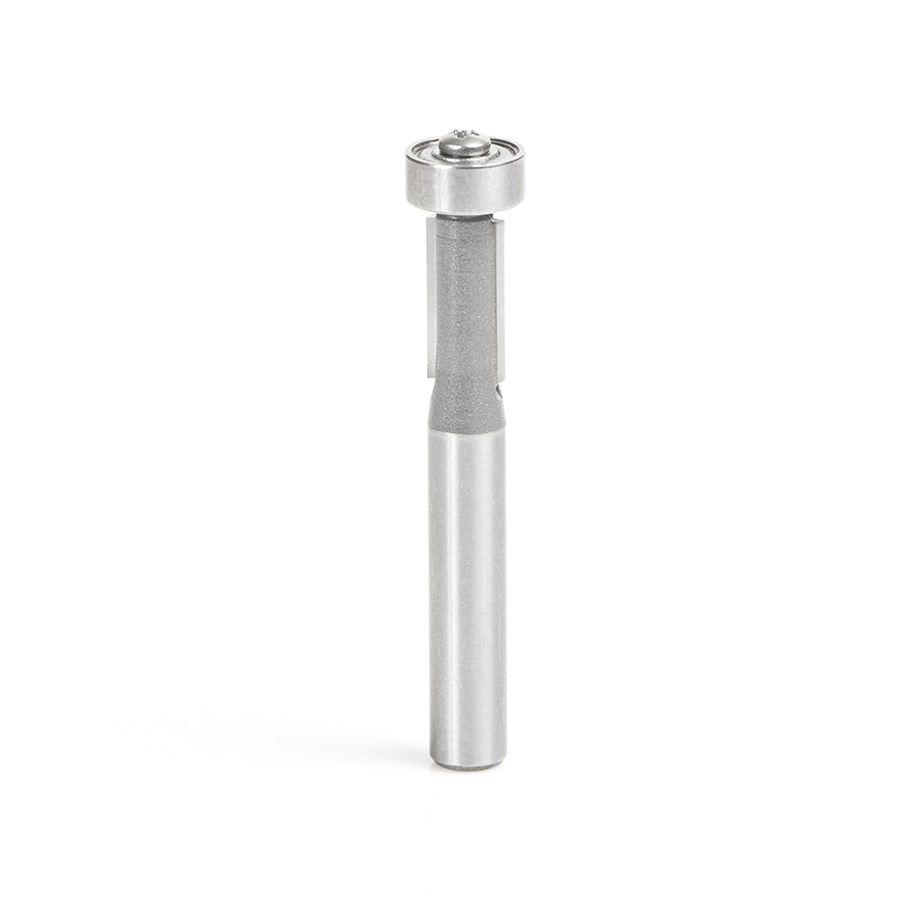

47185 Carbide Tipped Overhang Trim 1/16 Overhang x 1/4 Dia x 1/2 x 1/4 Inch Shank

Amana 47185 Carbide Tipped Overhang Trim 1/16 Overhang x 1/4 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 47185 Carbide Tipped Overhang Trim 1/16 Overhang x 1/4 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 47185
Availability: InStock

Original price was: $33.30.Current price is: $24.98.

1/16 OVERHANG 1/4 DIA x 1/4SHK

UPC: 738685471852 SKU: Amana 47185 Categories: Amana Tool, Overhang Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.

Specifications

Diameter (D)	1/4
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Bearing	47704
Flutes	2
C	1/16

Other Sizes Available

Diameter (D)	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/4 (6.35mm)	1/16 (1.59mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47704	2	47188
1/4 (6.35mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47700	2	47189
3/8 (9.53mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47718	2	47190
3/8 (9.53mm)	1/64 (0.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-5/32	47794	2	47193
3/8 (9.53mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47718	2	47195
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47718	2	47192
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47718	2	47194
1/2 (12.70mm)	1/8 (3.18mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47720	2	47197
1/2 (12.70mm)	3/16 (4.76mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47719	2	47198

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
