Sale!

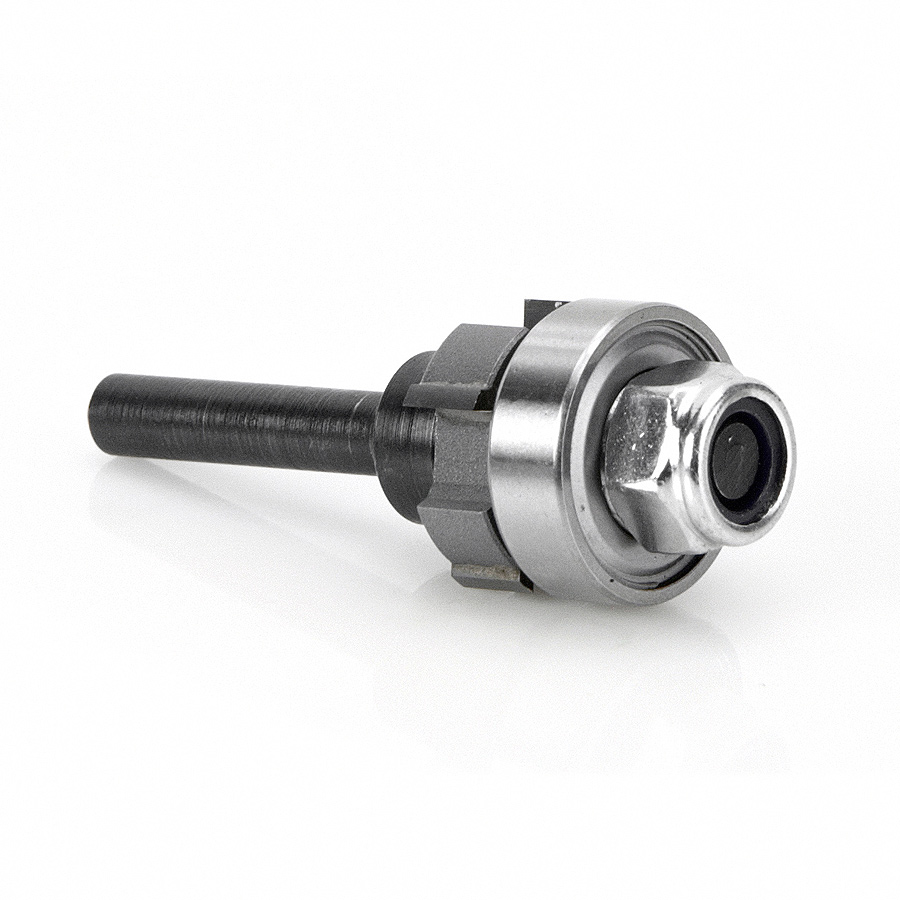

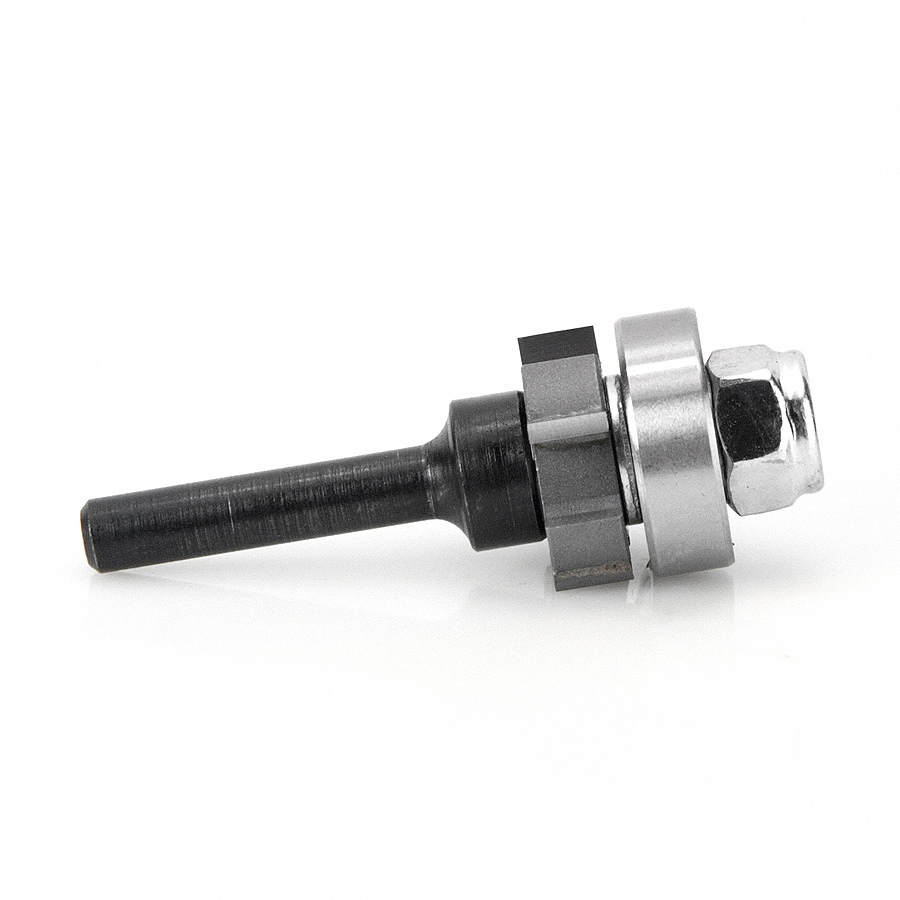

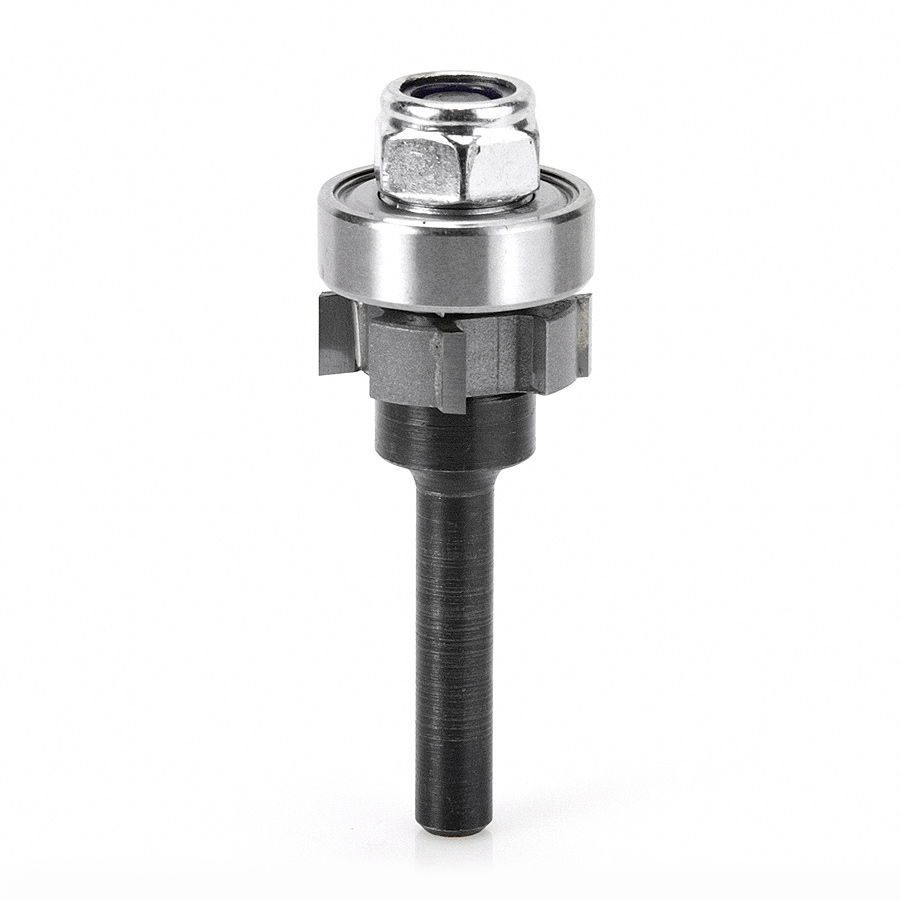

47400 Carbide Tipped 4 Wing Flush Trim Single Bevel Cutter Assembly 7/8 Dia x 1/4 x 1/4 Inch Shank

Amana 47400 Carbide Tipped 4 Wing Flush Trim Single Bevel Cutter Assembly 7/8 Dia x 1/4 x 1/4 Inch Shank

Name: Amana 47400 Carbide Tipped 4 Wing Flush Trim Single Bevel Cutter Assembly 7/8 Dia x 1/4 x 1/4 Inch Shank
SKU: Amana 47400
Availability: InStock

Original price was: $58.30.Current price is: $43.73.

FLUSH 4 WING TRIM CUTTERS

UPC: 738685874004 SKU: Amana 47400 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

An assembly offers the option of switching cutters – from flush trim to either of two bevel trims – without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.

All parts can be replaced individually.

Replacement Parts

Replacement Cutter	Replacement Bearing
47500	47708

Specifications

Angle (a°)	Flush
Diameter (D)	7/8
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	2-3/8
Replacement Bearing	47708
# Wings	4

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	# Wings	Tool No.
1 (25.40mm)	15°	1/4 (6.35mm)	1/4 (6.35mm)	2-3/8	47708	4 (101.60mm)	47404
1 (25.40mm)	15°	1/4 (6.35mm)	1/2 (12.70mm)	2-3/8	47708	4 (101.60mm)	47406

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
