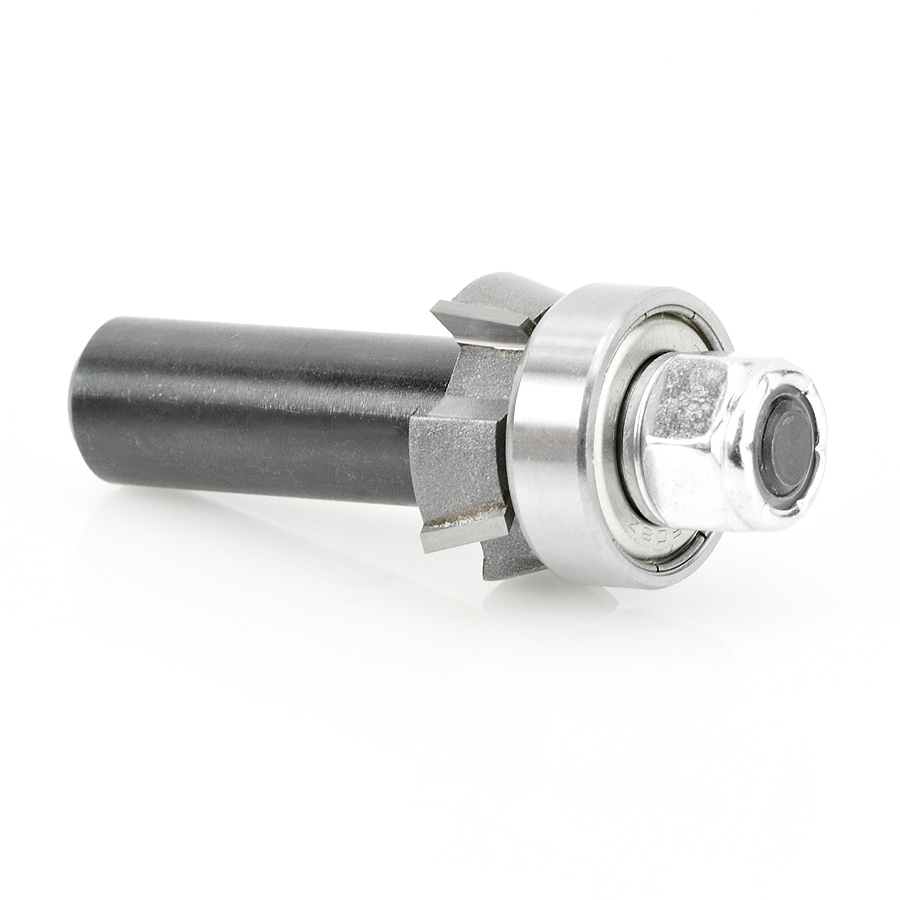

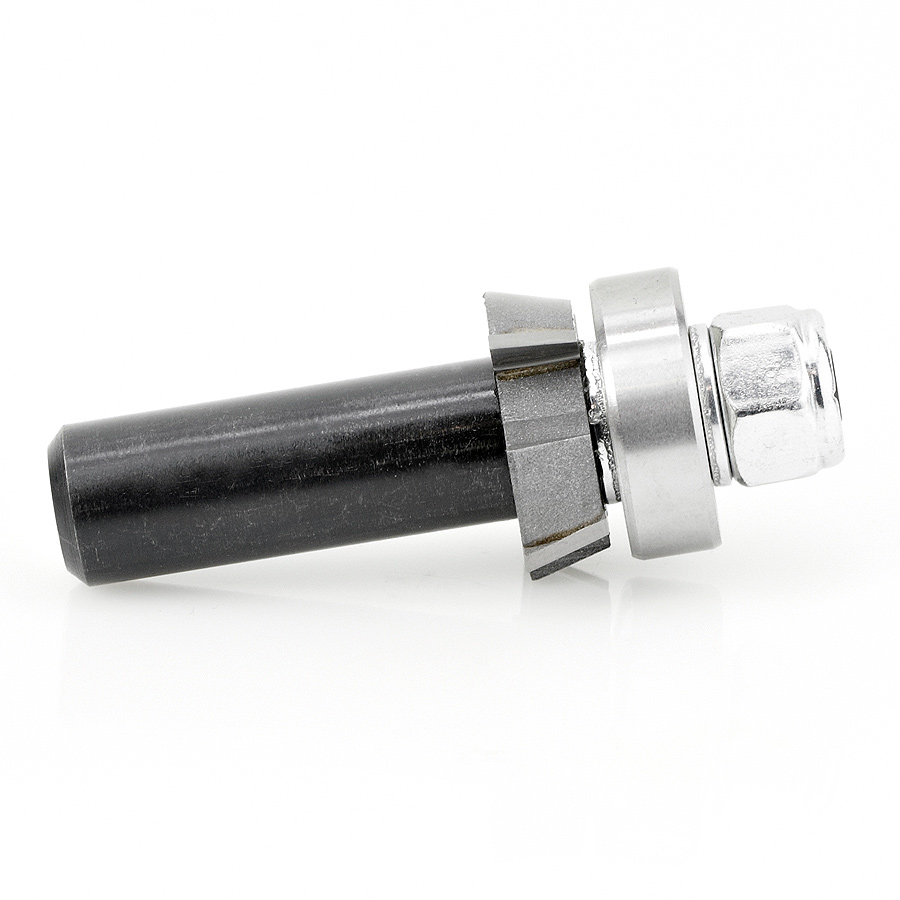

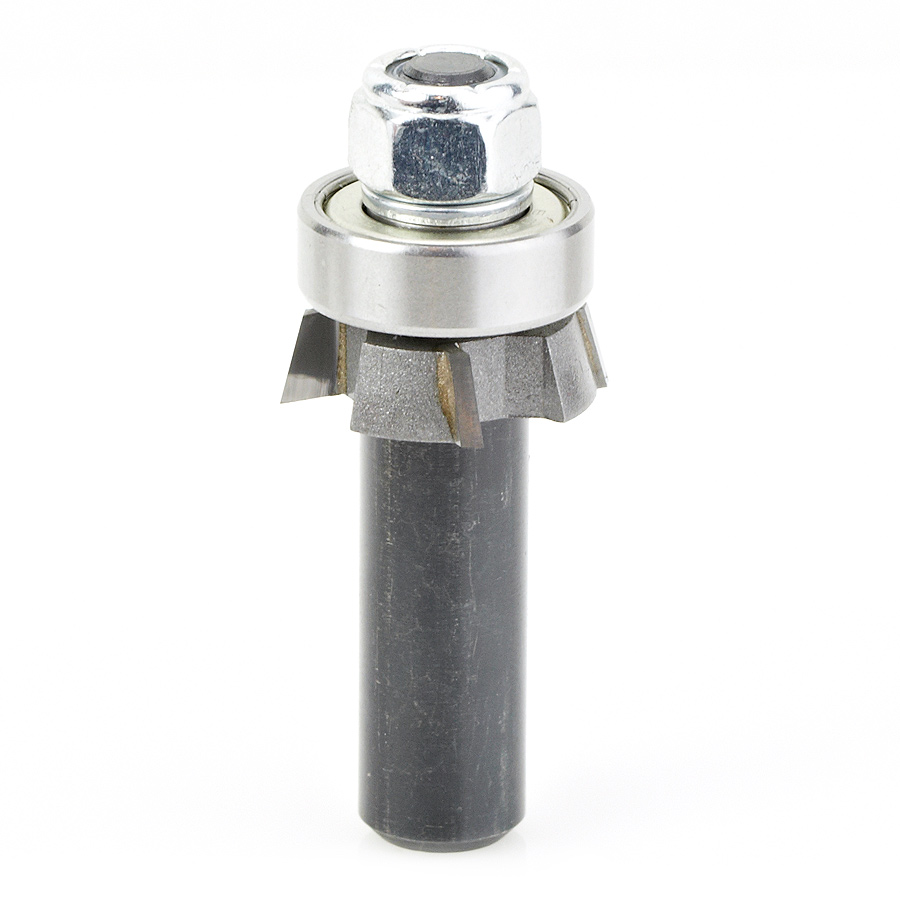

47406 Carbide Tipped 4 Wing Single Bevel Trim Cutter Assembly 15 Deg x 1 Inch Dia x 1/4 x 1/2 Shank

Amana 47406 Carbide Tipped 4 Wing Single Bevel Trim Cutter Assembly 15 Deg x 1 Inch Dia x 1/4 x 1/2 Shank

Name: Amana 47406 Carbide Tipped 4 Wing Single Bevel Trim Cutter Assembly 15 Deg x 1 Inch Dia x 1/4 x 1/2 Shank
SKU: Amana 47406
Availability: InStock

Original price was: $59.40.Current price is: $44.55.

BEVEL 4 WING TRIM CUTTERS

UPC: 738685874066 SKU: Amana 47406 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

An assembly offers the option of switching cutters – from flush trim to either of two bevel trims – without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.

All parts can be replaced individually.

Replacement Parts

Replacement Cutter	Replacement Bearing
47502	47708

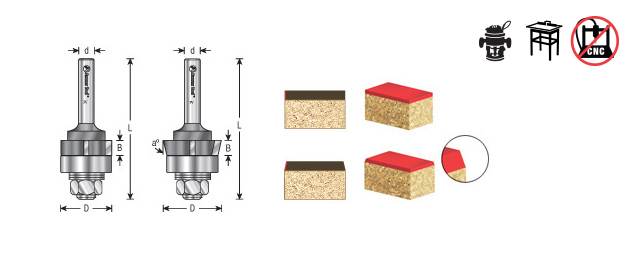

Specifications

Angle (a°)	15°
Diameter (D)	1
Cutting Height (B)	1/4
Shank (d)	1/2
Overall Length (L)	2-3/8
Replacement Bearing	47708
# Wings	4

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	# Wings	Tool No.
7/8 (22.23mm)	Flush	1/4 (6.35mm)	1/4 (6.35mm)	2-3/8	47708	4 (101.60mm)	47400
1 (25.40mm)	15°	1/4 (6.35mm)	1/4 (6.35mm)	2-3/8	47708	4 (101.60mm)	47404

Weight	0.18 lbs
