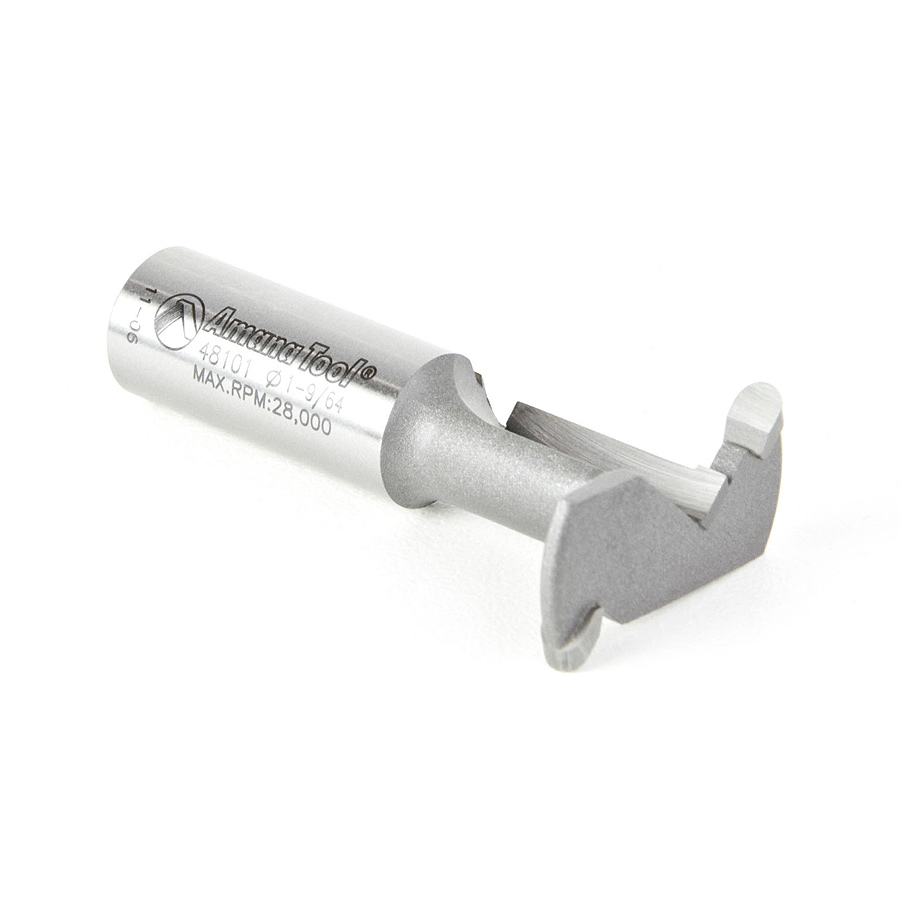

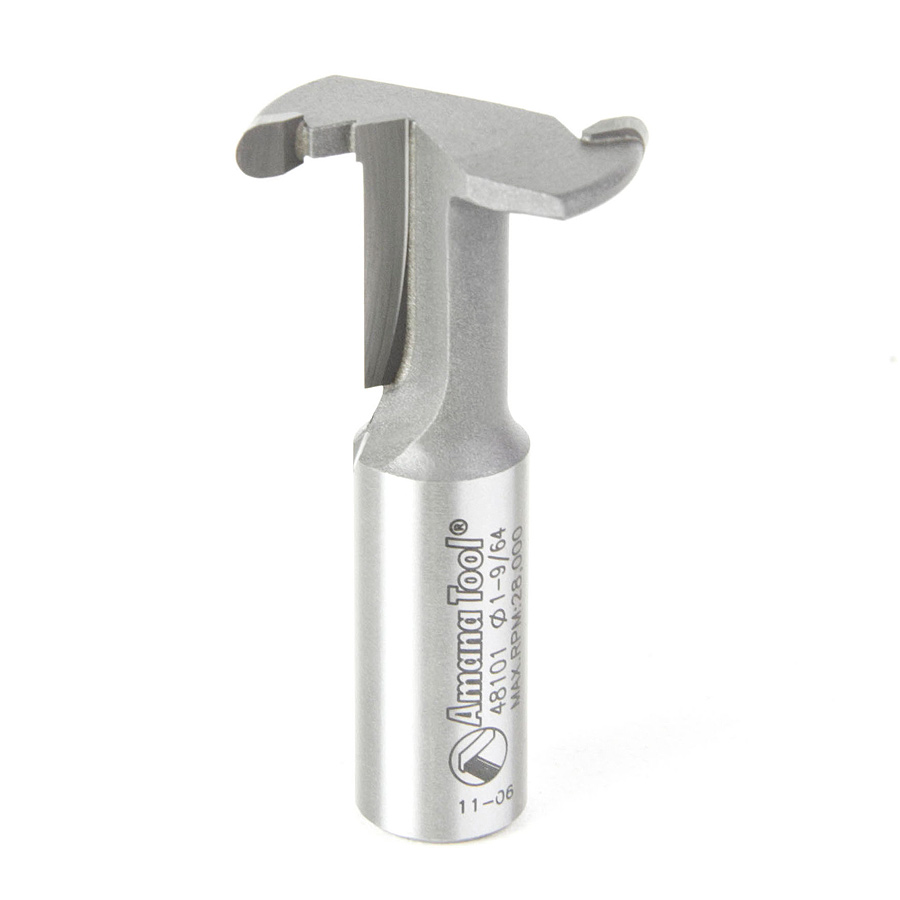

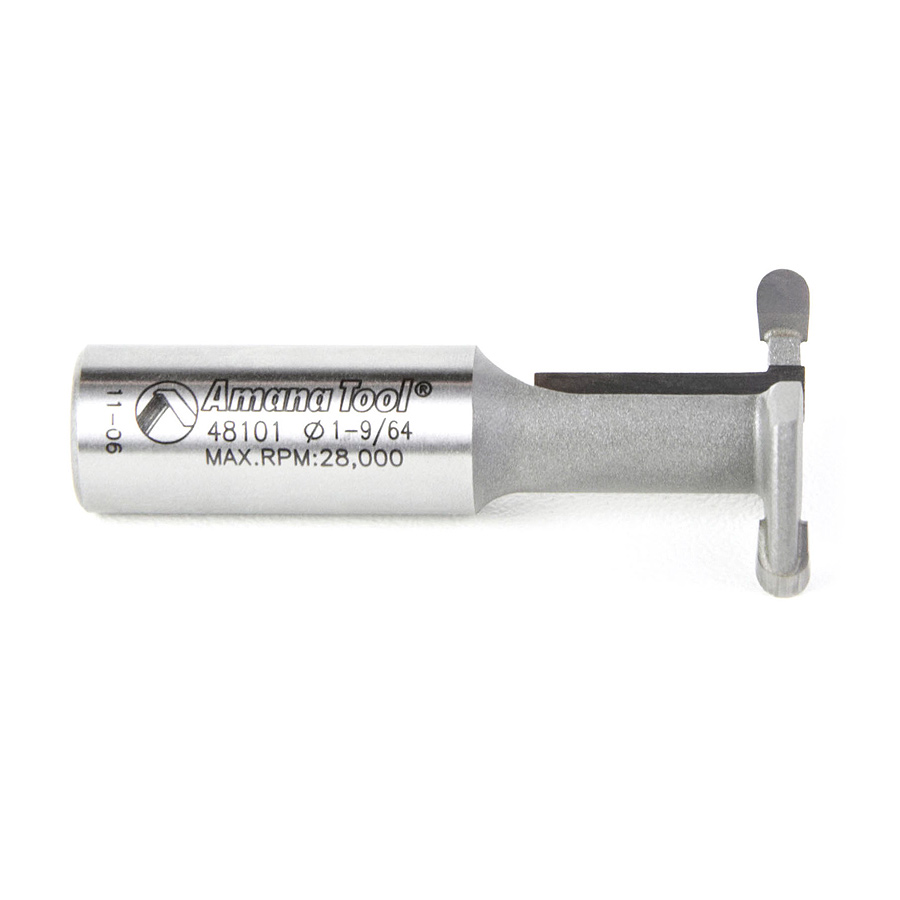

48101 Carbide Tipped Amerock Hinge 1-1/8 Dia x 13/16 x 1/2 Inch Shank

Amana 48101 Carbide Tipped Amerock Hinge 1-1/8 Dia x 13/16 x 1/2 Inch Shank

Name: Amana 48101 Carbide Tipped Amerock Hinge 1-1/8 Dia x 13/16 x 1/2 Inch Shank
SKU: Amana 48101
Availability: InStock

Original price was: $57.05.Current price is: $42.79.

2 FLUTE 1-1/8″D AMEROCK HINGE

UPC: 738685881019 SKU: Amana 48101 Categories: Amana Tool, Jointing Router Bits, Router Bits, Special Amerock Hinge Router Bits

Item Description

This bit is designed to produce a T-slot for Amerock® hinges. For best results use in a table-mounted router.

Note:** These bits are not guaranteed due to fragility and application.

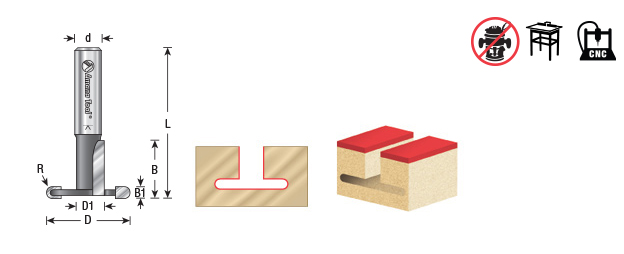

Specifications

Diameter (D)	1-1/8
D1	7/16
Radius (R)	5/64
Cutting Height (B)	13/16
B1	5/32
Shank (d)	1/2
Overall Length (L)	2-1/8
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
1-1/8	7/16 (11.11mm)	5/64 (1.98mm)	13/16 (20.64mm)	5/32 (3.97mm)	3/8 (9.53mm)	2 (50.80mm)	48100
1-19/32	3/8 (9.53mm)	5/64 (1.98mm)	13/16 (20.64mm)	5/32 (3.97mm)	3/8 (9.53mm)	2 (50.80mm)	48102

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
