48200 Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System 4 Inch Dia x 20T TCG, 0 Deg x 1/2 Shank 100% Flash Mounting

Amana 48200 Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System 4 Inch Dia x 20T TCG, 0 Deg x 1/2 Shank 100% Flash Mounting

Name: Amana 48200 Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System 4 Inch Dia x 20T TCG, 0 Deg x 1/2 Shank 100% Flash Mounting
SKU: Amana 48200
Availability: InStock

Original price was: $256.25.Current price is: $192.19.

CNC PLASTIC BLADE&ARBOR SYSTEM

UPC: 738685482001 SKU: Amana 48200 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Plastic Trim Saw Blade and Arbor CNC System

Item Description

Designed for trimming and grooving hard and soft plastics.

100% flash mounting.

Right hand rotation cutting.

Excellent for cutting:

Hard & Soft Plastics
Acrylonitrile Butadiene Styrene (ABS)
Expanded PVC
Fomex®
High Impact Polystyrene (HIPS)
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)
LubX®

Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Thermoplastic Polyolefin (TPO)
Sign Foam
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Urethane

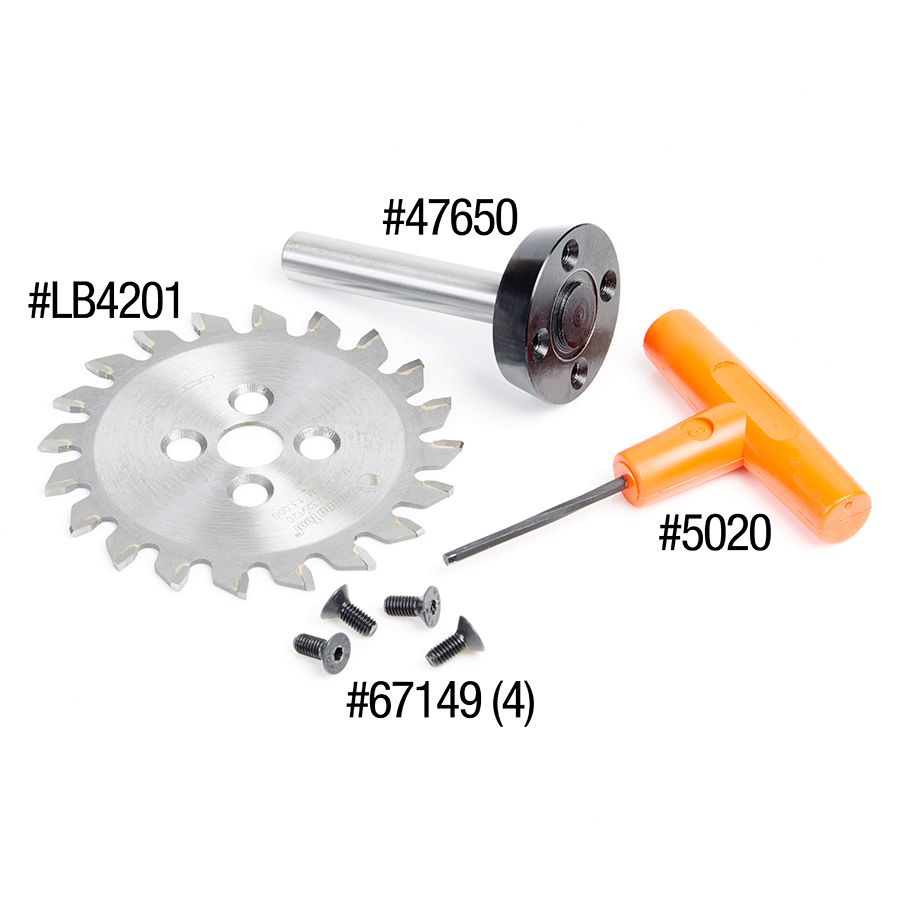

Replacement Parts

Saw Blade	Arbor	Hex Screw	Hex Key
LB4201	47650	67149	5020

Product Information

![Image 21: 48200 Info](http://www.amanatool.com/media/wysiwyg/48200-Replacement-Parts.jpg)

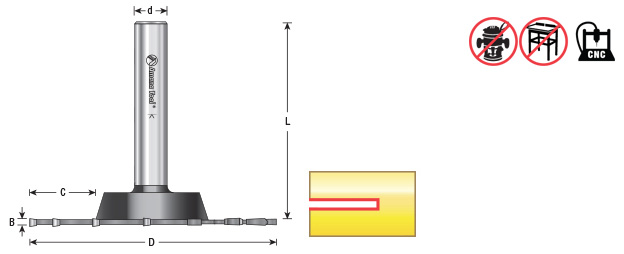

Specifications

(D) Diameter	4
(d) Shank	1/2
Overall Length (L)	3-1/4
Max RPM	13,000
C	1-1/8
Feed Rate IPM	150"
Grind	TCG
Teeth	20
Hook Angle	0º
Kerf (B)	.095" (3/32)

Weight	1.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
