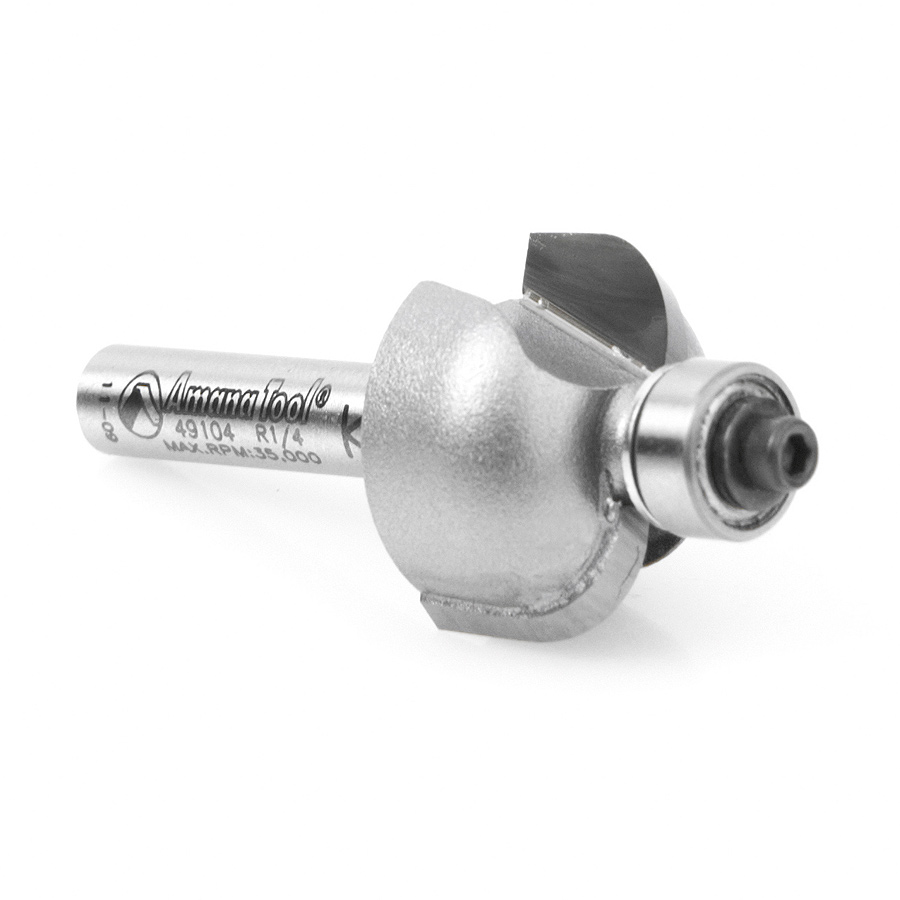

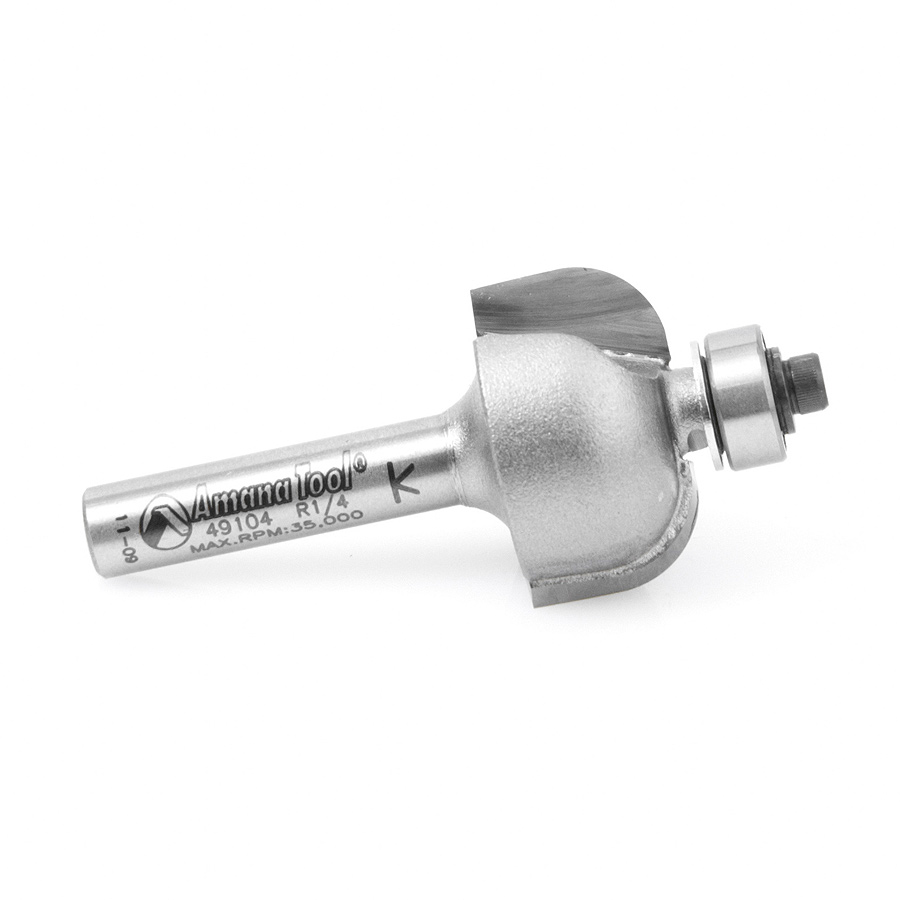

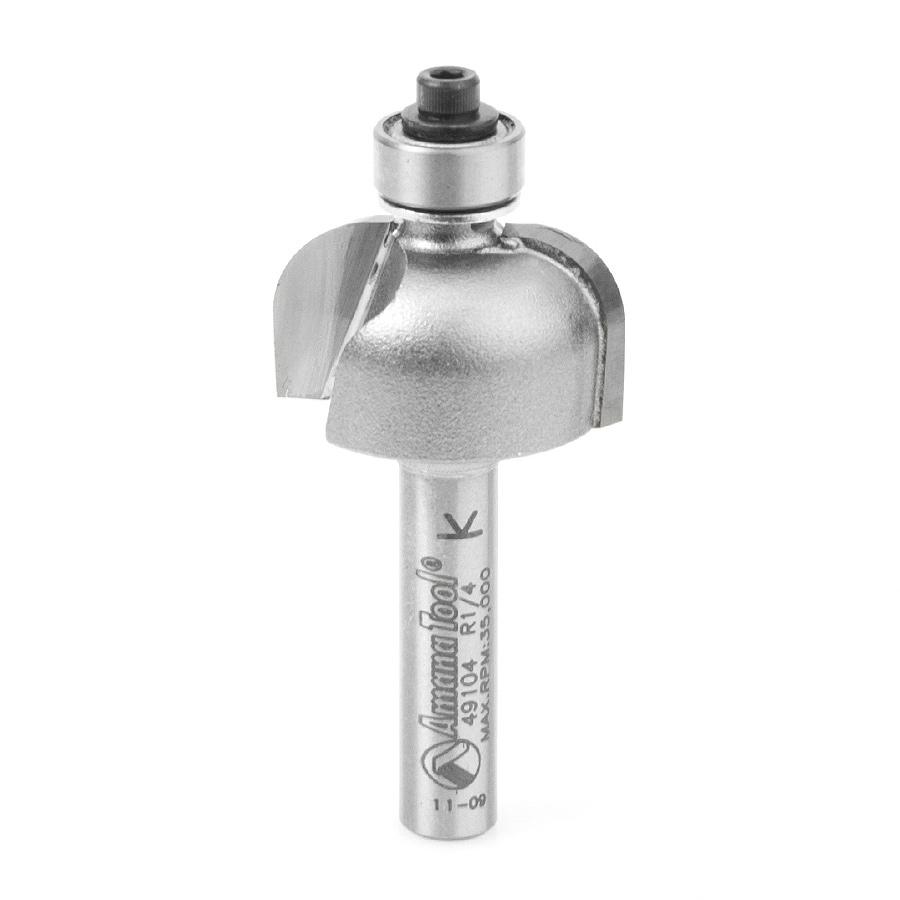

49104 Carbide Tipped Cove 1/4 Radius x 7/8 Dia x 9/16 x 1/4 Inch Shank

Amana 49104 Carbide Tipped Cove 1/4 Radius x 7/8 Dia x 9/16 x 1/4 Inch Shank

Name: Amana 49104 Carbide Tipped Cove 1/4 Radius x 7/8 Dia x 9/16 x 1/4 Inch Shank
SKU: Amana 49104
Availability: InStock

Original price was: $61.25.Current price is: $45.94.

COVE BIT 1/4 RAD 1/4 SHANK

UPC: 738685891049 SKU: Amana 49104 Categories: Amana Tool, Cove Router Bits, Profiling Router Bits, Router Bits

Item Description

The covetto form – produced by the cove bit – is one of the classic building blocks for many molding profiles. Use it alone or in combination with beads and fillets. Use the cove to detail the edges of casework, doors and drawers, posts and columns. The cove also makes up one-half of the rule joint used on drop-leaf tables, the other half is the corner-round.

For best results with a large radius cutter, make a preliminary cut with a smaller radius bit or chamfer the workpiece to reduce the amount of stock to be removed in the finish pass. This will produce a smoother finish and prolong tool life. The largest diameter bits must be run at reduced speed.

Use in a handheld or table-mounted router.

Specifications

Diameter (D)	7/8
Radius (R)	1/4
Cutting Height (B)	9/16
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47704
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Type	Replacement Insert Knives	# of Knives	C	Tool No.
5/16 (7.94mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MRR108
5/16 (7.94mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MRR108-5
3/8 (9.53mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0110
3/8 (9.53mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0110-5
7/16 (11.11mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0112
7/16 (11.11mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0112-5
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49092
5/8 (15.88mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49094
3/4 (19.05mm)	3/16 (4.76mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49100
1 (25.40mm)	5/16 (7.94mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-1/8	47704	2	–	–	–	–	49108
1 (25.40mm)	5/16 (7.94mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	47704	2	–	–	–	–	49110
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	–	–	–	–	49506
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	–	–	–	–	49506-5
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	–	—-	Cove	RCK-274	2 (50.80mm)	–	RC-49104
1-1/8	3/8 (9.53mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49112
1-1/8	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	47704	2	–	–	–	–	49114
1-1/8	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	47706	2	–	–	–	–	49508
1-3/8	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47704	2	–	–	–	–	49116
1-3/8	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	47704	2	–	–	–	–	49118
1-5/8	5/8 (15.88mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	47704	2	–	–	–	–	49119
1-5/8	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	47767	2	–	–	–	–	57190
2 (50.80mm)	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	47706	2	–	–	–	–	49120
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	–	–	–	–	49512
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	–	–	–	–	49512-5
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	–	–	–	–	49514
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	–	–	–	–	49514-5
2-1/4	7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	3-1/8	47706	2	–	–	–	–	49121
1-1/2	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	–	4	–	–	–	1/2 & 9/16	49130
2-1/2	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	47706	2	–	–	–	–	49122

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
