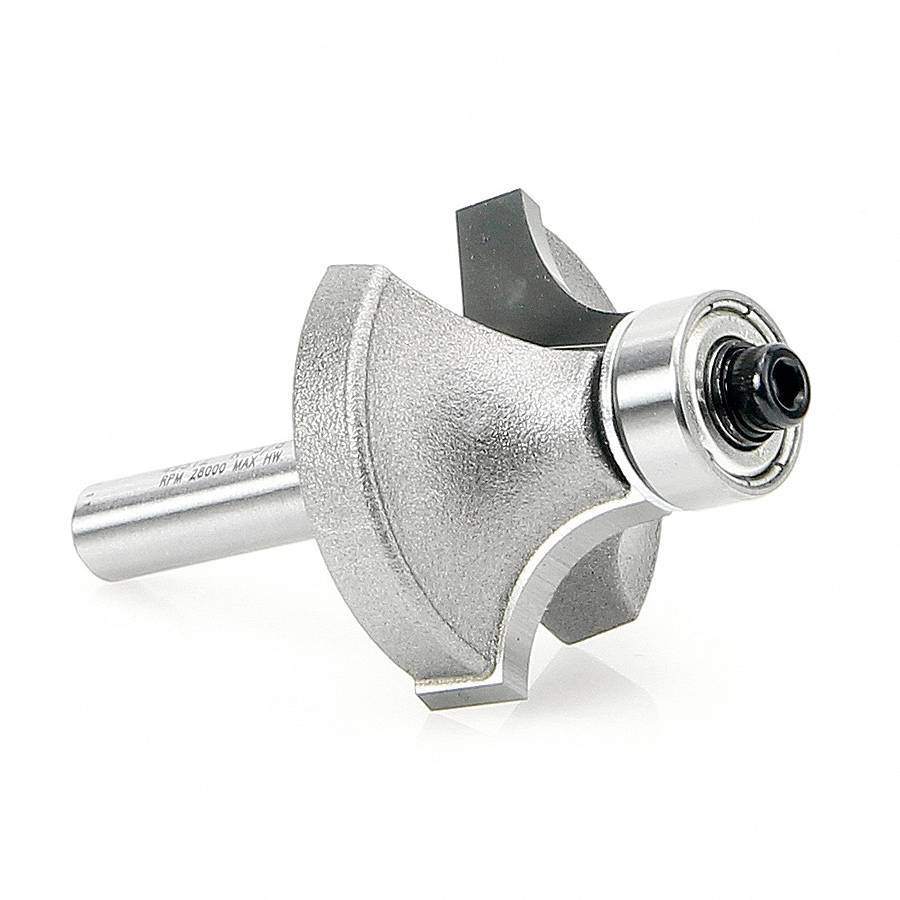

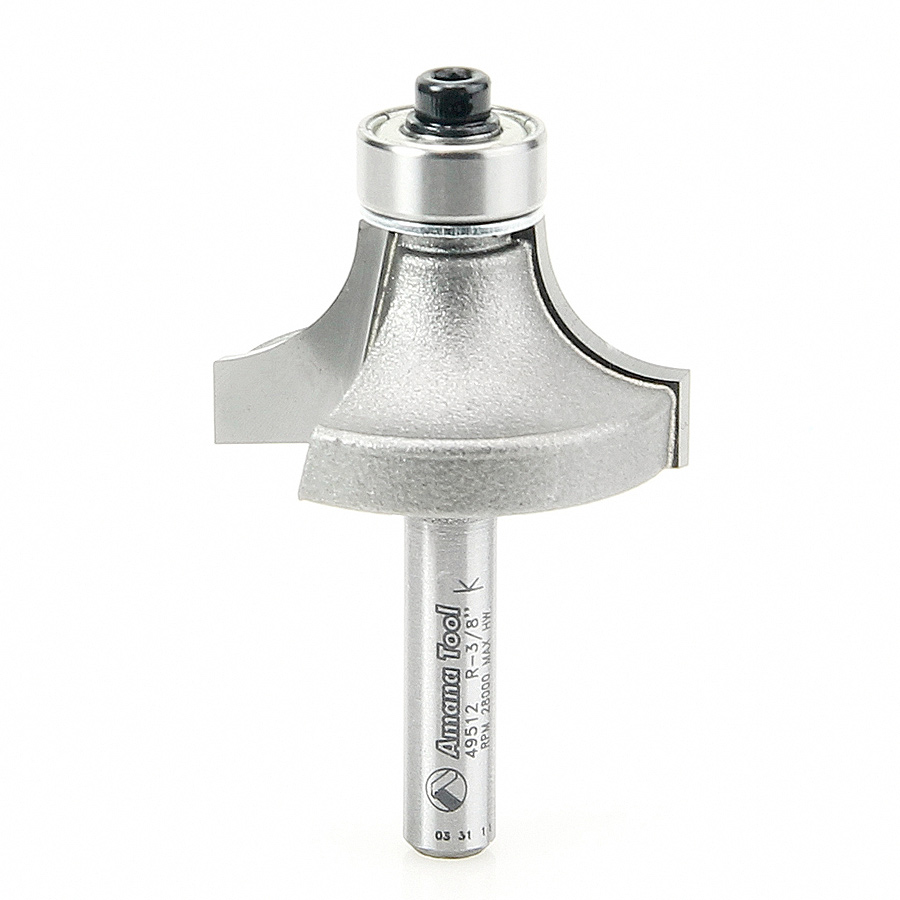

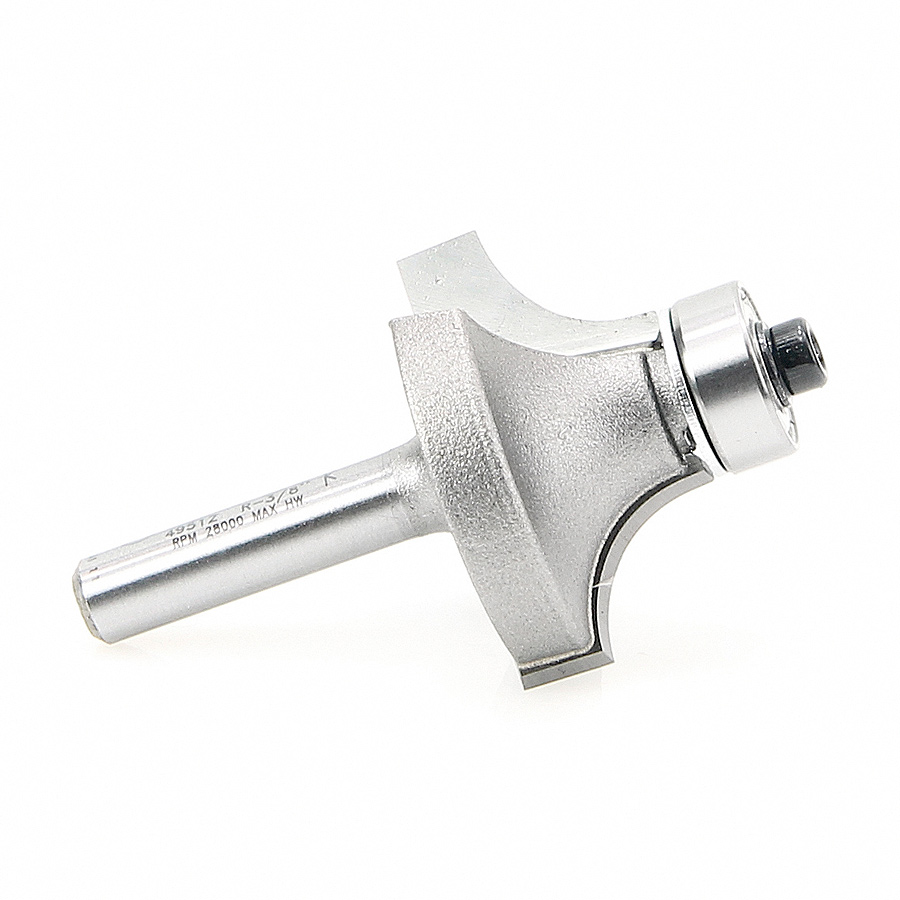

49512 Carbide Tipped Corner Round 3/8 Radius x 1-1/4 Dia x 5/8 x 1/4 Inch Shank

Amana 49512 Carbide Tipped Corner Round 3/8 Radius x 1-1/4 Dia x 5/8 x 1/4 Inch Shank

Name: Amana 49512 Carbide Tipped Corner Round 3/8 Radius x 1-1/4 Dia x 5/8 x 1/4 Inch Shank
SKU: Amana 49512
Availability: InStock

Original price was: $53.70.Current price is: $40.28.

CORNER ROUND 3/8 RAD 1/4 SHK

UPC: 738685895122 SKU: Amana 49512 Categories: Amana Tool, Corner Round Router Bits, Profiling Router Bits, Router Bits

Item Description

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Excellent for cutting:

Acrylic
Laminate
MDF/HDF
Melamine
Wood
Plywood

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49512	47706	67096	67098	67202

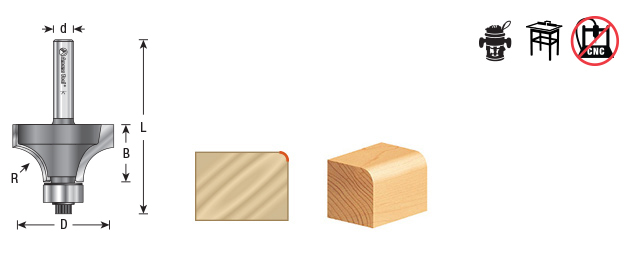

Specifications

Diameter (D)	1-1/4
D1	1/2
Radius (R)	3/8
Cutting Height (B)	5/8
Shank (d)	1/4
Overall Length (L)	2-3/16
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Description	Tool No.
1/8 (3.18mm)	–	–	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	5	45200-5
1-5/64	1/2 (12.70mm)	1/16 (1.59mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	2	47706	–	RC-49492
1-5/64	–	2mm	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	2	47706	–	RC-49495
1-5/64	1/2 (12.70mm)	3mm	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	2	47706	–	RC-49497
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MRR108
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MRR108-5
1-1/32	–	3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	—-	47706	–	RC-54111
3/8 (9.53mm)	3/16 (4.76mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0110
3/8 (9.53mm)	3/16 (4.76mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MR0110-5
7/16 (11.11mm)	3/16 (4.76mm)	–	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	–	–	MR0100
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0112
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MR0112-5
1/2 (12.70mm)	–	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49092
1/2 (12.70mm)	3/16 (4.76mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0114
1/2 (12.70mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1	47701	–	RC-45910
1/2 (12.70mm)	–	–	20mm	1/4 (6.35mm)	2-5/16	2	47706	–	RC-47104
9/16 (14.29mm)	3/16 (4.76mm)	3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MRR110
9/16 (14.29mm)	8mm	1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	—-	47703	–	MRW0304
9/16 (14.29mm)	8mm	1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	—-	47703	5	MRW0304-5
5/8 (15.88mm)	–	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49094
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47706	–	49492
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47706	5	49492-5
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/2 (12.70mm)	2-1/4	2	47706	–	49494
11/16 (17.46mm)	3/16 (4.76mm)	1/4 (6.35mm)	13/32 (10.32mm)	1/4 (6.35mm)	1-7/8	2	47775	–	MRR112
11/16 (17.46mm)	–	–	21/64 (8.33mm)	1/4 (6.35mm)	1-61/64	1	–	–	RC-45711
17.6mm	–	–	8.5mm	6mm	52mm	1	–	–	RC-45711-M
11/16 (17.46mm)	–	–	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	1	–	–	RC-45712
3/4 (19.05mm)	–	3/16 (4.76mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49100
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49496
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	5	49496-5
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	47706	–	49498
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	47723	–	49505
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	–	–	57147
13/16 (20.64mm)	1/2 (12.70mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49499
13/16 (20.64mm)	1/2 (12.70mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-1/4	2	47706	–	49501
13/16 (20.64mm)	8mm	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	—-	47703	–	M12RW64
7/8 (22.23mm)	–	1/4 (6.35mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49104
7/8 (22.23mm)	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	–	49305
7/8 (22.23mm)	–	–	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	2	47702	–	49307
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49500
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49500-5
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49502
7/8 (22.23mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/16	2	47704	–	49527
7/8 (22.23mm)	5/8 (15.88mm)	1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-15/16	4	47718, 47706	–	49544
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-1/8	2	47704	–	49108
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	2	47704	–	49110
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49504
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	5	49504-5
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49506
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	5	49506-5
1 (25.40mm)	1/4 (6.35mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	47723	–	49511
1 (25.40mm)	5/8 (15.88mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	4	47718, 47706	–	49546
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	–	–	57149
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	—-	–	–	RC-49104
1 (25.40mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	2	47706	–	RC-49496
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47706	–	RC-49504
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49112
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	2	47704	–	49114
1-1/8	1/2 (12.70mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47706	–	49508
1-1/8	1/2 (12.70mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49510
1-1/8	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	2	47704	–	49531
1-1/8	5/8 (15.88mm)	1/4 (6.35mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-9/16	4	47712, 47701	–	49541
1-1/8	5/8 (15.88mm)	1/4 (6.35mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-9/16	4	47712, 47701	–	49547
1-1/8	–	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	–	–	57150
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	47704	–	49116
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	47704	–	49118
1-3/8	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	–	49306
1-3/8	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	47702	–	49309
1-3/8	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	–	49515
1-3/8	5/8 (15.88mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-11/16	4	47712, 47701	–	49543
1-3/8	5/8 (15.88mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-11/16	4	47712, 47701	–	49548
1-5/8	–	5/8 (15.88mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	2	47704	–	49119
1-5/8	1/2 (12.70mm)	9/16 (14.29mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47706	–	49517
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-3/4	4	47712, 47701	–	49545
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/4	4	47712, 47701	–	49549
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	47767	–	57190
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	2	47706	–	49120
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	2	47706	–	49520
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/8	2	–	–	57141
1-7/8	–	–	1 (25.40mm)	1/2 (12.70mm)	2-7/8	3	47702	–	49314
2-1/8	5/8 (15.88mm)	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	47768	–	57192
1-1/4	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49300
1-1/4	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	47706	–	49302
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	47706	–	49512-5
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	–	49514
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	5	49514-5
3 (76.20mm)	1/2 (12.70mm)	1-1/4	1-1/2	1/2 (12.70mm)	3-7/8	2	47706	–	49524
1-3/4	1/2 (12.70mm)	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	2	47706	–	49519
2-1/4	–	7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	3-1/8	2	47706	–	49121
2-1/4	1/2 (12.70mm)	7/8 (22.23mm)	1-5/32	1/2 (12.70mm)	3-1/16	2	47706	–	49521
1-1/2	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	4	–	–	49130
1-1/2	1/2 (12.70mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	47706	–	49516
1-1/2	1/2 (12.70mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47706	–	49518
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/8	2	–	–	57139
2-3/4	1/2 (12.70mm)	1-1/8	1-3/8	1/2 (12.70mm)	3-3/4	2	47706	–	49523
2-1/2	–	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	47706	–	49122
2-1/2	1/2 (12.70mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3-3/16	2	47706	–	49522
3-1/2	1/2 (12.70mm)	1-1/2	1-3/4	1/2 (12.70mm)	4-1/8	2	47706	–	49526

Weight	0.14 lbs
