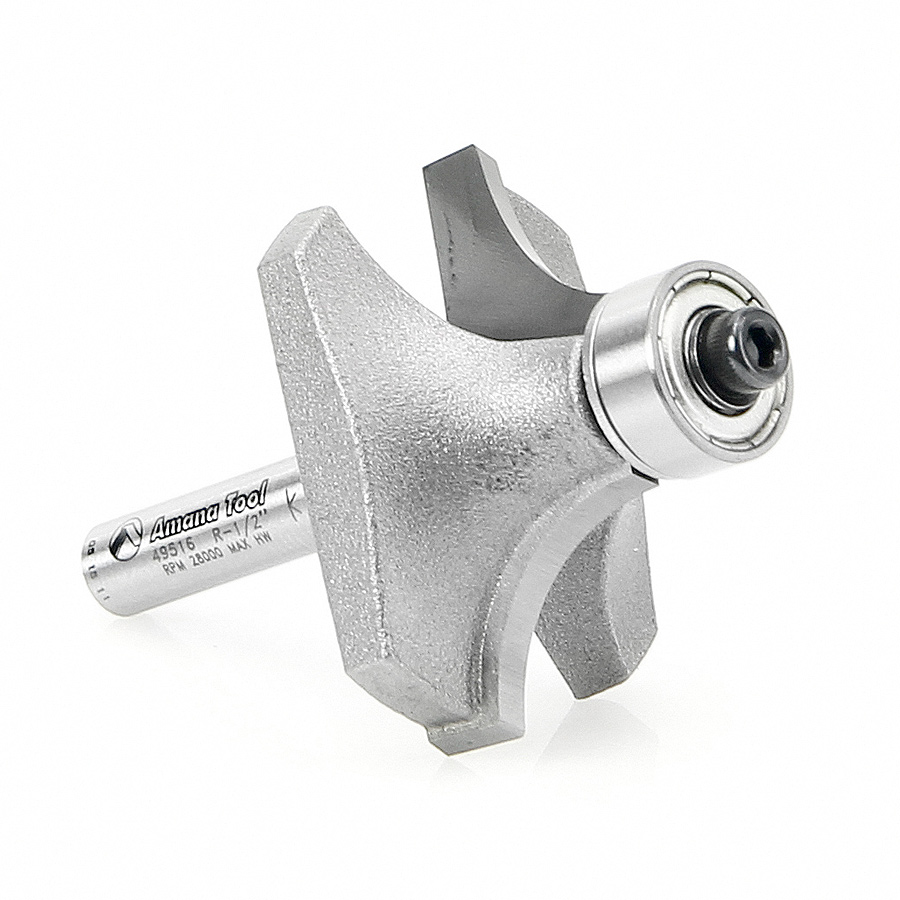

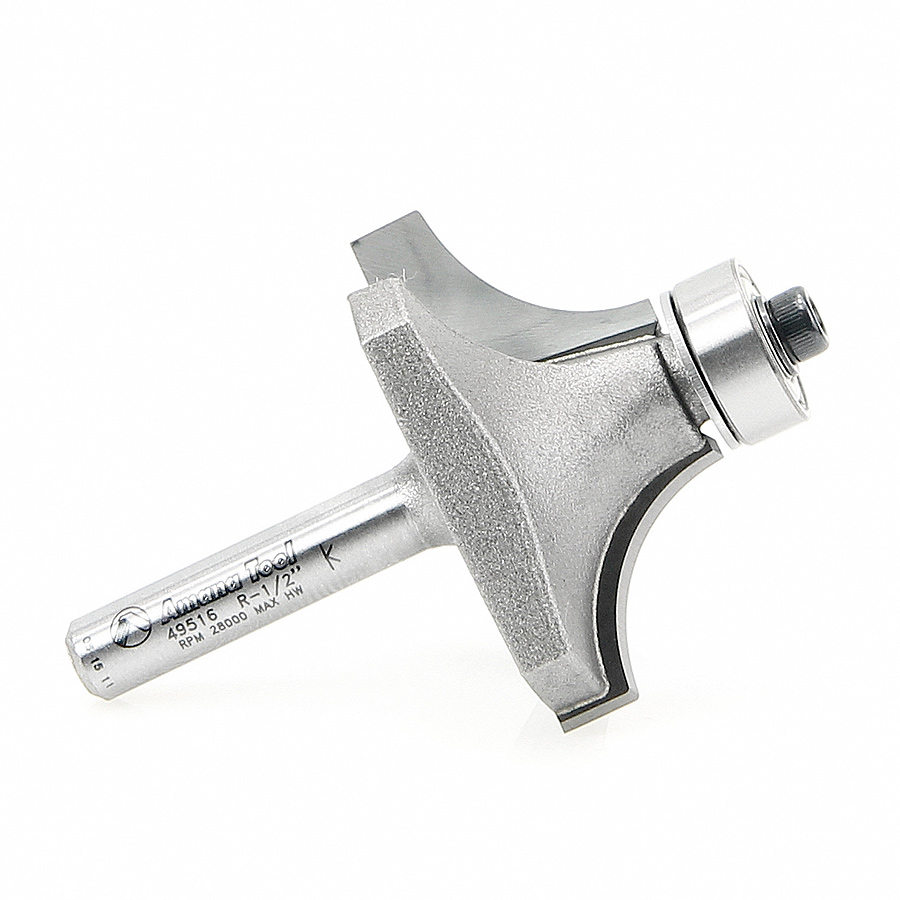

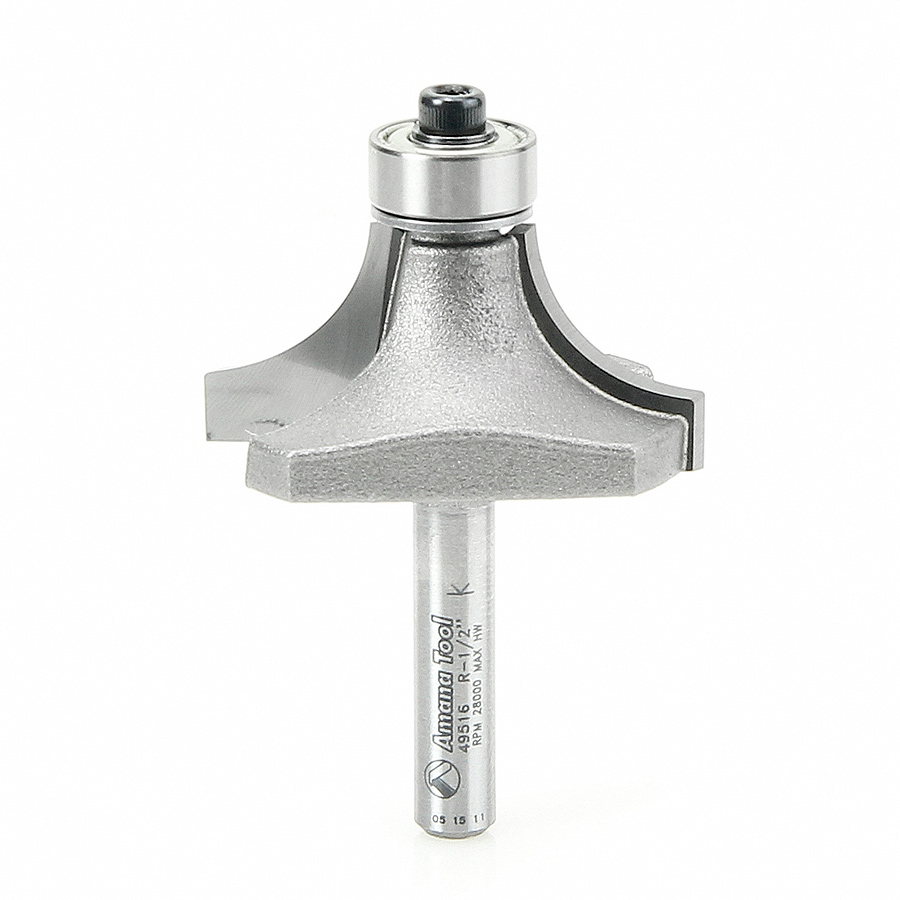

49516 Carbide Tipped Corner Round 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank

Amana 49516 Carbide Tipped Corner Round 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 49516 Carbide Tipped Corner Round 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 49516
Availability: InStock

Original price was: $62.90.Current price is: $47.18.

CORNER ROUND 1/2 RAD 1/4 SHK

UPC: 738685895160 SKU: Amana 49516 Categories: Amana Tool, Corner Round Router Bits, Profiling Router Bits, Router Bits

Item Description

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Excellent for cutting:

Acrylic
Laminate
MDF/HDF
Melamine
Wood
Plywood

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49516	47706	67096	67098	67202

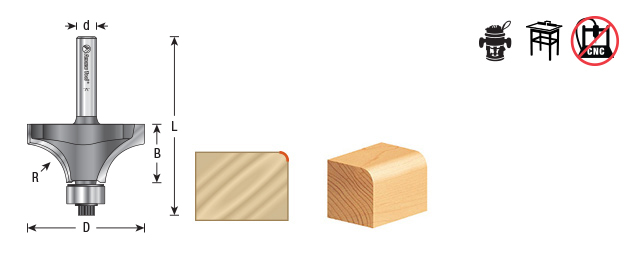

Specifications

Diameter (D)	1-1/2
D1	1/2
Radius (R)	1/2
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Description	Tool No.
1/8 (3.18mm)	–	–	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	5	45200-5
1-5/64	1/2 (12.70mm)	1/16 (1.59mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	2	47706	–	RC-49492
1-5/64	–	2mm	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	2	47706	–	RC-49495
1-5/64	1/2 (12.70mm)	3mm	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	2	47706	–	RC-49497
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MRR108
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MRR108-5
1-1/32	–	3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	—-	47706	–	RC-54111
3/8 (9.53mm)	3/16 (4.76mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0110
3/8 (9.53mm)	3/16 (4.76mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MR0110-5
7/16 (11.11mm)	3/16 (4.76mm)	–	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	–	–	MR0100
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0112
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	5	MR0112-5
1/2 (12.70mm)	–	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49092
1/2 (12.70mm)	3/16 (4.76mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MR0114
1/2 (12.70mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	1	47701	–	RC-45910
1/2 (12.70mm)	–	–	20mm	1/4 (6.35mm)	2-5/16	2	47706	–	RC-47104
9/16 (14.29mm)	3/16 (4.76mm)	3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	47775	–	MRR110
5/8 (15.88mm)	–	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49094
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47706	–	49492
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47706	5	49492-5
5/8 (15.88mm)	1/2 (12.70mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/2 (12.70mm)	2-1/4	2	47706	–	49494
11/16 (17.46mm)	3/16 (4.76mm)	1/4 (6.35mm)	13/32 (10.32mm)	1/4 (6.35mm)	1-7/8	2	47775	–	MRR112
11/16 (17.46mm)	–	–	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	1	–	–	RC-45712
3/4 (19.05mm)	–	3/16 (4.76mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49100
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49496
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	5	49496-5
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	47706	–	49498
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	47723	–	49505
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	–	–	57147
13/16 (20.64mm)	1/2 (12.70mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49499
13/16 (20.64mm)	1/2 (12.70mm)	5/32 (3.97mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-1/4	2	47706	–	49501
13/16 (20.64mm)	8mm	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	—-	47703	–	M12RW64
7/8 (22.23mm)	–	1/4 (6.35mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49104
7/8 (22.23mm)	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	–	49305
7/8 (22.23mm)	–	–	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	2	47702	–	49307
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49500
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49500-5
7/8 (22.23mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49502
7/8 (22.23mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/16	2	47704	–	49527
7/8 (22.23mm)	5/8 (15.88mm)	1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-15/16	4	47718, 47706	–	49544
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-1/8	2	47704	–	49108
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	2	47704	–	49110
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49504
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	5	49504-5
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49506
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	5	49506-5
1 (25.40mm)	1/4 (6.35mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	47723	–	49511
1 (25.40mm)	5/8 (15.88mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	4	47718, 47706	–	49546
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	–	–	57149
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	—-	–	–	RC-49104
1 (25.40mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	2	47706	–	RC-49496
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47706	–	RC-49504
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	2	47704	–	49112
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	2	47704	–	49114
1-1/8	1/2 (12.70mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47706	–	49508
1-1/8	1/2 (12.70mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47706	–	49510
1-1/8	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	2	47704	–	49531
1-1/8	5/8 (15.88mm)	1/4 (6.35mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-9/16	4	47712, 47701	–	49541
1-1/8	5/8 (15.88mm)	1/4 (6.35mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-9/16	4	47712, 47701	–	49547
1-1/8	–	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	–	–	57150
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	47704	–	49116
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	47704	–	49118
1-3/8	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	–	49306
1-3/8	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	47702	–	49309
1-3/8	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	–	49515
1-3/8	5/8 (15.88mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-11/16	4	47712, 47701	–	49543
1-3/8	5/8 (15.88mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-11/16	4	47712, 47701	–	49548
1-5/8	–	5/8 (15.88mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	2	47704	–	49119
1-5/8	1/2 (12.70mm)	9/16 (14.29mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47706	–	49517
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-3/4	4	47712, 47701	–	49545
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/4	4	47712, 47701	–	49549
1-5/8	5/8 (15.88mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	47767	–	57190
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	2	47706	–	49120
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	2	47706	–	49520
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/8	2	–	–	57141
1-7/8	–	–	1 (25.40mm)	1/2 (12.70mm)	2-7/8	3	47702	–	49314
2-1/8	5/8 (15.88mm)	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	47768	–	57192
1-1/4	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	–	49300
1-1/4	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	47706	–	49302
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	47706	–	49512
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	47706	–	49512-5
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	–	49514
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47706	5	49514-5
3 (76.20mm)	1/2 (12.70mm)	1-1/4	1-1/2	1/2 (12.70mm)	3-7/8	2	47706	–	49524
1-3/4	1/2 (12.70mm)	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	2	47706	–	49519
2-1/4	–	7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	3-1/8	2	47706	–	49121
2-1/4	1/2 (12.70mm)	7/8 (22.23mm)	1-5/32	1/2 (12.70mm)	3-1/16	2	47706	–	49521
1-1/2	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	4	–	–	49130
1-1/2	1/2 (12.70mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47706	–	49518
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/8	2	–	–	57139
2-3/4	1/2 (12.70mm)	1-1/8	1-3/8	1/2 (12.70mm)	3-3/4	2	47706	–	49523
2-1/2	–	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	47706	–	49122
2-1/2	1/2 (12.70mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3-3/16	2	47706	–	49522
3-1/2	1/2 (12.70mm)	1-1/2	1-3/4	1/2 (12.70mm)	4-1/8	2	47706	–	49526

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
