Sale!

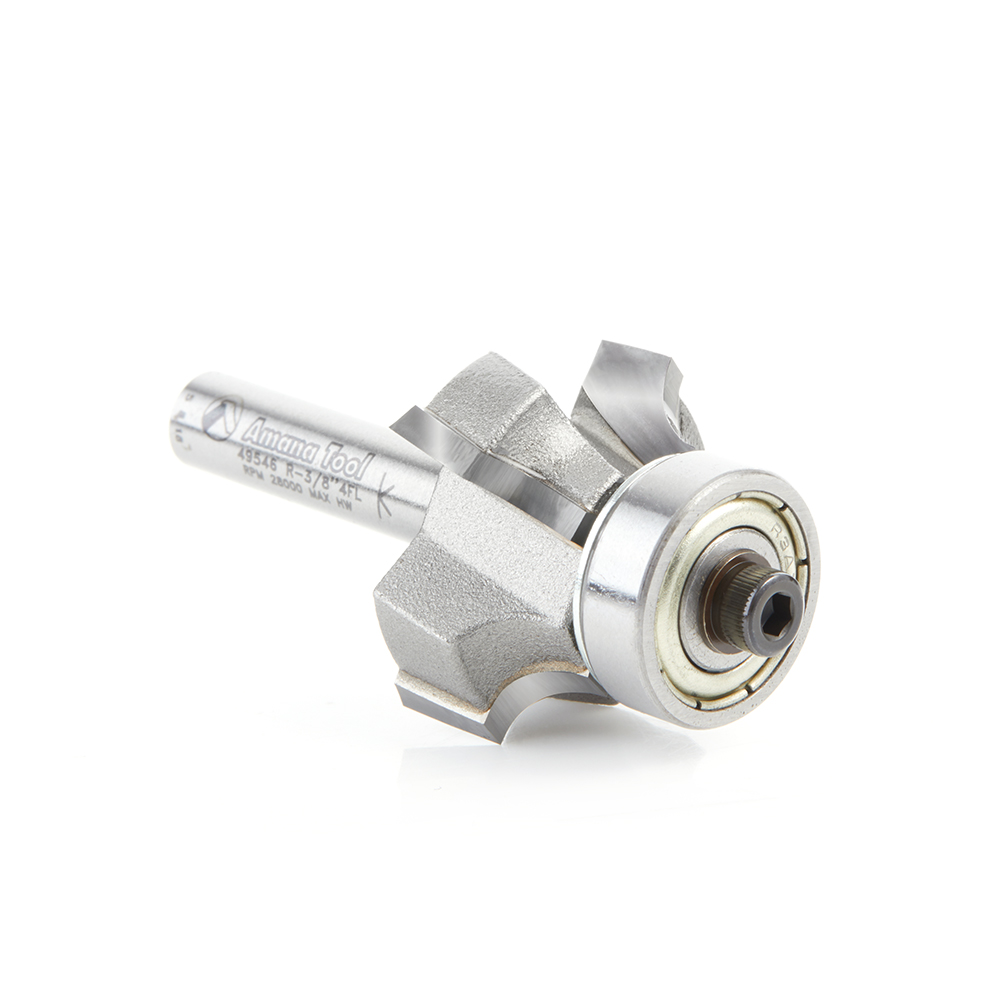

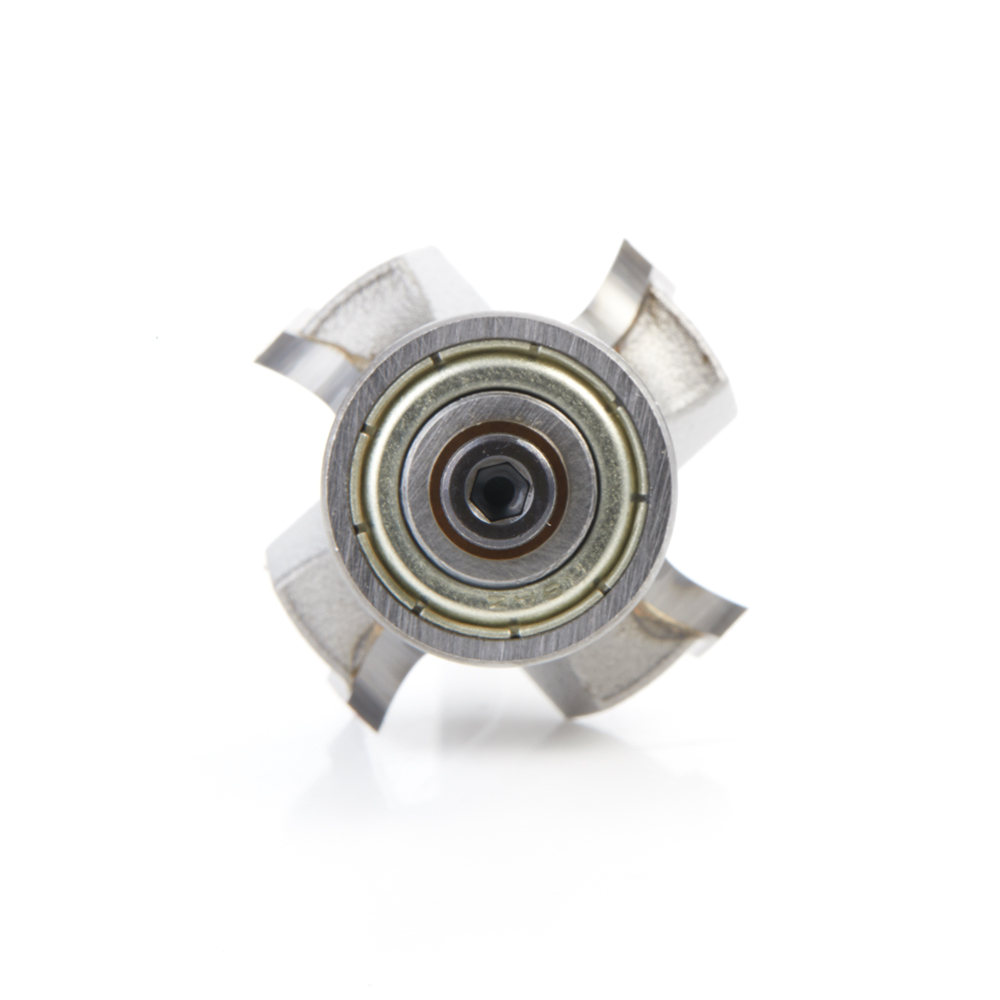

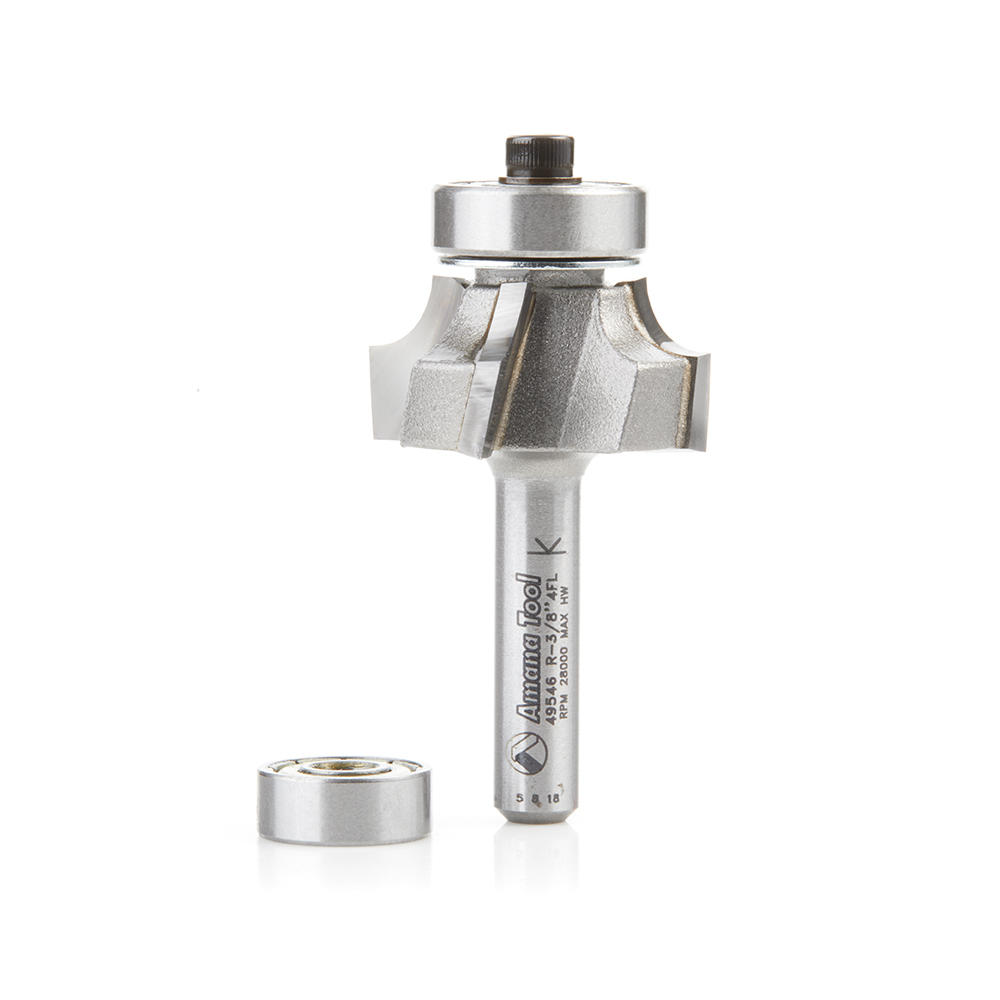

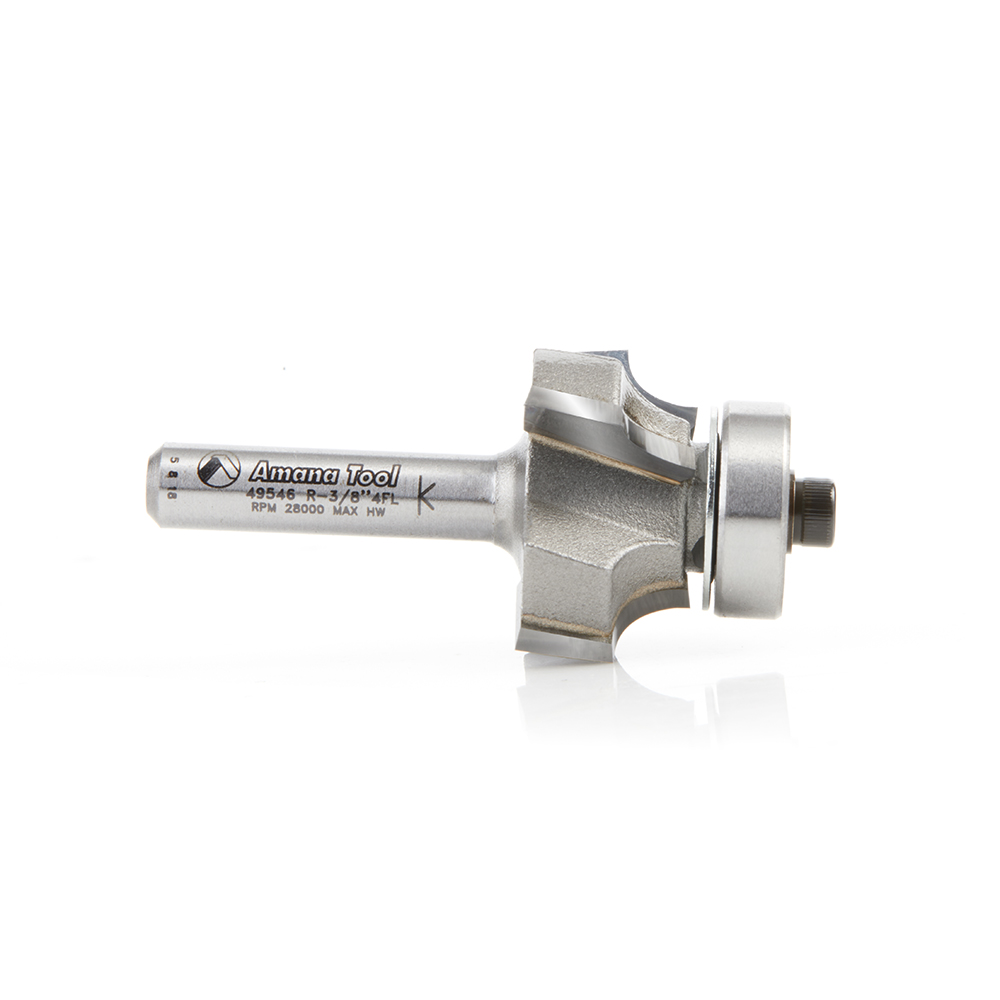

Amana 49546 Carbide Tipped 4 Flute Corner Rounding/Beading 3/16 Radius x 1 Dia x 1/2 x 1/4 Inch Shank
Original price was: $79.10.$59.33Current price is: $59.33.
4FL CORNER ROUND 3/16R 1/4″SHK
Item Description
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. 4 flute design for super-smooth finish.
Excellent for cutting:
- Acrylic
- Laminate
- MDF/HDF
- Melamine
- Wood
- Plywood
Replacement Parts
| Replacement Bearing for Corner Round | Replacement Bearing for Beading | Torx Screw | Dust Shield |
|---|---|---|---|
| 47718 | 47706 | 67096 | 67126 |
Specifications
| Diameter (D) | 1 |
|---|---|
| D1 | 5/8 |
| Radius (R) | 3/16 |
| Cutting Height (B) | 1/2 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Replacement Bearing | 47718 Corner Round / 47706 Beading |
| Flutes | 4 |
Other Sizes Available
| Diameter (D) | D1 | Radius (R) | Cutting Height (B) | Shank (d) | Overall Length (L) | Flutes | Replacement Bearing | Description | Tool No. |
|---|---|---|---|---|---|---|---|---|---|
| 1-5/64 | 1/2 (12.70mm) | 1/16 (1.59mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/8 | 2 | 47706 | – | RC-49492 |
| 1-5/64 | – | 2mm | 43/64 (17.07mm) | 1/4 (6.35mm) | 2-13/32 | 2 | 47706 | – | RC-49495 |
| 1-5/64 | 1/2 (12.70mm) | 3mm | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/8 | 2 | 47706 | – | RC-49497 |
| 5/16 (7.94mm) | 3/16 (4.76mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | – | MRR108 |
| 5/16 (7.94mm) | 3/16 (4.76mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | 5 | MRR108-5 |
| 1-1/32 | – | 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/8 | —- | 47706 | – | RC-54111 |
| 3/8 (9.53mm) | 3/16 (4.76mm) | 3/32 (2.38mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | – | MR0110 |
| 3/8 (9.53mm) | 3/16 (4.76mm) | 3/32 (2.38mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | 5 | MR0110-5 |
| 7/16 (11.11mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | – | MR0112 |
| 7/16 (11.11mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | 5 | MR0112-5 |
| 1/2 (12.70mm) | 3/16 (4.76mm) | 5/32 (3.97mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | – | MR0114 |
| 1/2 (12.70mm) | – | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/8 | 1 | 47701 | – | RC-45910 |
| 1/2 (12.70mm) | – | – | 20mm | 1/4 (6.35mm) | 2-5/16 | 2 | 47706 | – | RC-47104 |
| 9/16 (14.29mm) | 3/16 (4.76mm) | 3/16 (4.76mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1-13/16 | 2 | 47775 | – | MRR110 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 47706 | – | 49492 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 47706 | 5 | 49492-5 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 2-1/4 | 2 | 47706 | – | 49494 |
| 11/16 (17.46mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 13/32 (10.32mm) | 1/4 (6.35mm) | 1-7/8 | 2 | 47775 | – | MRR112 |
| 11/16 (17.46mm) | – | – | 21/64 (8.33mm) | 1/2 (12.70mm) | 2-3/16 | 1 | – | – | RC-45712 |
| 3/4 (19.05mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | – | 49496 |
| 3/4 (19.05mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | 5 | 49496-5 |
| 3/4 (19.05mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 2-5/16 | 2 | 47706 | – | 49498 |
| 3/4 (19.05mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-7/8 | 2 | 47723 | – | 49505 |
| 3/4 (19.05mm) | – | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 2-5/16 | 2 | – | – | 57147 |
| 13/16 (20.64mm) | 1/2 (12.70mm) | 5/32 (3.97mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | – | 49499 |
| 13/16 (20.64mm) | 1/2 (12.70mm) | 5/32 (3.97mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 2-1/4 | 2 | 47706 | – | 49501 |
| 13/16 (20.64mm) | 8mm | 1/4 (6.35mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | —- | 47703 | – | M12RW64 |
| 7/8 (22.23mm) | 1/2 (12.70mm) | 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | – | 49500 |
| 7/8 (22.23mm) | 1/2 (12.70mm) | 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | – | 49500-5 |
| 7/8 (22.23mm) | 1/2 (12.70mm) | 3/16 (4.76mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | 47706 | – | 49502 |
| 7/8 (22.23mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-5/16 | 2 | 47704 | – | 49527 |
| 7/8 (22.23mm) | 5/8 (15.88mm) | 1/8 (3.18mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 1-15/16 | 4 | 47718, 47706 | – | 49544 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | – | 49504 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47706 | 5 | 49504-5 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | 47706 | – | 49506 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | 47706 | 5 | 49506-5 |
| 1 (25.40mm) | 1/4 (6.35mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47723 | – | 49511 |
| 1 (25.40mm) | – | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | – | – | 57149 |
| 1 (25.40mm) | – | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | —- | – | – | RC-49104 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/16 | 2 | 47706 | – | RC-49496 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | 2 | 47706 | – | RC-49504 |
| 1-1/8 | 1/2 (12.70mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | 2 | 47706 | – | 49508 |
| 1-1/8 | 1/2 (12.70mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | 47706 | – | 49510 |
| 1-1/8 | 3/8 (9.53mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/8 | 2 | 47704 | – | 49531 |
| 1-1/8 | 5/8 (15.88mm) | 1/4 (6.35mm) | 7/16 (11.11mm) | 1/2 (12.70mm) | 2-9/16 | 4 | 47712, 47701 | – | 49541 |
| 1-1/8 | 5/8 (15.88mm) | 1/4 (6.35mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2-9/16 | 4 | 47712, 47701 | – | 49547 |
| 1-1/8 | – | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-7/8 | 2 | – | – | 57150 |
| 1-3/8 | 1/2 (12.70mm) | 7/16 (11.11mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-9/16 | 2 | 47706 | – | 49515 |
| 1-3/8 | 5/8 (15.88mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-11/16 | 4 | 47712, 47701 | – | 49543 |
| 1-3/8 | 5/8 (15.88mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-11/16 | 4 | 47712, 47701 | – | 49548 |
| 1-5/8 | 1/2 (12.70mm) | 9/16 (14.29mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-5/8 | 2 | 47706 | – | 49517 |
| 1-5/8 | 5/8 (15.88mm) | 1/2 (12.70mm) | 11/16 (17.46mm) | 1/2 (12.70mm) | 2-3/4 | 4 | 47712, 47701 | – | 49545 |
| 1-5/8 | 5/8 (15.88mm) | 1/2 (12.70mm) | 11/16 (17.46mm) | 1/4 (6.35mm) | 2-3/4 | 4 | 47712, 47701 | – | 49549 |
| 1-5/8 | 5/8 (15.88mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 47767 | – | 57190 |
| 2 (50.80mm) | – | 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-7/8 | 2 | 47706 | – | 49520 |
| 2 (50.80mm) | – | 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/8 | 2 | – | – | 57141 |
| 2-1/8 | 5/8 (15.88mm) | 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 2 | 47768 | – | 57192 |
| 1-1/4 | 1/2 (12.70mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/16 | 2 | 47706 | – | 49512 |
| 1-1/4 | 1/2 (12.70mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/16 | 2 | 47706 | – | 49512-5 |
| 1-1/4 | 1/2 (12.70mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-9/16 | 2 | 47706 | – | 49514 |
| 1-1/4 | 1/2 (12.70mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-9/16 | 2 | 47706 | 5 | 49514-5 |
| 3 (76.20mm) | 1/2 (12.70mm) | 1-1/4 | 1-1/2 | 1/2 (12.70mm) | 3-7/8 | 2 | 47706 | – | 49524 |
| 1-3/4 | 1/2 (12.70mm) | 5/8 (15.88mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 47706 | – | 49519 |
| 2-1/4 | 1/2 (12.70mm) | 7/8 (22.23mm) | 1-5/32 | 1/2 (12.70mm) | 3-1/16 | 2 | 47706 | – | 49521 |
| 1-1/2 | 1/2 (12.70mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | 47706 | – | 49516 |
| 1-1/2 | 1/2 (12.70mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-5/8 | 2 | 47706 | – | 49518 |
| 1-1/2 | – | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/8 | 2 | – | – | 57139 |
| 2-3/4 | 1/2 (12.70mm) | 1-1/8 | 1-3/8 | 1/2 (12.70mm) | 3-3/4 | 2 | 47706 | – | 49523 |
| 2-1/2 | 1/2 (12.70mm) | 1 (25.40mm) | 1-1/4 | 1/2 (12.70mm) | 3-3/16 | 2 | 47706 | – | 49522 |
| 3-1/2 | 1/2 (12.70mm) | 1-1/2 | 1-3/4 | 1/2 (12.70mm) | 4-1/8 | 2 | 47706 | – | 49526 |
| Weight | 0.12 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
