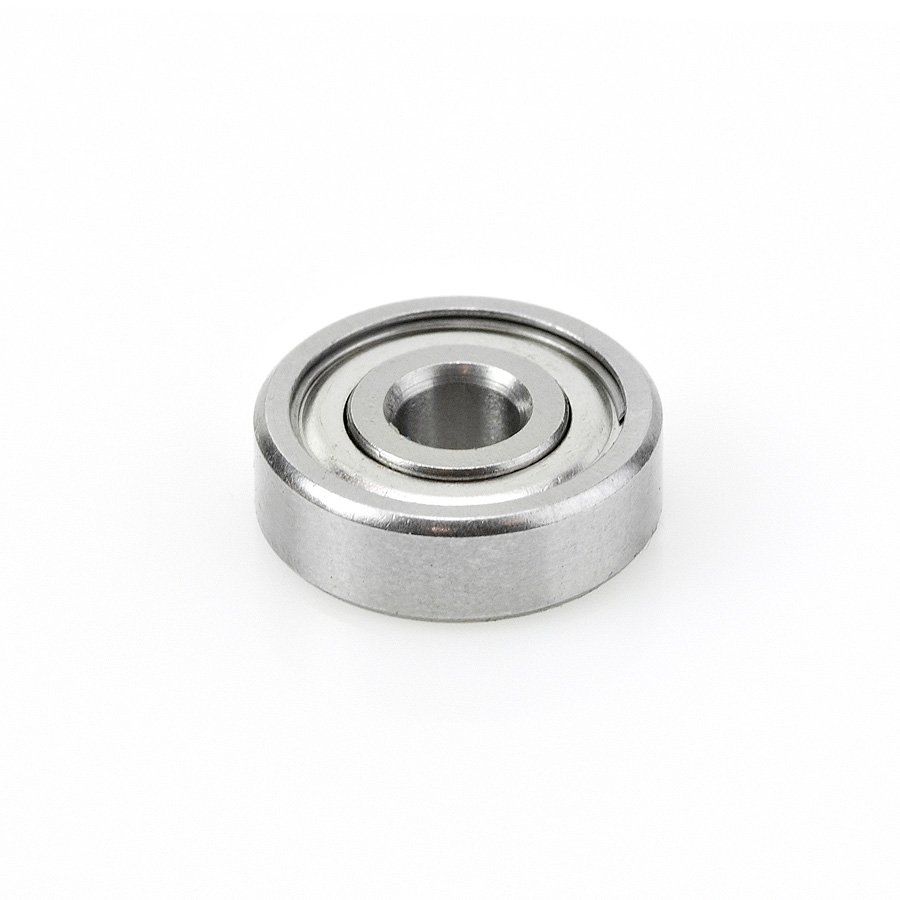

Amana 47718 Steel Ball Bearing Guide 5/8 Overall Dia x 3/16 Inner Dia x 3/16 Height

Name: Amana 47718 Steel Ball Bearing Guide 5/8 Overall Dia x 3/16 Inner Dia x 3/16 Height
SKU: Amana 47718
Availability: InStock

Original price was: $12.55.Current price is: $9.42.

3/16 X 5/8 BALL BEARING GUIDE

UPC: 738685877180 SKU: Amana 47718 Categories: Amana Tool, Fractional Steel Ball Bearing Guides, Router Bit Parts & Accessories, Router Bits

Item Description

Amana Tool® uses only the finest industrial quality precision ball bearings available. Bearings are double steel-shielded for extra rigidity and to inhibit dust. A special high-performance, high-temperature grease is used for maximum life.

Note:** Solvents should not be used to clean ball bearings, as this will deteriorate the special grease. ‘Frozen’ bearings (ones that do not rotate freely), should be replaced immediately.

Specifications

Diameter (D)	5/8
Application	'Overhang bits, 49340, 49350 (49300/49302).
B	.195 (3/16)
d	3/16

Other Sizes Available

Application	d	Diameter (D)	B	Tool No.
55325.	5/16 (7.94mm)	1.319	.335	47762
1/2"	5/16 (7.94mm)	.865	.275	47708
Miniature	3/32 (2.38mm)	3/16 (4.76mm)	.094	47775
51522	1/8 (3.18mm)	1/4 (6.35mm)	.110	47723
–	3/16 (4.76mm)	5/16 (7.94mm)	.124	47789
3/8"	3/16 (4.76mm)	3/8 (9.53mm)	.124	47702
47206,	1/8 (3.18mm)	3/8 (9.53mm)	.155	47704
Flush	1/4 (6.35mm)	3/8 (9.53mm)	.124	47751
1/2"	3/16 (4.76mm)	0.492 (12.45mm)	.195	47715
1/2"	1/8 (3.18mm)	1/2 (12.70mm)	.171	47700
5	1/4 (6.35mm)	1/2 (12.70mm)	.186	47701
47701	1/4 (6.35mm)	1/2 (12.70mm)	.186	47701-HP
1/2"	3/16 (4.76mm)	1/2 (12.70mm)	.195	47706
47706	3/16 (4.76mm)	1/2 (12.70mm)	.195	47706-HP
45474-S	1/4 (6.35mm)	9/16 (14.29mm)	.236	47753
45462,	1/4 (6.35mm)	5/8 (15.88mm)	.195	47712
47712	1/4 (6.35mm)	5/8 (15.88mm)	.195	47712-HP
57120.	1/4 (6.35mm)	3/4 (19.05mm)	.280	47714
49300/49302),	3/16 (4.76mm)	3/4 (19.05mm)	.280	47720
45990.	1/2 (12.70mm)	3/4 (19.05mm)	.156	47721
55360 (1406146.81mm)	5/16 (7.94mm)	3/4 (19.05mm)	.280	47759
49340 (1253238.51mm)	3/16 (4.76mm)	7/8 (22.23mm)	.196	47719
Keller	3/8 (9.53mm)	7/8 (22.23mm)	7mm	47741
57176 (1452273.30mm)	1/2 (12.70mm)	7/8 (22.23mm)	5mm	47793
45363 (1152222.50mm)	1/2 (12.70mm)	7/8 (22.23mm)	5mm	47830
49405 (1254889.51mm)	1/4 (6.35mm)	1 (25.40mm)	.344	47710
57165 (1451993.90mm)	1/2 (12.70mm)	1 (25.40mm)	5.7mm	47745
–	3/16 (4.76mm)	1 (25.40mm)	.196	47773
57144 &	1/2 (12.70mm)	1-1/8	.312	47738
49350	3/16 (4.76mm)	1-1/8	.312	47743
57165 (1451993.90mm)	1/2 (12.70mm)	1-1/4	5.7mm	47747
54229.	5/16 (7.94mm)	1-1/4	.196 (5.08mm)	47763
57166 (1452019.30mm)	1/2 (12.70mm)	1-1/2	.466	47749

Weight	0.03 lbs
