Sale!

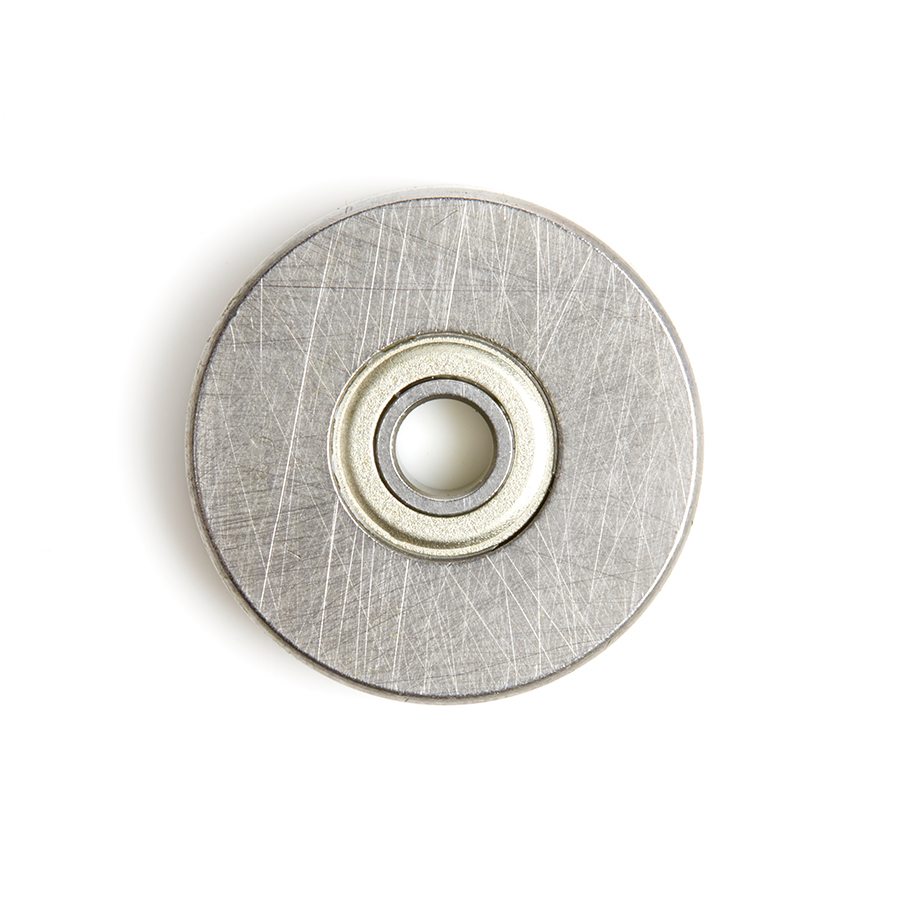

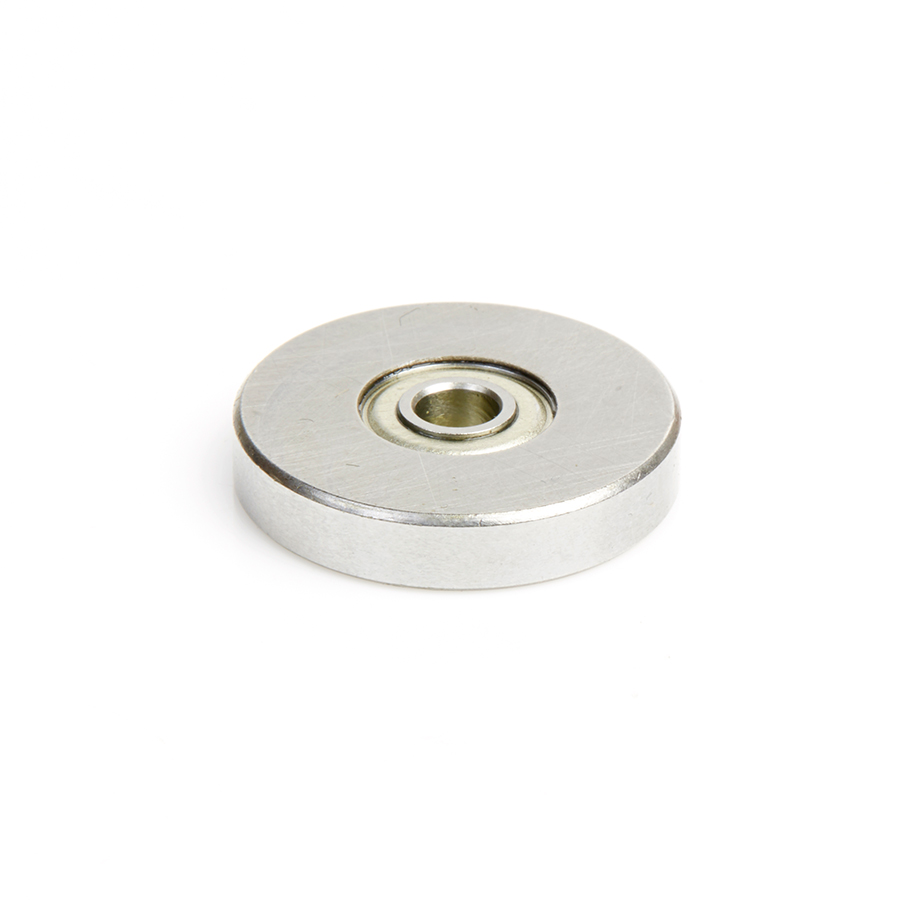

Amana 47773 Steel Ball Bearing Guide 1 Overall Dia x 3/16 Inner Dia x 3/16 Height
Original price was: $13.50.$10.13Current price is: $10.13.
3/16″X 1″x5mm BALL BEARING
Item Description
Amana Tool® uses only the finest industrial quality precision ball bearings available. Bearings are double steel-shielded for extra rigidity and to inhibit dust. A special high-performance, high-temperature grease is used for maximum life.
Note:** Solvents should not be used to clean ball bearings, as this will deteriorate the special grease. ‘Frozen’ bearings (ones that do not rotate freely), should be replaced immediately.
Specifications
| Diameter (D) | 1 |
|---|---|
| B | .196 (3/16) |
| d | 3/16 |
Other Sizes Available
| Application | d | Diameter (D) | B | Tool No. |
|---|---|---|---|---|
| 55325. | 5/16 (7.94mm) | 1.319 | .335 | 47762 |
| 1/2" | 5/16 (7.94mm) | .865 | .275 | 47708 |
| Miniature | 3/32 (2.38mm) | 3/16 (4.76mm) | .094 | 47775 |
| 51522 | 1/8 (3.18mm) | 1/4 (6.35mm) | .110 | 47723 |
| – | 3/16 (4.76mm) | 5/16 (7.94mm) | .124 | 47789 |
| 3/8" | 3/16 (4.76mm) | 3/8 (9.53mm) | .124 | 47702 |
| 47206, | 1/8 (3.18mm) | 3/8 (9.53mm) | .155 | 47704 |
| Flush | 1/4 (6.35mm) | 3/8 (9.53mm) | .124 | 47751 |
| 1/2" | 3/16 (4.76mm) | 0.492 (12.45mm) | .195 | 47715 |
| 1/2" | 1/8 (3.18mm) | 1/2 (12.70mm) | .171 | 47700 |
| 5 | 1/4 (6.35mm) | 1/2 (12.70mm) | .186 | 47701 |
| 47701 | 1/4 (6.35mm) | 1/2 (12.70mm) | .186 | 47701-HP |
| 1/2" | 3/16 (4.76mm) | 1/2 (12.70mm) | .195 | 47706 |
| 47706 | 3/16 (4.76mm) | 1/2 (12.70mm) | .195 | 47706-HP |
| 45474-S | 1/4 (6.35mm) | 9/16 (14.29mm) | .236 | 47753 |
| 45462, | 1/4 (6.35mm) | 5/8 (15.88mm) | .195 | 47712 |
| 47712 | 1/4 (6.35mm) | 5/8 (15.88mm) | .195 | 47712-HP |
| 49350 | 3/16 (4.76mm) | 5/8 (15.88mm) | .195 | 47718 |
| 57120. | 1/4 (6.35mm) | 3/4 (19.05mm) | .280 | 47714 |
| 49300/49302), | 3/16 (4.76mm) | 3/4 (19.05mm) | .280 | 47720 |
| 45990. | 1/2 (12.70mm) | 3/4 (19.05mm) | .156 | 47721 |
| 55360 (1406146.81mm) | 5/16 (7.94mm) | 3/4 (19.05mm) | .280 | 47759 |
| 49340 (1253238.51mm) | 3/16 (4.76mm) | 7/8 (22.23mm) | .196 | 47719 |
| Keller | 3/8 (9.53mm) | 7/8 (22.23mm) | 7mm | 47741 |
| 57176 (1452273.30mm) | 1/2 (12.70mm) | 7/8 (22.23mm) | 5mm | 47793 |
| 45363 (1152222.50mm) | 1/2 (12.70mm) | 7/8 (22.23mm) | 5mm | 47830 |
| 49405 (1254889.51mm) | 1/4 (6.35mm) | 1 (25.40mm) | .344 | 47710 |
| 57165 (1451993.90mm) | 1/2 (12.70mm) | 1 (25.40mm) | 5.7mm | 47745 |
| 57144 & | 1/2 (12.70mm) | 1-1/8 | .312 | 47738 |
| 49350 | 3/16 (4.76mm) | 1-1/8 | .312 | 47743 |
| 57165 (1451993.90mm) | 1/2 (12.70mm) | 1-1/4 | 5.7mm | 47747 |
| 54229. | 5/16 (7.94mm) | 1-1/4 | .196 (5.08mm) | 47763 |
| 57166 (1452019.30mm) | 1/2 (12.70mm) | 1-1/2 | .466 | 47749 |
| Weight | 0.06 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
