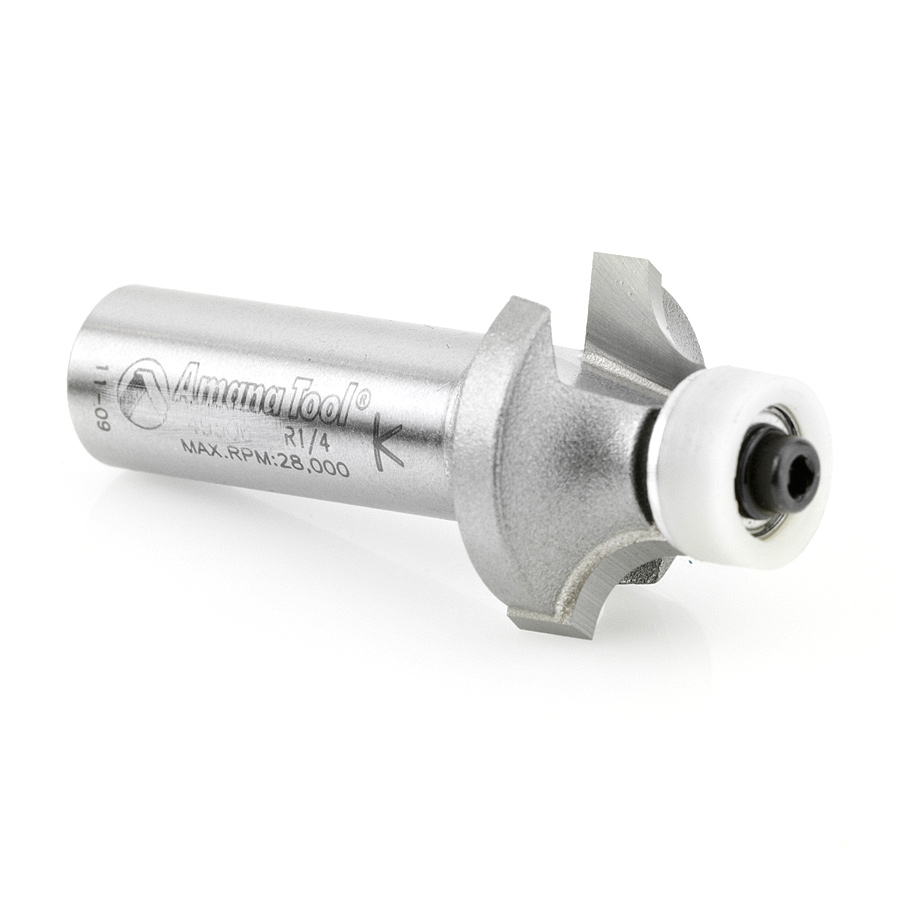

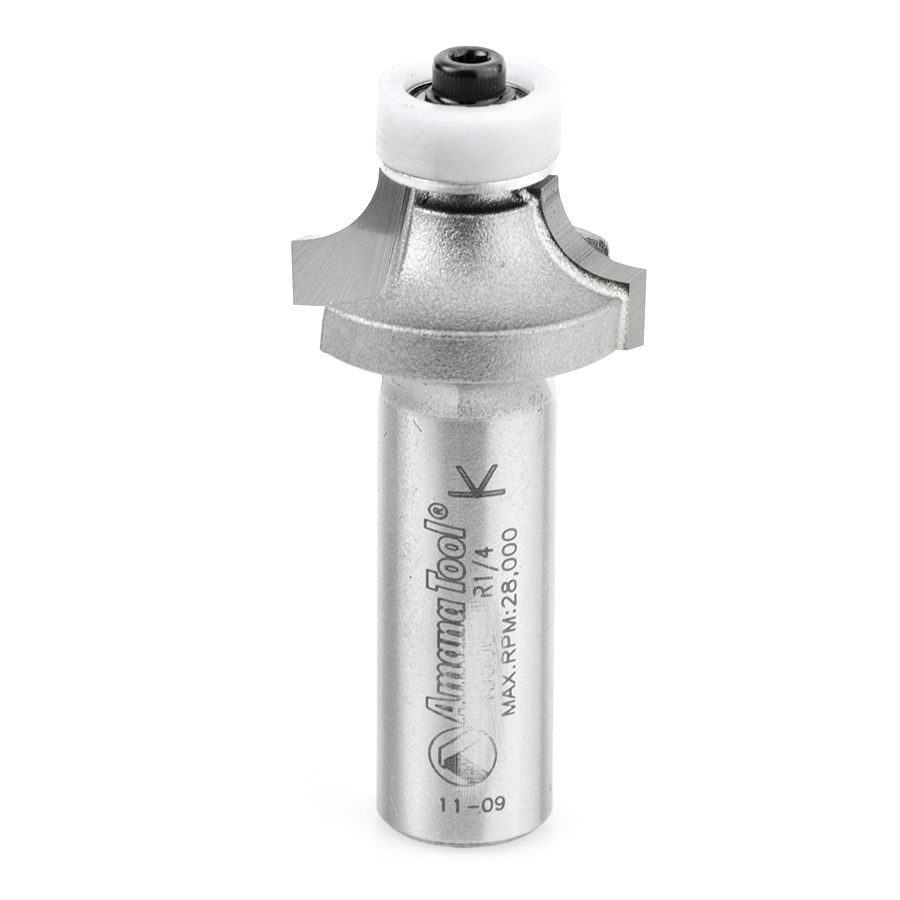

57149 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1 Inch Dia x 1/2 x 1/4 Radius x 1/2 Shank

Amana 57149 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1 Inch Dia x 1/2 x 1/4 Radius x 1/2 Shank

Name: Amana 57149 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1 Inch Dia x 1/2 x 1/4 Radius x 1/2 Shank
SKU: Amana 57149
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

ROUNDING OVER 1/4″ RAD 1/2″SHK

UPC: 738685571491 SKU: Amana 57149 Categories: Amana Tool, Router Bits, Solid Surface Corner Round Router Bits, Solid Surface Router Bits

Item Description

Use this bit for rounding edges where there’s access to a flat surface for the Ultra-Glide™ non-marring bearing to reference. Used in concert with either the Counter-top (‘No-Drip’) Design bit or the corner-rounding bit with a radius bearing, this bit will produce a no-drip edge or a bullnose in two passes.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57149	47707	67096	67202

Specifications

Diameter (D)	1
Radius (R)	1/4
Cutting Height (B)	1/2
Shank (d)	1/2
Overall Length (L)	2-7/16
Flutes	2

Other Sizes Available

Diameter (D)	Cut Depth (A)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1/8 (3.18mm)	–	–	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	45200-5
1-5/64	–	1/16 (1.59mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	RC-49492
1-5/64	–	2mm	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	RC-49495
1-5/64	–	3mm	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	RC-49497
5/16 (7.94mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	MRR108
5/16 (7.94mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	MRR108-5
1-1/32	–	3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	RC-54111
3/8 (9.53mm)	–	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MR0110
3/8 (9.53mm)	–	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MR0110-5
7/16 (11.11mm)	–	–	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	MR0100
7/16 (11.11mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MR0112
7/16 (11.11mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MR0112-5
1/2 (12.70mm)	–	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49092
1/2 (12.70mm)	–	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MR0114
1/2 (12.70mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	RC-45910
1/2 (12.70mm)	–	–	20mm	1/4 (6.35mm)	2-5/16	RC-47104
9/16 (14.29mm)	–	3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	MRR110
5/8 (15.88mm)	–	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49094
5/8 (15.88mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	49492
5/8 (15.88mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	49492-5
5/8 (15.88mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/2 (12.70mm)	2-1/4	49494
11/16 (17.46mm)	–	1/4 (6.35mm)	13/32 (10.32mm)	1/4 (6.35mm)	1-7/8	MRR112
11/16 (17.46mm)	–	–	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	RC-45712
3/4 (19.05mm)	–	3/16 (4.76mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	49100
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	49496
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	49496-5
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	49498
3/4 (19.05mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	49505
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	57147
13/16 (20.64mm)	–	5/32 (3.97mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	49499
13/16 (20.64mm)	–	5/32 (3.97mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-1/4	49501
13/16 (20.64mm)	–	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	M12RW64
7/8 (22.23mm)	–	1/4 (6.35mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	49104
7/8 (22.23mm)	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49305
7/8 (22.23mm)	–	–	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	49307
7/8 (22.23mm)	–	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49500
7/8 (22.23mm)	–	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49500-5
7/8 (22.23mm)	–	3/16 (4.76mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	49502
7/8 (22.23mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/16	49527
7/8 (22.23mm)	–	1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-15/16	49544
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-1/8	49108
1 (25.40mm)	–	5/16 (7.94mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	49110
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49504
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49504-5
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	49506
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	49506-5
1 (25.40mm)	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	49511
1 (25.40mm)	–	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49546
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	RC-49104
1 (25.40mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	RC-49496
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	RC-49504
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	49112
1-1/8	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	49114
1-1/8	–	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	49508
1-1/8	–	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	49510
1-1/8	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	49531
1-1/8	–	1/4 (6.35mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-9/16	49541
1-1/8	–	1/4 (6.35mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-9/16	49547
1-1/8	3/4 (19.05mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	57150
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	49116
1-3/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	49118
1-3/8	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49306
1-3/8	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	49309
1-3/8	–	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	49515
1-3/8	–	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-11/16	49543
1-3/8	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-11/16	49548
1-5/8	–	5/8 (15.88mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	49119
1-5/8	–	9/16 (14.29mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	49517
1-5/8	–	1/2 (12.70mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-3/4	49545
1-5/8	–	1/2 (12.70mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/4	49549
1-5/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	57190
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	49120
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	49520
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/8	57141
1-7/8	–	–	1 (25.40mm)	1/2 (12.70mm)	2-7/8	49314
2-1/8	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	57192
1-1/4	–	–	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	49300
1-1/4	–	–	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	49302
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	49512
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	49512-5
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	49514
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	49514-5
3 (76.20mm)	–	1-1/4	1-1/2	1/2 (12.70mm)	3-7/8	49524
1-3/4	–	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	49519
2-1/4	–	7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	3-1/8	49121
2-1/4	–	7/8 (22.23mm)	1-5/32	1/2 (12.70mm)	3-1/16	49521
1-1/2	–	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	49130
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	49516
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	49518
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/8	57139
2-3/4	–	1-1/8	1-3/8	1/2 (12.70mm)	3-3/4	49523
2-1/2	–	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	49122
2-1/2	–	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3-3/16	49522
3-1/2	–	1-1/2	1-3/4	1/2 (12.70mm)	4-1/8	49526

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
