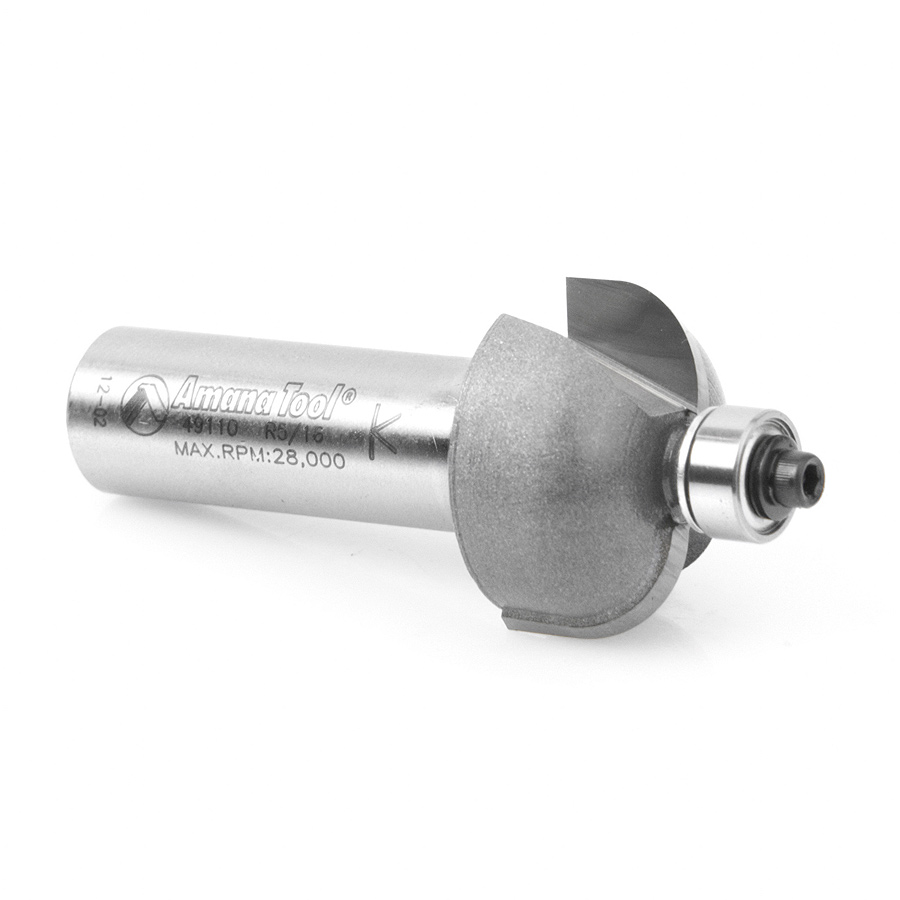

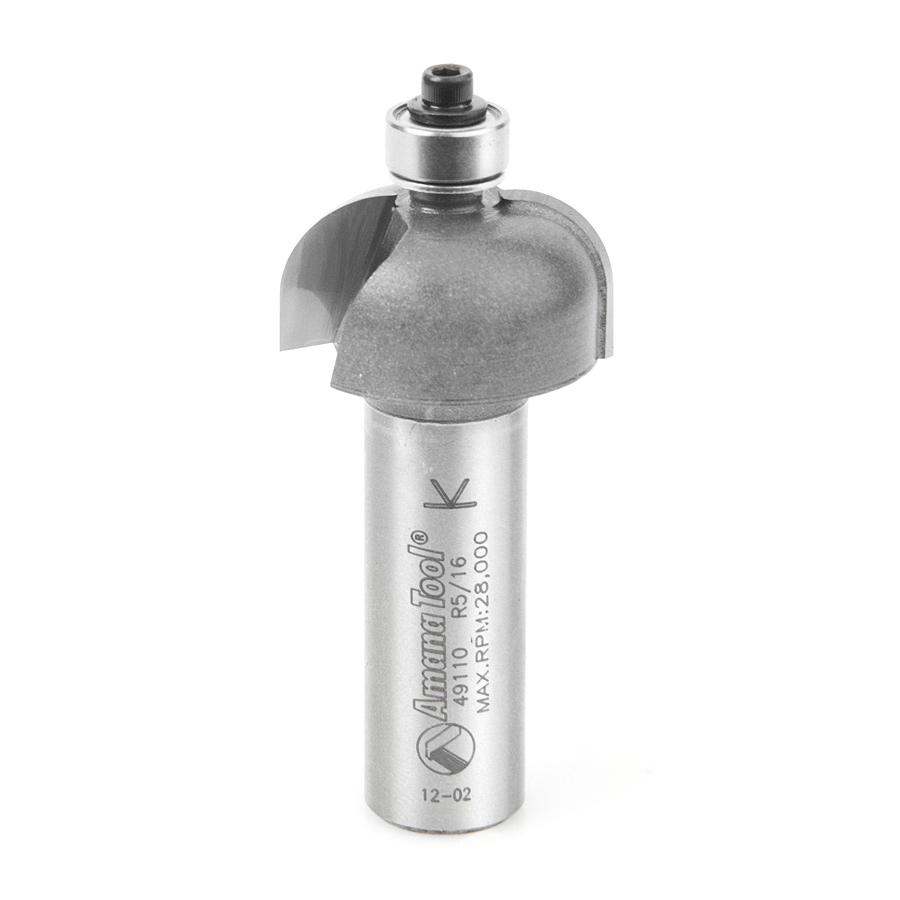

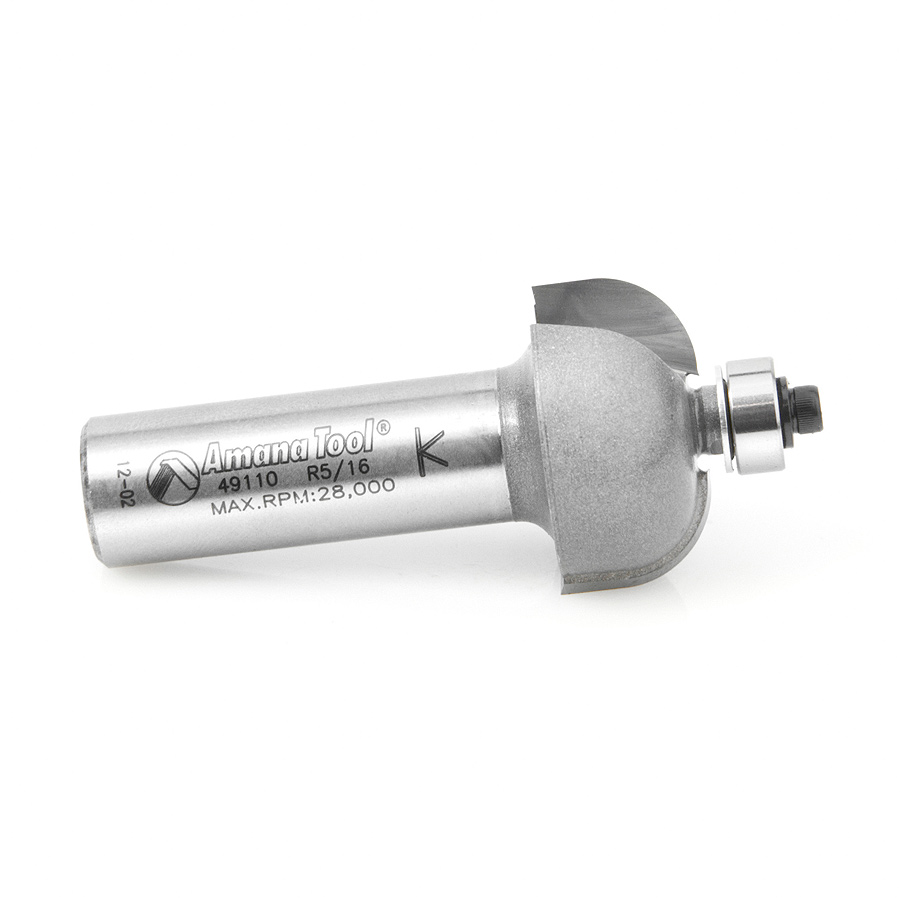

49110 Carbide Tipped Cove 5/16 Radius x 1 Inch Dia x 9/16 x 1/2 Shank

Amana 49110 Carbide Tipped Cove 5/16 Radius x 1 Inch Dia x 9/16 x 1/2 Shank

Name: Amana 49110 Carbide Tipped Cove 5/16 Radius x 1 Inch Dia x 9/16 x 1/2 Shank
SKU: Amana 49110
Availability: InStock

Original price was: $71.40.Current price is: $53.55.

COVE BIT 5/16 RAD 1/2 SHANK

UPC: 738685891100 SKU: Amana 49110 Categories: Amana Tool, Cove Router Bits, Profiling Router Bits, Router Bits

Item Description

The covetto form – produced by the cove bit – is one of the classic building blocks for many molding profiles. Use it alone or in combination with beads and fillets. Use the cove to detail the edges of casework, doors and drawers, posts and columns. The cove also makes up one-half of the rule joint used on drop-leaf tables, the other half is the corner-round.

For best results with a large radius cutter, make a preliminary cut with a smaller radius bit or chamfer the workpiece to reduce the amount of stock to be removed in the finish pass. This will produce a smoother finish and prolong tool life. The largest diameter bits must be run at reduced speed.

Use in a handheld or table-mounted router.

Specifications

Diameter (D)	1
Radius (R)	5/16
Cutting Height (B)	9/16
Shank (d)	1/2
Overall Length (L)	2-3/8
Replacement Bearing	47704
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Type	Replacement Insert Knives	# of Knives	C	Tool No.
5/16 (7.94mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MRR108
5/16 (7.94mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MRR108-5
3/8 (9.53mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0110
3/8 (9.53mm)	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0110-5
7/16 (11.11mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0112
7/16 (11.11mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	–	–	–	–	MR0112-5
1/2 (12.70mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49092
5/8 (15.88mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49094
3/4 (19.05mm)	3/16 (4.76mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49100
7/8 (22.23mm)	1/4 (6.35mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49104
1 (25.40mm)	5/16 (7.94mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-1/8	47704	2	–	–	–	–	49108
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	–	–	–	–	49506
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	–	–	–	–	49506-5
1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	–	—-	Cove	RCK-274	2 (50.80mm)	–	RC-49104
1-1/8	3/8 (9.53mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	47704	2	–	–	–	–	49112
1-1/8	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	47704	2	–	–	–	–	49114
1-1/8	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	47706	2	–	–	–	–	49508
1-3/8	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47704	2	–	–	–	–	49116
1-3/8	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	47704	2	–	–	–	–	49118
1-5/8	5/8 (15.88mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	47704	2	–	–	–	–	49119
1-5/8	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	47767	2	–	–	–	–	57190
2 (50.80mm)	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	47706	2	–	–	–	–	49120
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	–	–	–	–	49512
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	–	–	–	–	49512-5
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	–	–	–	–	49514
1-1/4	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	–	–	–	–	49514-5
2-1/4	7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	3-1/8	47706	2	–	–	–	–	49121
1-1/2	3/8 (9.53mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-5/8	–	4	–	–	–	1/2 & 9/16	49130
2-1/2	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	47706	2	–	–	–	–	49122

Weight	0.16 lbs
