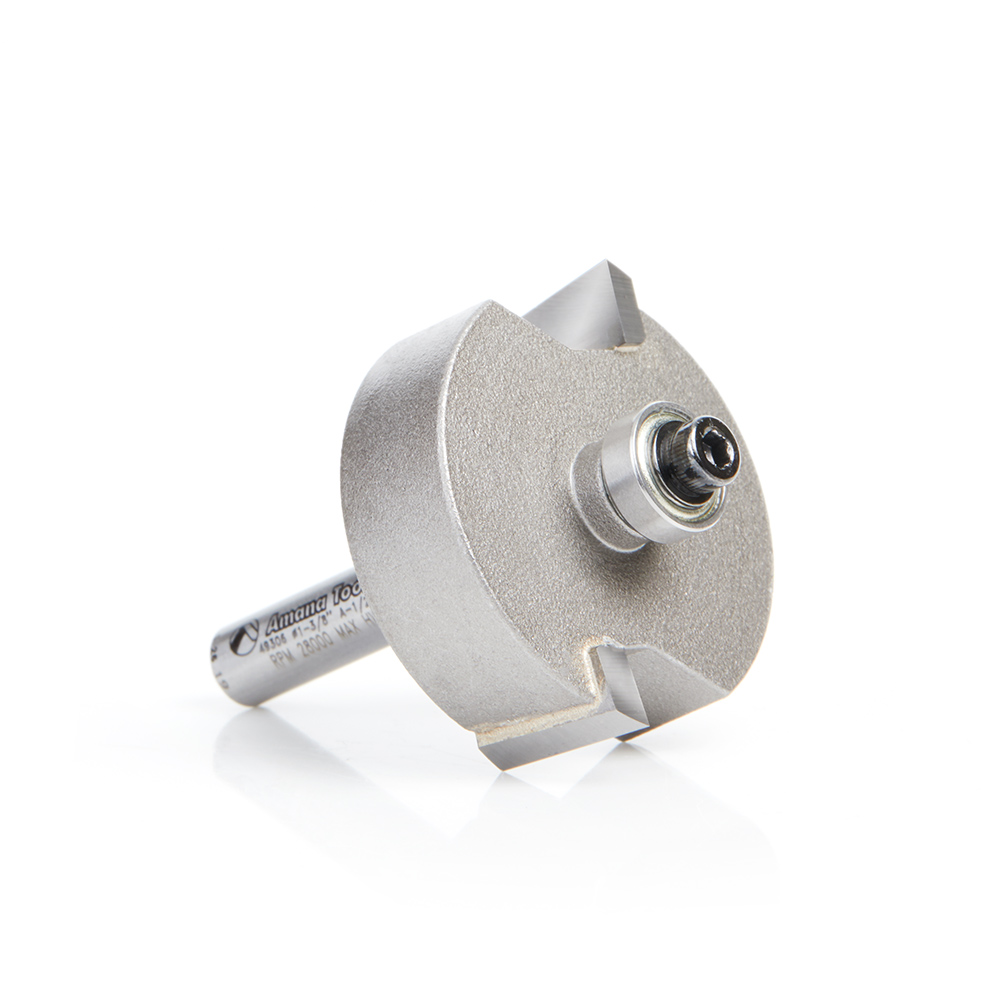

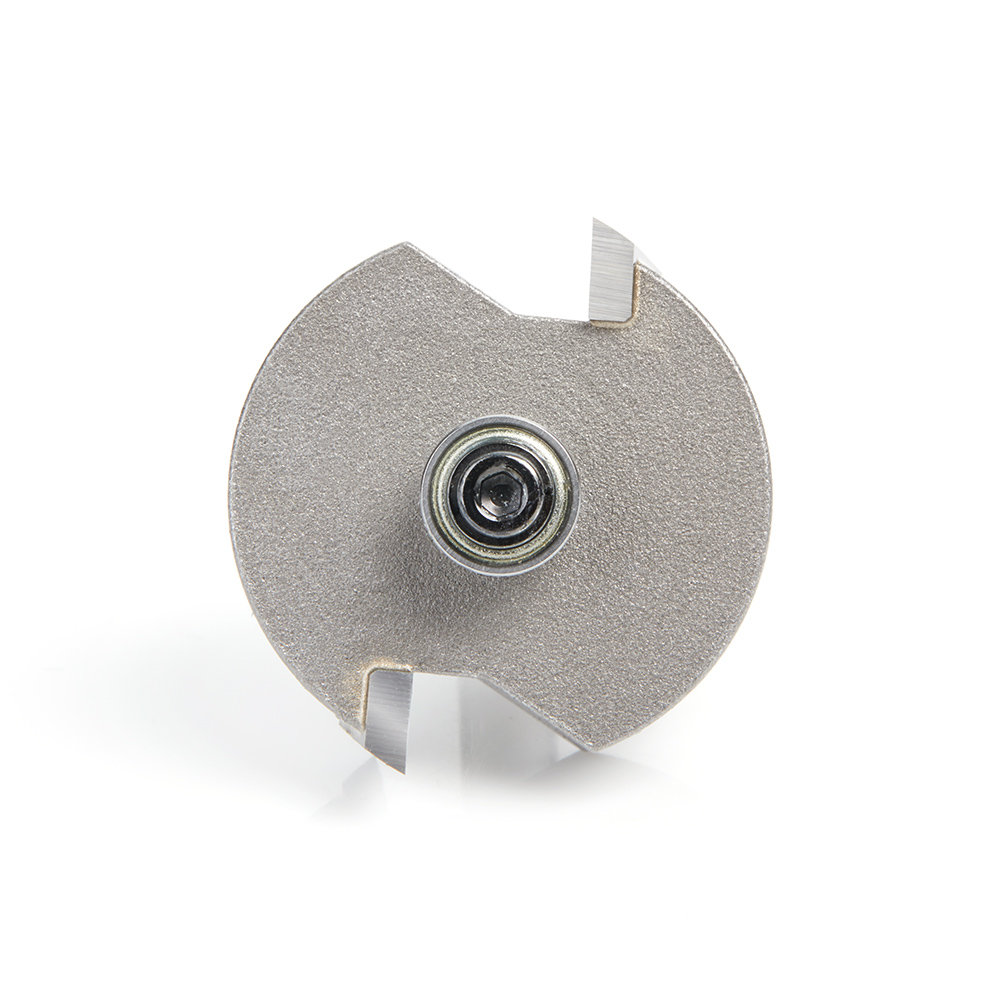

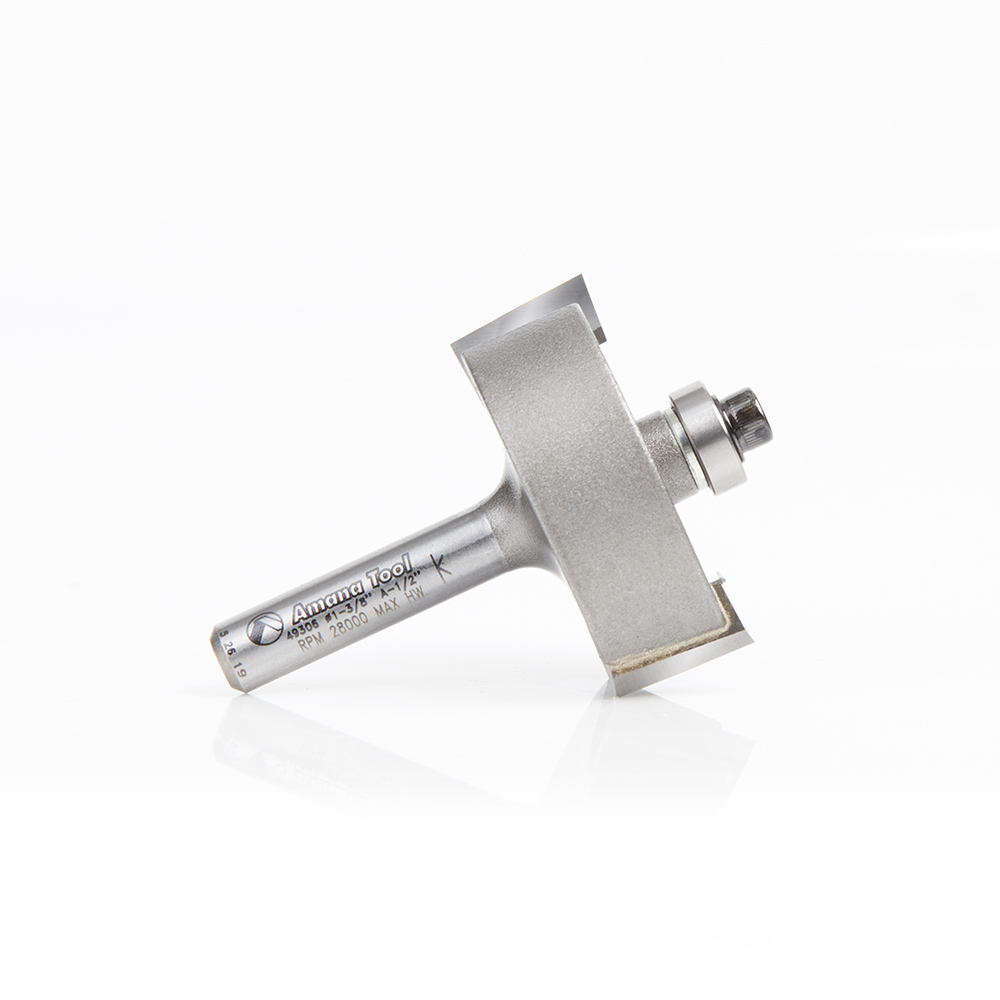

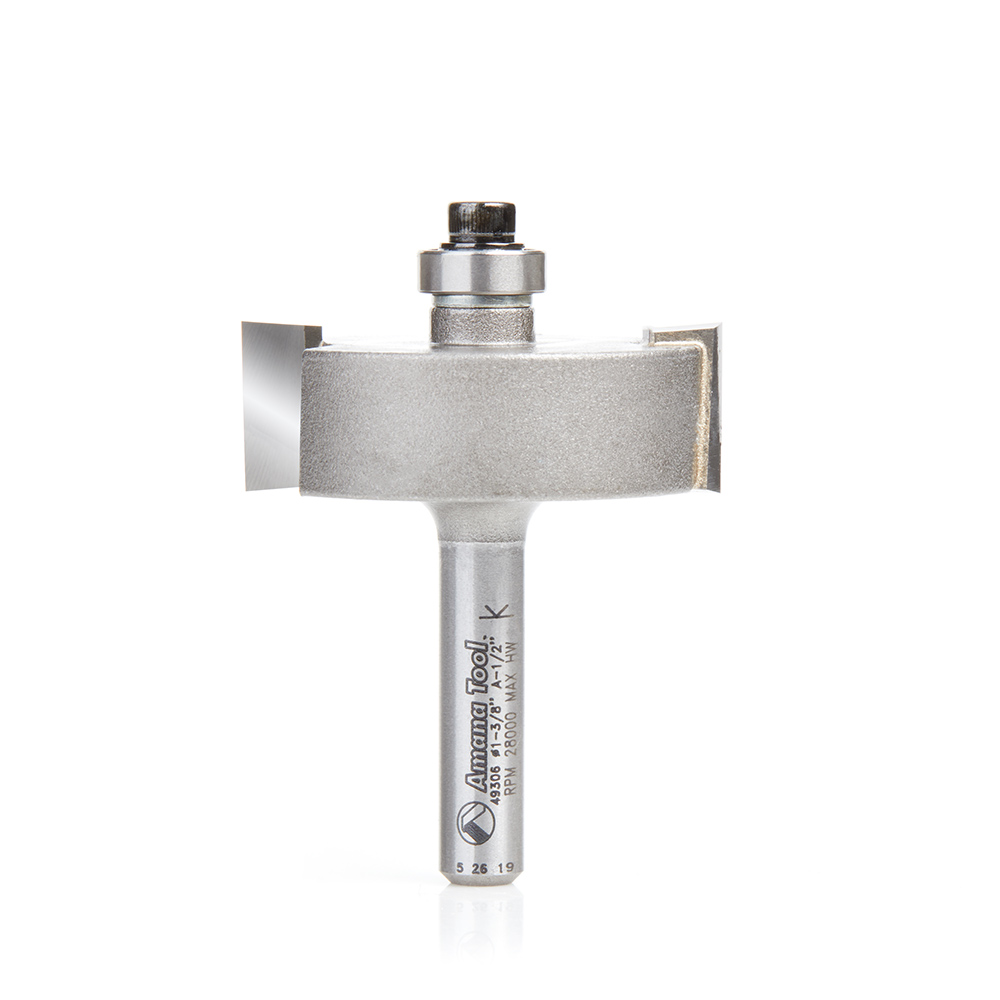

49306 Rabbeting 1/2 Depth x 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Amana 49306 Rabbeting 1/2 Depth x 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 49306 Rabbeting 1/2 Depth x 1-3/8 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 49306
Availability: InStock

Original price was: $55.15.Current price is: $41.37.

RABBETTING 1-3/8 DIA.1/4 SHANK

UPC: 738685493069 SKU: Amana 49306 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits, Router Bits

Item Description

This is the basic rabbeting bit. It cuts 1/2″ wide and up to 1/2″ deep. Switch to one of four optional ball-bearing guides to alter the width of cut. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	1-3/8
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47702
Flutes	2
C	1/2

Other Sizes Available

Diameter (D)	D1	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	MR0101
5/16 (7.94mm)	3/16 (4.76mm)	–	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	MRR108
5/16 (7.94mm)	3/16 (4.76mm)	–	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	MRR108-5
3/8 (9.53mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0110
3/8 (9.53mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0110-5
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	MR0100
7/16 (11.11mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0112
7/16 (11.11mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0112-5
7/8 (22.23mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	49305
7/8 (22.23mm)	–	1/4 (6.35mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	2	49307
1 (25.40mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	49506
1 (25.40mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	49506-5
1-1/8	1/2 (12.70mm)	–	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	49508
1-3/8	–	1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49309
1-5/8	5/8 (15.88mm)	–	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	57190
1-7/8	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	3	49314
1-1/4	–	3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	49300
1-1/4	–	3/8 (9.53mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49302
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	49512
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	49512-5
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	49514
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	49514-5

Weight	0.2 lbs
