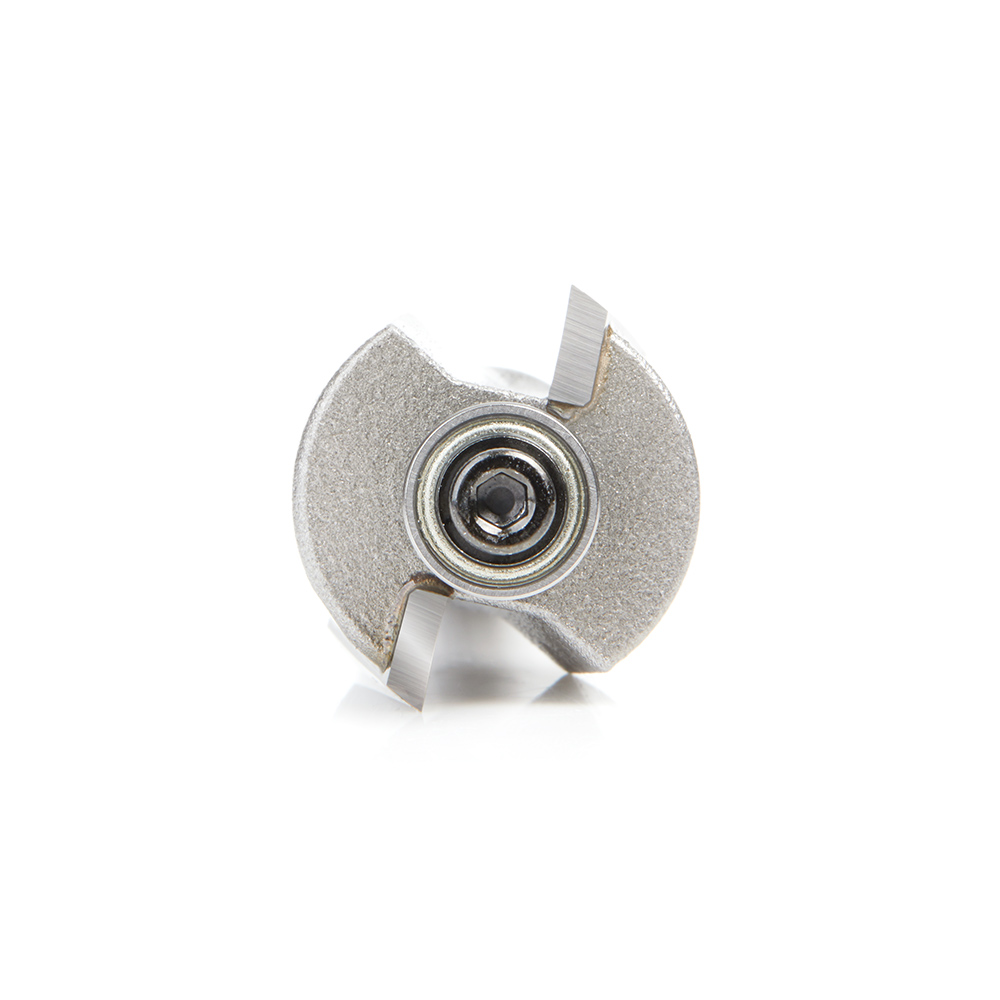

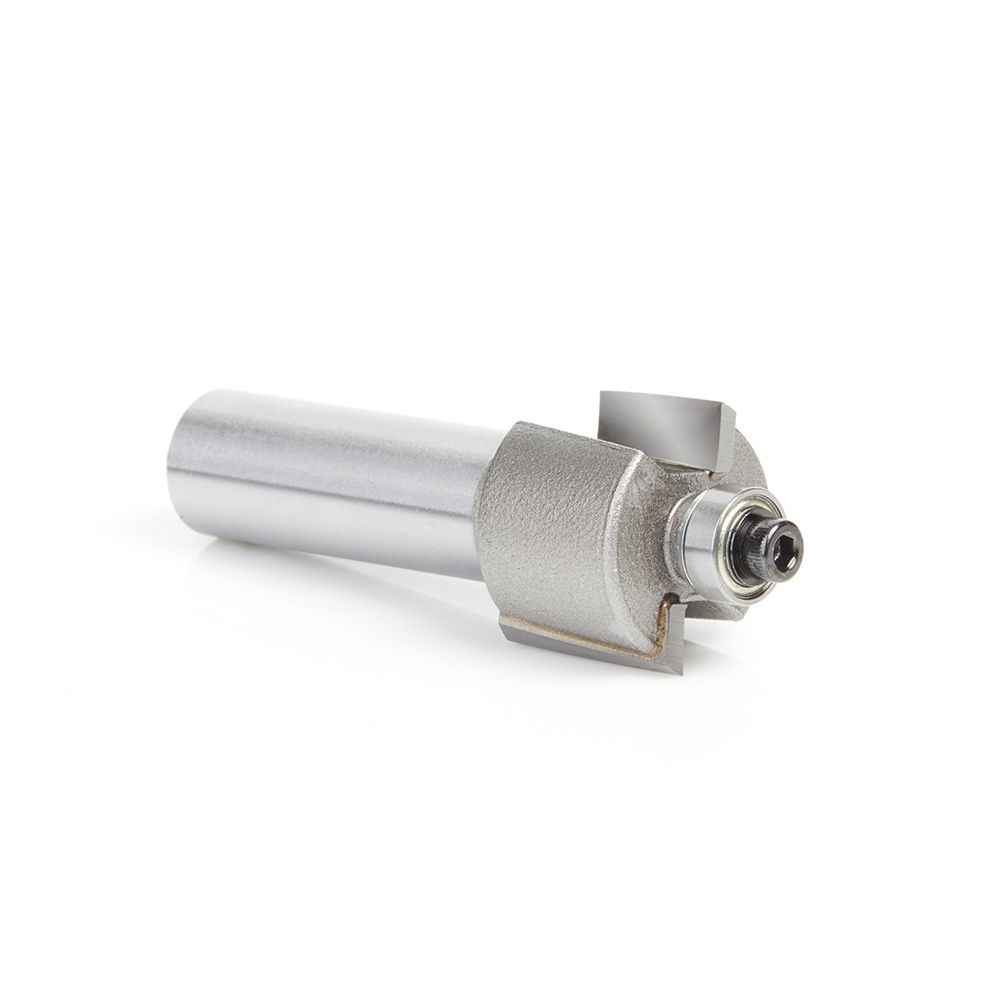

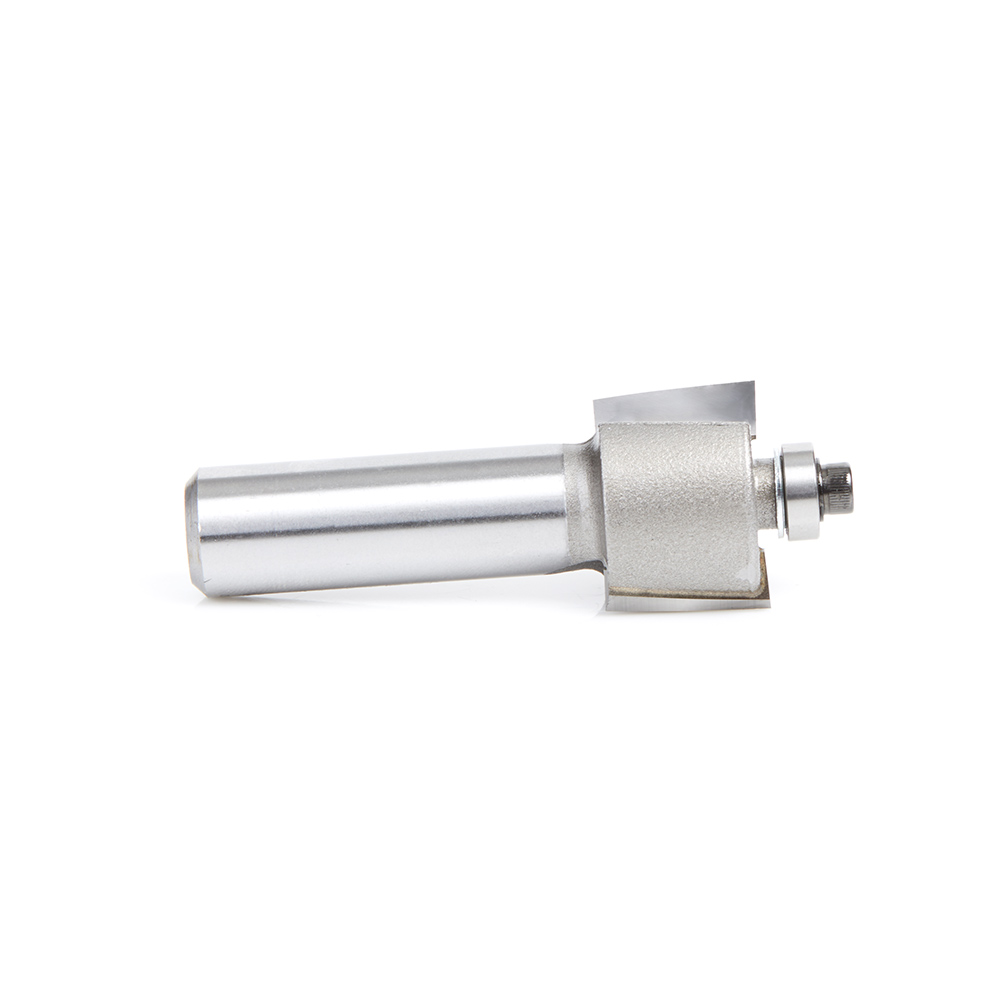

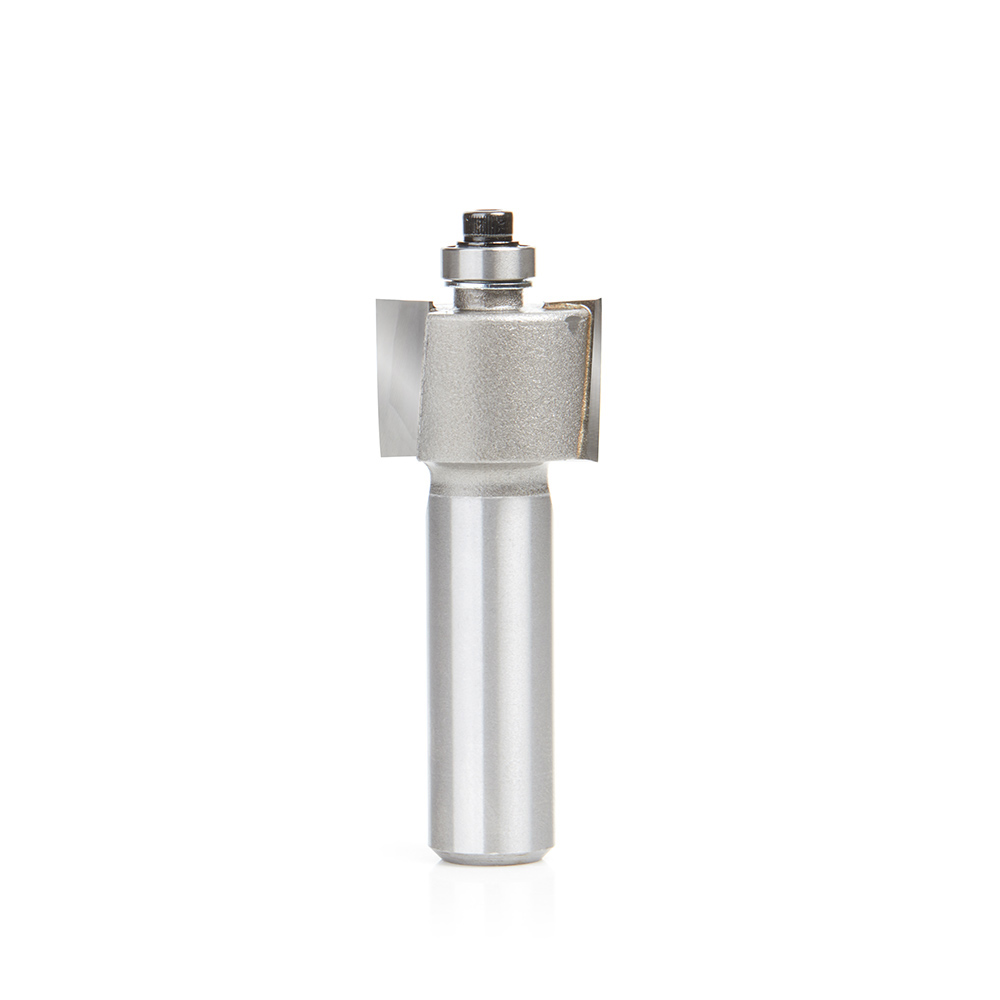

49307 Rabbeting 1/4 Depth x 7/8 Dia x 5/8 x 1/2 Inch Shank

Amana 49307 Rabbeting 1/4 Depth x 7/8 Dia x 5/8 x 1/2 Inch Shank

Name: Amana 49307 Rabbeting 1/4 Depth x 7/8 Dia x 5/8 x 1/2 Inch Shank
SKU: Amana 49307
Availability: InStock

Original price was: $44.95.Current price is: $33.72.

RABBETTING 7/8″DIA.1/2 SHANK

UPC: 738685490709 SKU: Amana 49307 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits, Router Bits

Item Description

This is the basic rabbeting bit. It cuts 1/4″ wide and up to 5/8″ deep. Switch to one of four optional ball-bearing guides to alter the width of cut. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	7/8
Cutting Height (B)	5/8
Shank (d)	1/2
Overall Length (L)	2-1/2
Replacement Bearing	47702
Flutes	2
C	1/4

Other Sizes Available

Diameter (D)	D1	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	3/16 (4.76mm)	1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	MR0101
5/16 (7.94mm)	3/16 (4.76mm)	–	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	MRR108
5/16 (7.94mm)	3/16 (4.76mm)	–	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	2	MRR108-5
3/8 (9.53mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0110
3/8 (9.53mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0110-5
7/16 (11.11mm)	3/16 (4.76mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-7/8	2	MR0100
7/16 (11.11mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0112
7/16 (11.11mm)	3/16 (4.76mm)	–	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	2	MR0112-5
7/8 (22.23mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	49305
1 (25.40mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	49506
1 (25.40mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	49506-5
1-1/8	1/2 (12.70mm)	–	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	49508
1-3/8	–	1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	49306
1-3/8	–	1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49309
1-5/8	5/8 (15.88mm)	–	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	57190
1-7/8	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-7/8	3	49314
1-1/4	–	3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	49300
1-1/4	–	3/8 (9.53mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49302
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	49512
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	49512-5
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	49514
1-1/4	1/2 (12.70mm)	–	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	49514-5

Weight	0.18 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
