Sale!

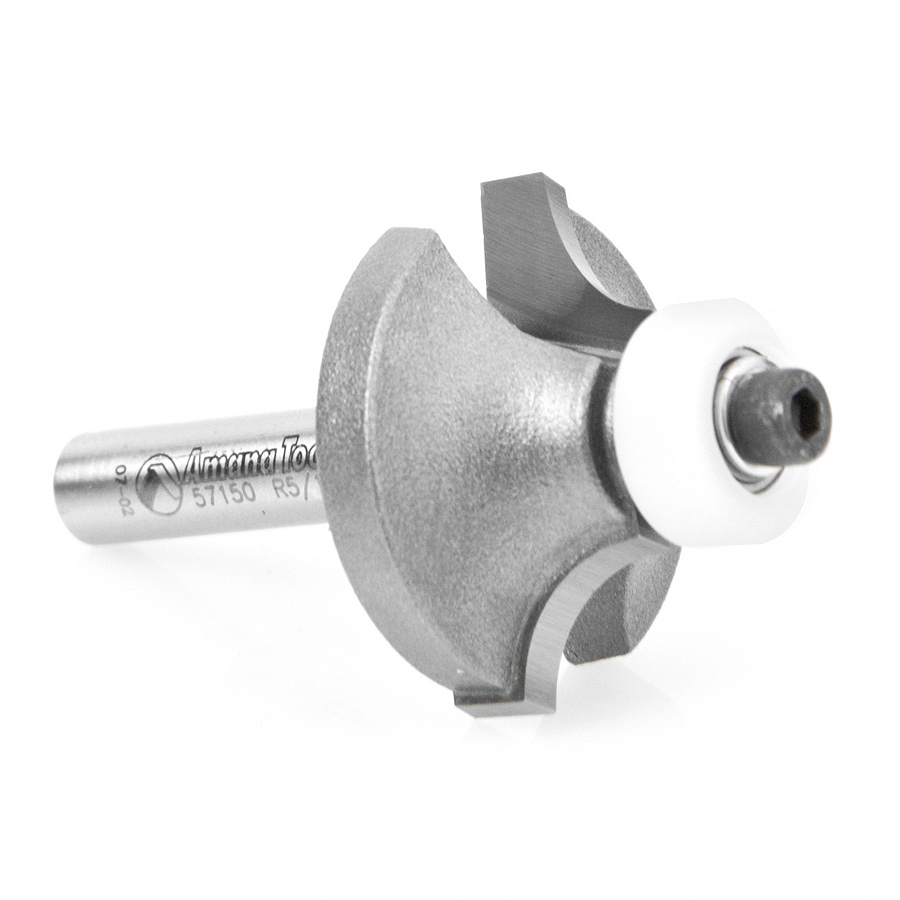

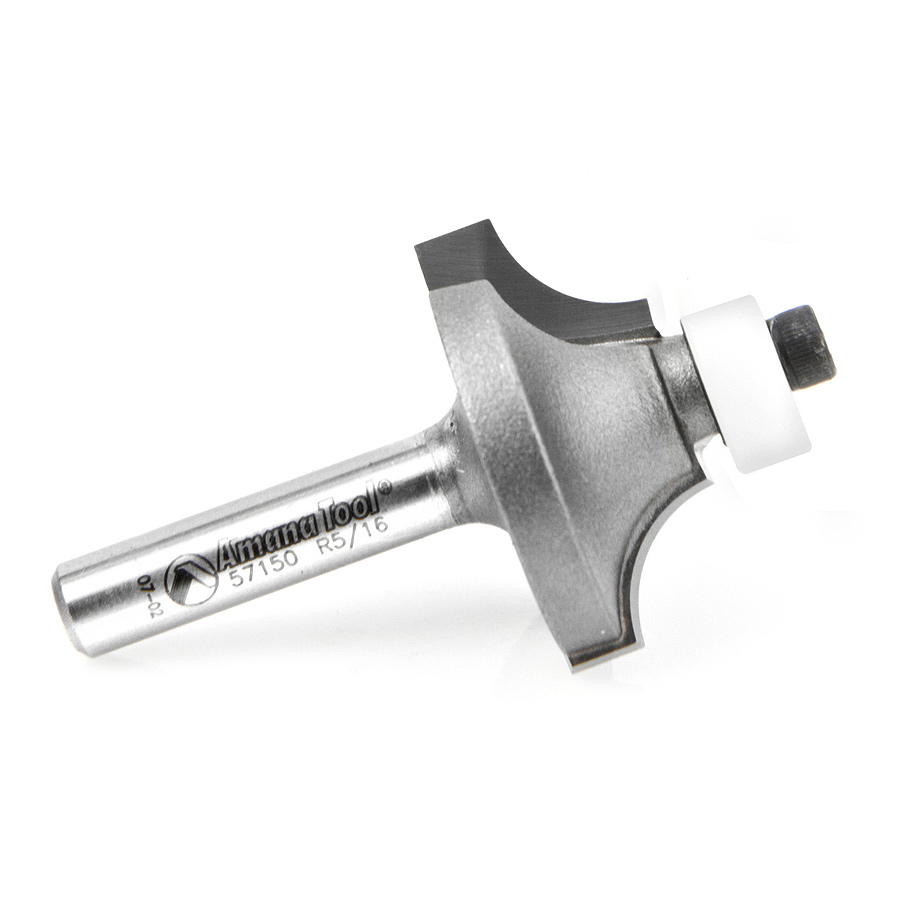

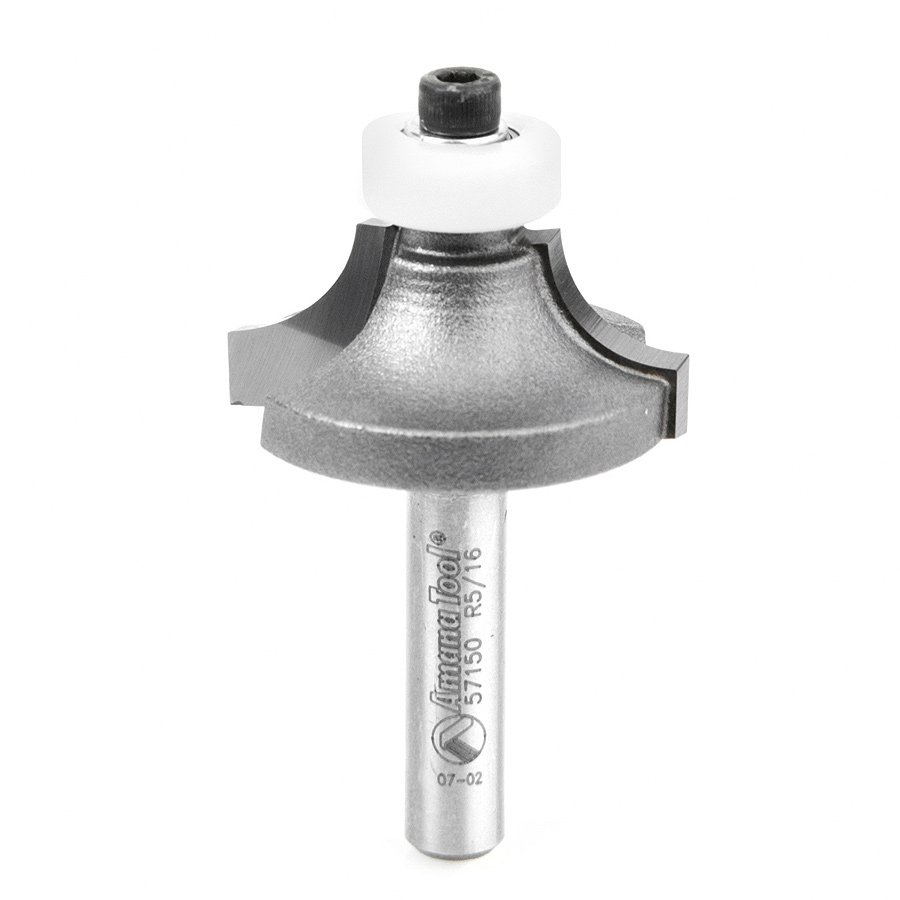

57150 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1-1/8 Dia x 1/2 x 5/16 Radius x 1/4 Inch Shank

Amana 57150 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1-1/8 Dia x 1/2 x 5/16 Radius x 1/4 Inch Shank

Name: Amana 57150 Carbide Tipped Corner Rounding with Ultra-Glide Ball Bearing Guide Solid Surface 1-1/8 Dia x 1/2 x 5/16 Radius x 1/4 Inch Shank
SKU: Amana 57150
Availability: InStock

Original price was: $79.40.Current price is: $59.55.

ROUNDING OVER 5/16 RAD 1/4 SHK

UPC: 738685971505 SKU: Amana 57150 Categories: Amana Tool, Router Bits, Solid Surface Corner Round Router Bits, Solid Surface Router Bits

Item Description

Use this bit for rounding edges where there’s access to a flat surface for the Ultra-Glide™ non-marring bearing to reference. Used in concert with either the Counter-top (‘No-Drip’) Design bit or the corner-rounding bit with a radius bearing, this bit will produce a no-drip edge or a bullnose in two passes.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57150	47707	67096	67202

Specifications

Cut Depth (A)	3/4
Diameter (D)	1-1/8
Radius (R)	5/16
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	1-7/8
Flutes	2

Other Sizes Available

Diameter (D)	Cut Depth (A)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	D1	Tool No.
5/16 (7.94mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MRR108
5/16 (7.94mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MRR108-5
3/8 (9.53mm)	–	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MR0110
3/8 (9.53mm)	–	3/32 (2.38mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MR0110-5
7/16 (11.11mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MR0112
7/16 (11.11mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-13/16	47775	2	3/16 (4.76mm)	MR0112-5
5/8 (15.88mm)	–	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	47706	2	1/2 (12.70mm)	49492-5
3/4 (19.05mm)	–	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	–	2	–	57147
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	1/2 (12.70mm)	49506
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	47706	2	1/2 (12.70mm)	49506-5
1 (25.40mm)	–	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	–	2	–	57149
1-1/8	–	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	47706	2	1/2 (12.70mm)	49508
1-5/8	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	47767	2	5/8 (15.88mm)	57190
2 (50.80mm)	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/8	–	2	–	57141
2-1/8	–	3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47768	2	5/8 (15.88mm)	57192
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	1/2 (12.70mm)	49512
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	47706	2	1/2 (12.70mm)	49512-5
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	1/2 (12.70mm)	49514
1-1/4	–	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	47706	2	1/2 (12.70mm)	49514-5
1-1/2	–	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/8	–	2	–	57139

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
