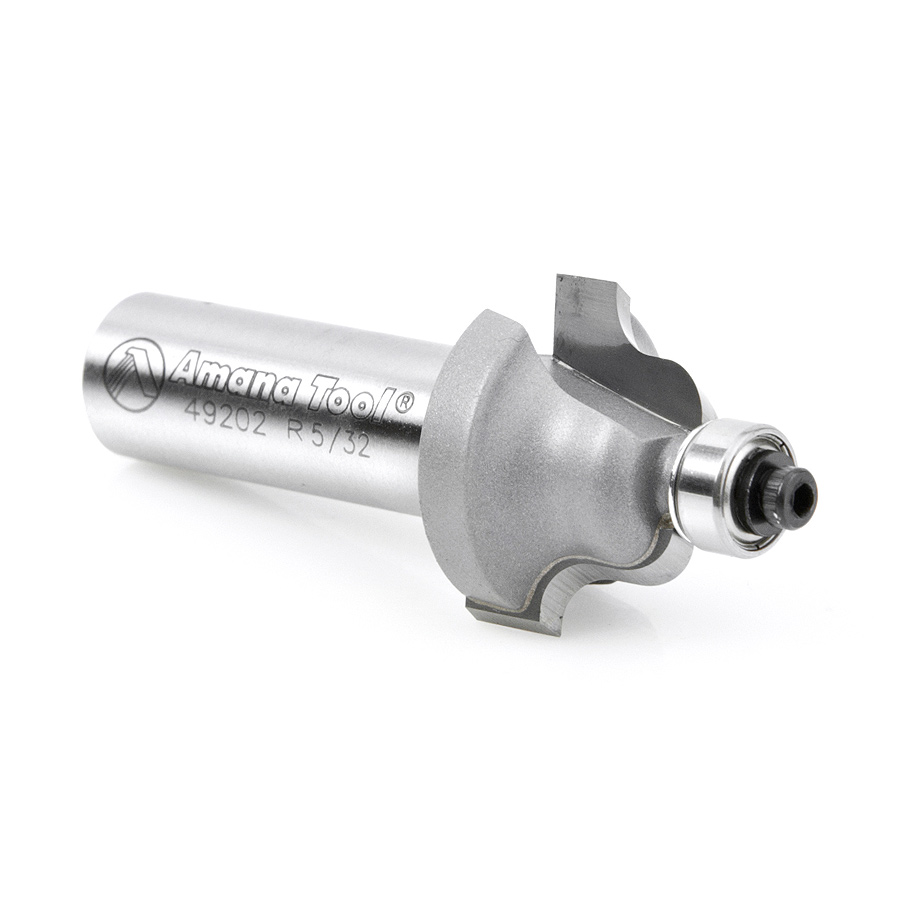

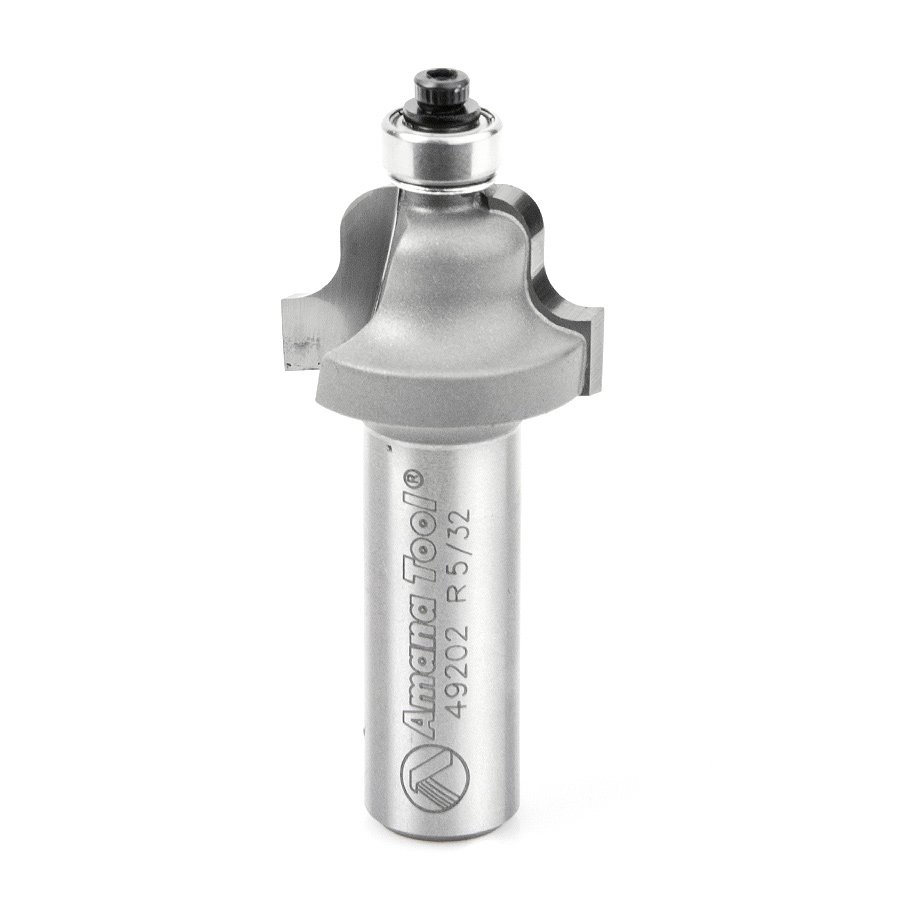

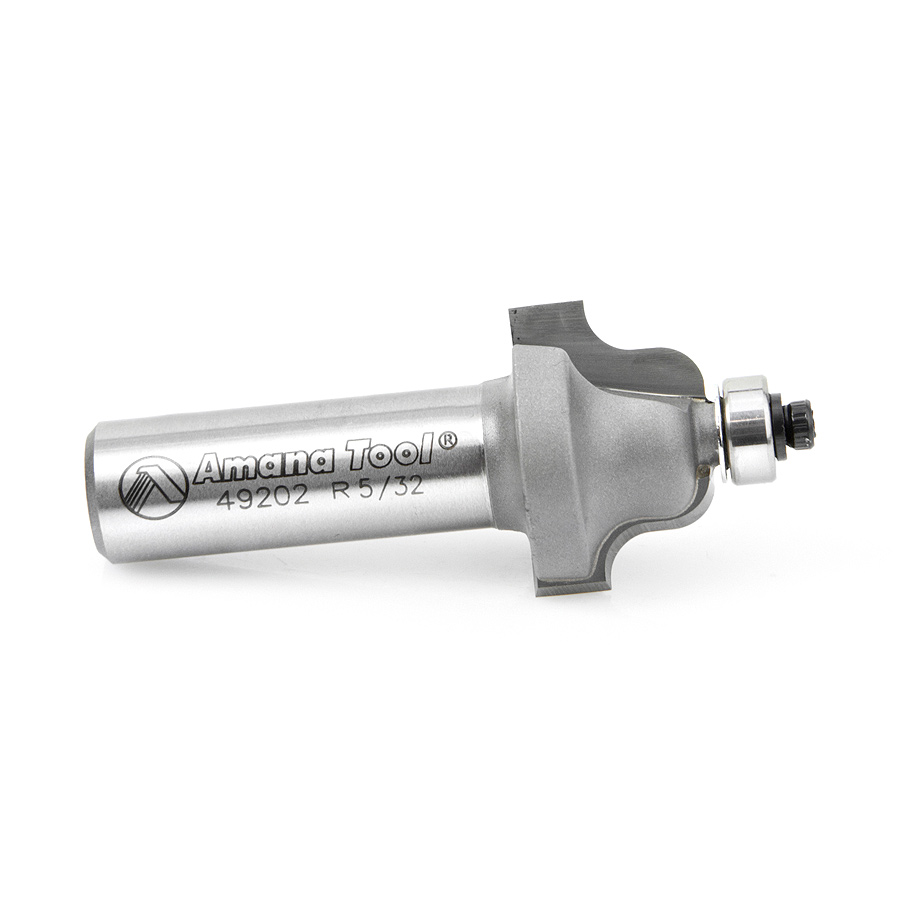

49202 Carbide Tipped Roman Ogee 5/32 Radius x 1 Inch Dia x 5/8 x 1/2 Shank

Amana 49202 Carbide Tipped Roman Ogee 5/32 Radius x 1 Inch Dia x 5/8 x 1/2 Shank

Name: Amana 49202 Carbide Tipped Roman Ogee 5/32 Radius x 1 Inch Dia x 5/8 x 1/2 Shank
SKU: Amana 49202
Availability: InStock

Original price was: $59.50.Current price is: $44.63.

ROMAN OGEE 5/32 RAD 1/2 SHANK

UPC: 738685892022 SKU: Amana 49202 Categories: Amana Tool, Ogee Router Bits, Profiling Router Bits, Router Bits

Item Description

The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee (it isn’t an upside-down ogee). The curve starts at the top as a concave, and fairs down into a convex curve. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	1
Radius (R)	5/32
Cutting Height (B)	5/8
Shank (d)	1/2
Overall Length (L)	2-1/2
Replacement Bearing	47704
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
9/16 (14.29mm)	3/16 (4.76mm)	3/32 (2.38mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-7/8	2	47775	MR0104
1 (25.40mm)	–	5/32 (3.97mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	2	47704	49200
1-3/8	–	1/4 (6.35mm)	13/16 (20.64mm)	1/4 (6.35mm)	2-1/4	2	47704	49204
1-3/8	–	1/4 (6.35mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-5/8	2	47704	49206
2 (50.80mm)	–	3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	47706	49207

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
