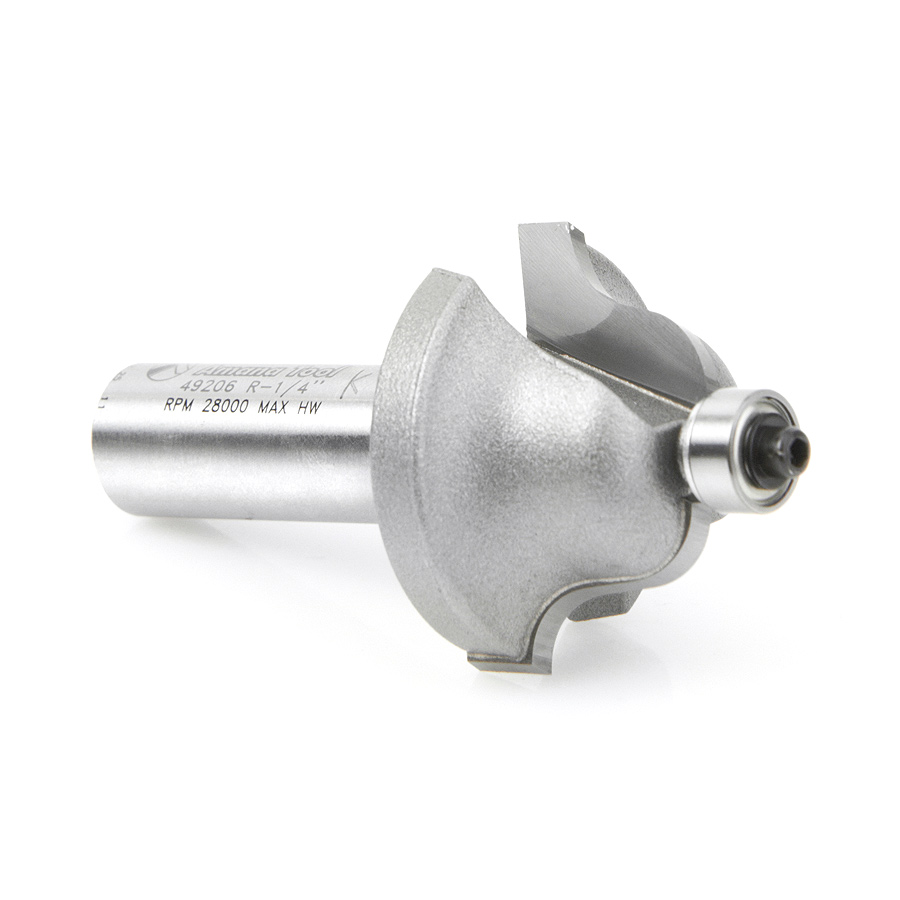

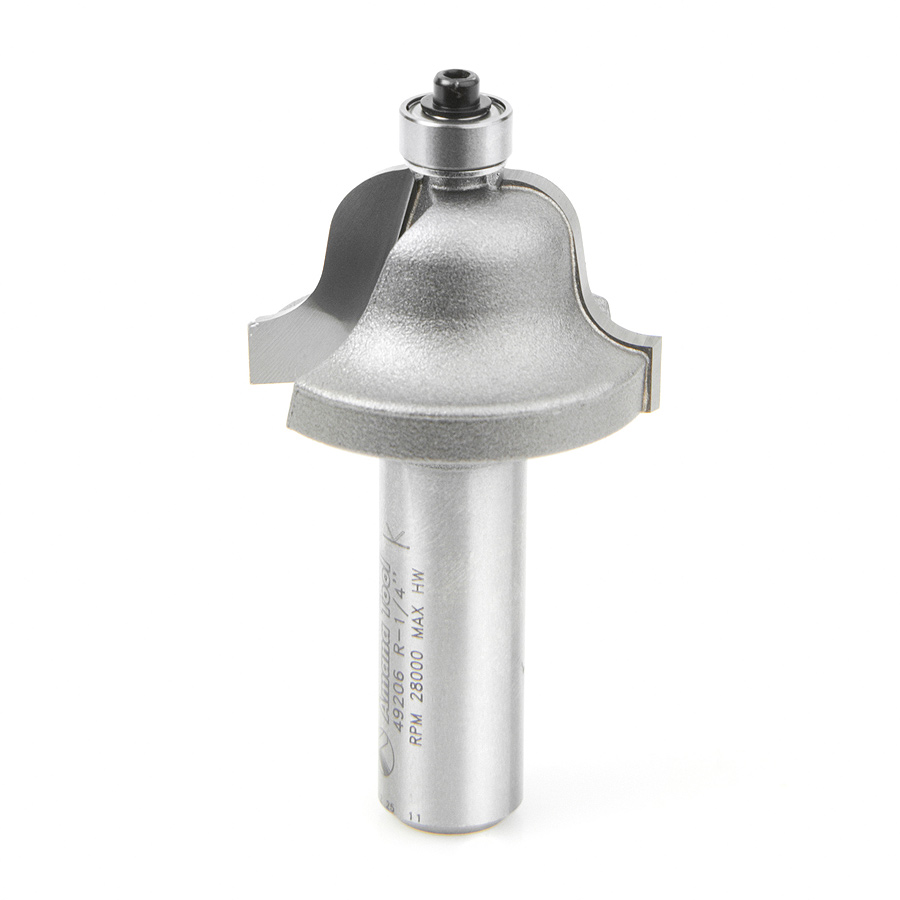

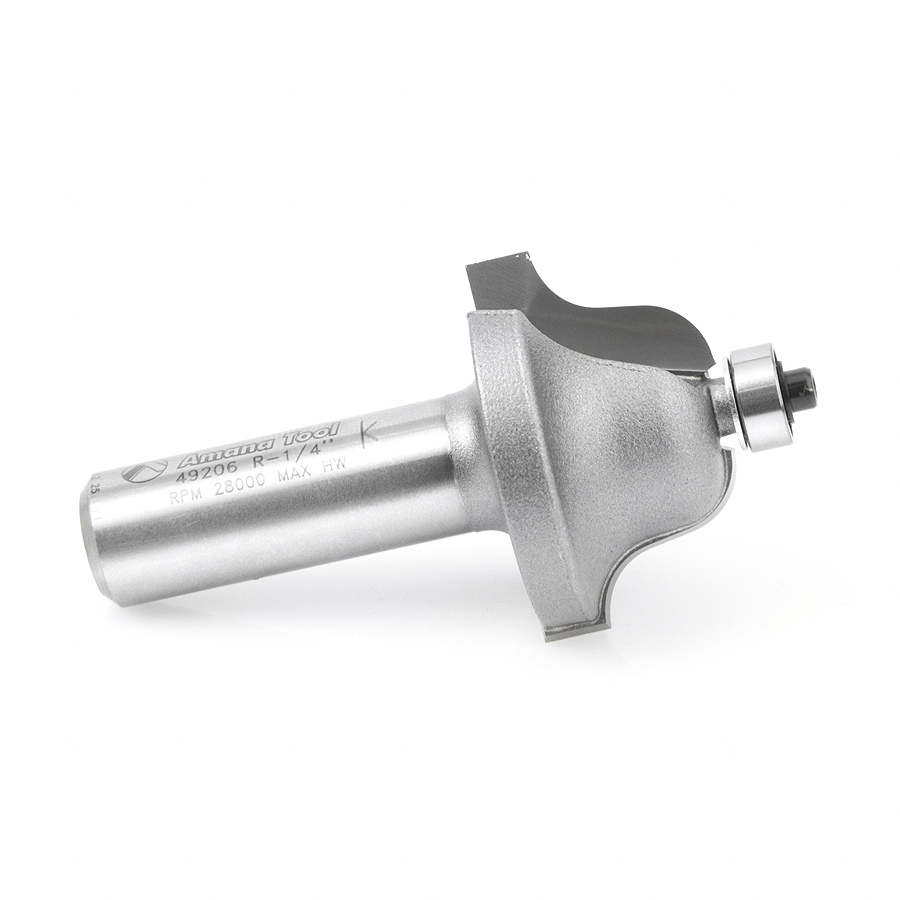

49206 Carbide Tipped Roman Ogee 1/4 Radius x 1-3/8 Dia x 13/16 x 1/2 Inch Shank

Amana 49206 Carbide Tipped Roman Ogee 1/4 Radius x 1-3/8 Dia x 13/16 x 1/2 Inch Shank

Name: Amana 49206 Carbide Tipped Roman Ogee 1/4 Radius x 1-3/8 Dia x 13/16 x 1/2 Inch Shank
SKU: Amana 49206
Availability: InStock

Original price was: $63.60.Current price is: $47.70.

ROMAN OGEE 1/4 RAD. 1/2 SHANK

UPC: 738685892060 SKU: Amana 49206 Categories: Amana Tool, Ogee Router Bits, Profiling Router Bits, Router Bits

Item Description

The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee (it isn’t an upside-down ogee). The curve starts at the top as a concave, and fairs down into a convex curve. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	1-3/8
Radius (R)	1/4
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Bearing	47704
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
9/16 (14.29mm)	3/16 (4.76mm)	3/32 (2.38mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-7/8	2	47775	MR0104
1 (25.40mm)	–	5/32 (3.97mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	2	47704	49200
1 (25.40mm)	–	5/32 (3.97mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	2	47704	49202
1-3/8	–	1/4 (6.35mm)	13/16 (20.64mm)	1/4 (6.35mm)	2-1/4	2	47704	49204
2 (50.80mm)	–	3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	47706	49207

Weight	0.22 lbs
