Sale!

49360 Carbide Tipped Superabbet 2 Dia x 7/8 x 1/2 Inch Shank

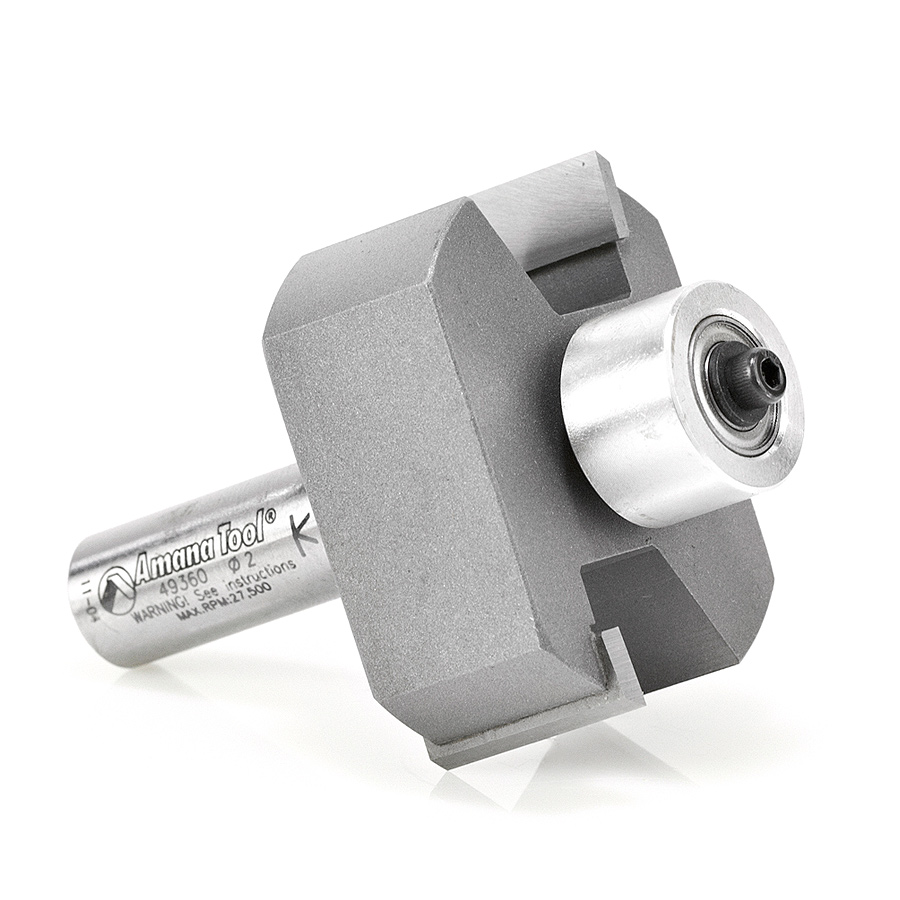

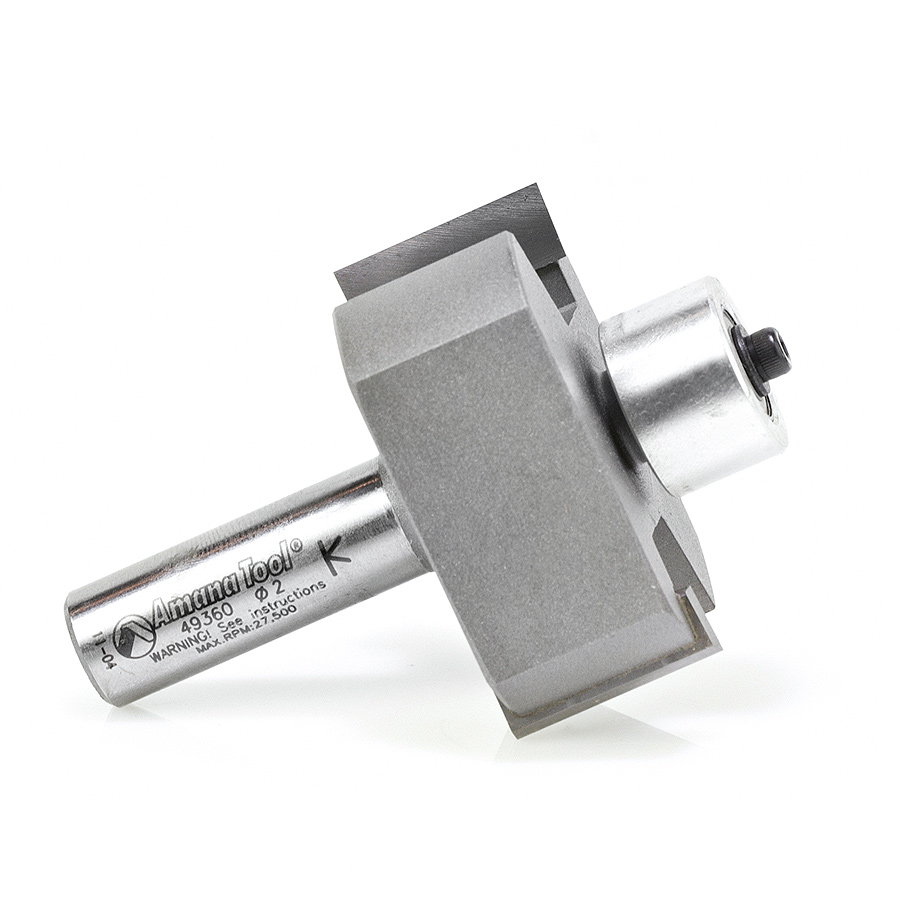

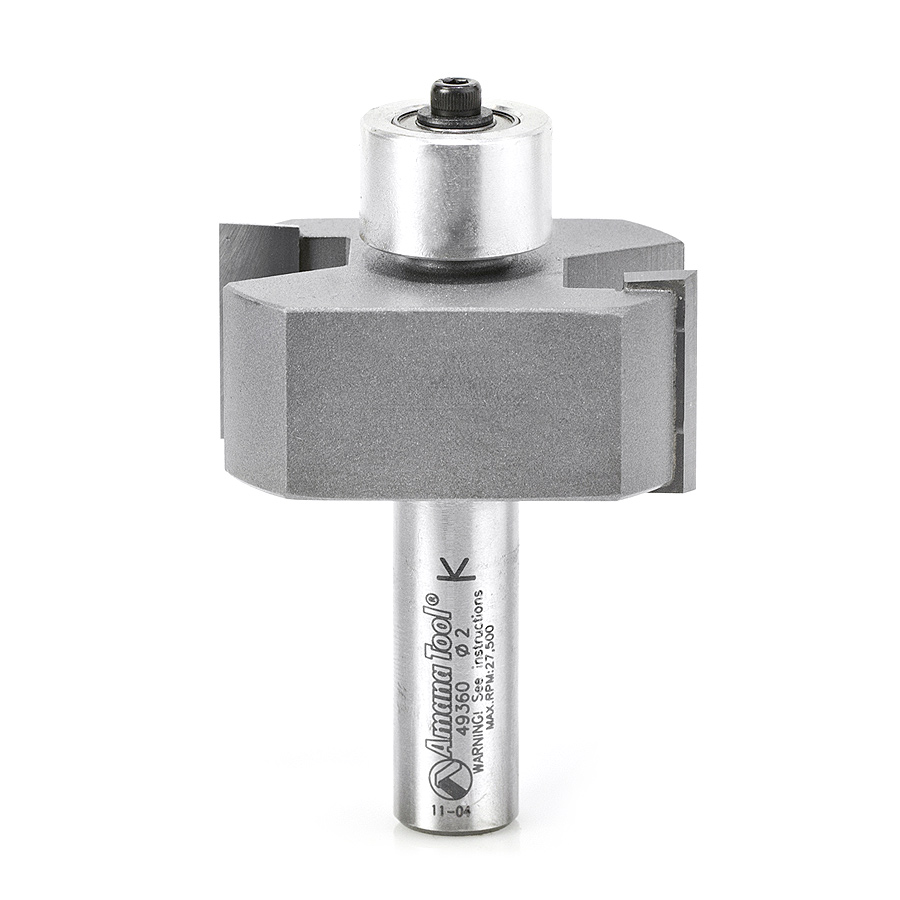

Amana 49360 Carbide Tipped Superabbet 2 Dia x 7/8 x 1/2 Inch Shank

Name: Amana 49360 Carbide Tipped Superabbet 2 Dia x 7/8 x 1/2 Inch Shank
SKU: Amana 49360
Availability: InStock

Original price was: $167.90.Current price is: $125.93.

SUPERRABBET 2″ DIA. 1/2 SHANK.

UPC: 738685493601 SKU: Amana 49360 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits, Router Bits

Item Description

This ingenious tool features both interchangeable cutting edges and an interchangeable guide collar, enabling you to cut a wide range of rabbets. Changing the collars on the twin ball-bearing guide steps the cut width in 1/16″ increments from flush through 3/4″ with five extra “plywood” sizes.

Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2″-diameter bit includes a hex key, instructions, and all necessary parts for 5/8″ and 3/4″ deep rabbets.

The “RC” version has extra-long double-edged carbide inserts which enables the bit to cut 30mm high. Inserts can be rotated or replaced without removing the bit from the router.

Maximum RPM 22,000.

Use in a table-mounted router. **Not for use in a handheld router!

Replacement Parts

Replacement Collar	Replacement Bearings 2 Required	Replacement screw for bearing	Replacement washer for bearing	Replacement spacer bearing	Optional Bearing Kits
67426	47701	67094	67202	67206	67500 67600 67800

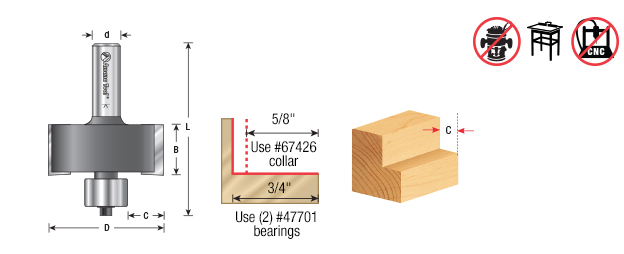

Specifications

Diameter (D)	2
Cutting Height (B)	7/8
Shank (d)	1/2
Overall Length (L)	3
Flutes	2
C	5/8 (#67426) & 3/4 (#47701 (2))

Weight	0.64 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
