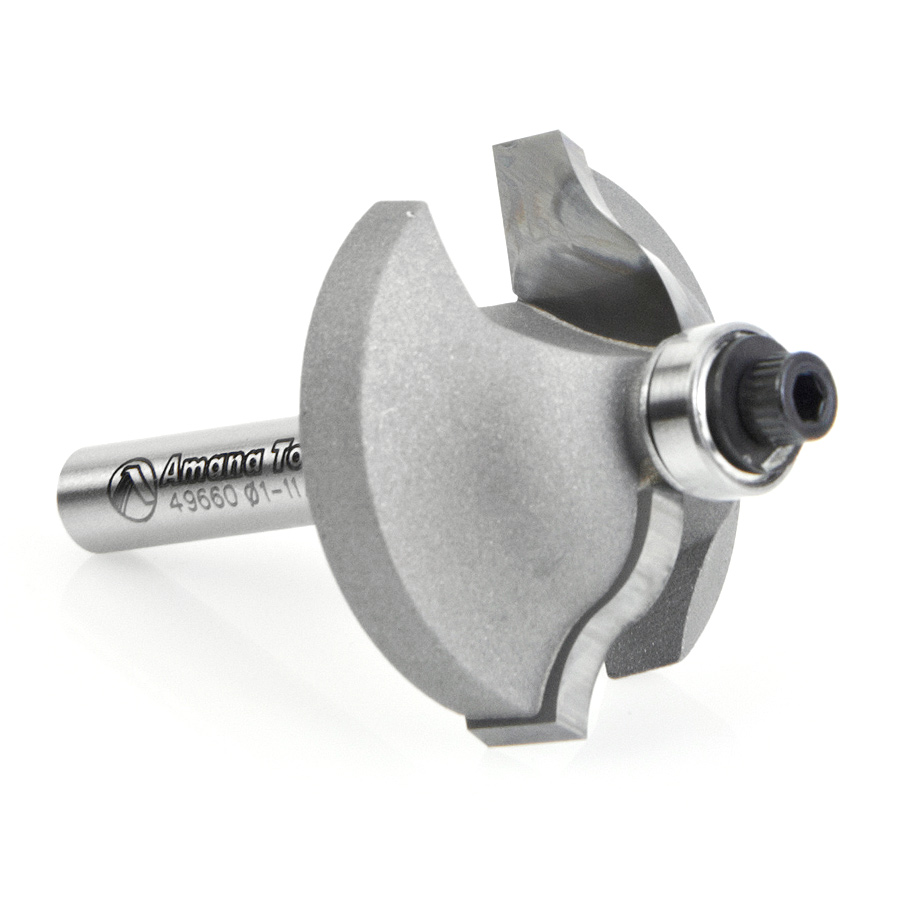

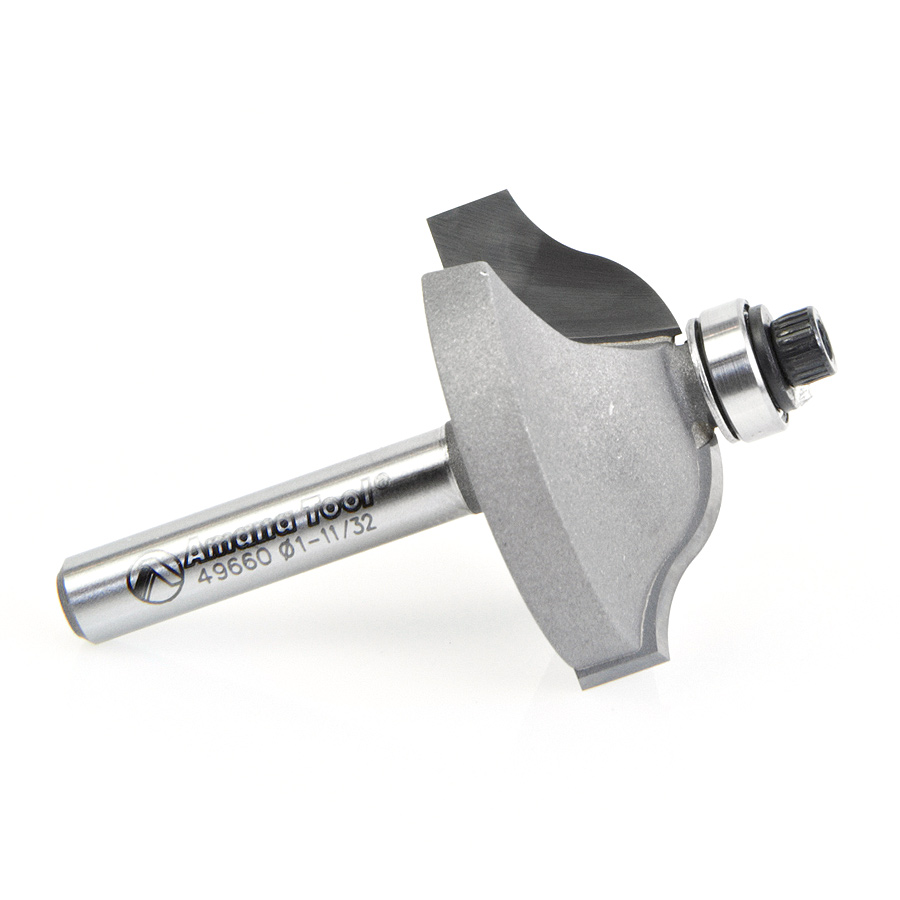

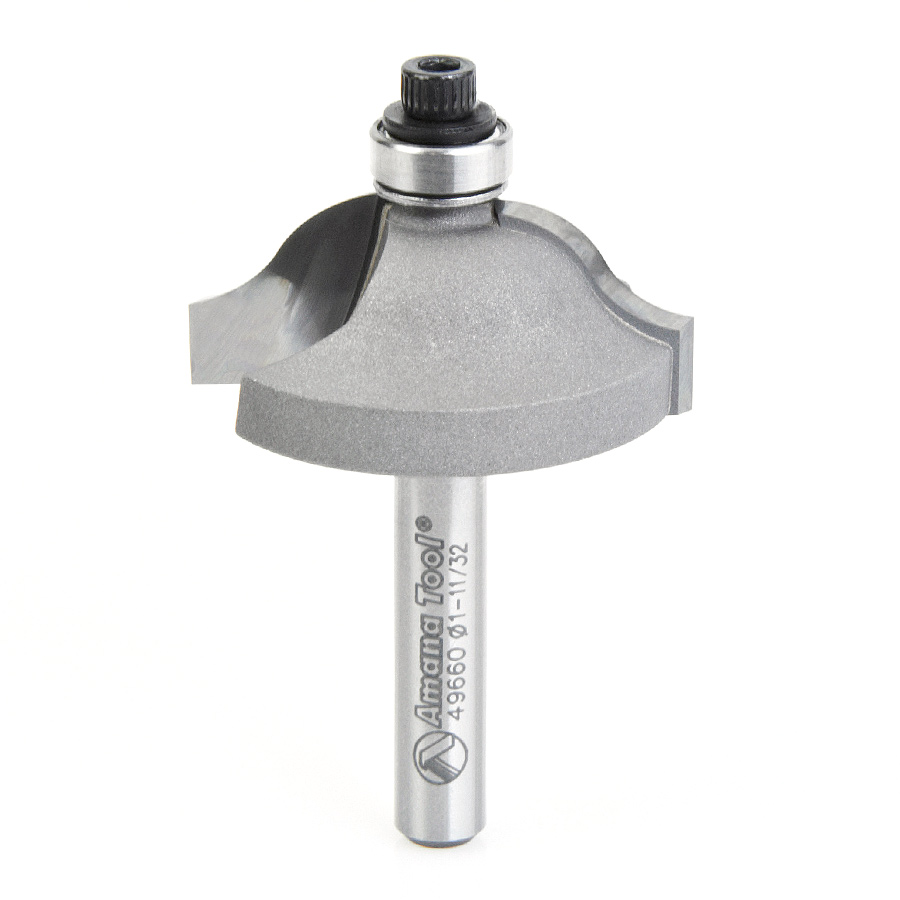

49660 Carbide Tipped Ogee Stile 1-11/32 Dia x 1/2 x 11/32 Radius x 1/4 Inch Shank

Amana 49660 Carbide Tipped Ogee Stile 1-11/32 Dia x 1/2 x 11/32 Radius x 1/4 Inch Shank

Name: Amana 49660 Carbide Tipped Ogee Stile 1-11/32 Dia x 1/2 x 11/32 Radius x 1/4 Inch Shank
SKU: Amana 49660
Availability: InStock

Original price was: $73.30.Current price is: $54.98.

OGEE STILE CUTTER 1/4 SHANK

UPC: 738685496602 SKU: Amana 49660 Categories: Amana Tool, Door Making Router Bits, Profile Router Bits for Glass Doors, Router Bits

Item Description

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching “regular” bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4” shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49660	47702	67096	67101	67202

Specifications

Diameter (D)	1-11/32
Radius (R)	11/32
Cutting Height (B)	1/2
B1	1/4
Shank (d)	1/4
Overall Length (L)	2
Type	Ogee Stile
Replacement Bearing	47702
Flutes	2

Other Sizes Available

B1	Type	Replacement Bearing	Flutes	Cutting Height (B)	Shank (d)	Overall Length (L)	Radius (R)	Tool No.
3/32 (2.38mm)	Ogee Rail	47701	2	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	11/32 (8.73mm)	49662
1/4 (6.35mm)	Ogee Stile	47702	2	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	11/32 (8.73mm)	49664
1/8 (3.18mm)	Ogee Rail	47701	2	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	11/32 (8.73mm)	49666
–	49660 & 49662 Set	–	—-	–	–	–	–	49663
–	49664 & 49666 Set	–	—-	–	–	–	–	49667

Weight	0.34 lbs
