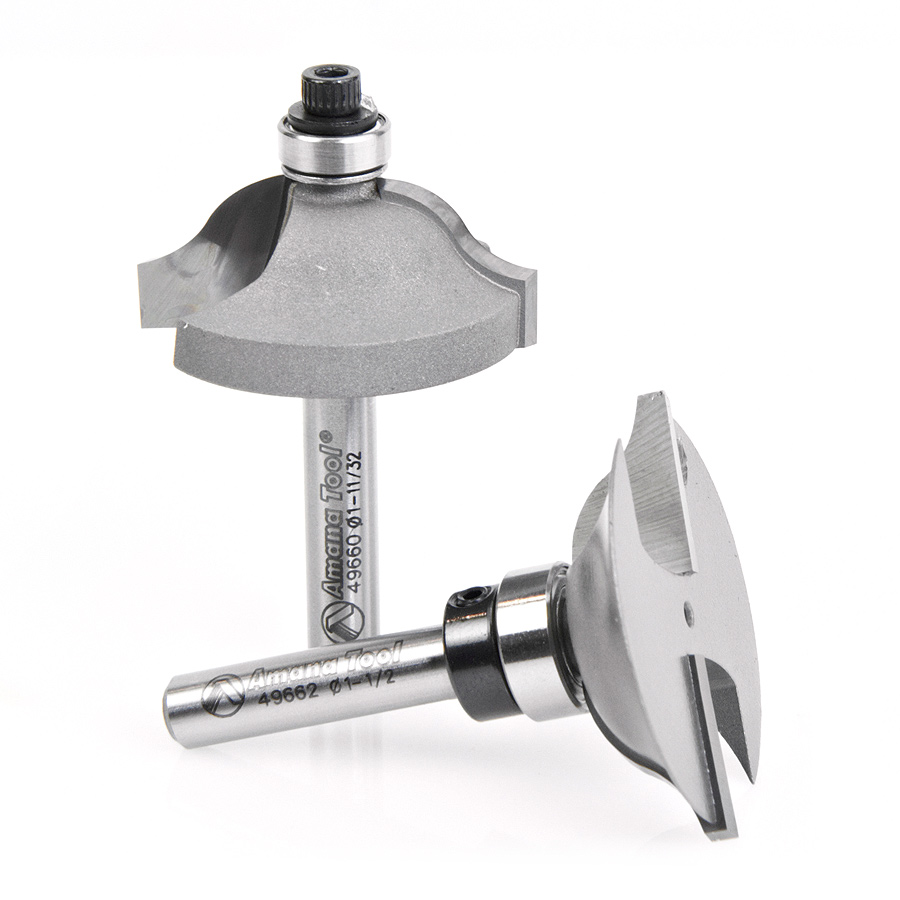

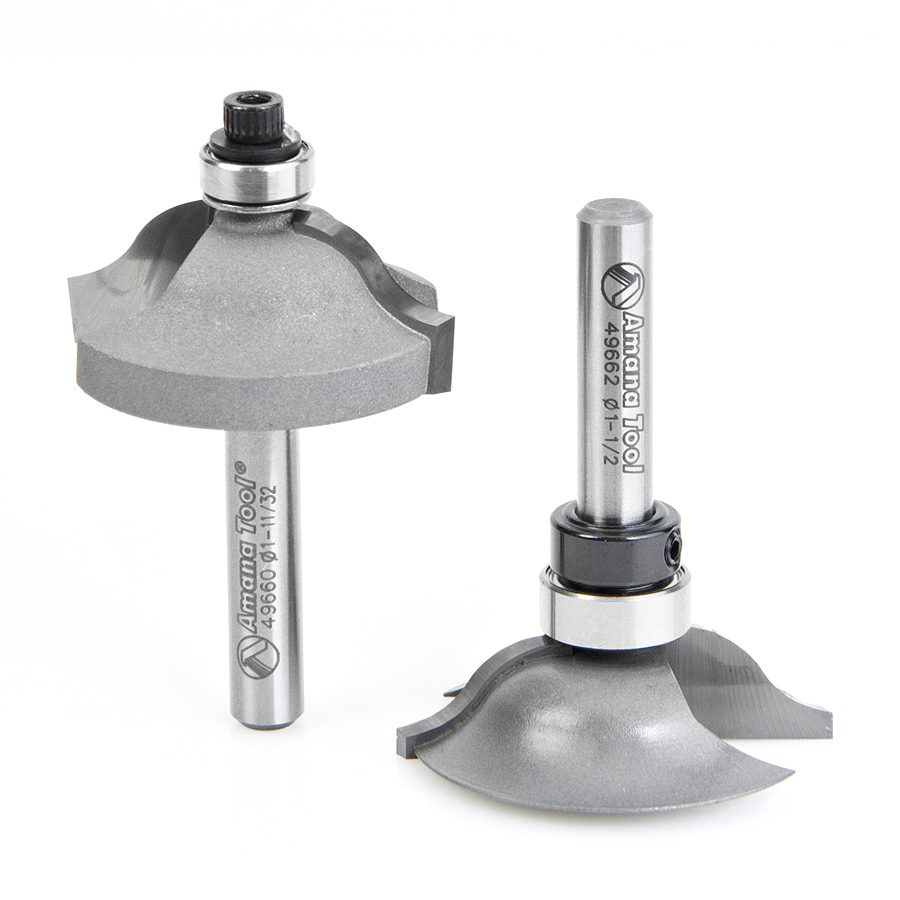

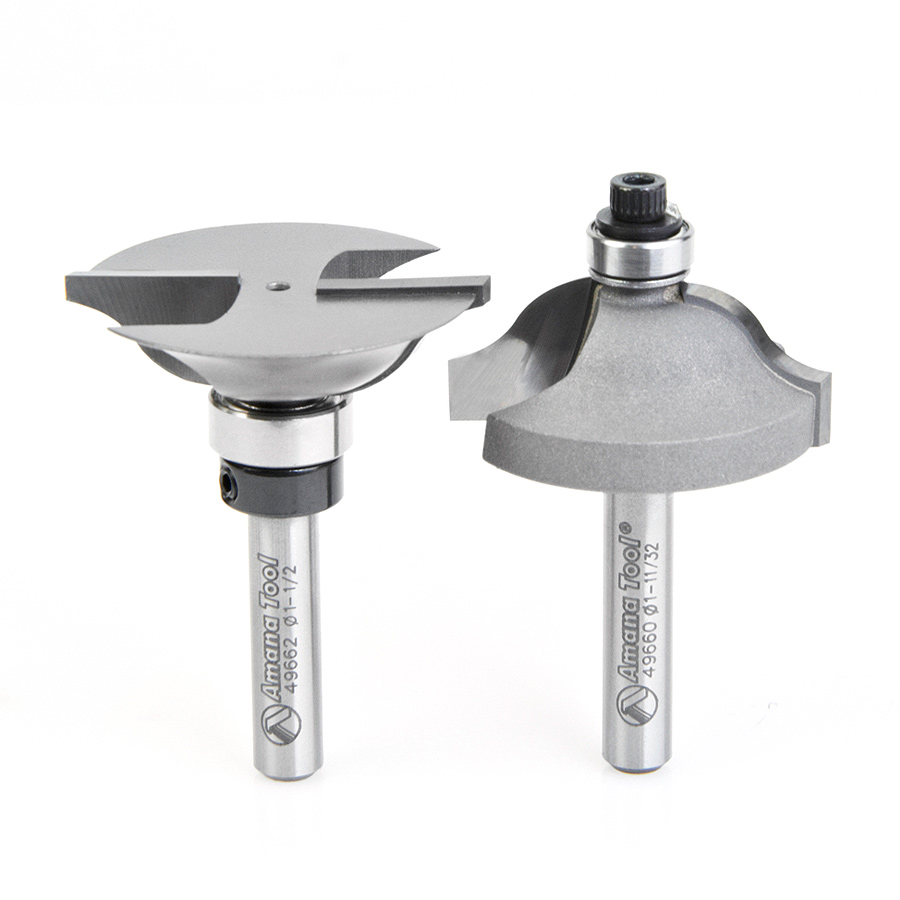

49663 Carbide Tipped 2-Piece Ogee Stile and Rail 1/4 Inch Shank Set

Amana 49663 Carbide Tipped 2-Piece Ogee Stile and Rail 1/4 Inch Shank Set

Name: Amana 49663 Carbide Tipped 2-Piece Ogee Stile and Rail 1/4 Inch Shank Set
SKU: Amana 49663
Availability: InStock

Original price was: $111.20.Current price is: $83.40.

STILE AND RAILE SET 1/4 SHANK

UPC: 738685496633 SKU: Amana 49663 Categories: Amana Tool, Door Making Router Bits, Profile Router Bits for Glass Doors, Router Bits

Item Description

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching “regular” bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4” shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

Specifications

Type	49660 & 49662 Set

Other Sizes Available

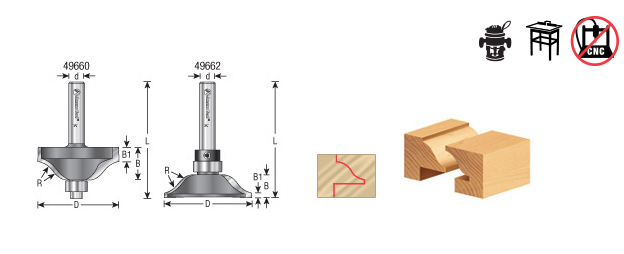

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	B1	Type	Replacement Bearing	Flutes	Tool No.
1-11/32	11/32 (8.73mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1/4 (6.35mm)	Ogee Stile	47702	2	49660
1-19/32	11/32 (8.73mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1/8 (3.18mm)	Ogee Rail	47701	2	49666
1-1/2	11/32 (8.73mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	3/32 (2.38mm)	Ogee Rail	47701	2	49662
1-1/2	11/32 (8.73mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	1/4 (6.35mm)	Ogee Stile	47702	2	49664
–	–	–	–	–	–	49664 & 49666 Set	–	—-	49667

Weight	0.34 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
