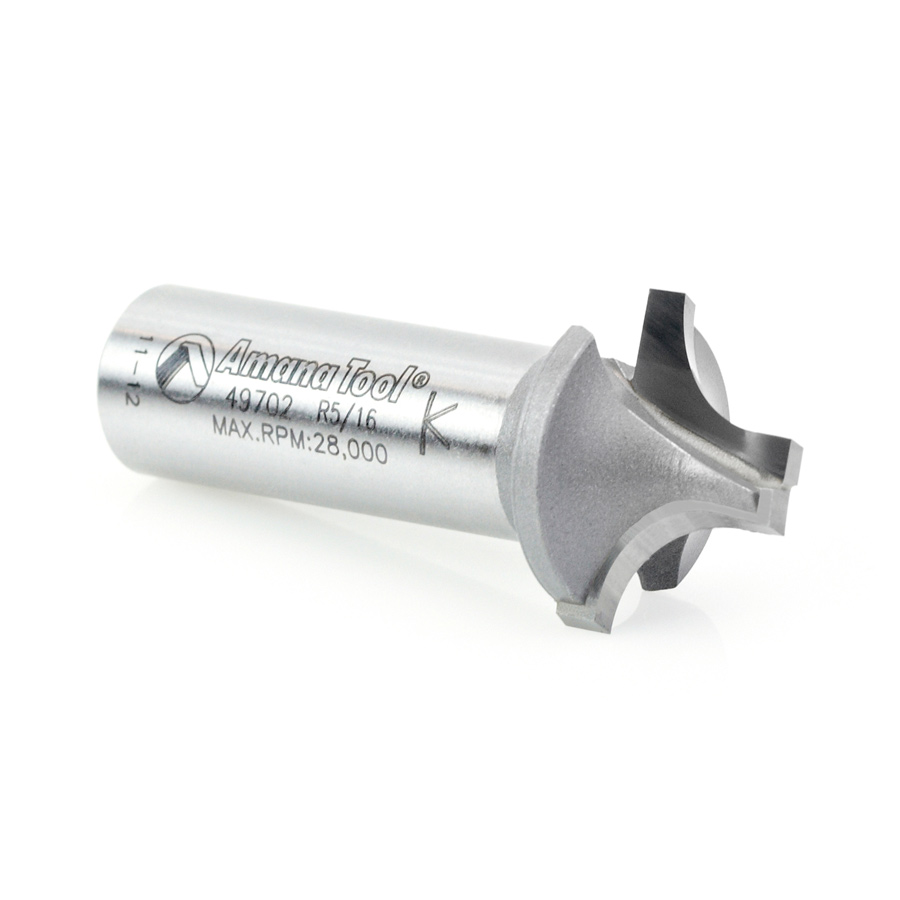

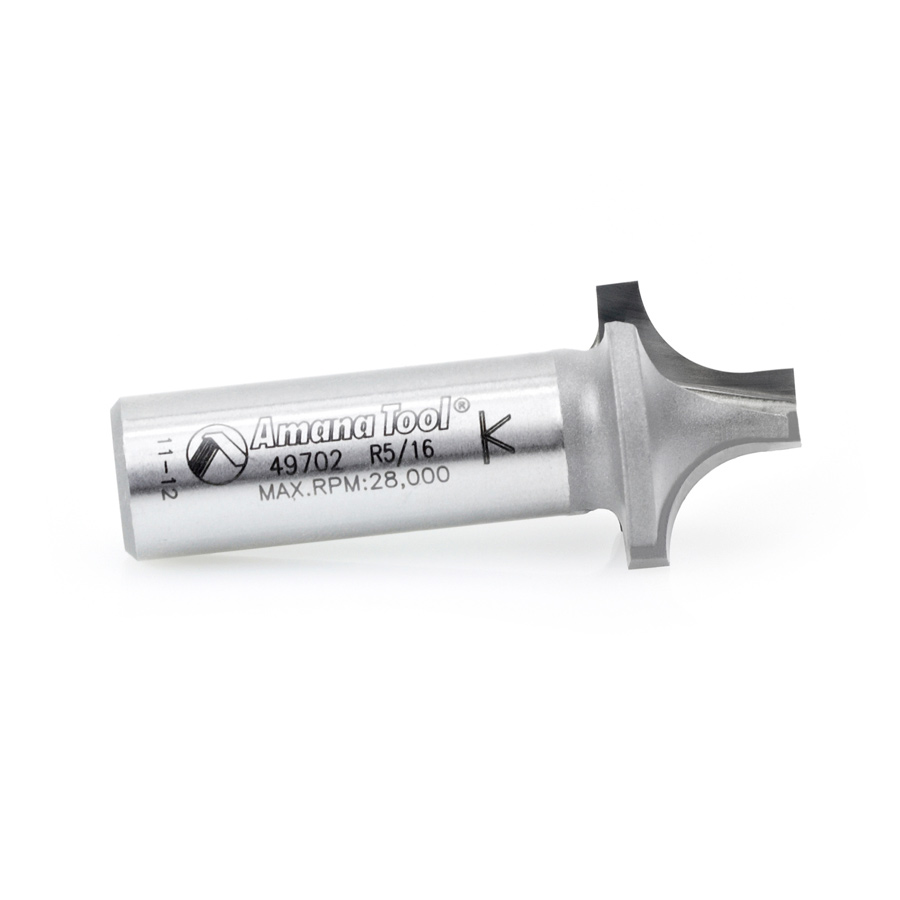

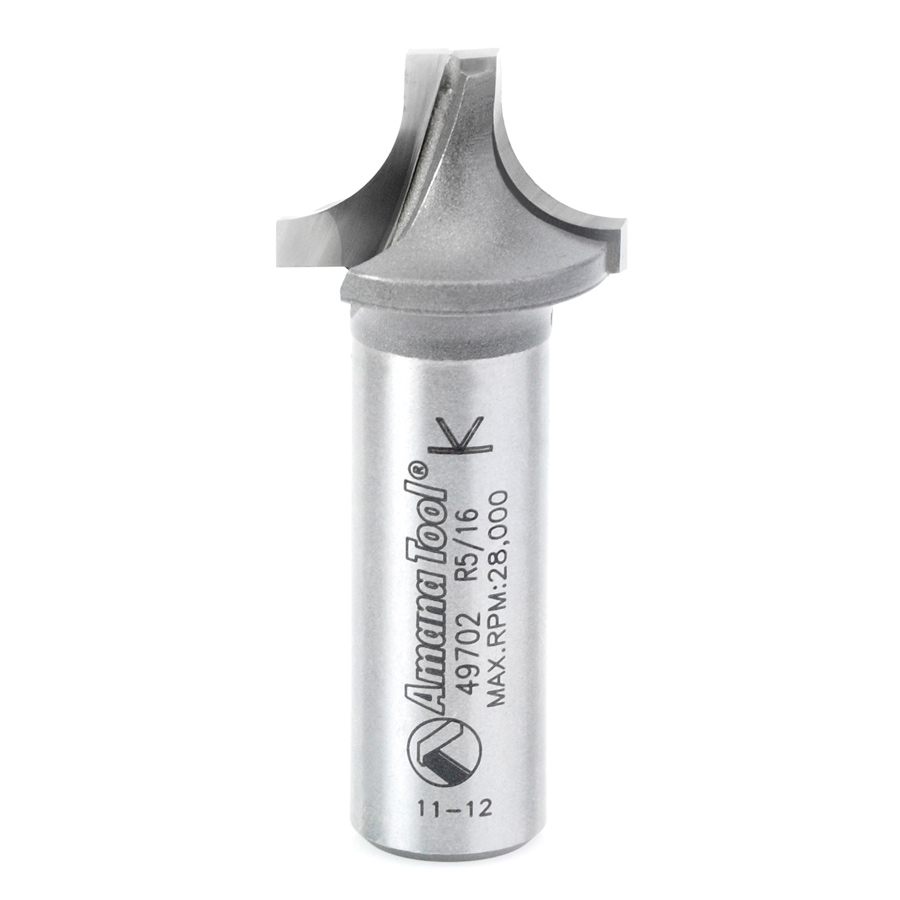

49702 Carbide Tipped Plunging Round Over 5/16 Radius x 7/8 Dia x 9/16 x 1/2 Inch Shank

Amana 49702 Carbide Tipped Plunging Round Over 5/16 Radius x 7/8 Dia x 9/16 x 1/2 Inch Shank

Name: Amana 49702 Carbide Tipped Plunging Round Over 5/16 Radius x 7/8 Dia x 9/16 x 1/2 Inch Shank
SKU: Amana 49702
Availability: InStock

Original price was: $91.95.Current price is: $68.97.

PLUNGE ROUND 5/16 RAD. 1/2 SHK

UPC: 738685897027 SKU: Amana 49702 Categories: Amana Tool, Grooving Router Bits, Round Over Groove Router Bits, Router Bits

Item Description

This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.

Specifications

Diameter (D)	7/8
D1	1/4
Radius (R)	5/16
Cutting Height (B)	9/16
B1	7/16
B2	1/8
Shank (d)	1/2
Overall Length (L)	2-1/16
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	B2	Shank (d)	Overall Length (L)	Tool No.
3/8 (9.53mm)	1/8 (3.18mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-3/4	49694
5/8 (15.88mm)	1/4 (6.35mm)	3/16 (4.76mm)	5/16 (7.94mm)	1/8 (3.18mm)	–	1/4 (6.35mm)	1-3/4	49696
5/8 (15.88mm)	1/4 (6.35mm)	3/16 (4.76mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/64 (0.40mm)	1/2 (12.70mm)	2-1/32	49701
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1/2 (12.70mm)	3/8 (9.53mm)	7/64 (2.78mm)	1/2 (12.70mm)	2 (50.80mm)	49700
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	31/64 (12.30mm)	23/64 (9.13mm)	7/64 (2.78mm)	1/4 (6.35mm)	1-39/64	49703
7/8 (22.23mm)	15/32 (11.91mm)	1/8 (3.18mm)	1-7/32	1-3/32	63/64 (25.00mm)	1/2 (12.70mm)	2-23/32	49720
1 (25.40mm)	1/4 (6.35mm)	3/8 (9.53mm)	5/8 (15.88mm)	15/32 (11.91mm)	7/64 (2.78mm)	1/2 (12.70mm)	2-1/8	49704
1 (25.40mm)	1/2 (12.70mm)	3/16 (4.76mm)	1-3/32	13/16 (20.64mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	49705
1-3/8	3/8 (9.53mm)	1/2 (12.70mm)	1 (25.40mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/2 (12.70mm)	2-1/2	49706
1-3/8	23/64 (9.13mm)	1/2 (12.70mm)	1 (25.40mm)	3/4 (19.05mm)	–	1/2 (12.70mm)	2-1/2	49706-CNC
1-3/8	3/8 (9.53mm)	1/2 (12.70mm)	3/4 (19.05mm)	5/8 (15.88mm)	1/8 (3.18mm)	1/2 (12.70mm)	2-1/4	49721
2 (50.80mm)	1/2 (12.70mm)	3/4 (19.05mm)	1-13/32	1-1/8	3/8 (9.53mm)	1/2 (12.70mm)	2-29/32	49710
1-3/4	1/2 (12.70mm)	5/8 (15.88mm)	1-1/4	1 (25.40mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-3/4	49708

Weight	0.12 lbs
