Sale!

49706 Carbide Tipped Plunging Round Over 1/2 Radius x 1-3/8 Dia x 1 Inch x 1/2 Shank

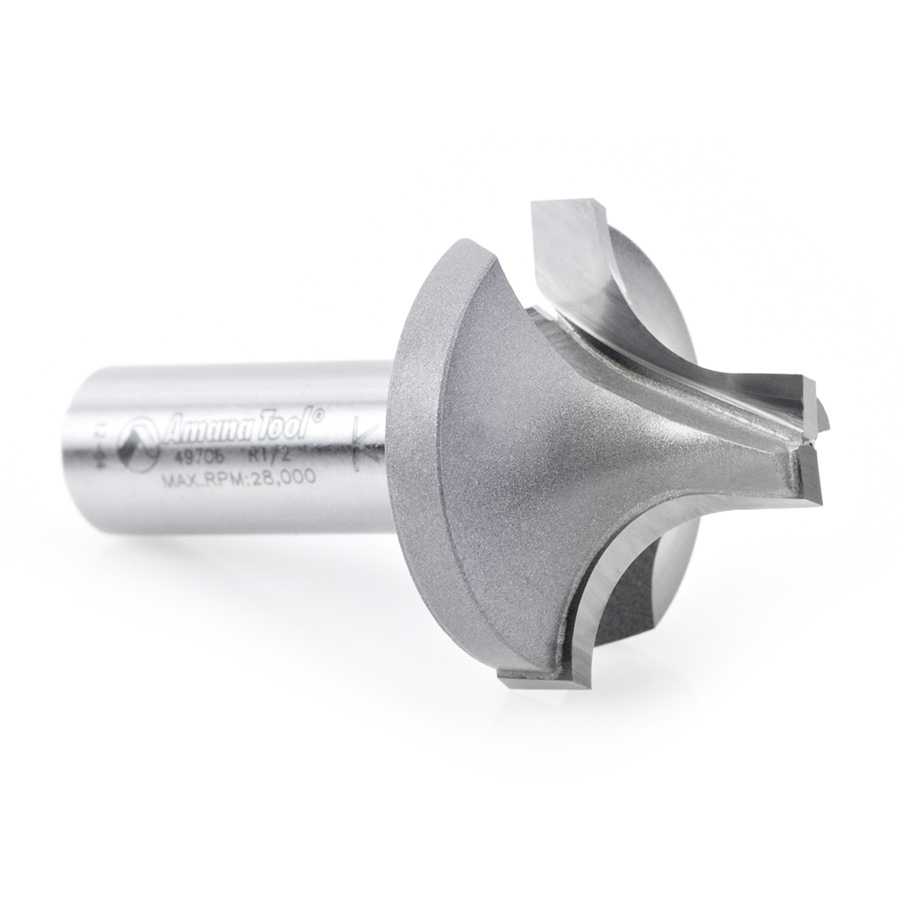

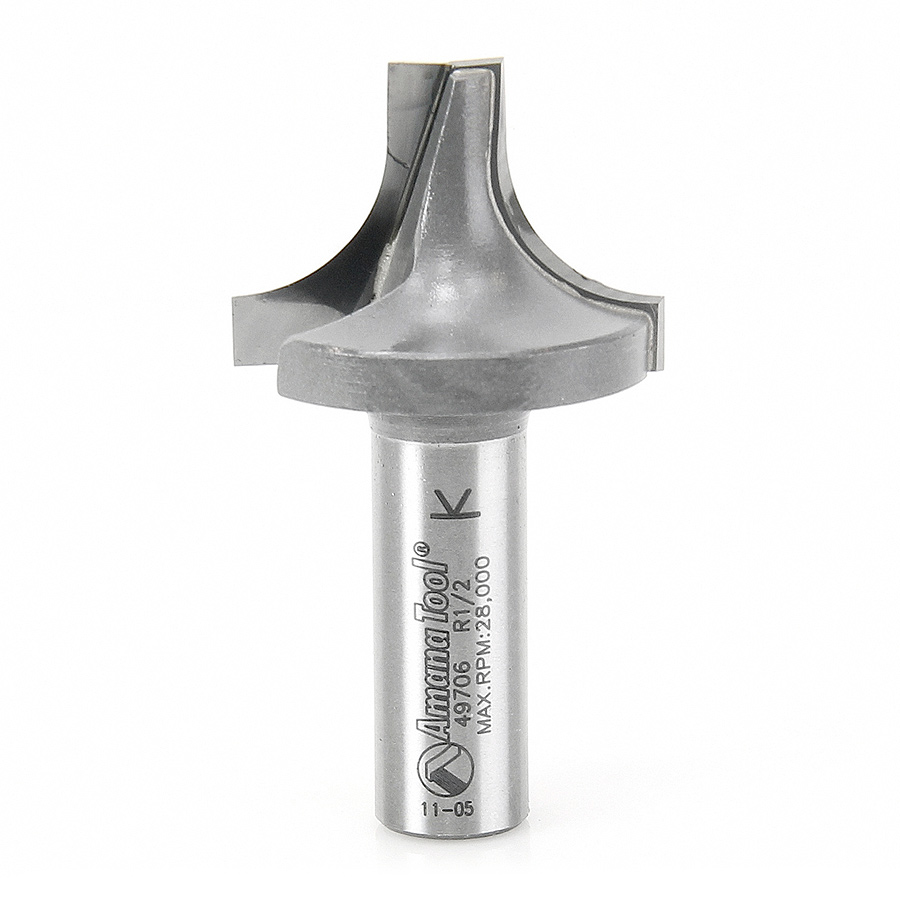

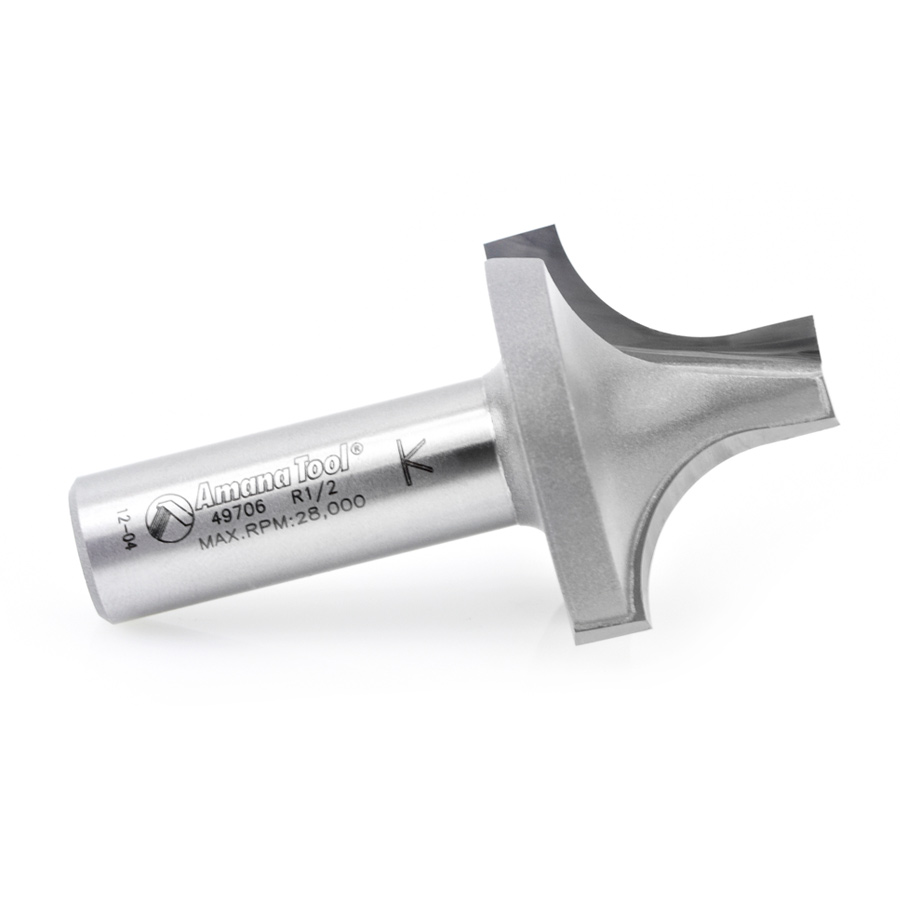

Amana 49706 Carbide Tipped Plunging Round Over 1/2 Radius x 1-3/8 Dia x 1 Inch x 1/2 Shank

Name: Amana 49706 Carbide Tipped Plunging Round Over 1/2 Radius x 1-3/8 Dia x 1 Inch x 1/2 Shank
SKU: Amana 49706
Availability: InStock

Original price was: $97.35.Current price is: $73.02.

PLUNGE ROUND 1/2 RAD 1/2 SHANK

UPC: 738685897065 SKU: Amana 49706 Categories: Amana Tool, Grooving Router Bits, Round Over Groove Router Bits, Router Bits

Item Description

This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.

Vectric compatible tool file for 49706 available for download,click here.

Specifications

Diameter (D)	1-3/8
D1	3/8
Radius (R)	1/2
Cutting Height (B)	1
B1	3/4
B2	1/4
Shank (d)	1/2
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	B2	Shank (d)	Overall Length (L)	Tool No.
3/8 (9.53mm)	1/8 (3.18mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-3/4	49694
5/8 (15.88mm)	1/4 (6.35mm)	3/16 (4.76mm)	5/16 (7.94mm)	1/8 (3.18mm)	–	1/4 (6.35mm)	1-3/4	49696
5/8 (15.88mm)	1/4 (6.35mm)	3/16 (4.76mm)	1/2 (12.70mm)	3/16 (4.76mm)	1/64 (0.40mm)	1/2 (12.70mm)	2-1/32	49701
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1/2 (12.70mm)	3/8 (9.53mm)	7/64 (2.78mm)	1/2 (12.70mm)	2 (50.80mm)	49700
3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	31/64 (12.30mm)	23/64 (9.13mm)	7/64 (2.78mm)	1/4 (6.35mm)	1-39/64	49703
7/8 (22.23mm)	1/4 (6.35mm)	5/16 (7.94mm)	9/16 (14.29mm)	7/16 (11.11mm)	1/8 (3.18mm)	1/2 (12.70mm)	2-1/16	49702
7/8 (22.23mm)	15/32 (11.91mm)	1/8 (3.18mm)	1-7/32	1-3/32	63/64 (25.00mm)	1/2 (12.70mm)	2-23/32	49720
1 (25.40mm)	1/4 (6.35mm)	3/8 (9.53mm)	5/8 (15.88mm)	15/32 (11.91mm)	7/64 (2.78mm)	1/2 (12.70mm)	2-1/8	49704
1 (25.40mm)	1/2 (12.70mm)	3/16 (4.76mm)	1-3/32	13/16 (20.64mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	49705
1-3/8	23/64 (9.13mm)	1/2 (12.70mm)	1 (25.40mm)	3/4 (19.05mm)	–	1/2 (12.70mm)	2-1/2	49706-CNC
1-3/8	3/8 (9.53mm)	1/2 (12.70mm)	3/4 (19.05mm)	5/8 (15.88mm)	1/8 (3.18mm)	1/2 (12.70mm)	2-1/4	49721
2 (50.80mm)	1/2 (12.70mm)	3/4 (19.05mm)	1-13/32	1-1/8	3/8 (9.53mm)	1/2 (12.70mm)	2-29/32	49710
1-3/4	1/2 (12.70mm)	5/8 (15.88mm)	1-1/4	1 (25.40mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-3/4	49708

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
