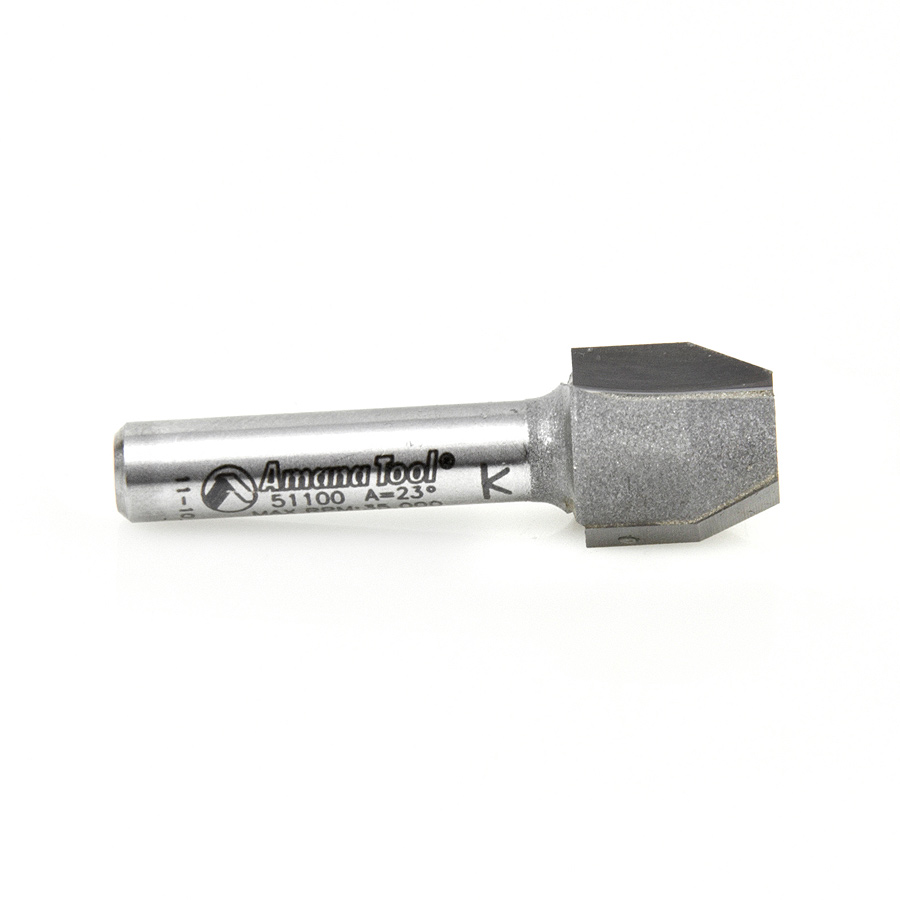

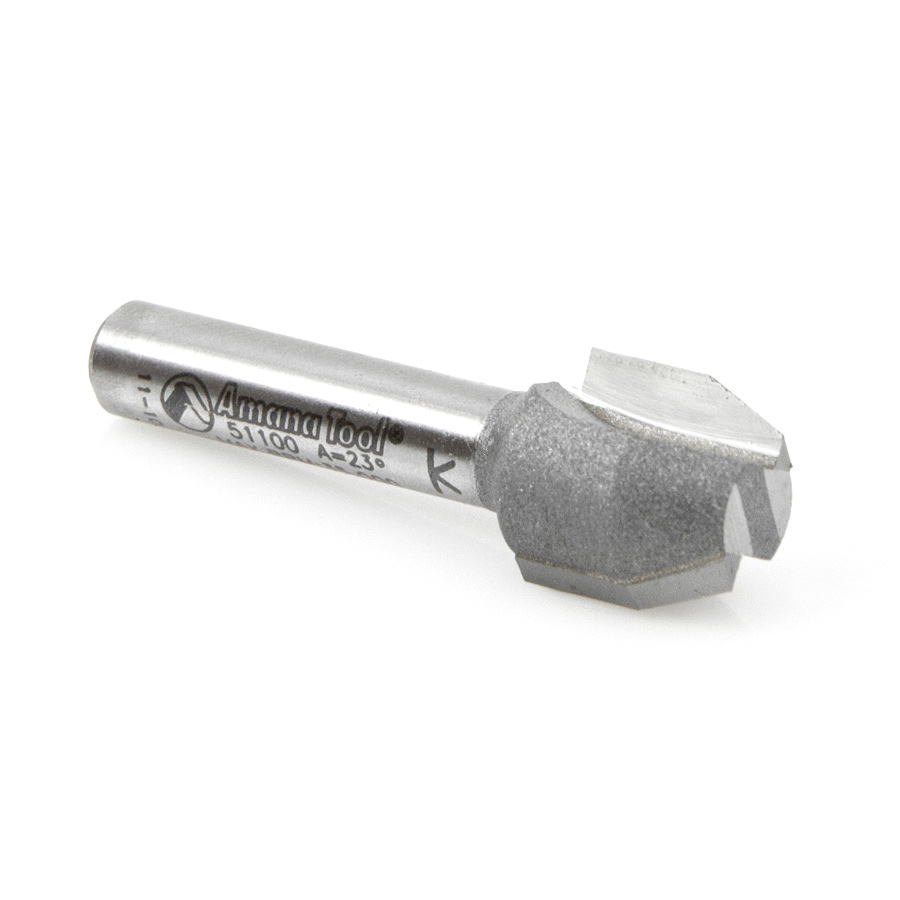

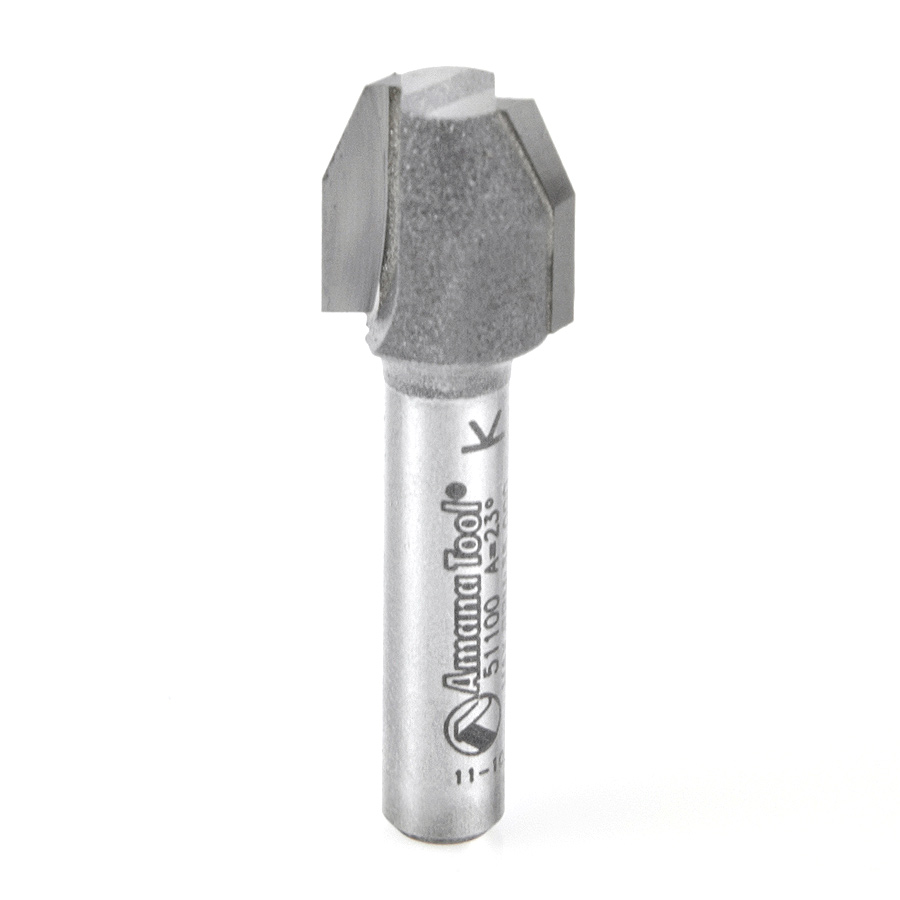

51100 Carbide Tipped Combination Bevel/Flush Laminate Trim 23 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank

Amana 51100 Carbide Tipped Combination Bevel/Flush Laminate Trim 23 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 51100 Carbide Tipped Combination Bevel/Flush Laminate Trim 23 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 51100
Availability: InStock

Original price was: $32.00.Current price is: $24.00.

COMBINATION BEVEL 23 DEGREE

UPC: 738685151006 SKU: Amana 51100 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.

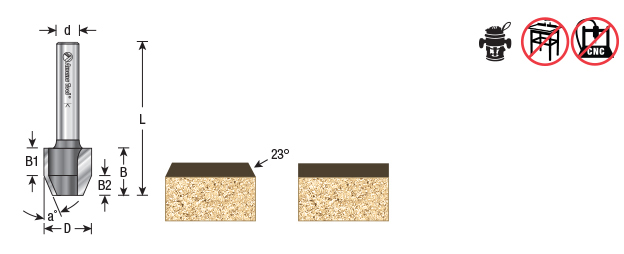

Specifications

Angle (a°)	23°
Diameter (D)	1/2
Cutting Height (B)	1/2
B1	7.4mm (19/64")
B2	5.3mm (13/64")
Shank (d)	1/4
Overall Length (L)	1-3/4
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B1	B2	Flutes	Shank (d)	Overall Length (L)	Tool No.
22.5°	11/32 (8.73mm)	1/2 (12.70mm)	7.5mm	5.2mm	2	1/4 (6.35mm)	1-5/8	51400

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
