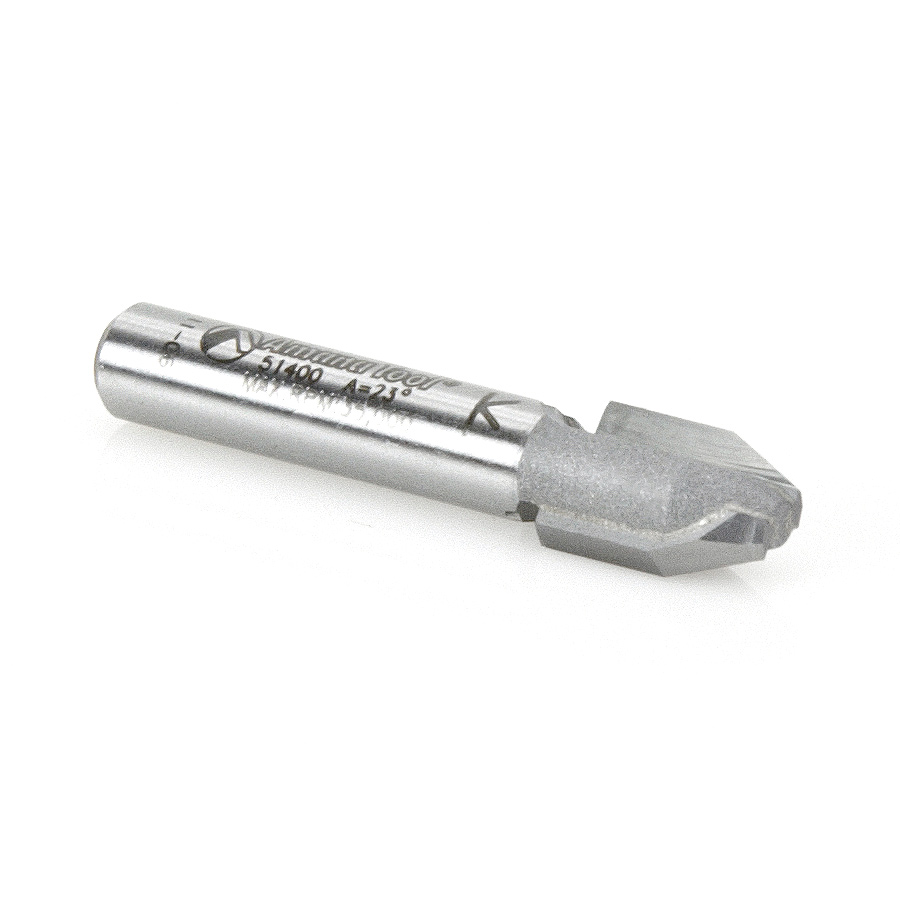

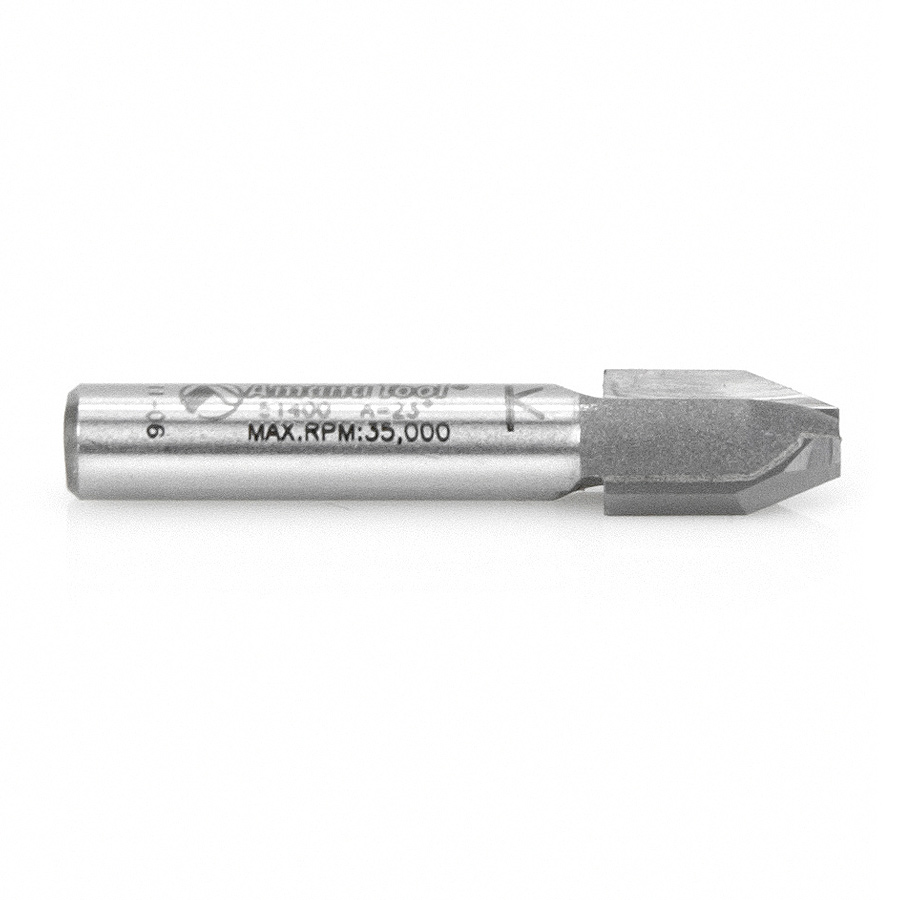

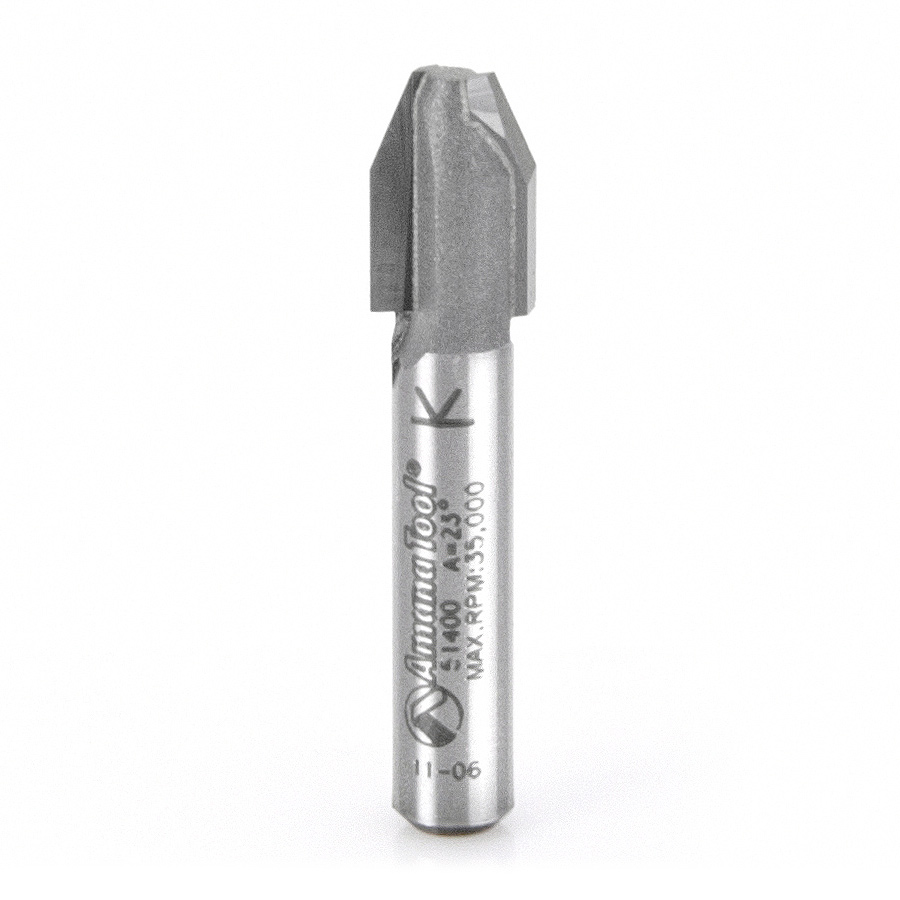

51400 Carbide Tipped Combination Bevel/Flush Laminate Trim 22.5 Deg x 11/32 Dia x 1/2 x 1/4 Inch Shank

Amana 51400 Carbide Tipped Combination Bevel/Flush Laminate Trim 22.5 Deg x 11/32 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 51400 Carbide Tipped Combination Bevel/Flush Laminate Trim 22.5 Deg x 11/32 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 51400
Availability: InStock

Original price was: $32.00.Current price is: $24.00.

COMBINATION BEVEL FLUSH 1/4 SH

UPC: 738685154007 SKU: Amana 51400 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.

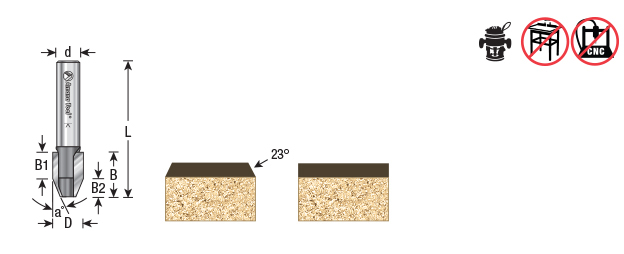

Specifications

Angle (a°)	22.5°
Diameter (D)	11/32
Cutting Height (B)	1/2
B1	7.5mm (19/64")
B2	5.2mm (13/64")
Shank (d)	1/4
Overall Length (L)	1-5/8
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B1	B2	Flutes	Shank (d)	Overall Length (L)	Tool No.
23°	1/2 (12.70mm)	1/2 (12.70mm)	7.4mm	5.3mm	2	1/4 (6.35mm)	1-3/4	51100

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
