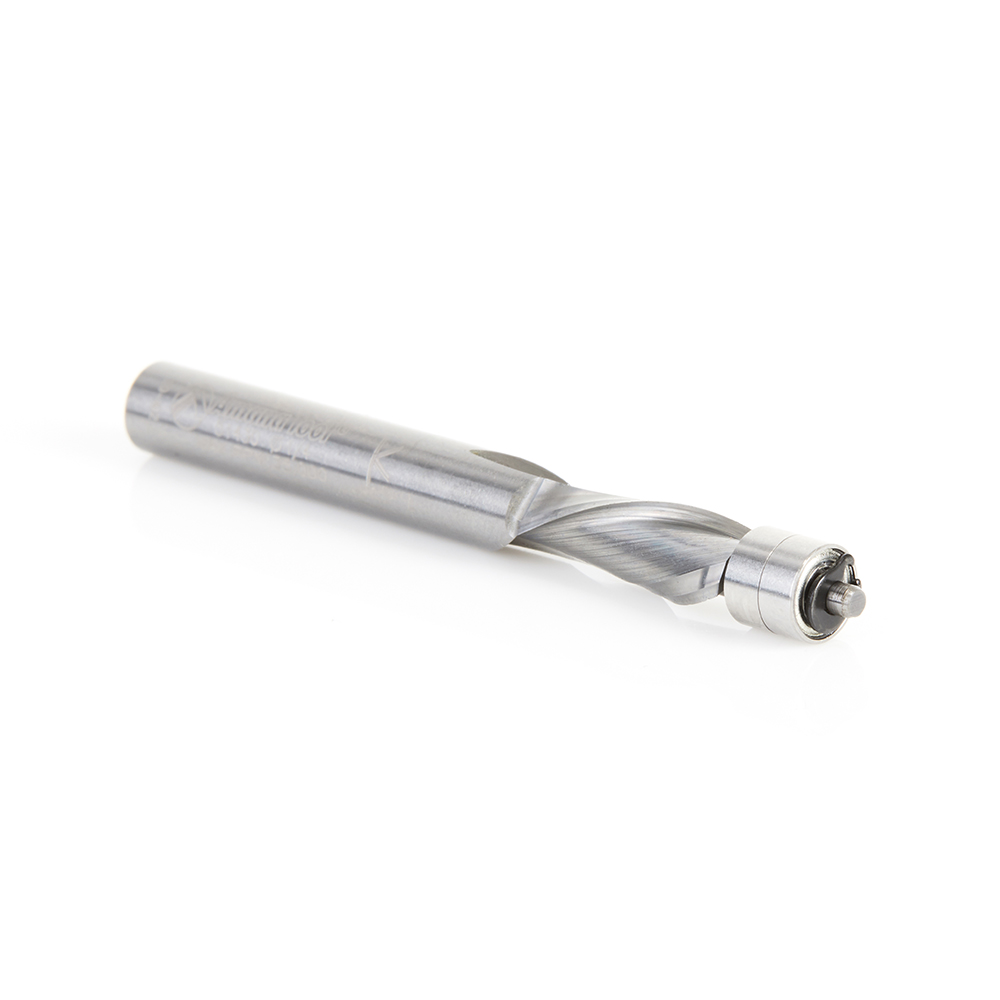

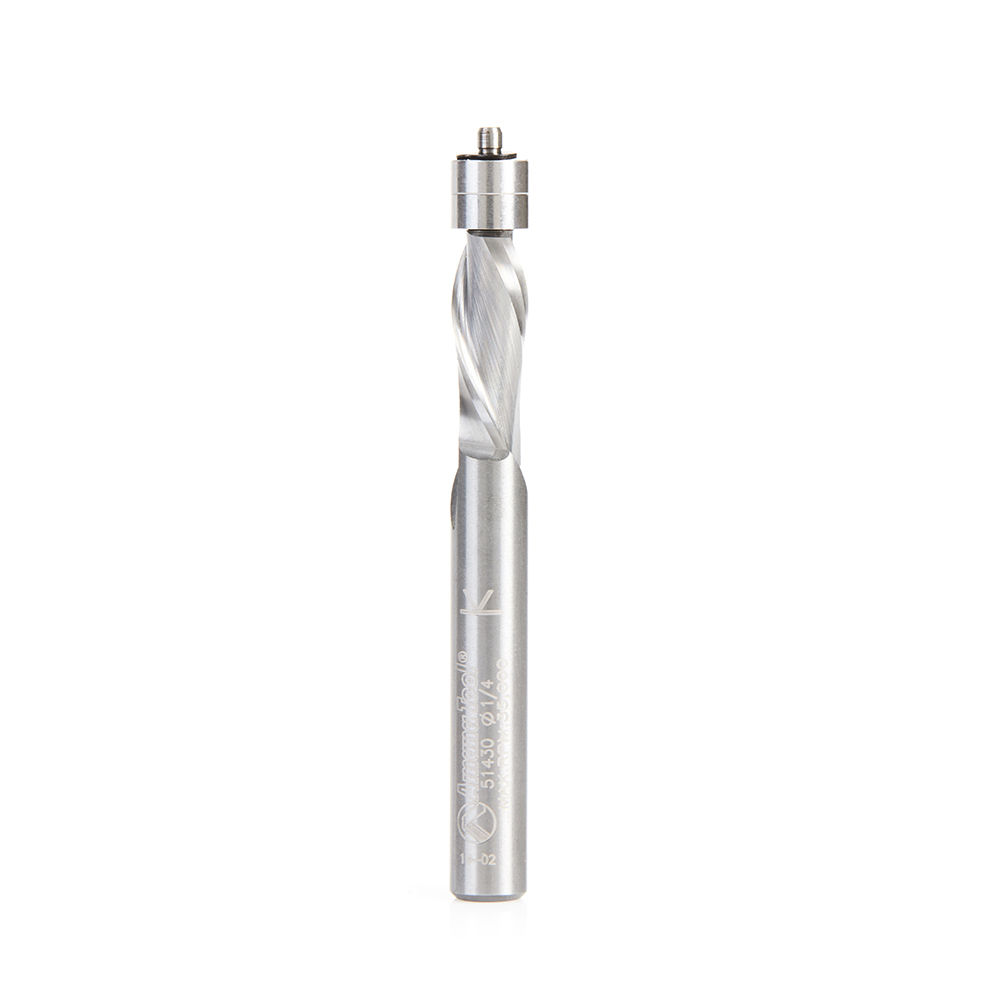

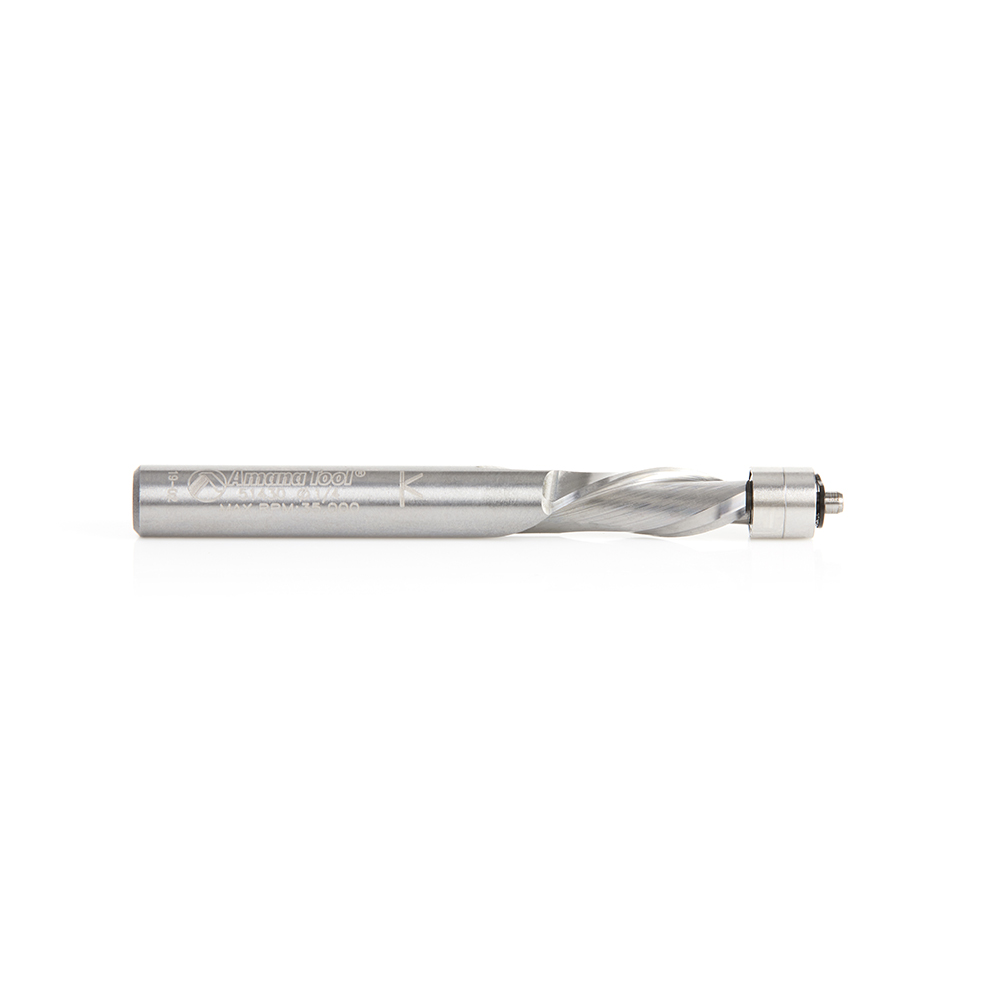

51430 Solid Carbide InVectra Aluminum Laminate Trim 1/4 Dia x 5/8 x 1/4 Inch Shank

Amana 51430 Solid Carbide InVectra Aluminum Laminate Trim 1/4 Dia x 5/8 x 1/4 Inch Shank

Name: Amana 51430 Solid Carbide InVectra Aluminum Laminate Trim 1/4 Dia x 5/8 x 1/4 Inch Shank
SKU: Amana 51430
Availability: InStock

Original price was: $122.60.Current price is: $91.95.

ALUMINUM LAMINATE TRIM 1/4″

UPC: 738685514306 SKU: Amana 51430 Categories: Amana Tool, Router Bits, Solid Carbide InVectra Metal Laminate Trim Router Bits, Trimming Router Bits Tags: 51430, aluminum, amana, amana tool, bearing, carbide, cnc, Double Bearing, invectra, non-ferrous, nonferrous, solid carbide, spectra, spectra coated, spektra, spektra coated, spiral flute, up cut

Item Description

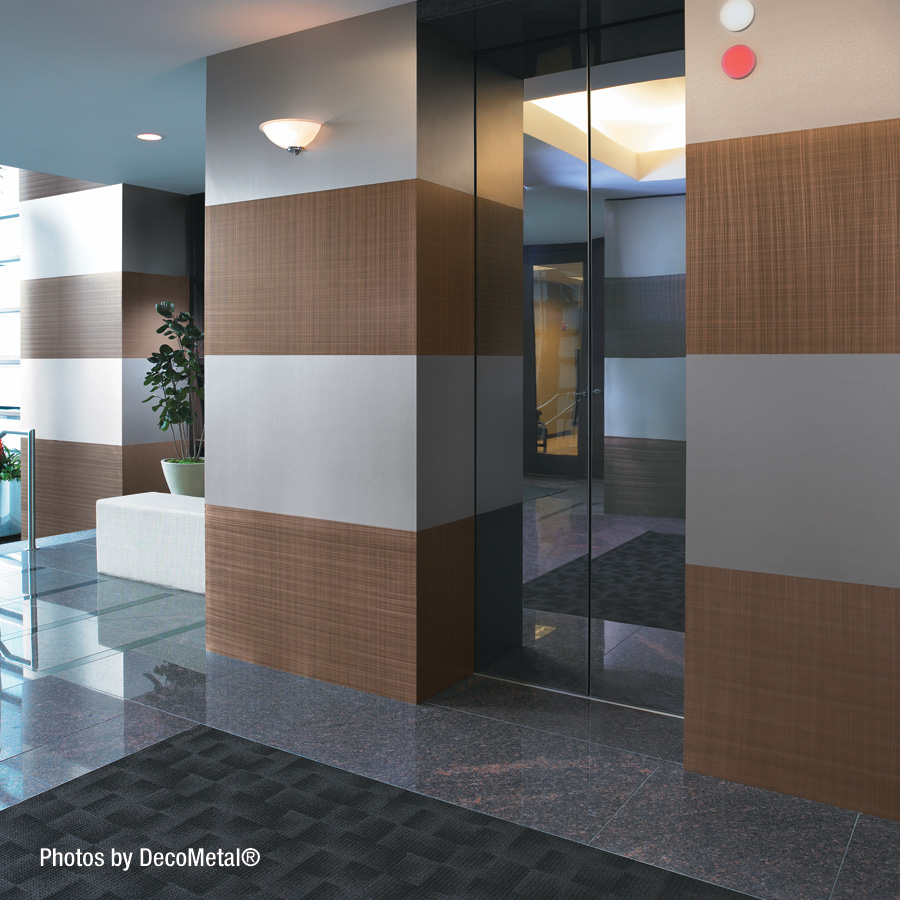

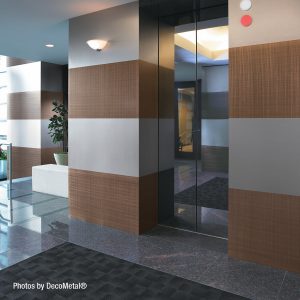

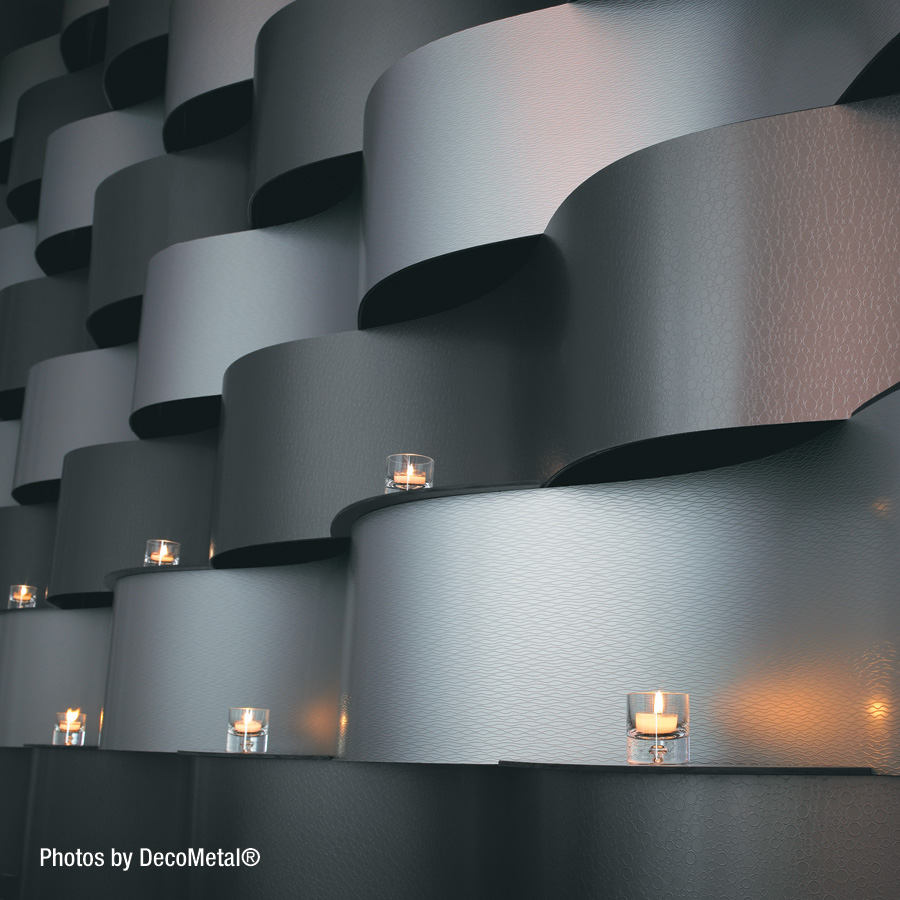

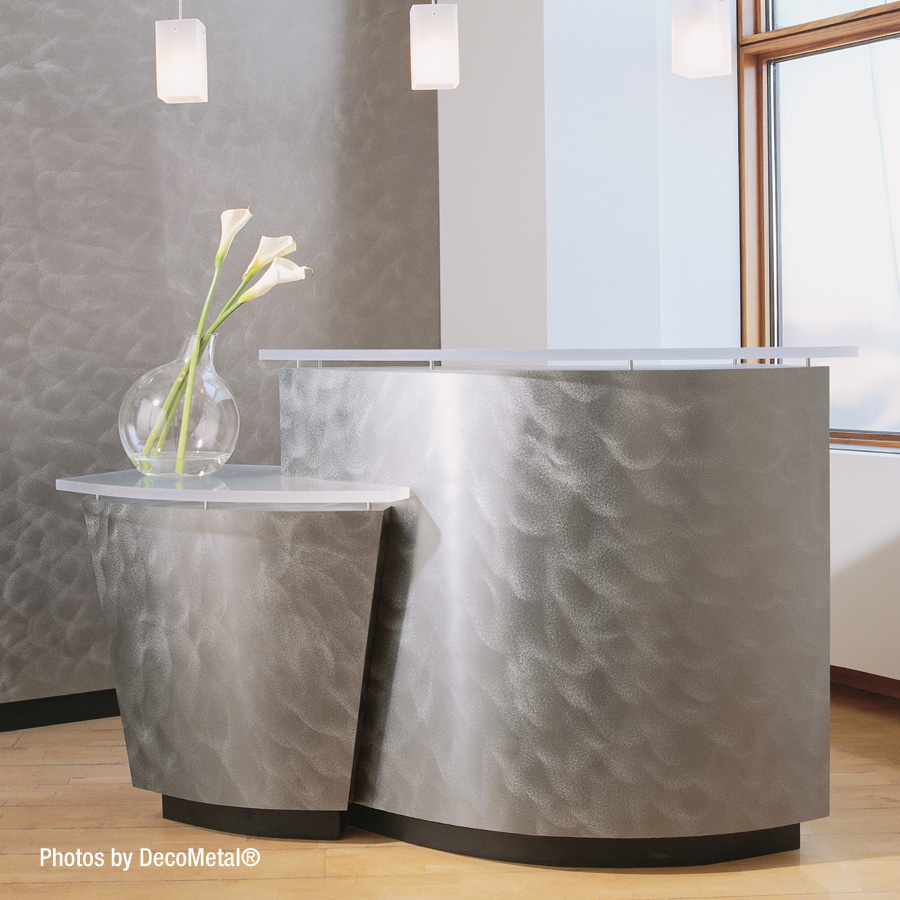

With Invectra™ router bits, kitchen fabricators, remodelers and construction workers can perform any kind of cut and trim job in aluminum laminates. Designed and tested for trimming all decorative aluminum laminates manufactured by Formica® (except Formica® #2178), Advanced Technology Inc. (ATI™), DecoMetal® and many others.

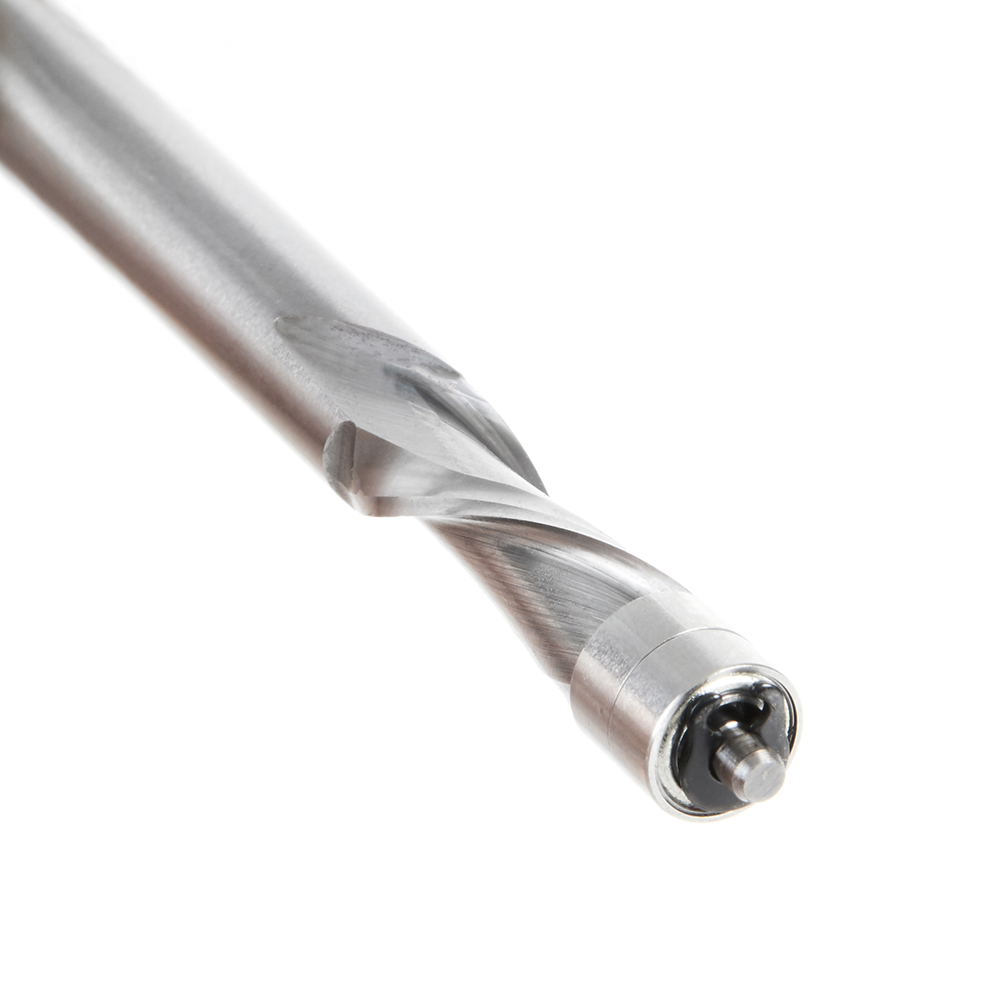

Engineered from an Amana Tool® exclusive carbide grade designed specifically for cutting both aluminum laminates and wood-based substrate materials. Each bit is fitted with a steel bearing guide that enables users to trim laminate materials flush to the substrate, allowing you to perform any metal trim job to perfection!

Not for use on stainless steel.

Maximum RPM**: 28,000.

Replacement Parts

Tool No.	Bearing(s)	Locking Ring
51430	47723 (2)	47779

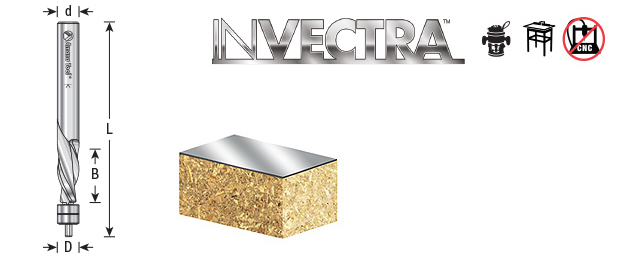

Specifications

Diameter (D)	1/4
Cutting Height (B)	5/8
Shank (d)	1/4
Overall Length (L)	2-1/2
Replacement Bearing	47723 (2pcs)
Locking Ring	47779
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	5	51430-5
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	–	51430-Z
1/2 (12.70mm)	5/8 (15.88mm)	1/2 (12.70mm)	3-1/2	–	51432
1/2 (12.70mm)	5/8 (15.88mm)	1/2 (12.70mm)	3-1/2	–	51432-Z

Weight	0.06 lbs
brands	Amana Tools

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
