Sale!

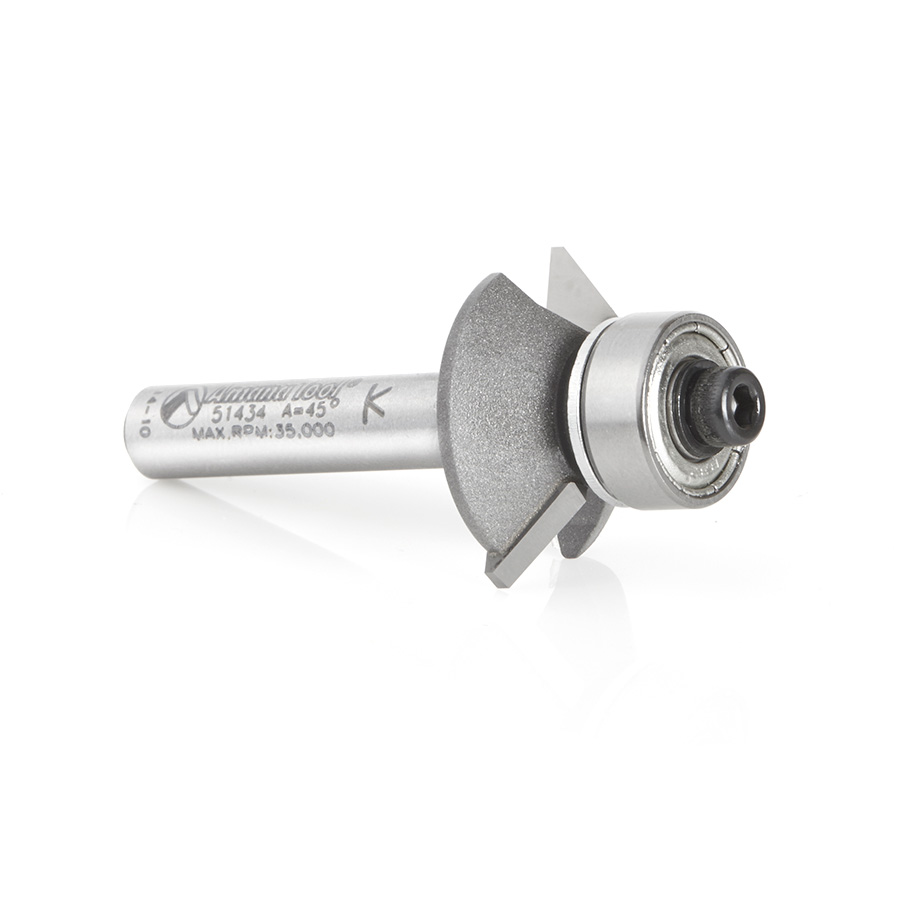

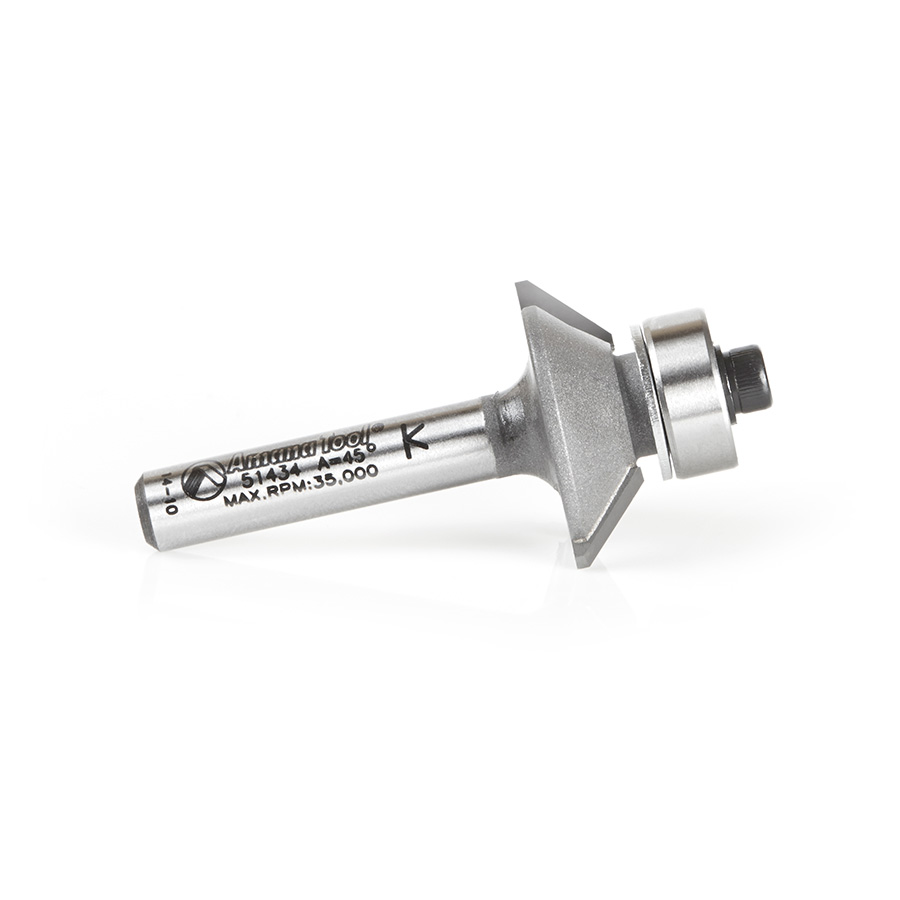

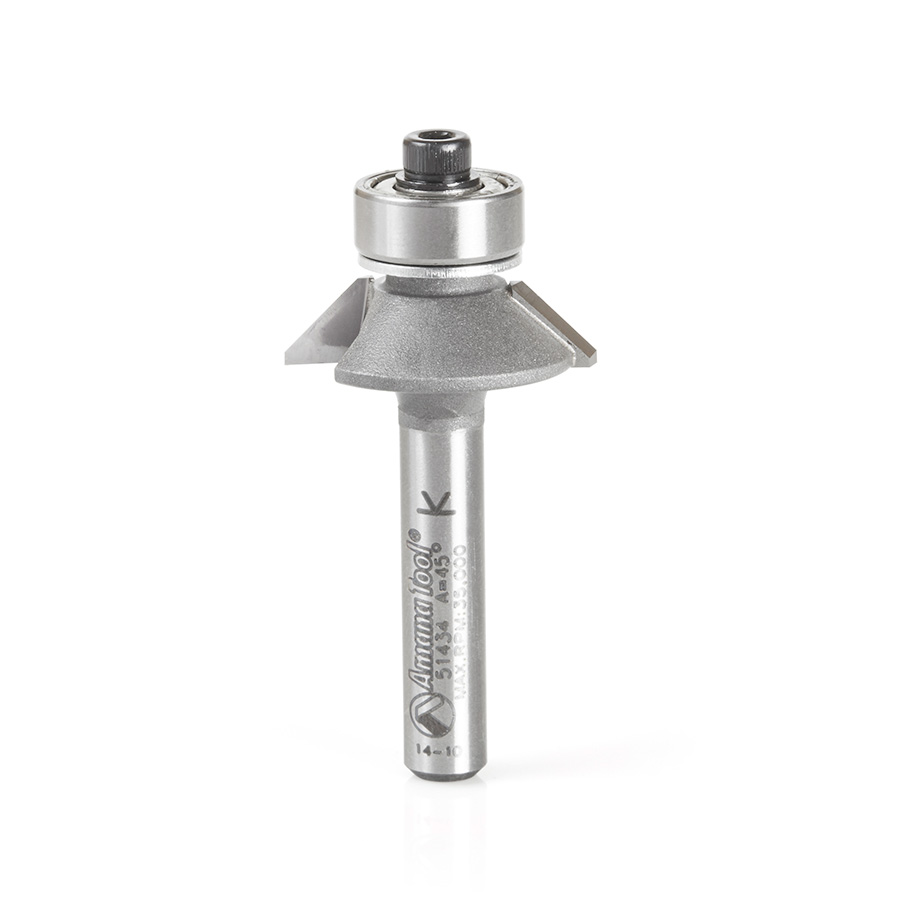

51434 Carbide Tipped Aluminum & Plastic Cutting Bevel Trim 45 Degree x 31/32 Dia x 1/4 x 1/4 Inch Shank

Amana 51434 Carbide Tipped Aluminum & Plastic Cutting Bevel Trim 45 Degree x 31/32 Dia x 1/4 x 1/4 Inch Shank

Name: Amana 51434 Carbide Tipped Aluminum &amp; Plastic Cutting Bevel Trim 45 Degree x 31/32 Dia x 1/4 x 1/4 Inch Shank
SKU: Amana 51434
Availability: InStock

Original price was: $68.35.Current price is: $51.27.

45 DEG BEVEL TRIM ALUM/PLASTIC

UPC: 738685514344 SKU: Amana 51434 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits

Item Description

This steel bodied carbide tipped bit is for bevel trimming in aluminum and plastic with a standard router. The solid construction reduces vibration for the smoothest cut possible with a two flute bit.

Note:** Start at 12,000 RPM and increase the speed to get a better surface if it is necessary.

Replacement Parts

Tool No.	Replacement Bearing	Key
51434	47706	5000

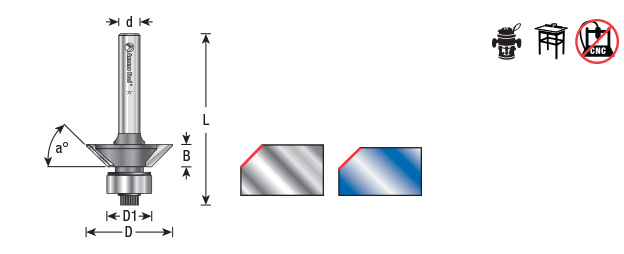

Specifications

Angle (a°)	45°
Diameter (D)	31/32
D1	1/2
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	1-15/16
Max RPM	35,000
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
45°	31/32 (24.61mm)	1/2 (12.70mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-15/16	51434-DLC

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
