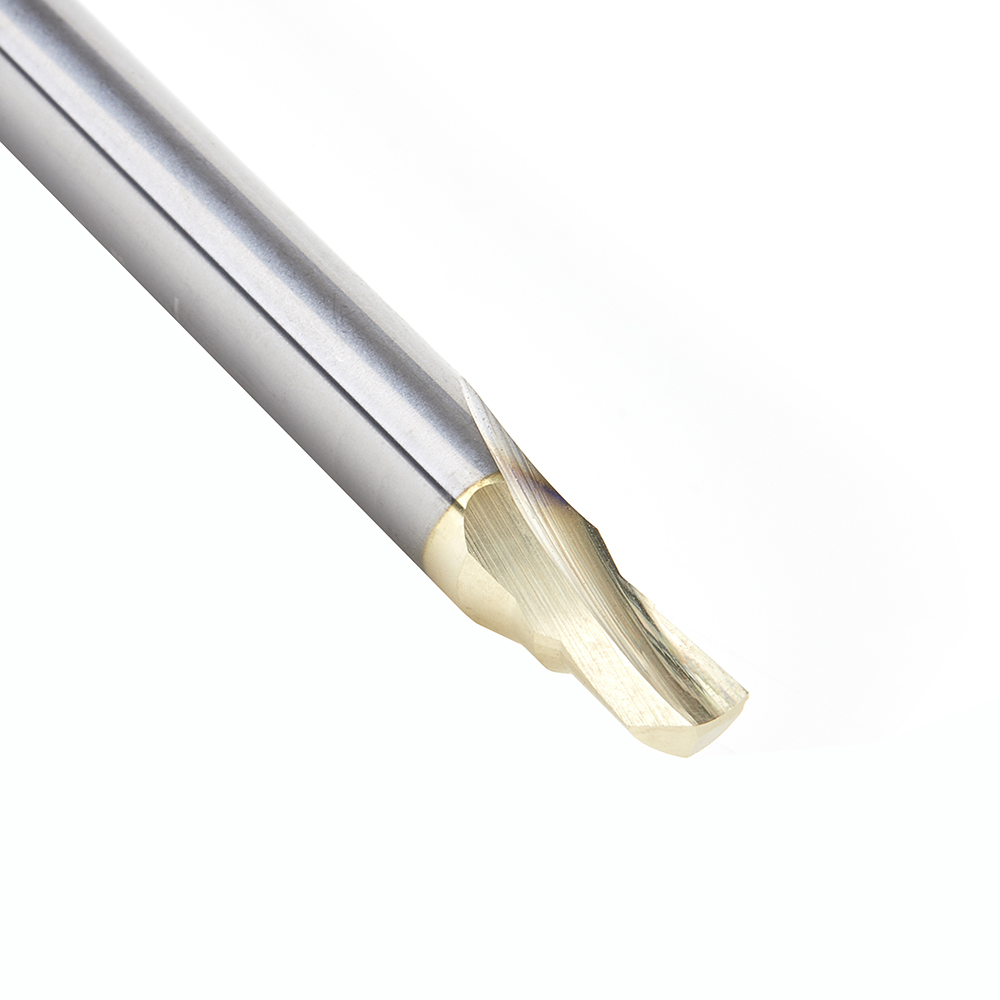

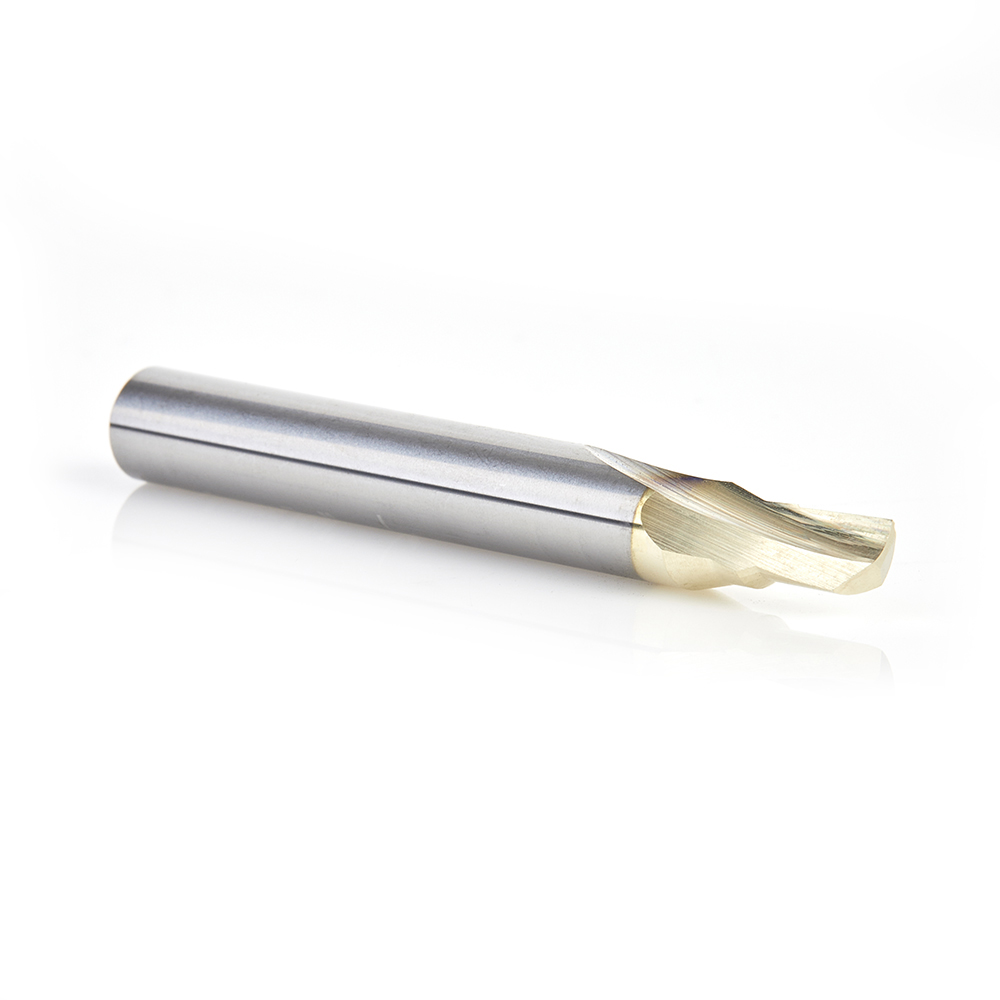

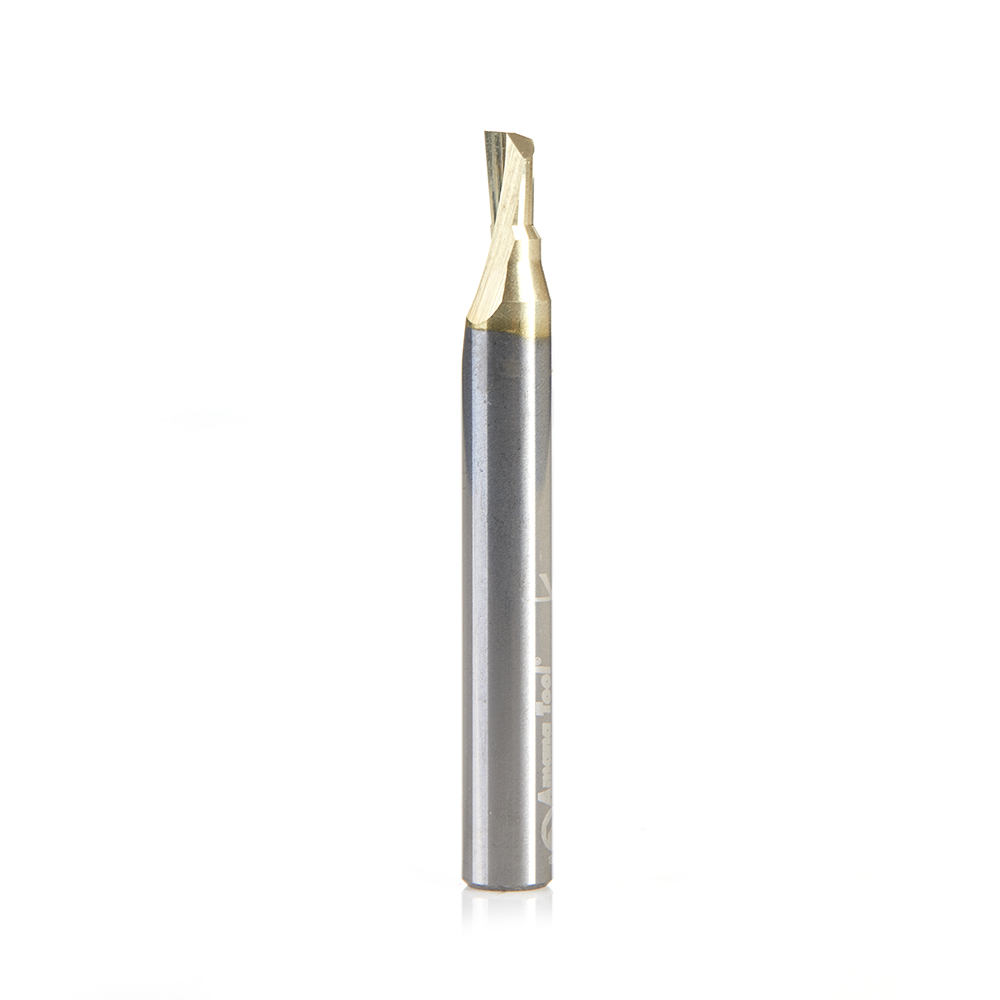

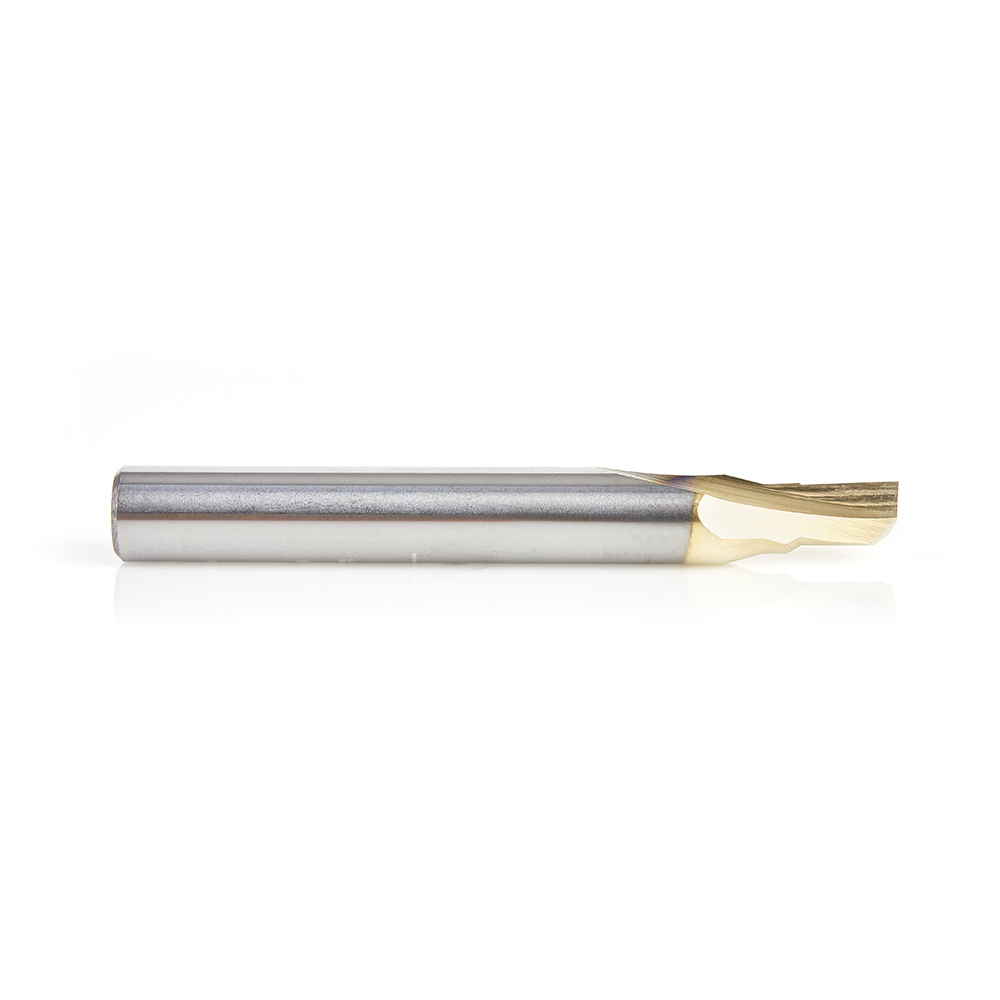

51450 Soft Aluminum Cutting 3/16 Dia x 1/4 x 1/4 Shank Single Flute Up-Cut (Up Shear) Solid Carbide ZrN Coated

Amana 51450 Soft Aluminum Cutting 3/16 Dia x 1/4 x 1/4 Shank Single Flute Up-Cut (Up Shear) Solid Carbide ZrN Coated

Name: Amana 51450 Soft Aluminum Cutting 3/16 Dia x 1/4 x 1/4 Shank Single Flute Up-Cut (Up Shear) Solid Carbide ZrN Coated
SKU: Amana 51450
Availability: InStock

Original price was: $115.60.Current price is: $86.70.

3/16″Dx1/4″SHK UP-CUT ALUMINUM

UPC: 738685514504 SKU: Amana 51450 Categories: Aluminum/Non Ferrous Metal Cutting CNC Router Bits, Amana Tool, CNC Router Bits, Solid Carbide Straight Soft Aluminum Cutting Zirconium Nitride (ZrN) Coated Router Bits

Item Description

Solid carbide single flute aluminum router bits, Zirconium Nitride (ZrN) coated, are especially designed to cut soft grades of aluminum sheet, (3003 grade) to achieve a satisfactory finished edge.

Excellent for Cutting

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum sheet (3003 grade)
Aluminum 5052
Brass
Bronze
Copper

Fomex® with Aluminum Face
Gold
Non-Ferrous Metals
Polycarbonate (Lexan™)†
Silver

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Specifications

Direction	Up-Cut
(D) Diameter	3/16
(B) Cutting Height	1/4
(d) Shank	1/4
Overall Length (L)	2
Max RPM	28,000
Recommended RPM	11,000
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Max RPM	Tool No.
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	28,000	51452

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
