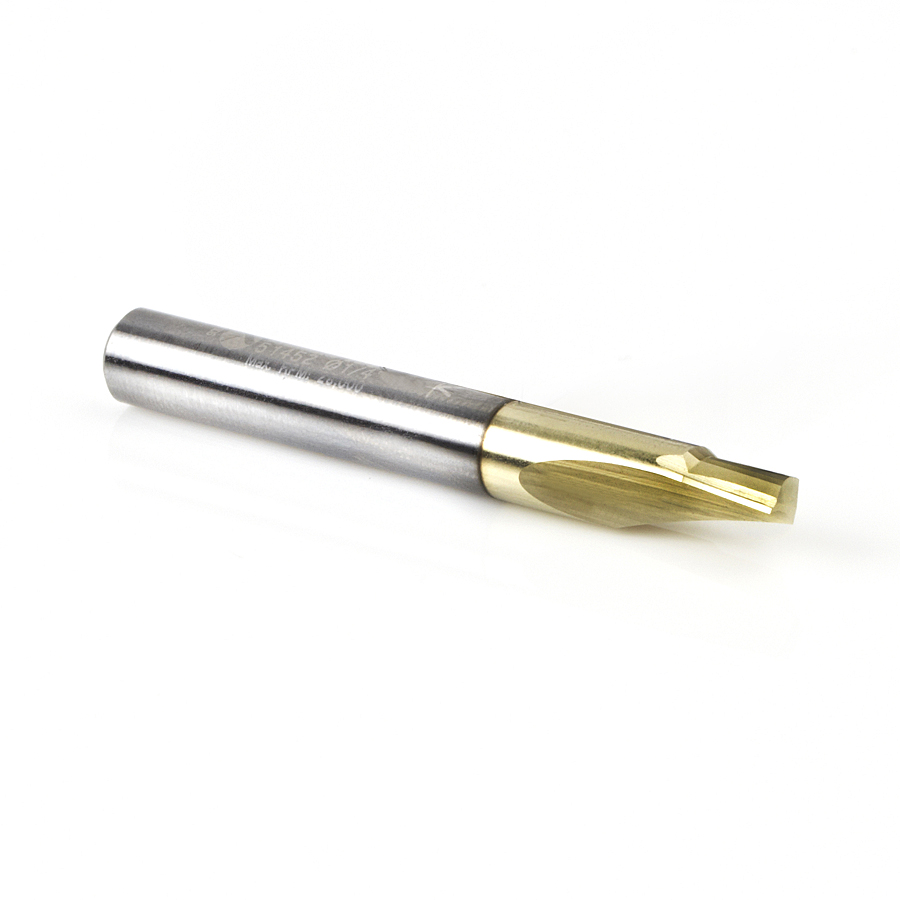

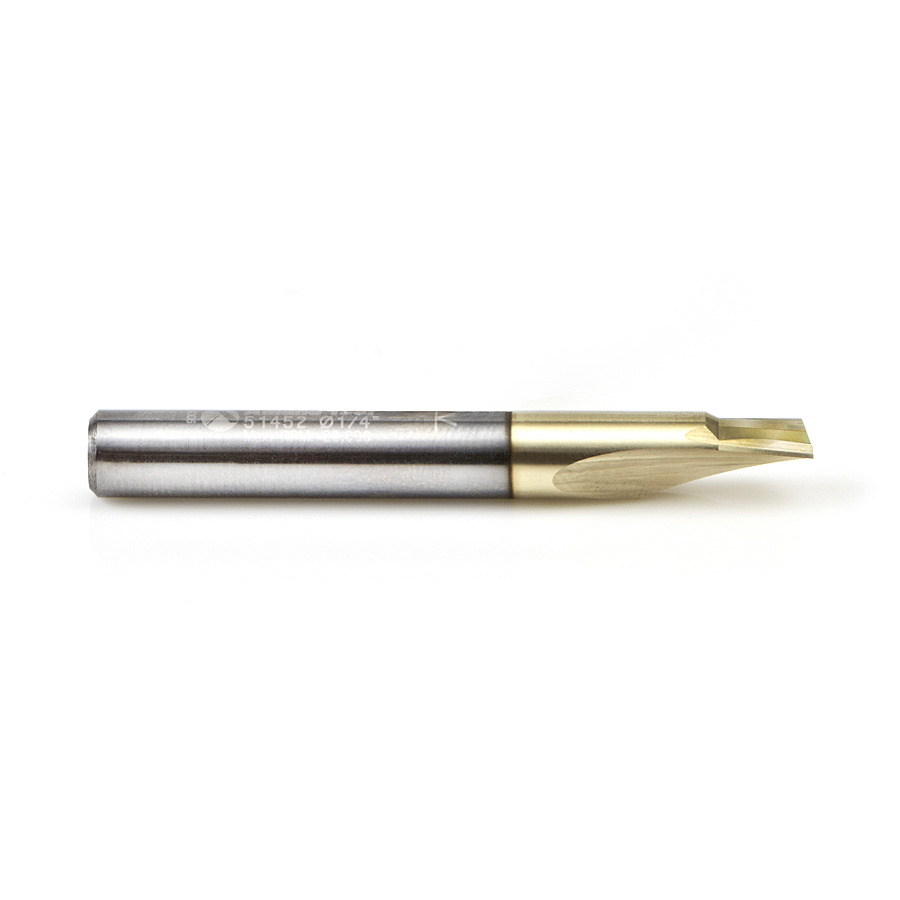

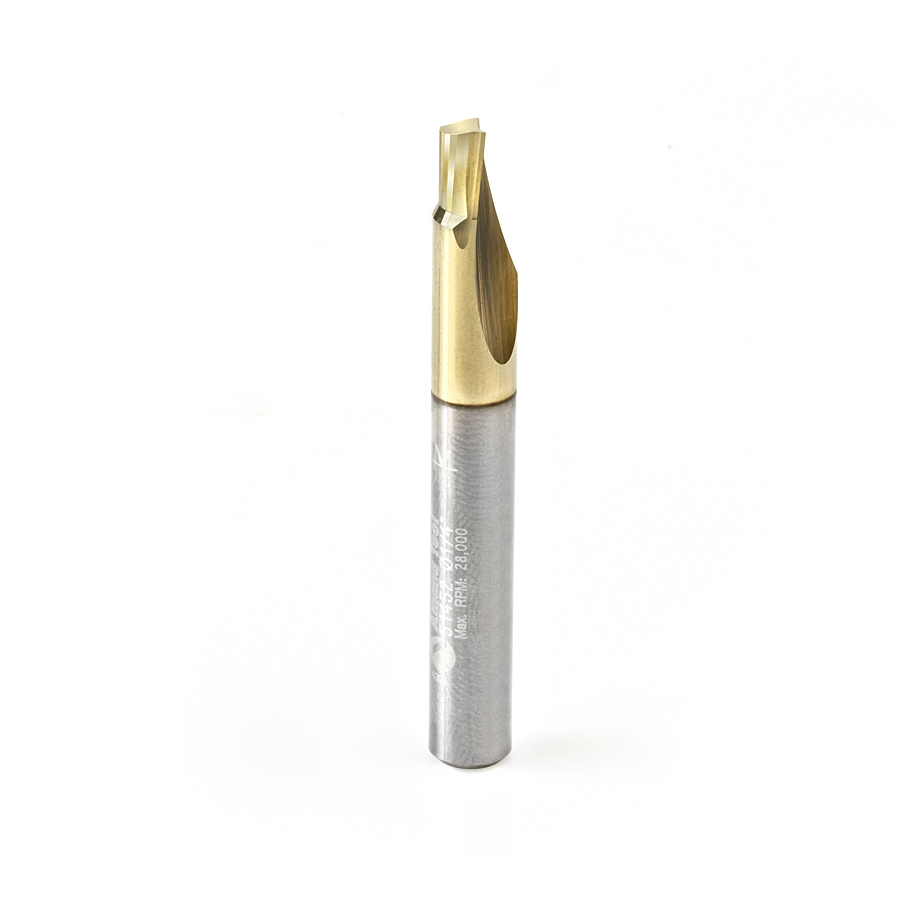

51452 Soft Aluminum Cutting 1/4 Dia x 1/4 x 1/4 Shank Single Flute Up-Cut (Up Shear) Solid Carbide ZrN Coated

Amana 51452 Soft Aluminum Cutting 1/4 Dia x 1/4 x 1/4 Shank Single Flute Up-Cut (Up Shear) Solid Carbide ZrN Coated

Original price was: $90.70.Current price is: $68.03.

1/4″Dx1/4″ SHK UP-CUT ALUMINUM

Item Description

Solid carbide single flute aluminum router bits, Zirconium Nitride (ZrN) coated, are especially designed to cut soft grades of aluminum sheet, (3003 grade) to achieve a satisfactory finished edge.

Excellent for Cutting

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum sheet (3003 grade)
Aluminum 5052
Brass
Bronze
Copper

Fomex® with Aluminum Face
Gold
Non-Ferrous Metals
Polycarbonate (Lexan™)†
Silver

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

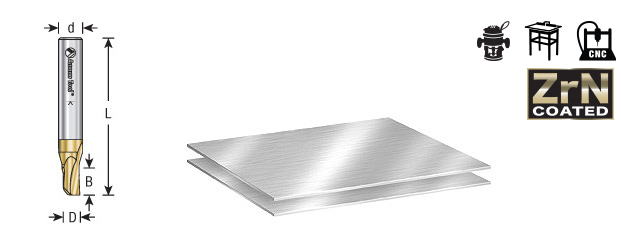

Specifications

Direction	Up-Cut
(D) Diameter	1/4
(B) Cutting Height	1/4
(d) Shank	1/4
Overall Length (L)	2
Max RPM	28,000
Recommended RPM	14,000
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Max RPM	Tool No.
3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	28,000	51450

Weight	0.06 lbs
