Sale!

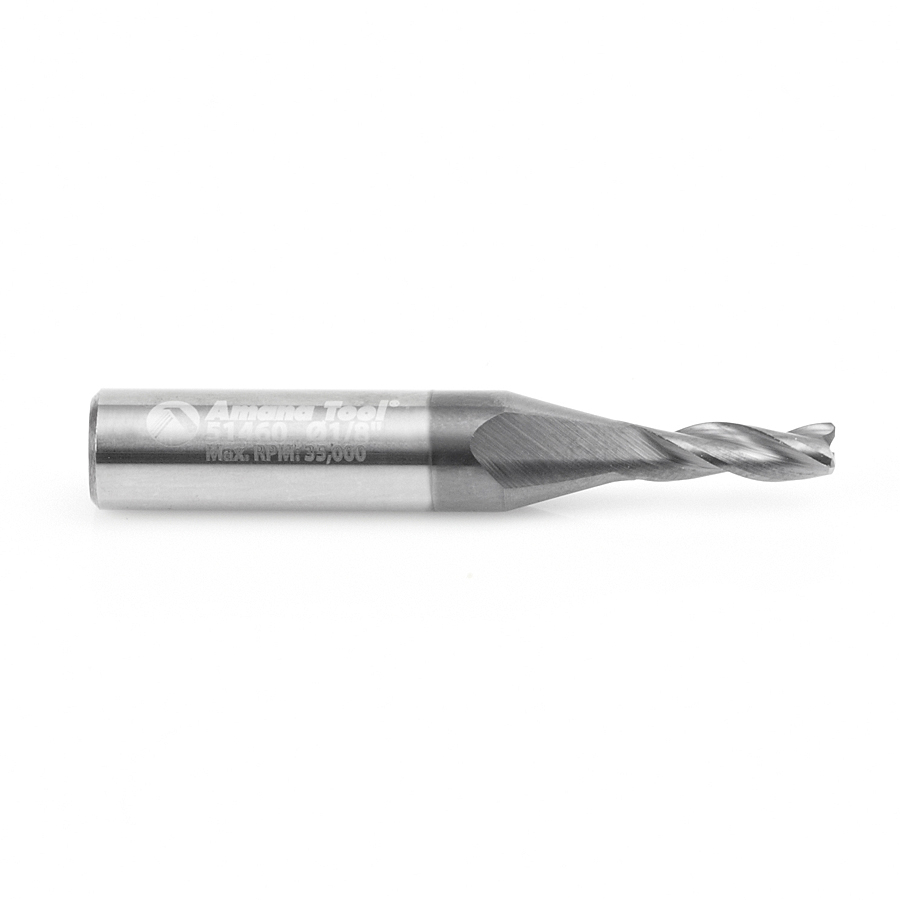

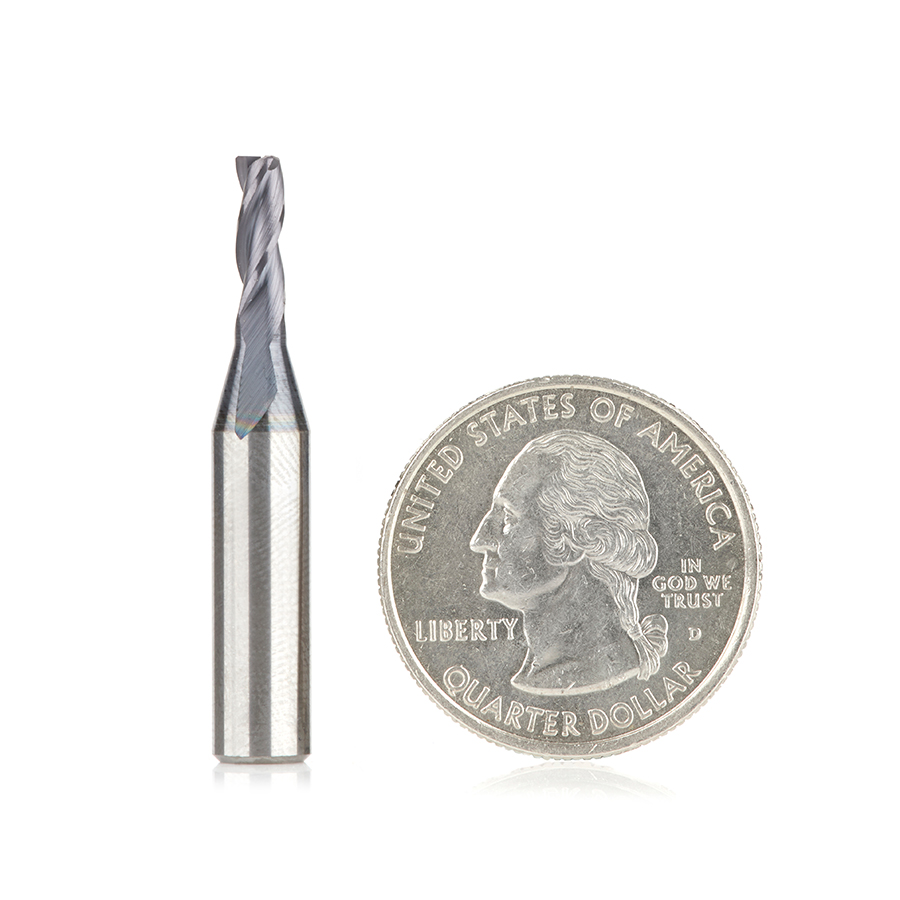

Amana 51460 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2″ Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

Name: Amana 51460 CNC Solid Carbide Spiral for Steel &amp; Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2" Long Up-Cut Router Bit / 45º Corner Chamfer End Mill
SKU: Amana 51460
Price: 45.75 USD
Availability: InStock

Original price was: $61.00.Current price is: $45.75.

Amana 51460 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

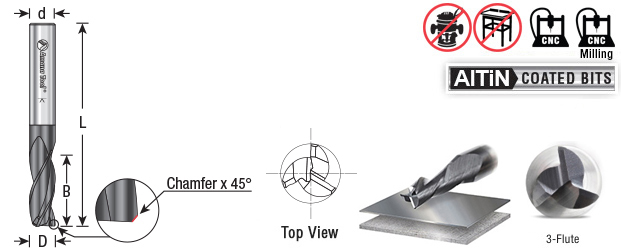

Specifications

(D) Diameter	1/8
(B) Cutting Height	3/8
(d) Shank	1/4
Overall Length (L)	1-1/2
Max RPM	28,000
Flutes	3

UPC: 738685514603 SKU: Amana 51460 Categories: CNC Router Bits, Steel Cutting

These router bits are manufactured from our exclusive ultra-fine micrograin carbide and feature a 30 degree Center Cutting Mill End with a 45 degree corner chamfer (for extra strength) up cut design and very importantly Aluminum Titanium Nitride (AlTiN) coating for superior cut quality.

Increase the ruggedness of your solid carbide end mill’s number one major wear point by the addition of corner chamfers that enhance the edge strength.

Excellent for cutting:

Stainless Steel
Steel
Cast Iron
Composites
Low Carbon Steel
Magnesium
Metal Composite Material (MCM)
Plastics
Super Alloys
Titanium (up to 40HRc Hardness)

These bits are perfect for the signmaking industry. Our special carbide grade combined with the AlTiN coating gives amazing performance. The unique corner chamfer gives the bits great strength.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.

Vectric and Fusion 360 compatible tool files for 51460 available for download, click here.

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
