Sale!

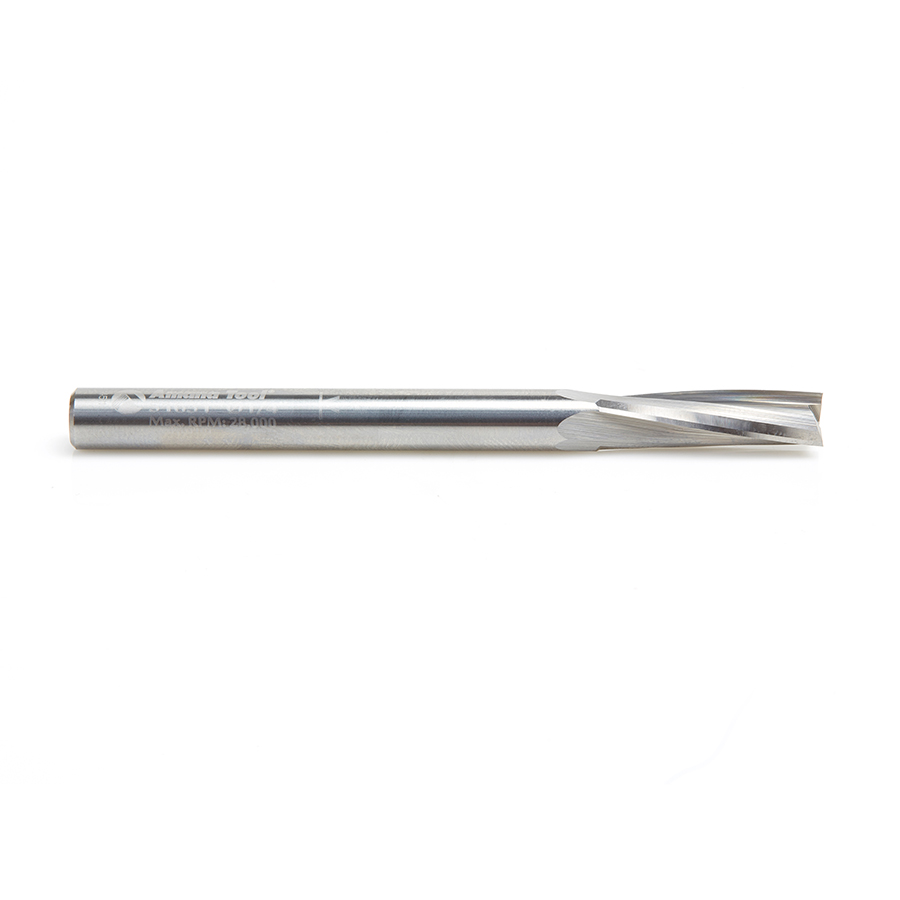

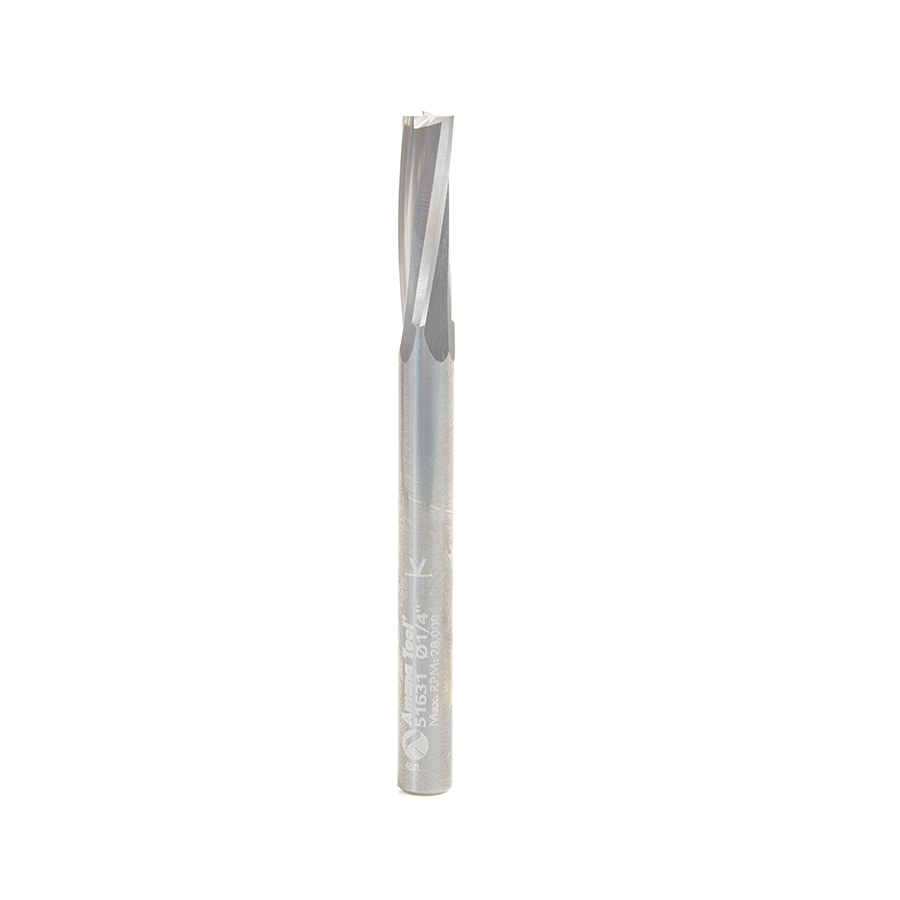

51631 Solid Carbide Spiral Finisher 1/4 Dia x 7/8 x 1/4 Shank Up-Cut Router Bit

Amana 51631 Solid Carbide Spiral Finisher 1/4 Dia x 7/8 x 1/4 Shank Up-Cut Router Bit

Name: Amana 51631 Solid Carbide Spiral Finisher 1/4 Dia x 7/8 x 1/4 Shank Up-Cut Router Bit
SKU: Amana 51631
Availability: InStock

Original price was: $75.00.Current price is: $56.25.

S.C 3FL 1/4 DIA UP-CUT SPIRAL

UPC: 738685516317 SKU: Amana 51631 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Solid Carbide Low Helix Finisher

Item Description

Those seeking improved surface finishes in either plastics or hardwoods do well to move up to Amana Tool’s 3 flute Low Helix Finishers. The unbeatable combination of three keen edges and a gentle 10º helix, equates to a stiffer tool that minimizes both part movement and edge burring, leaving a smooth finish.

Excellent for Cutting:

Plastic
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Corian
Composite Plastic
Coroplast®*
Delrin®
Epoxy
Expanded PVC
Foam
Fomex®
Hardwood
High Impact Polystyrene (HIPS)
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)

LubX®
Perspex® Cast Acrylic Sheet
Poly (methyl methacrylate) (PMMA)
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Precision Board
Sign Foam
Softwood
Solid Surface
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Thermoplastic Polyolefin (TPO)
Urethane

A soft plastic cardboard made with super soft super flexible PVC.

Specifications

Direction	Up-Cut
(D) Diameter	1/4
(B) Cutting Height	7/8
(d) Shank	1/4
Overall Length (L)	3
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
6mm	9.5mm	6mm	75mm	3	Down-Cut	51736
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	3 (76.20mm)	3	Up-Cut	51630
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	3 (76.20mm)	3	Down-Cut	51730
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	3 (76.20mm)	3	Down-Cut	51731
3/8 (9.53mm)	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	3	Up-Cut	51632
3/8 (9.53mm)	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	3	Down-Cut	51732
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3-1/2	3	Up-Cut	51637
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3-1/2	3	Down-Cut	51737
3/4 (19.05mm)	3-1/8	3/4 (19.05mm)	6 (152.40mm)	3	Up-Cut	51628

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
