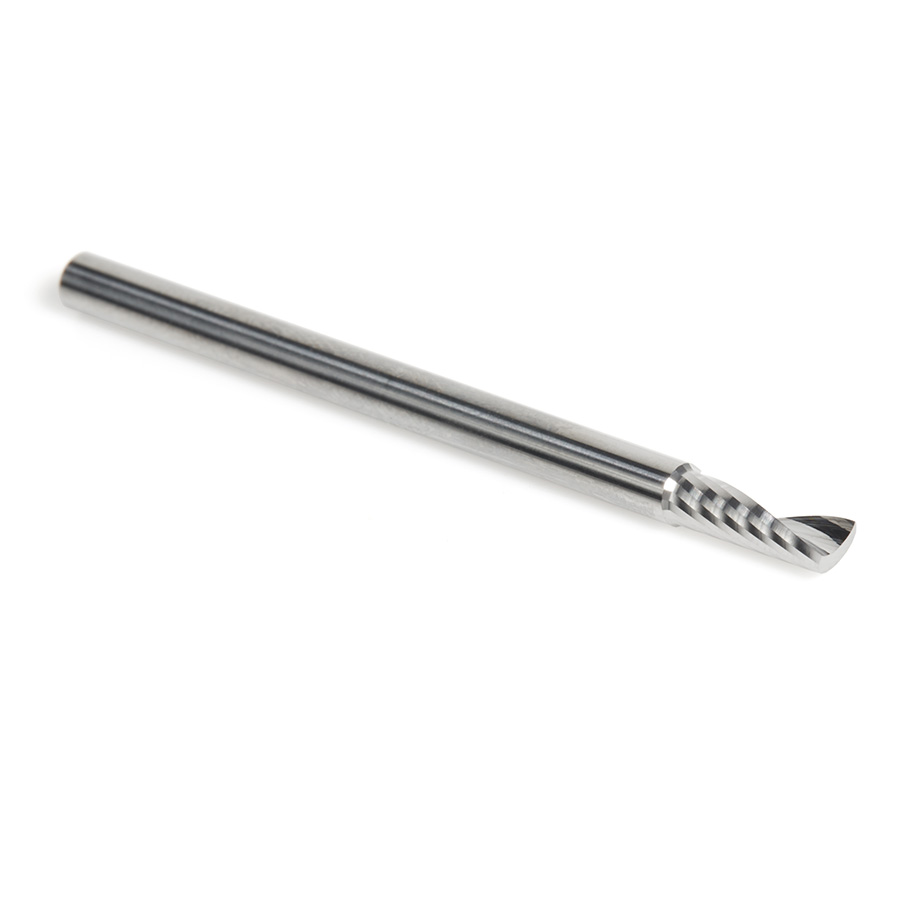

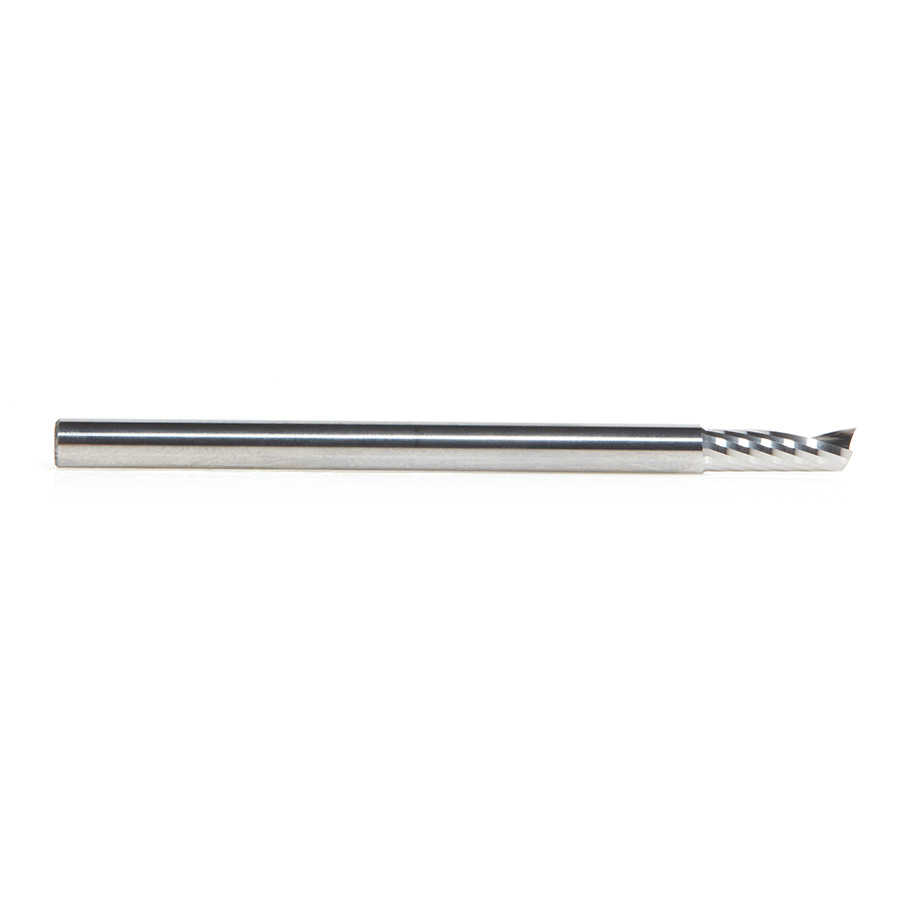

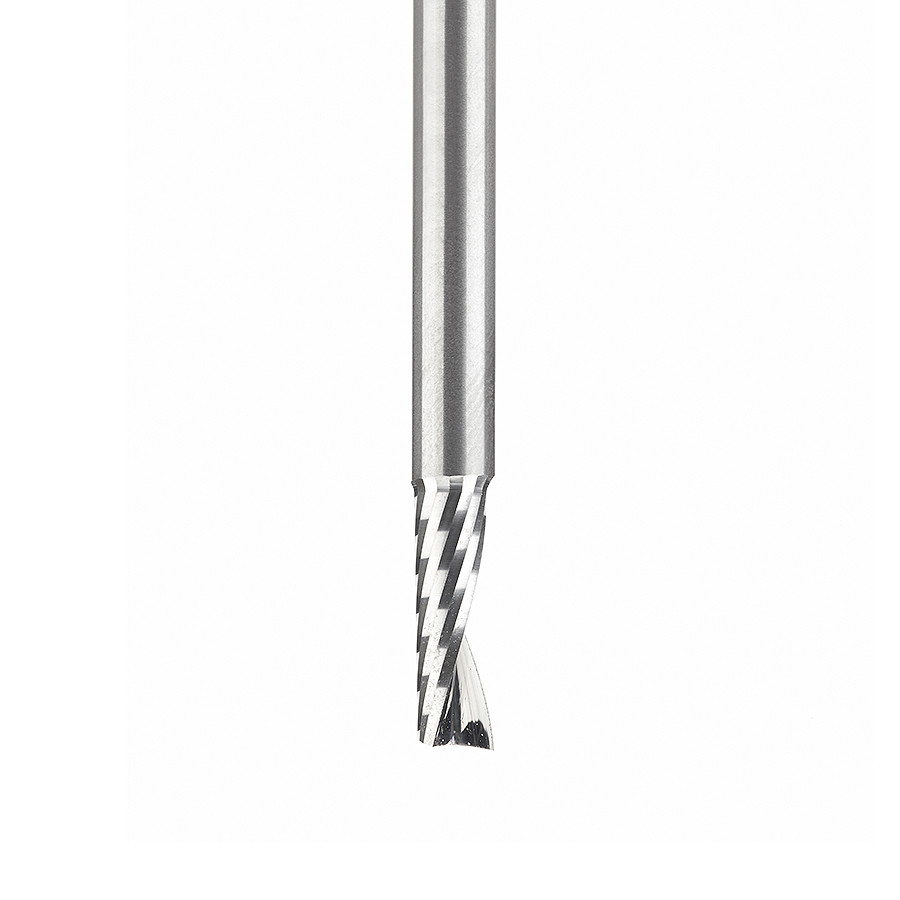

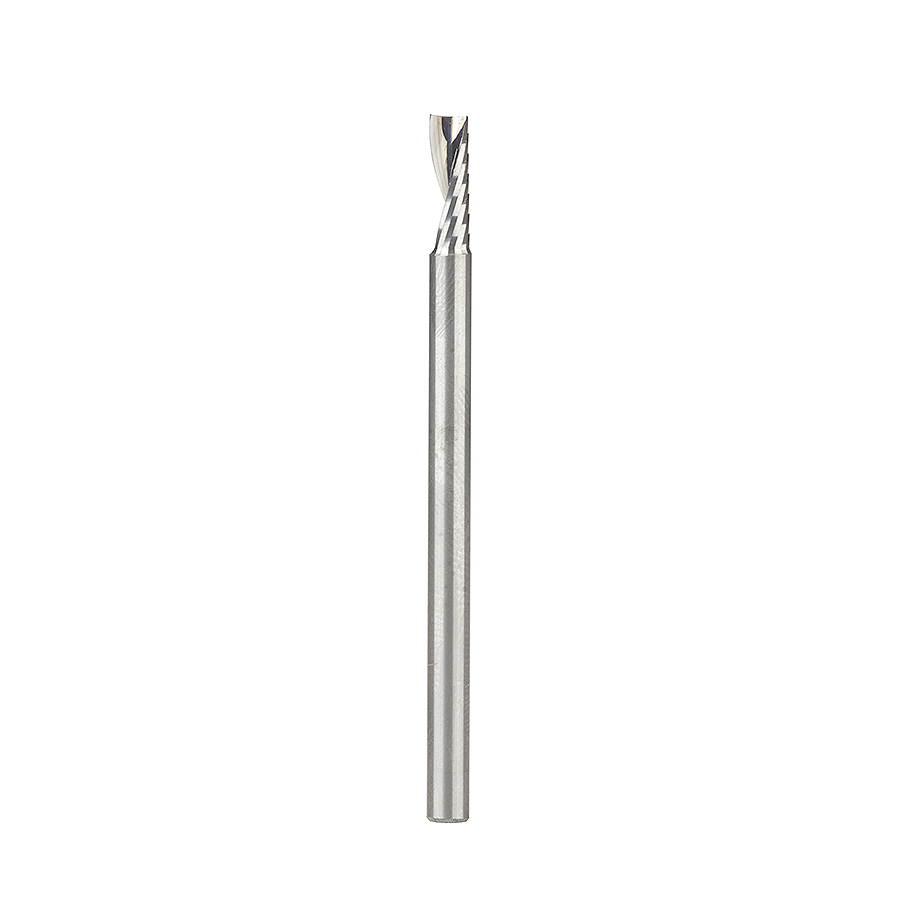

Amana 51636 Metric Solid Carbide CNC Spiral ‘O’ Single Flute, Plastic Cutting 4mm Dia x 12mm x 4mm Shank x 64mm Long Up-Cut Router Bit

Name: Amana 51636 Metric Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 4mm Dia x 12mm x 4mm Shank x 64mm Long Up-Cut Router Bit
SKU: Amana 51636
Availability: InStock

Original price was: $63.75.Current price is: $47.82.

4mmDx4mm SHK SPIRAL O PLASTIC

UPC: 738685516362 SKU: Amana 51636 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Solid Carbide Spiral 'O' Flute Plastic Cutting CNC Router Bits

Item Description

To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

Excellent for cutting:

Plastic/Acrylic
Acetal and Nylon
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Aluminum Composite Material (ACM)
Alupanel®
Corian
Coroplast®**
Corrugated Plastics* such as Correx Boards and Polypropylene
Crosslinked Polyethylene (XPE, PEX, XLPE)
Delrin
Dibond®
Epoxy
Expanded PVC
Extruded Acrylic
Foam Board
Fomex®
Gatorfoam®***
Hard Plastic

High Density Polyethylene (HDPE)
High Density Urethane (HDU Board)
High Impact Polystyrene (HIPS)
High Impact Polystyrene (HIPS) for digital printing
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
King ColorCore® The Multi-Color Engravable Polymer Sheet.
Laminate

Low Density Polyethylene (LDPE)
LubX®
Lucite®
Mechanical/Engineered Plastics
Perspex® Cast Acrylic Sheet
Plexiglas®
Poly (methyl methacrylate) (PMMA)
Polycarbonate (Lexan™)†
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Polystyrene (PS)
PVC
Sign Foam
Sintra PVC
Solid Surface
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Teflon®
Thermoplastic Polyolefin (TPO)
Trespa® Meteon®****
Ultra High Molecular Weight Polyethylene (UHMWPE)
Urethane
Vinyl Flooring
Wood

Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

A soft plastic cardboard made with super soft super flexible PVC.

Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

Decorative high-pressure compact laminate (HPL) with an integral surface.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of Mirror-Finish:

Razor sharp cutting edge
Effortless chip removal
Helps prevent chip re-welding
Extends tool life

Exceptional cut quality
Dissipates heat well and

prevents melting

Maximum RPM:**35,000

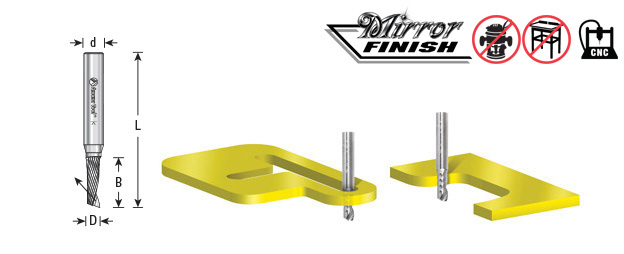

Specifications

Direction	Up-Cut
(D) Diameter	4mm
(B) Cutting Height	12mm
(d) Shank	4mm
Overall Length (L)	64mm
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Description	Tool No.
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51415
1/16 (1.59mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51441
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Down-Cut	–	51515
2mm	6mm	3mm	50mm	1	Up-Cut	–	51634
2mm	8mm	2mm	50mm	1	Up-Cut	–	57310
2mm	8mm	6mm	64mm	1	Up-Cut	–	57311
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51647
3mm	12mm	3mm	64mm	1	Up-Cut	–	51491
3mm	12mm	6mm	50mm	1	Down-Cut	–	51526
3mm	8mm	3mm	50mm	1	Up-Cut	–	57314
3mm	8mm	6mm	64mm	1	Up-Cut	–	57315
3mm	12mm	6mm	64mm	1	Up-Cut	–	57316
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51410
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	5	51410-5
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51411
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51411-5
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51416
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51416-5
1/8 (3.18mm)	3/4 (19.05mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51437
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51443
1/8 (3.18mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51445
1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51446-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Down-Cut	–	51510
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51511
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	5	51511-5
1/8 (3.18mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-1/2	1	Down-Cut	–	51523
5/32 (3.97mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51447
5/32 (3.97mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51516
4mm	20mm	4mm	64mm	1	Up-Cut	–	57318
4mm	20mm	6mm	64mm	1	Up-Cut	–	57319
4mm	30mm	4mm	64mm	1	Up-Cut	–	57320
4mm	20mm	6mm	64mm	1	Down-Cut	–	57331
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51412
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51417
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51417-5
3/16 (4.76mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51418
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51423
3/16 (4.76mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51442
3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51448
3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51449
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	Down-Cut	–	51512
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51517
3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	2 (50.80mm)	1	Down-Cut	–	51518
5mm	16mm	6mm	64mm	1	Up-Cut	–	57321
5mm	30mm	5mm	64mm	1	Up-Cut	–	57322
7/32 (5.56mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51424
6mm	20mm	6mm	64mm	1	Up-Cut	–	51495
6mm	30mm	6mm	75mm	1	Up-Cut	–	51497
6mm	38mm	6mm	75mm	1	Up-Cut	–	51499
6mm	16mm	6mm	63mm	1	Up-Cut	–	51638
6mm	12mm	6mm	64mm	1	Up-Cut	–	57324
6mm	30mm	6mm	76mm	1	Down-Cut	–	57333
1/4 (6.35mm)	1-3/8	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51403
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51404
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51404-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51405
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51405-5
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51407
1/4 (6.35mm)	1-1/16	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51409
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51413
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51419
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51421
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51425
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51444
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51504
1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2 (50.80mm)	1	Down-Cut	5	51504-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1	Down-Cut	–	51505
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	–	51507
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	5	51507-5
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	–	51513
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	5	51513-5
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51519
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Down-Cut	–	51524
1/4 (6.35mm)	2-1/4	1/4 (6.35mm)	3-3/4	1	Up-Cut	–	51646
8mm	25mm	8mm	64mm	1	Up-Cut	–	57325
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51414
3/8 (9.53mm)	3/4 (19.05mm)	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51426
3/8 (9.53mm)	1-5/8	3/8 (9.53mm)	3-1/2	1	Up-Cut	–	51427
3/8 (9.53mm)	5/8 (15.88mm)	3/8 (9.53mm)	2-1/2	1	Up-Cut	–	51429
3/8 (9.53mm)	3/4 (19.05mm)	3/8 (9.53mm)	3 (76.20mm)	1	Down-Cut	–	51509
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	1	Down-Cut	–	51514
10mm	30mm	10mm	76mm	1	Up-Cut	–	57327
10mm	35mm	10mm	76mm	—-	Up-Cut	–	57328
12mm	38mm	12mm	76mm	1	Up-Cut	–	57329
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51428
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	1	Down-Cut	–	51529
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	1	Up-Cut	–	51645
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	1	Up-Cut	–	51648
–	–	1/4 (6.35mm)	–	—-	–	–	AMS-165
–	–	1/4 (6.35mm)	–	—-	–	–	AMS-167

Weight	0.04 lbs
